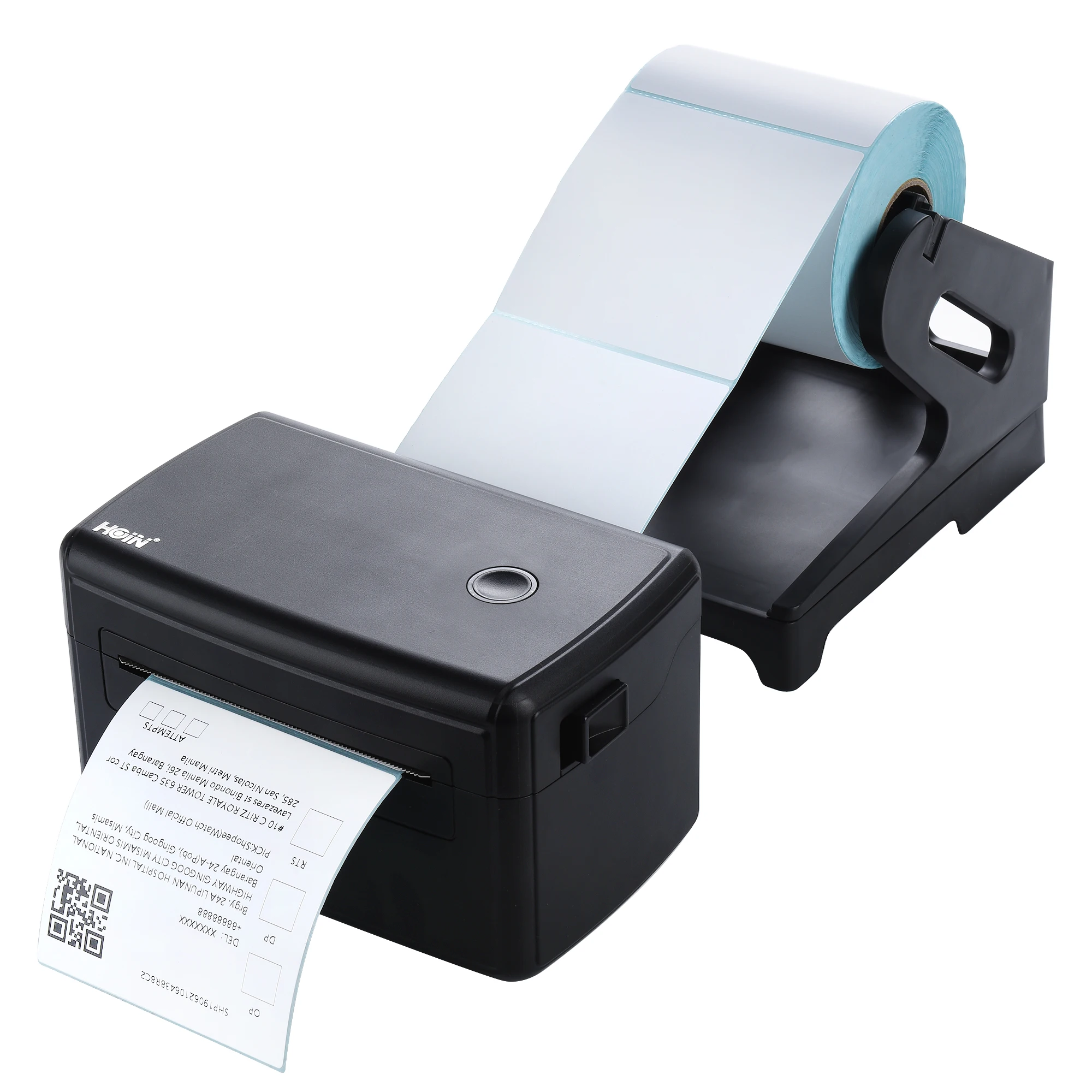

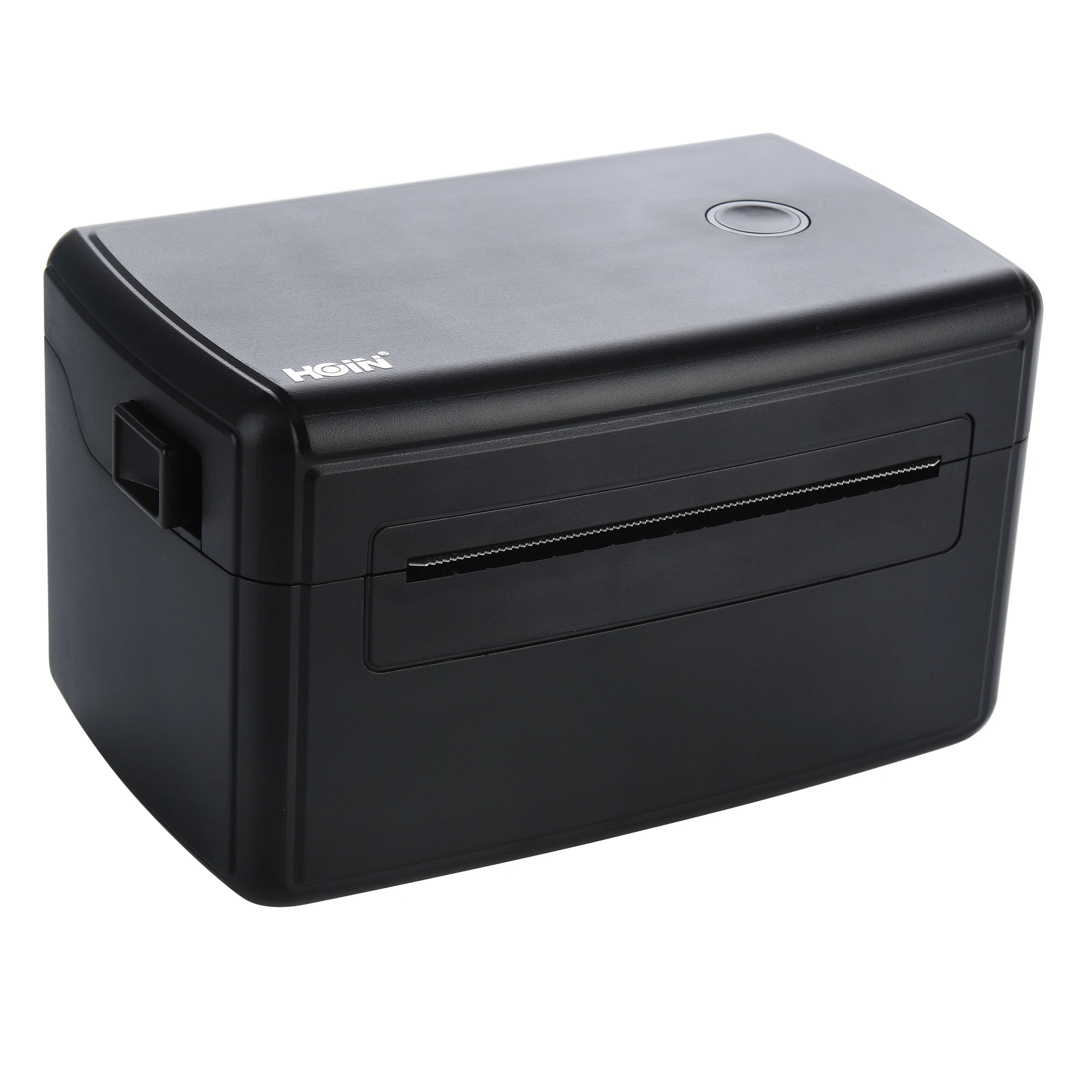

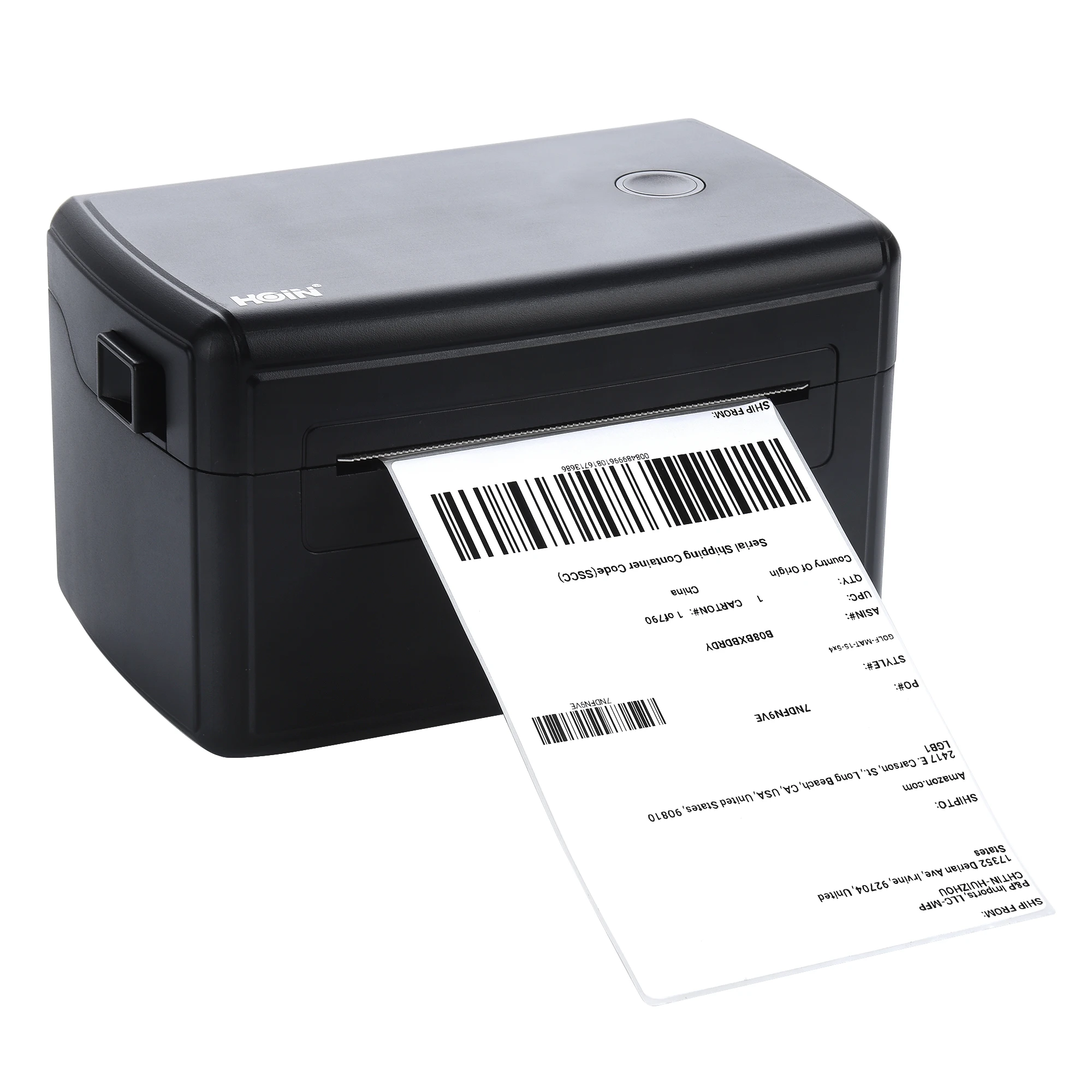

4x6 Direct Thermal Label barcode Printer label printer roll Inkless Printing for Shipping Bills, Stickers, Images, Tags

Items

Parameters/Descriptions

Control Panel

Power switch,Feed button,LED indicator (Red blue LED light)

Sensor

Gap sensor

Black mark sensor (removable in full print format)

Print head up sensor

Temperature Sensor (THP)

Label

Outside Paper Diameter

8 inch roll-type thermal label paper or foldable thermal label paper

Paper Width

25.4 ~ 115 mm (1.0inch ~ 4.5inch )

Label Type

Continuous, gap, black mark, fan-fold, punched hole,label paper, tag paper card

Paper Thickness

0.05mm-0.26mm

Paper Type

Stack or Roll type paper

Open

Shell way

Print Method

Direct thermal

Print Location

Print centered

Resolution

203 dpi(Speed=6.0inch)

Print Density

1-15 density Level

Speed

6.0inch/Sec

Min.height

25mm

Max Media Size

118mm

Max Printing Size

108mm (4.25inch)

Max Height

1770mm

Memory

8MB Flash Menmory/8MB SDRAM

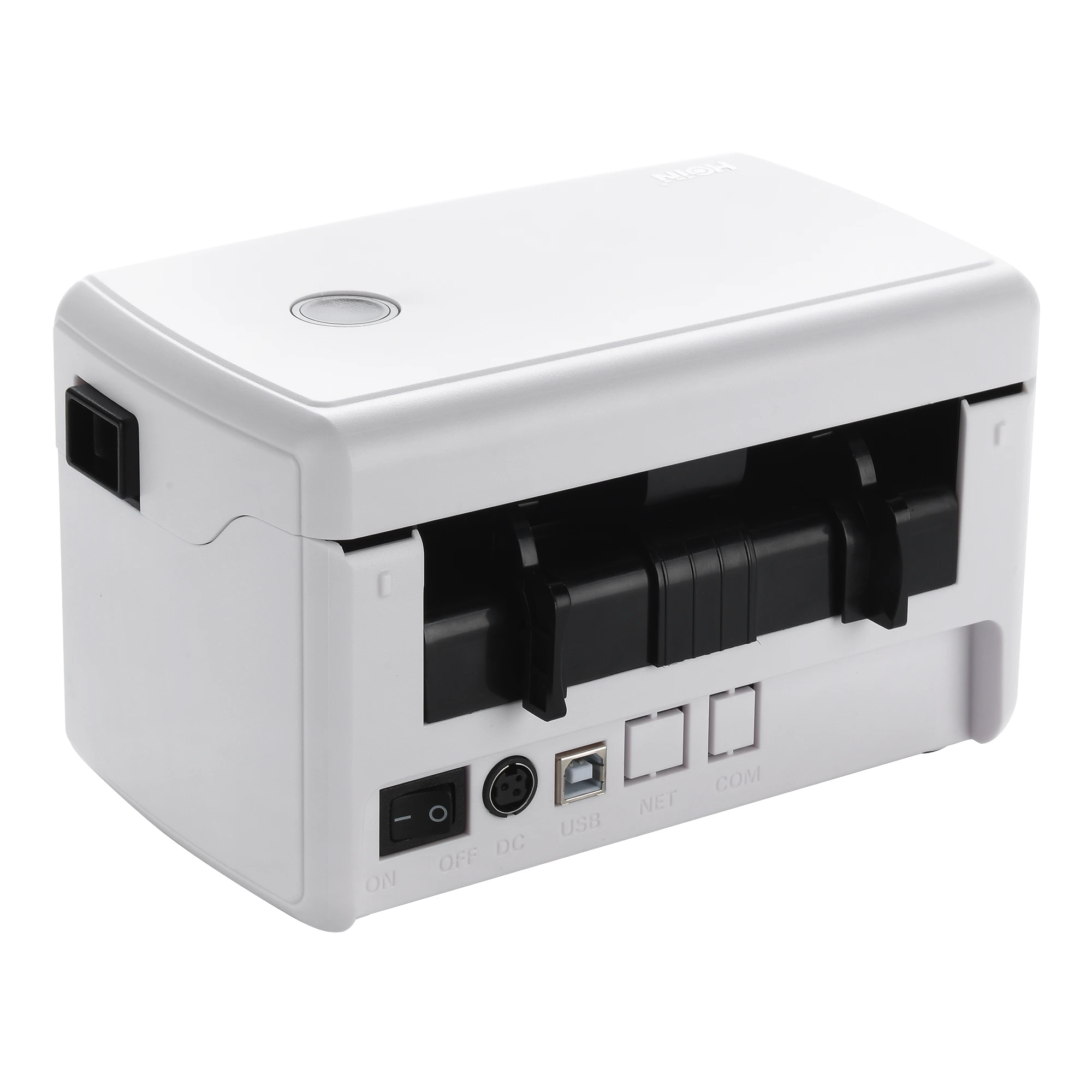

Interface

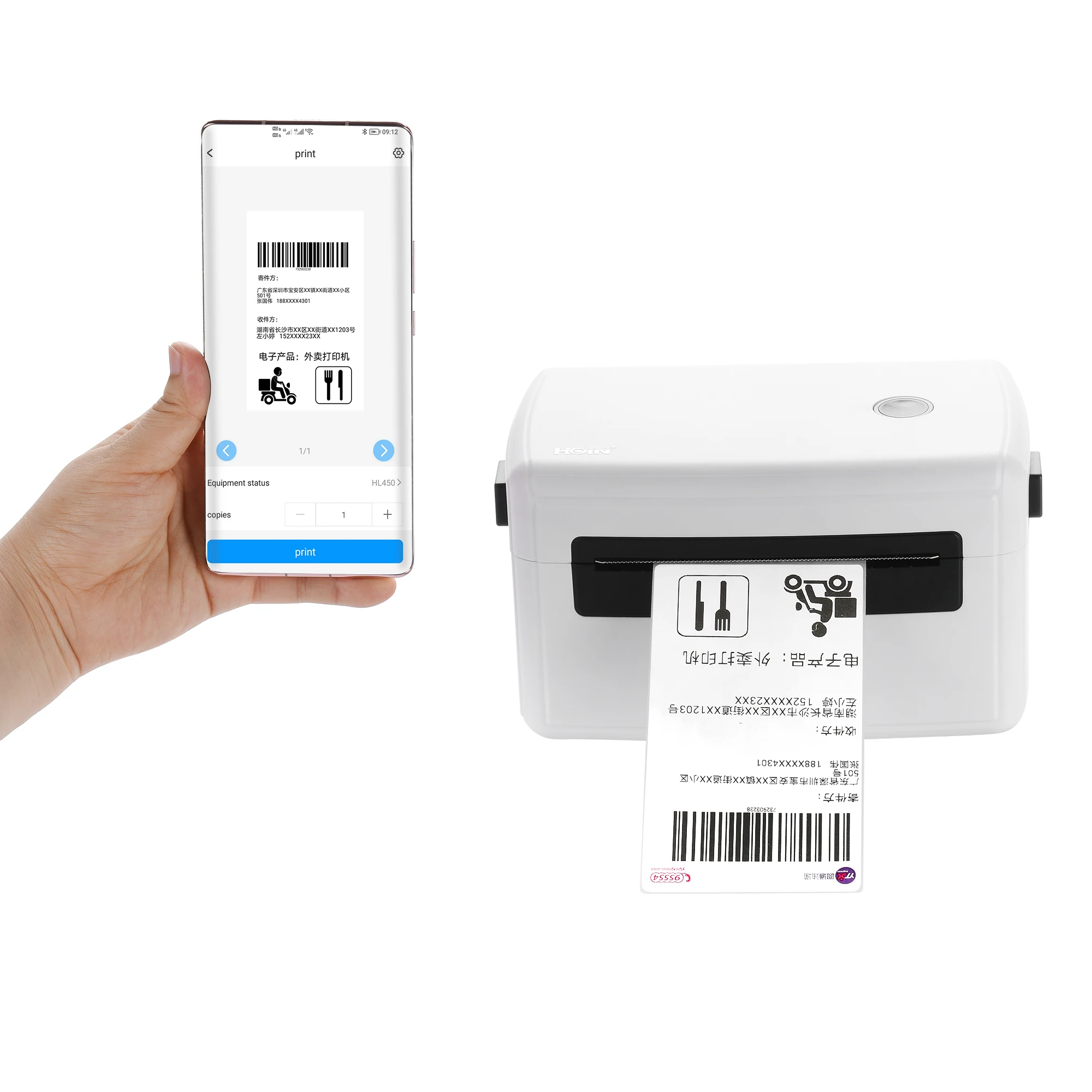

USB2.0 (Standard USB-B)/Blue ooth(Optional)/WIFI(Optional)

Built-in font library

Eight bitmap fonts/Windows fonts available for download via software

1D Barcode

1D barcode:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11

2D BarCode

2D barcode:PDF-417, Maxicode, DataMatrix, QR code, Aztec

Rotation

0°,90°,180°,270°

Emulaion

TSPL2,EPL,ZPL,DPL

Driver

(1)Windows:XP,7,8,10 (32-bit and 64-bit systems included);

(2)Mac:v10.6.8,v10.7.x,v10.8.x,v10.9.x,10.10.x,10.11.x etc;

(3)Linux:centos 7.0 X64,ubantu 12.04 X86 and X64 version;

Paper Diameter

8.0 inch

TPH Working Life

Over 100,000,000 pulses or over 50 km

Gear Working life

More than 200 kilometers

Power Adapor

Input:AC  110V~260V/50Hz/60Hz

Output:DC  24V—2.5A

Using Environment

working altitude

Only suitable for safe use in areas below 2000m above sea level

working environment

5℃~50℃(non-condensing)

storage environment

-20℃~60℃(non-condensing)

Working humidity

20%~85% RH(non-condensing)

Storage humidity

5%~95% RH(non-condensing)
