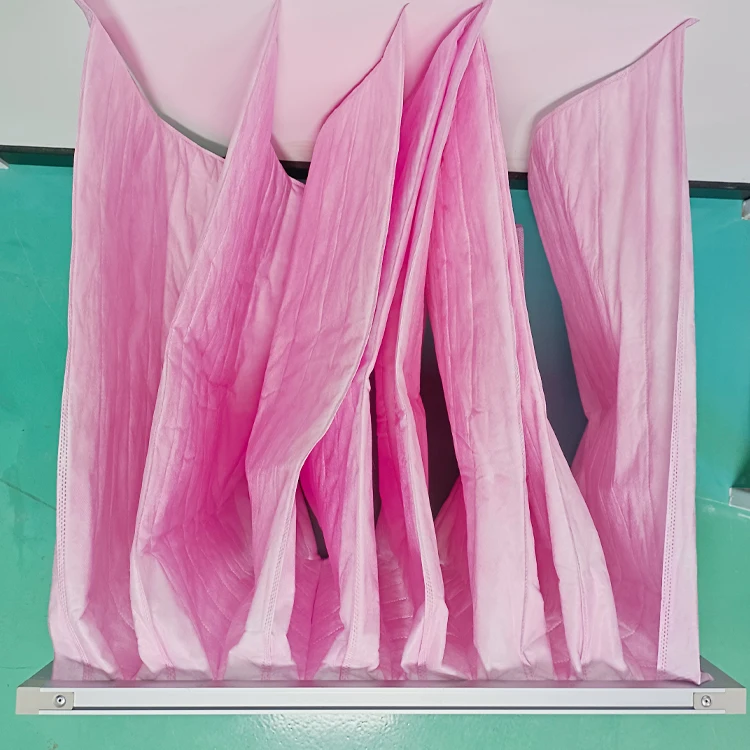

Medium Efficiency F7 Synthetic Fiber Pocket industrial Filter Bag Filter for Air Ventilation System
- Category: >>>
- Supplier: Shanghai Junkai Environmental Engineering Co. Ltd.
Share on (1600513818799):
Product Overview
Description
Customized Medium Efficiency F7 Synthetic Fiber Pocket industrial Filter Bag Filter removal dust for Air Ventilation System
About us
1)We are a professional manufacturer of air filters with ISO9001:2008
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM
2)In case specifications or structure changes,subject to company's latest data.
3)We offer OEM/ODM
Features
Frame: galvanized frame, aluminum frame, or stainless steel frame , frame can choose 21mm, 25mm, 46mm
Media: high performance synthetic filter,, High dust- holding capacity , low initial resistance. Pockets are made from leak free
ultra sonic machine.
Efficiency: (EN779:2002)G4, F5, F6, F7, F8, F9
(ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13, MERV14,MERV15
Final pressure is recommended:4500Pa
Resistant temperature: 70 °C
Flame retardant level: DIN 53438 F1
Media: high performance synthetic filter,, High dust- holding capacity , low initial resistance. Pockets are made from leak free
ultra sonic machine.
Efficiency: (EN779:2002)G4, F5, F6, F7, F8, F9
(ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13, MERV14,MERV15
Final pressure is recommended:4500Pa
Resistant temperature: 70 °C
Flame retardant level: DIN 53438 F1
application
1.It is used in the air purifying system of electronic, bio-pharmaceutical, mechanical instrument, petrochemical light industry and so on
2.As a former protection segment filter for HEPA
Common specifications
2.As a former protection segment filter for HEPA
Common specifications
Model WxHxD | Dimensions WxHxD(mm) | Pocket piece | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop(pa) G3 G4 F5 F6 F7 F8 F9 | Final Pressure Drop(pa) G3~F8 F9 |
JMB7-24X24X25 | 592X592X635 | 8 | 3.3 | 3400 | 37 45 55 58 90 95 155 | 250 310 |
JMB7-20X24X25 | 490X592X635 | 6 | 2.47 | 2850 | 37 45 55 58 90 95 155 | |
JMB7-20X20X25 | 490X490X635 | 5 | 1.75 | 2300 | 38 47 55 58 90 95 155 | |
JMB7-12X24X25 | 287X592X635 | 4 | 1.65 | 1700 | 38 48 55 58 90 95 155 | |
JMB7-24X24X22 | 592X592X550 | 8 | 2.84 | 3400 | 40 49 60 65 105 110 165 | 250 330 |
JMB7-20X24X22 | 490X592X550 | 6 | 2.13 | 2850 | 40 49 60 65 105 110 165 | |
JMB7-20X20X22 | 490X490X550 | 5 | 1.51 | 2300 | 42 50 60 65 105 110 165 | |
JMB7-12X24X22 | 287X592X550 | 4 | 1.42 | 1700 | 42 50 60 65 105 110 165 | |
JMB7-24X24X15 | 592X592X381 | 8 | 1.93 | 3400 | 45 58 70 75 125 130 200 | 250 400 |
JMB7-20X24X15 | 490X592X381 | 6 | 1.45 | 2850 | 46 60 70 75 125 130 200 | |
JMB7-20X20X15 | 490X490X381 | 5 | 1.03 | 2300 | 46 60 70 75 125 130 200 | |
JMB7-12X24X15 | 287X592X381 | 4 | 0.97 | 1700 | 46 60 70 75 125 130 200 |
