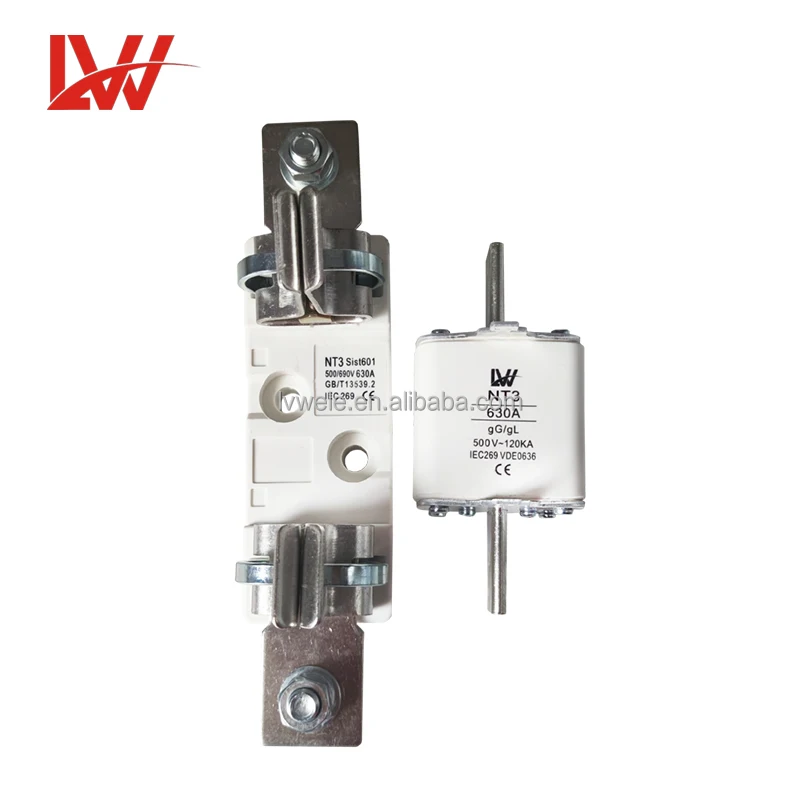

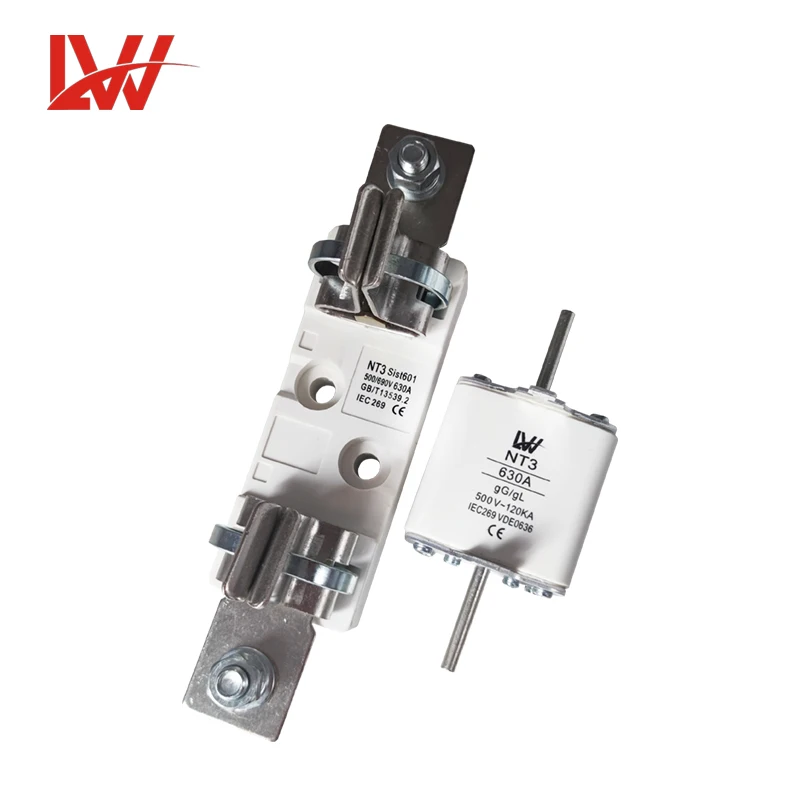

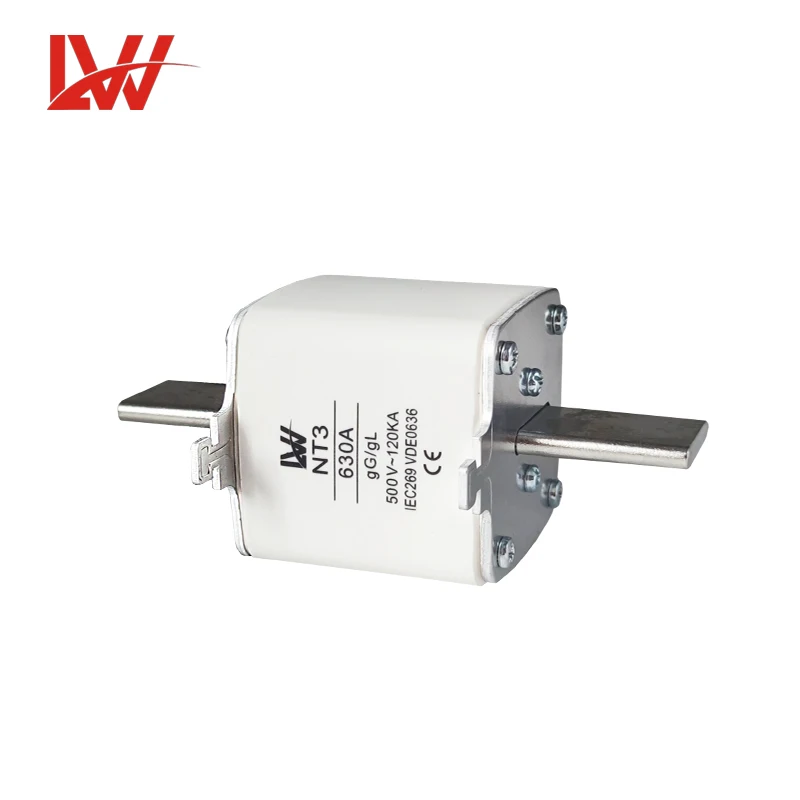

NT3 400A 500A 630A 500V Low voltage ceramic fuse

Product Overview

Description

NT3 400A 500A 630A   500V  Low voltage ceramic fuse



   This series of fuses is suitable for 50Hz, rated voltage to 1140V, rated current to 1250A, Mainly used for electrical devices for line overload and short circuit protection (gG / gl), can be reliable to break the most Any current between a small melting current to 120KA.It also can be derived as semiconductor devices and their components Short circuit protection (aR) for sets and motor short circuit protection (aM) for sets.



Design feature

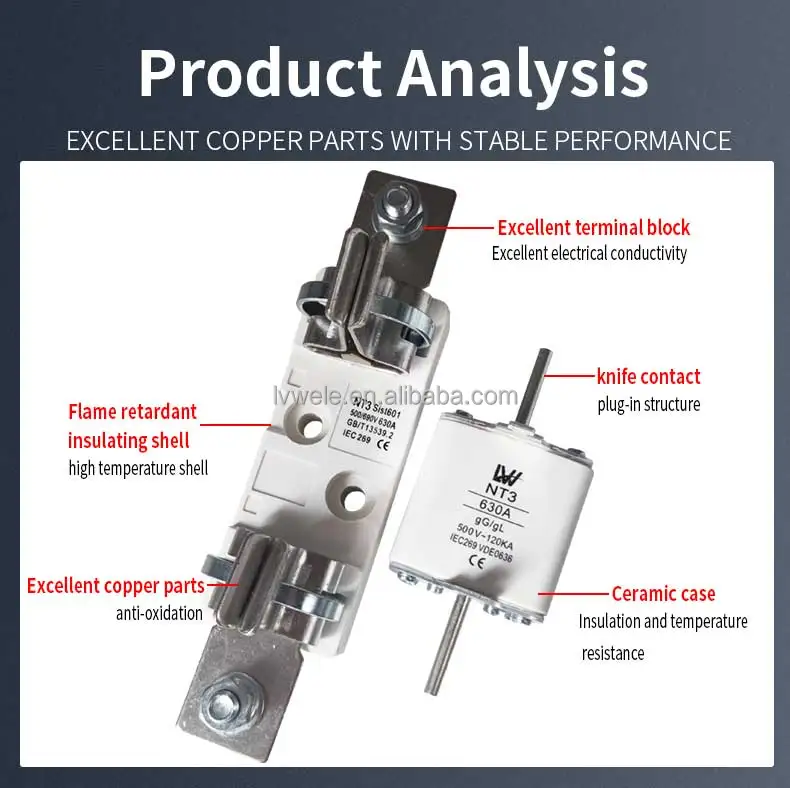

Melt uses high purity high quality wire or strip, arc extinguishing medium is high purity quartz sand, Meluse pipe is high strength ceramics, advanced manufacturing process ensures that this product has low power consumption and characteristics Stable, its appearance structure and installation size with similar advanced products at home and abroad.

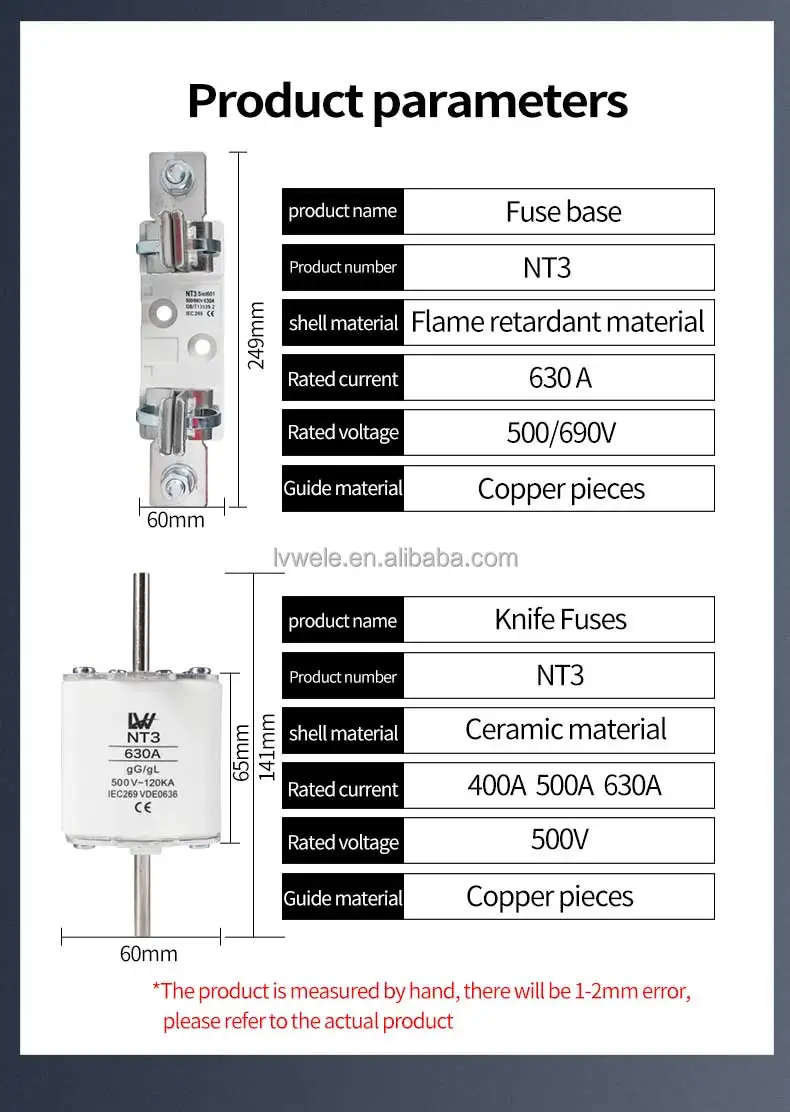

Product specification	Ampere optional
NT00	32A 40A 50A 63A 80A 100A 160A
NT1	63A 80A 100A 125A 160A 200A 250A
NT2	250A 300A 315A 400A
NT3	400A 500A 630A



Product Display
