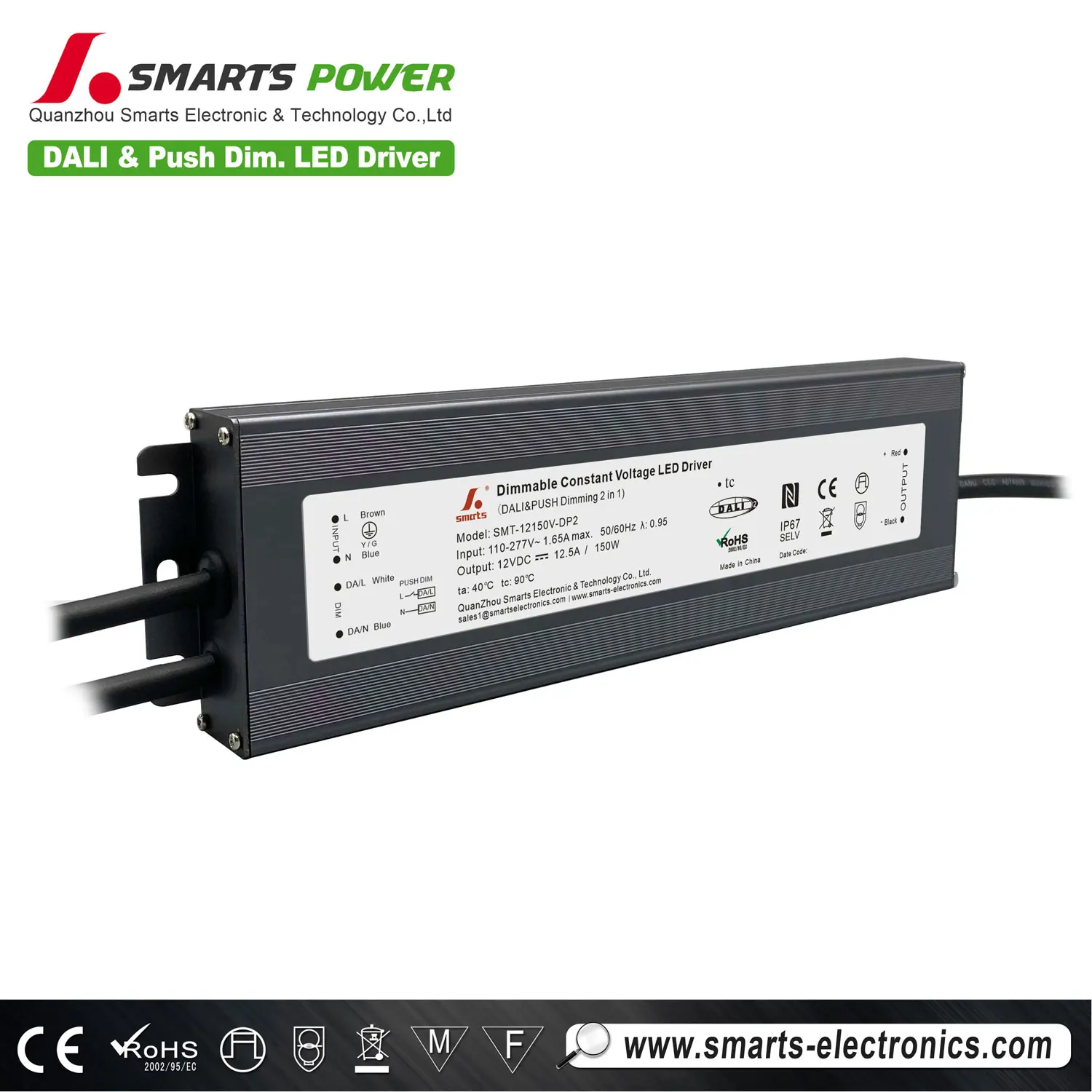

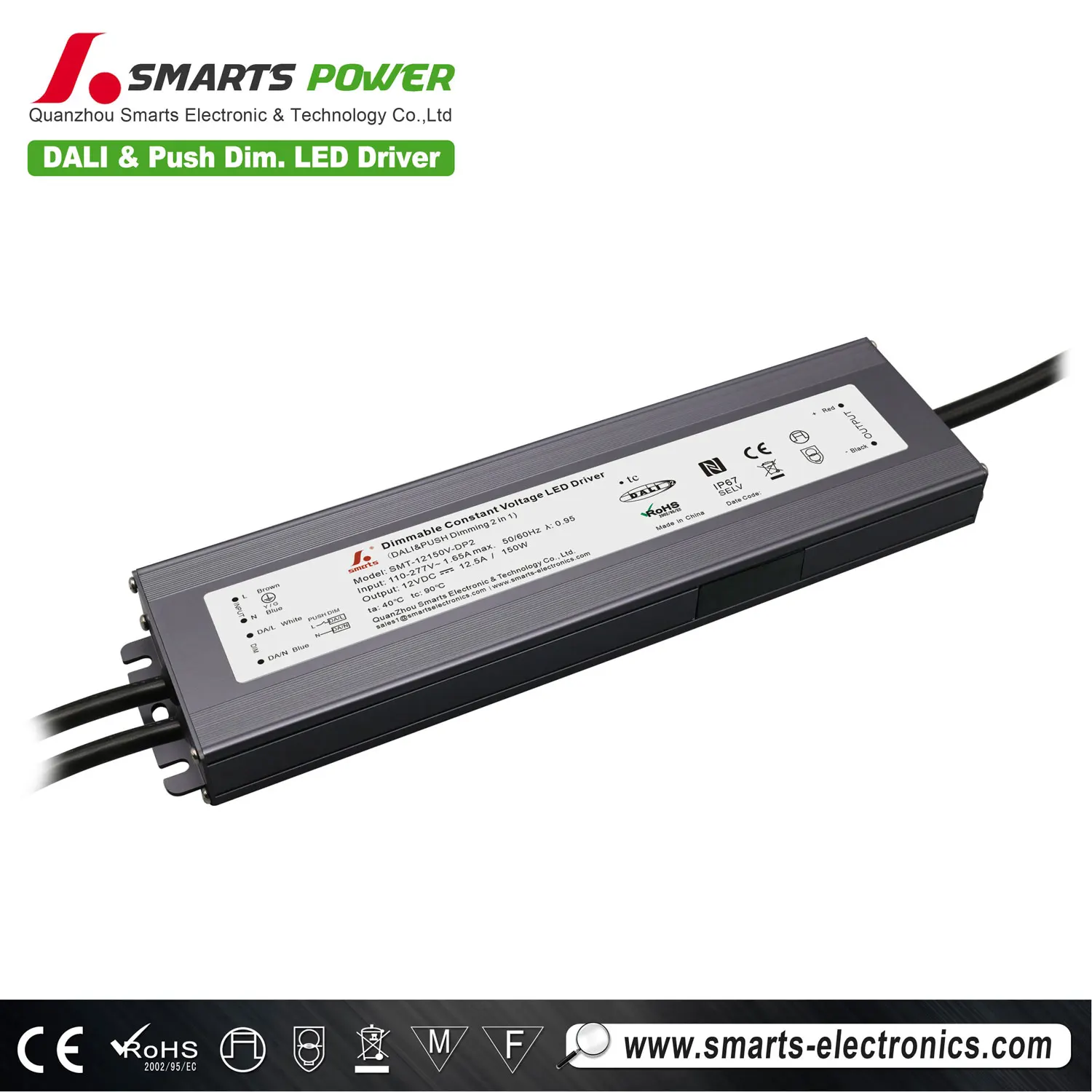

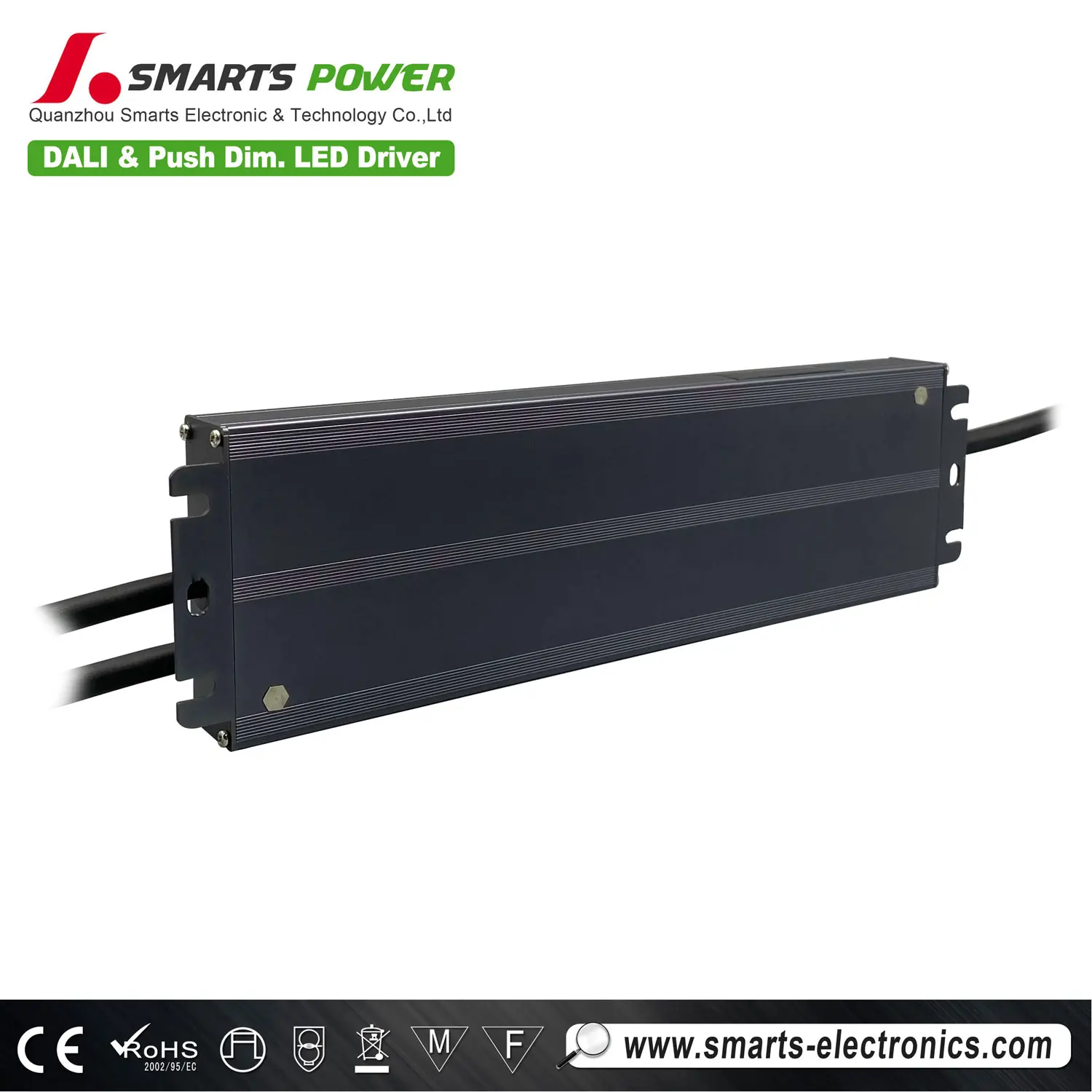

high pf 150w dali 2 dimmable led strip light switch power supply

Model

SMT-12150V-DP2

SMT-24150V-DP2

SMT-36150V-DP2

SMT-48150V-DP2

Output

DC Voltage

12V (12-13.5Vadjust by NFC)

24V (24-26V adjust by NFC)

36V (36-38V adjust

by NFC)

48V (48-50V adjust by NFC)

Voltage Tolerance

±0.2V

Rated current

12.5A

6.25A

4.17A

3.12A

Rated power

150W

Load Regulation

±2%

Input

Standby power consumption

≤0.5W

≤0.5W

≤0.6W

≤0.6W

Voltage Range

110-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.98@120VAC  PF≥0.96@230VAC  PF≥0.95@277VAC (Full loading)

THD(Typ.)@ full load

≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC

Efficiency(Typ.)@ full load

89%@120VAC;   91%@230VAC;   91%@277VAC;

AC Current(Max.)

1.65A

1.65A

1.65A

1.65A

Inrush Current (Typ.)

38.4A,510us@50%Ipeak(120VAC);88A,120us@50%Ipeak(230VAC)    48A,560us@50%Ipeak (277VAC)

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup mode, recover automatically after fault condition is removed

Over temperature

Ambient temp. over 55℃±10℃,

output will be off; recovers automatically after temp. drops.

Environment

Working TEMP.

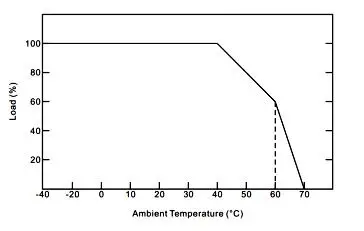

-40~+70℃ (see below derating curve)

Working Humidity

20 - 95%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  (US)

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU);

I/P-O/P:1.88KVAC (US)

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,  EN61547

Others

Weight

1.05KG

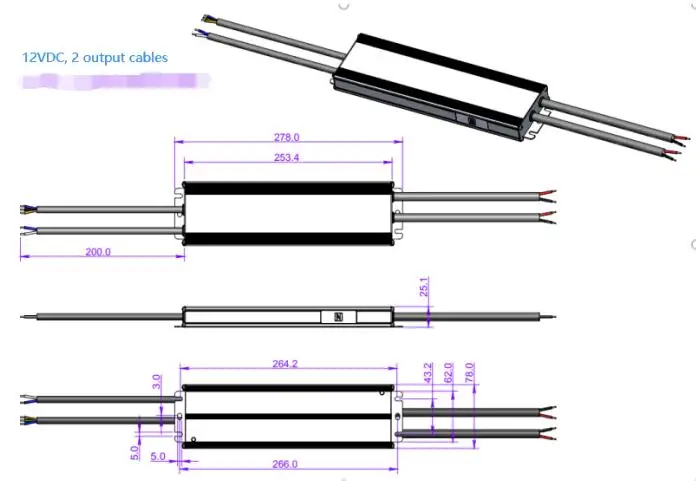

Dimension

278*78*25.1mm (L*W*H)

packing

390*325*185mm/20PCS/CTN    G.W.:22KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
