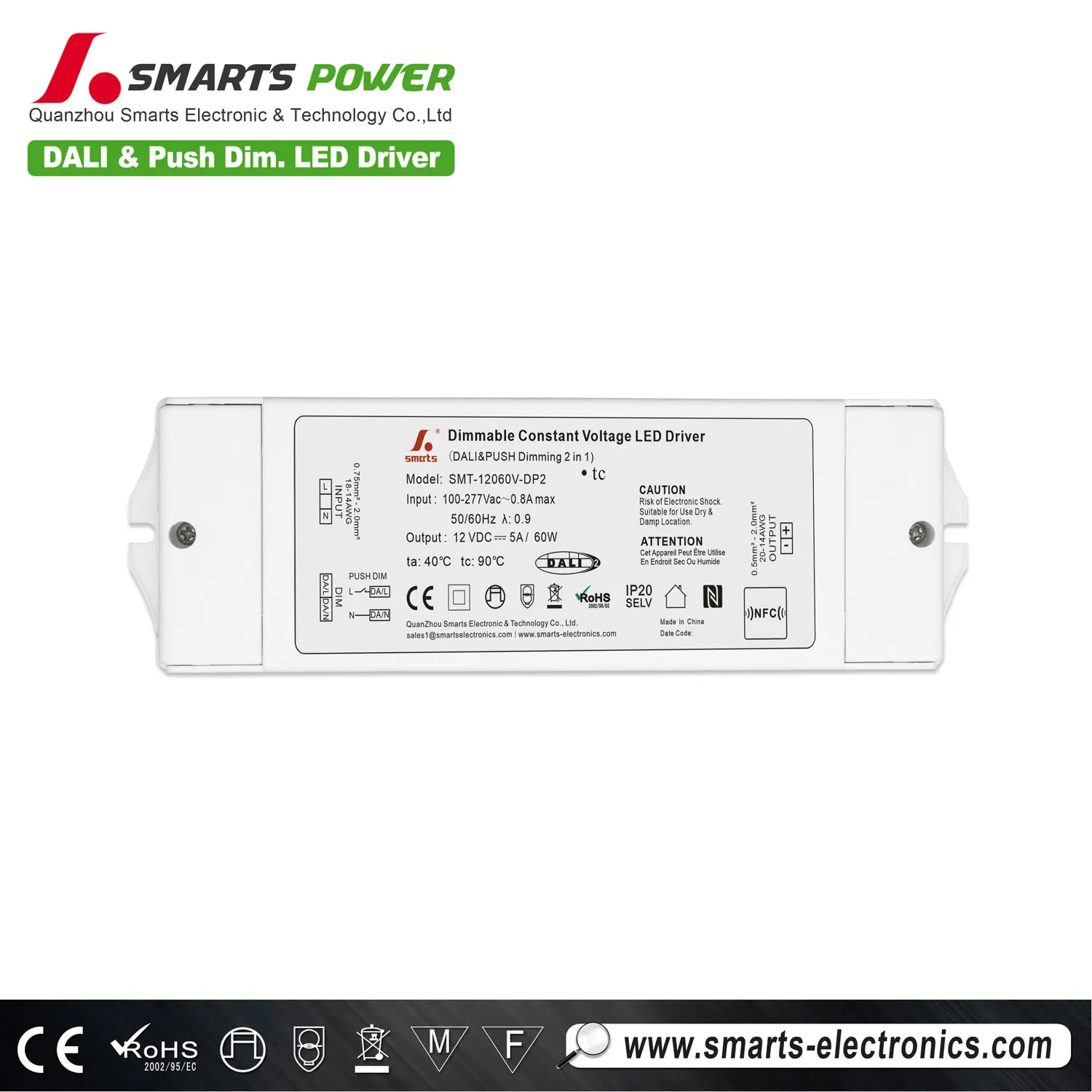

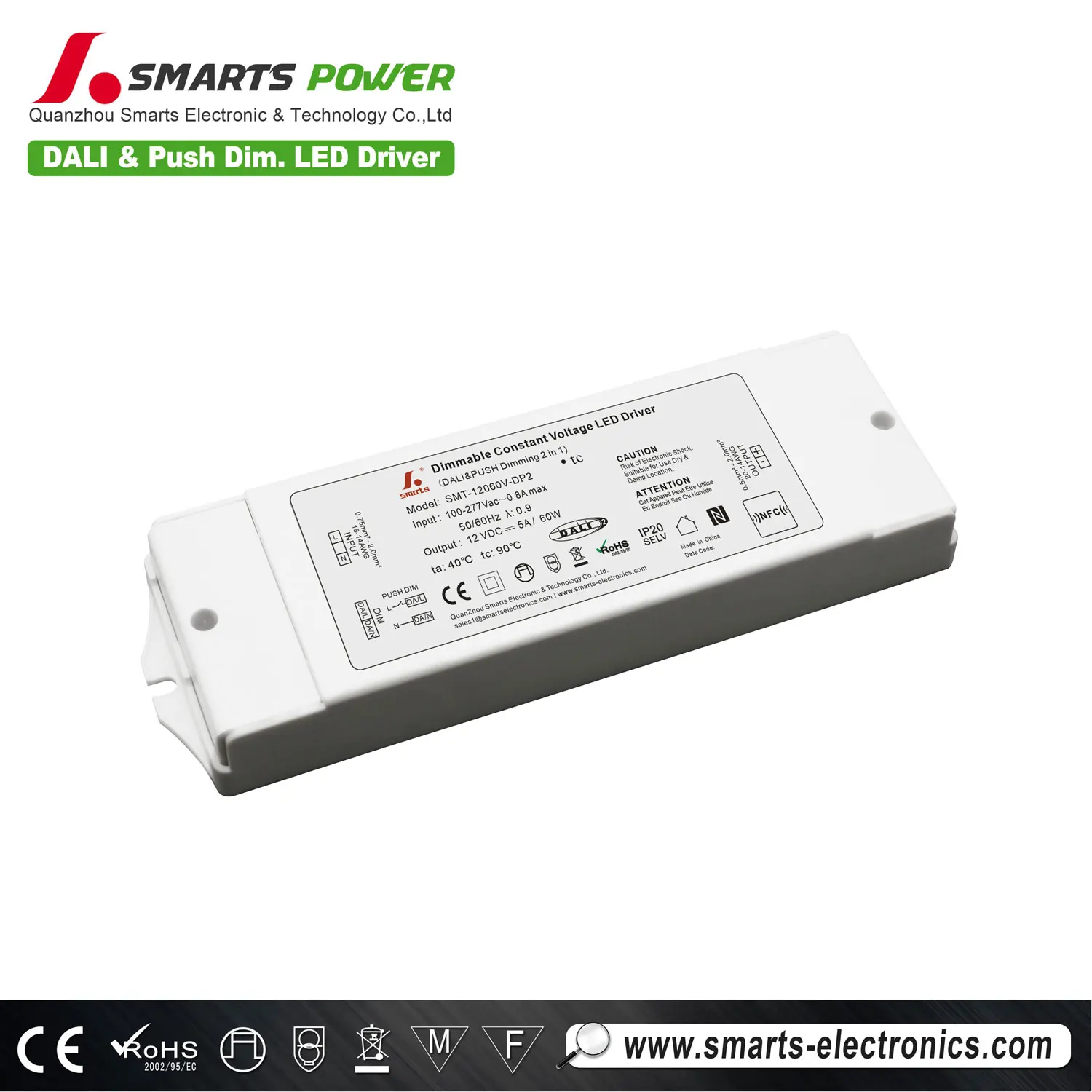

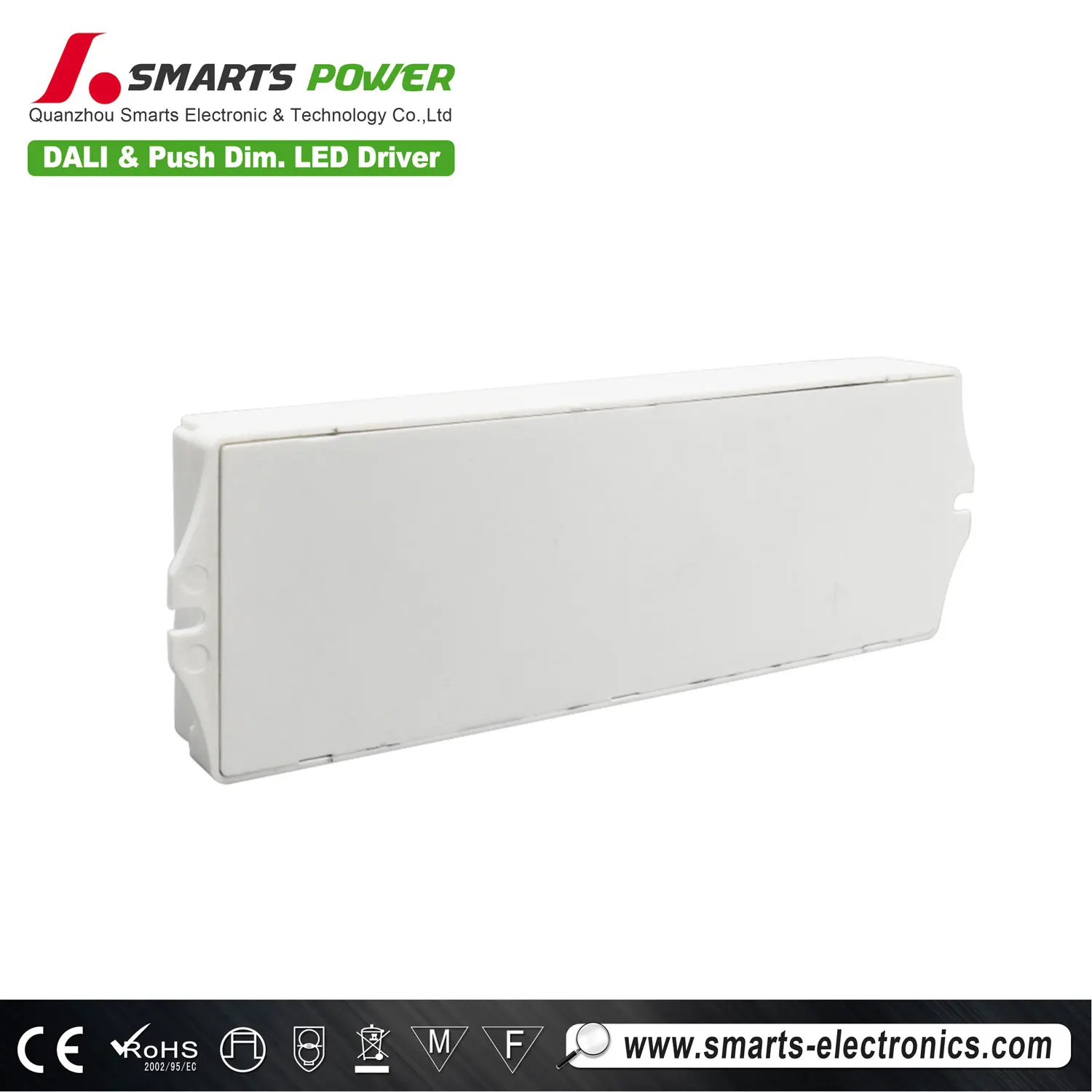

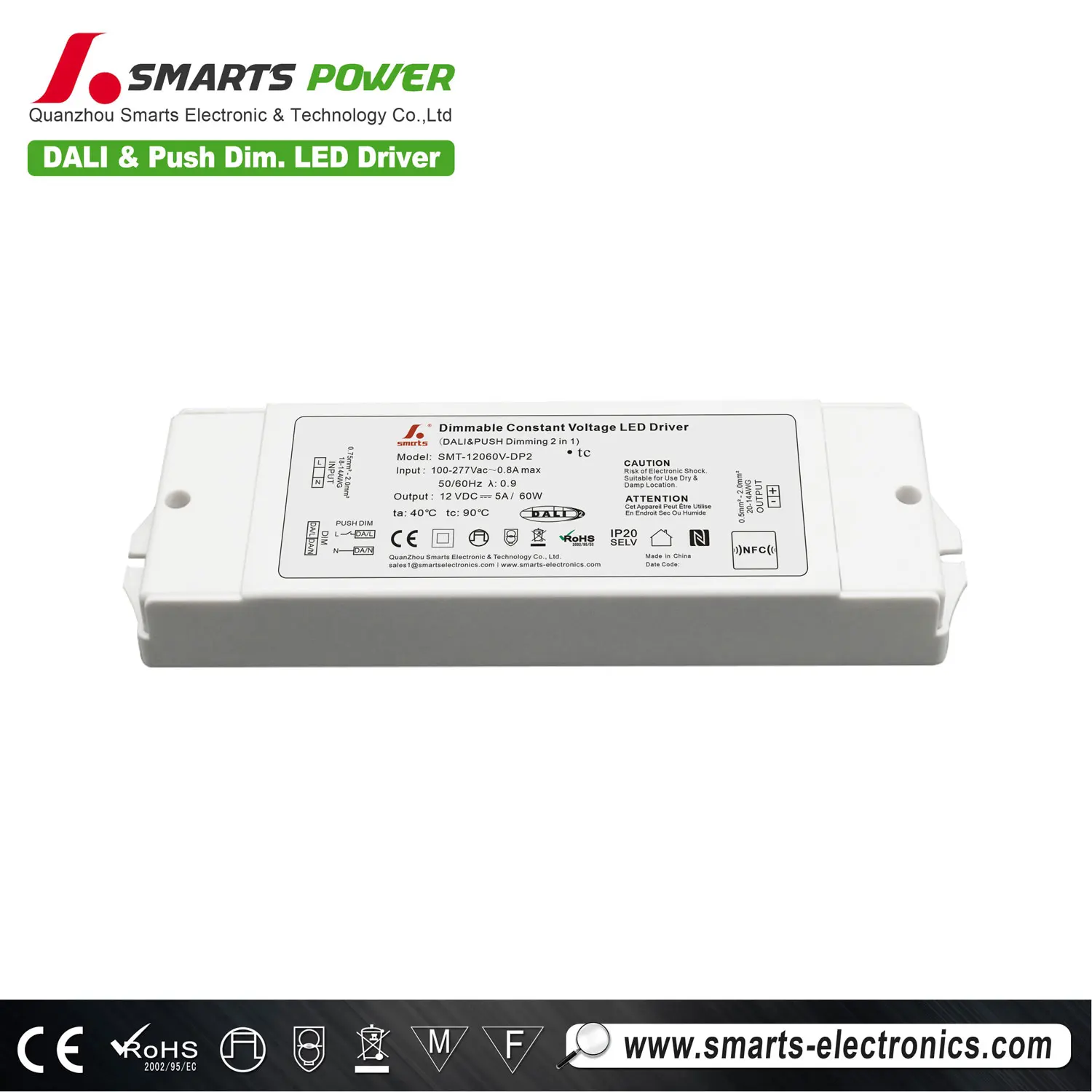

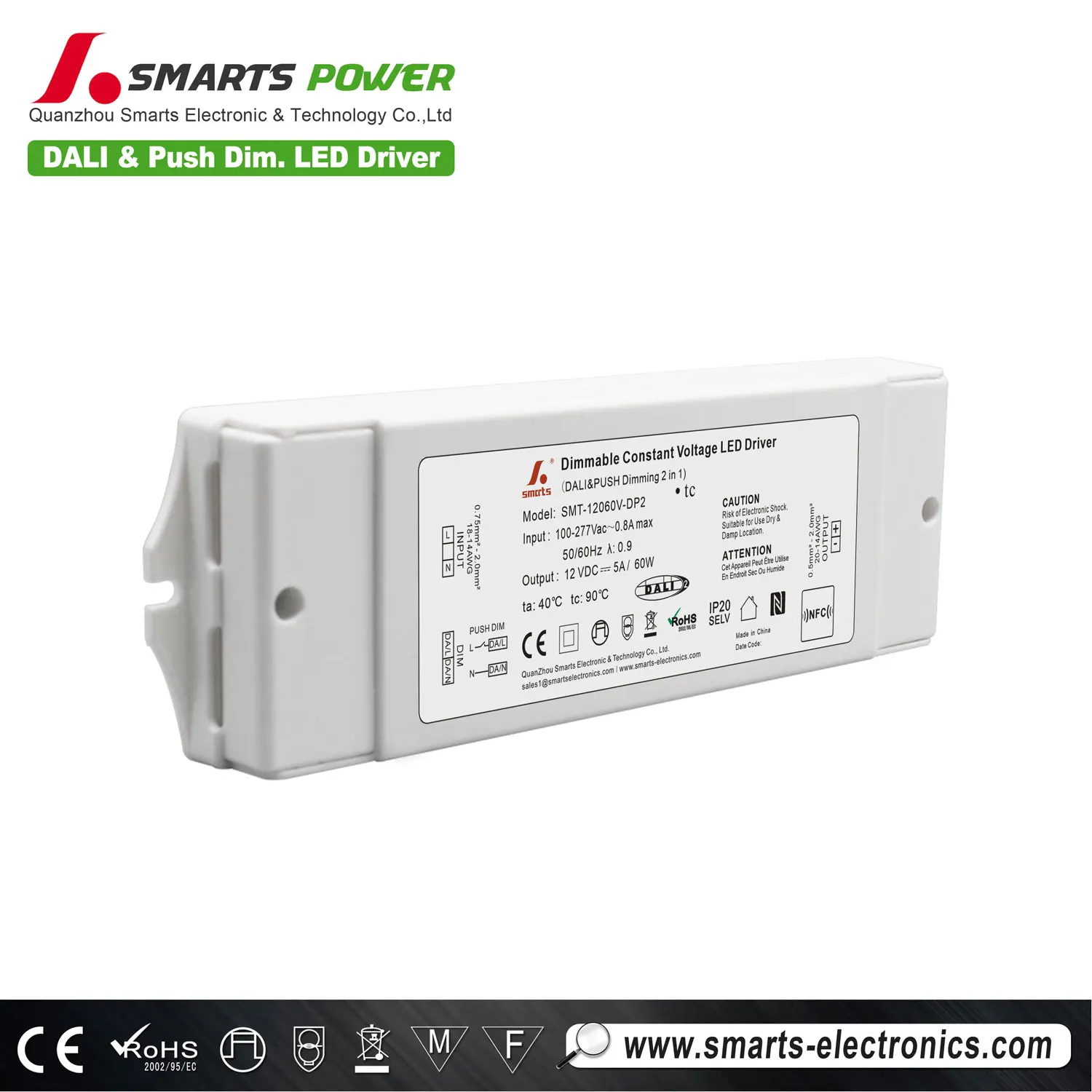

dali 2 dimmable 12v 24v 36v 48v 60w ip20 led driver DT6 standard

Model

SMT-12060V-DP2

SMT-24060V-DP2

SMT-36060V-DP2

SMT-48060V-DP2

Output

DC Voltage

12V (12-13.5V adjust by NFC)

24V (24-26V adjust by NFC)

36V (36-38V adjust by NFC)

48V (48-50V adjust by NFC)

Voltage Tolerance

±0.2V

Rated current

5A

2.5A

1.67A

1.25A

Rated power

60W

Load Regulation

±1%

Input

Standby power consumption

≤0.5W

≤0.5W

≤0.5W

≤0.5W

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.98@120VAC  PF≥0.95@230VAC  PF≥0.92@277VAC (Full loading)

THD(Typ.)@ full load

≤15%@120VAC ;  ≤15%@230VAC;  ≤15%@277VAC

Efficiency(Typ.)@ full load

86%@120VAC;   88%@230VAC;   88%@277VAC;

AC Current(Max.)

0.8A

0.8A

0.8A

0.8A

Inrush Current (Typ.)

20A, 220us@50%Ipeak (120VAC);   45A, 175us@50%Ipeak (230VAC);

37A, 302us@50%Ipeak (277VAC)

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup mode, recover automatically after fault condition is removed

Over temperature

Ambient temp. over 55℃±10℃,

output will be off; recovers automatically after temp. drops.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 90%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  (US)

Withstand voltage

I/P-O/P:3.75KVAC (EU);    I/P-O/P:1.88KVAC (US)

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,  EN61547

Others

Weight

0.35Kg

Dimension

192.5x62x24mm(L*W*H)

packing

290*215*140mm (20PCS/CTN )

Notes

1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
