Product Overview
Description
48 Nucleic acid Extractor
Introduction

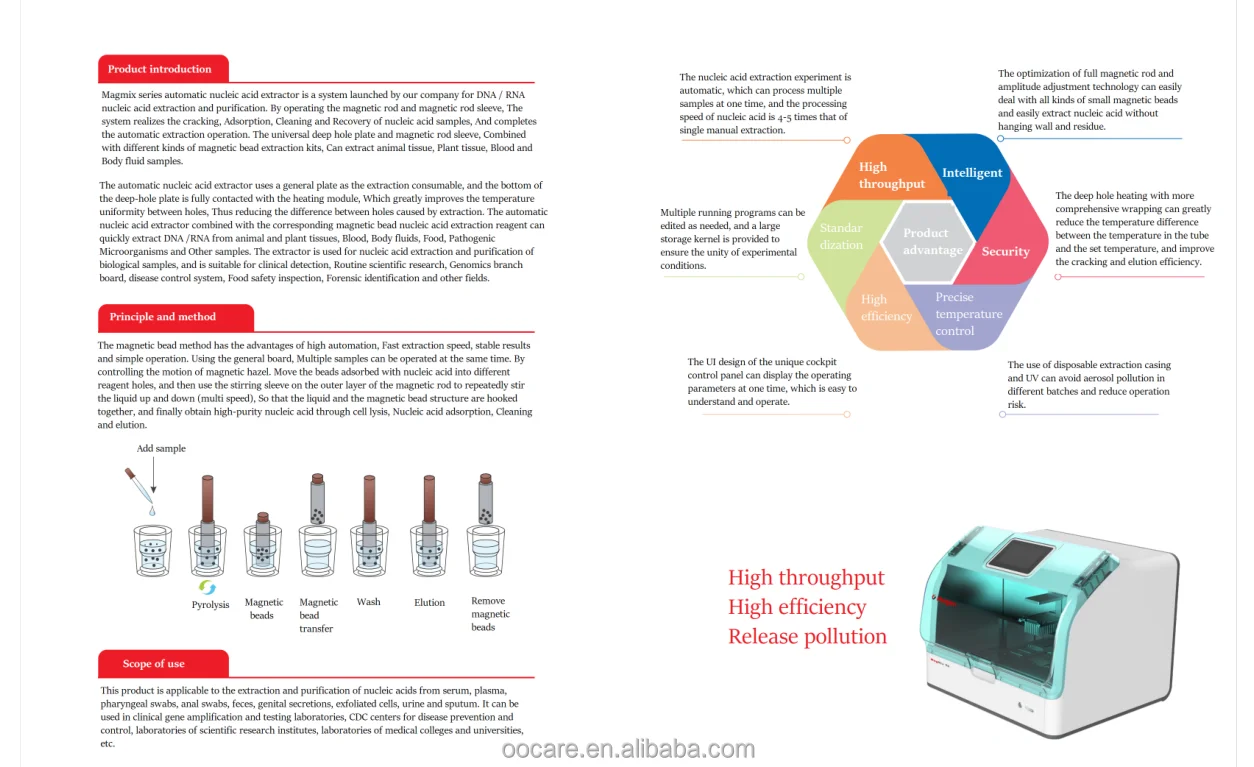

Automatic Nucleic Acid Extraction System is the equipment for DNA/RNA extraction from biological samples. The system operates automatically by moving magnetic rods and disposable tips, to complete the process of sample lysis, nucleic acid adsorption, wash and elution. It can process 1-48 samples at one time, meeting different sample amount requirement. It can be used with single reagent tube consumable to prevent the waste of consumables.
The system is compatible with different reagents for DNA/RNA extraction from animal, plant, food, pathogen, and clinical samples. It is applicable for use in multiple fields, for example, clinical test, scientific research, genomic analysis, centers for disease control, food safety and forensic identification.
Details
Specifications
| Features | Specifications |
| Principle | Extraction by magnetic beads |
| Throughput | 1-48 samples and single sample |
| Process Volume | 30-1000 μl |
| Sample Volume | ≤500 μl |
| Plate types | 96 deep well plate |
| Magnetic Rods | 48 rods |
| Purification accuracy | 102 copies/ml samples positive rate>98% |
| Stability | Cv<3% |
| Heating function | Heating holders are provided at 1st and 6th lines (can be customized) |
| Mix by vortex | 11 different mixing modes (1 - 10 speed levels) |
| Magnetic bead size | >100 nm |
| Reagents | Open platform for magnetic bead methods |
| User interface | 7 -inch color touch screen |
| Storage capacity | Up to 1000 programs |
| Protocol management | Create, edit, delete, copy, output by USB |
| UV light | Yes |
| Exhaust Mode | Induced fan |
| Running time | 1-60 minutes(Depends on program setting) |
| Weight | 50 KG |
| Dimensions | 600mm X 500mm X 500mm |
Price at alibaba.com only for reference, precise price will be discussed based on qty.
