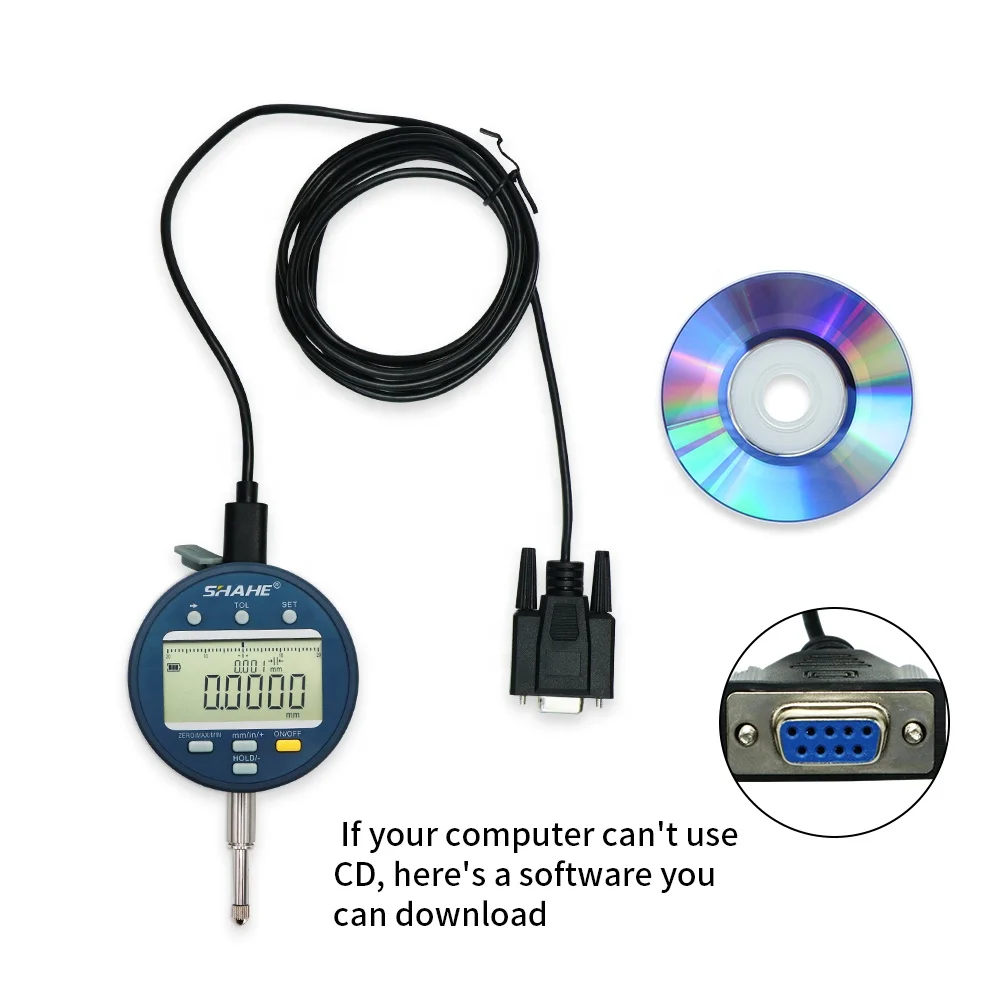

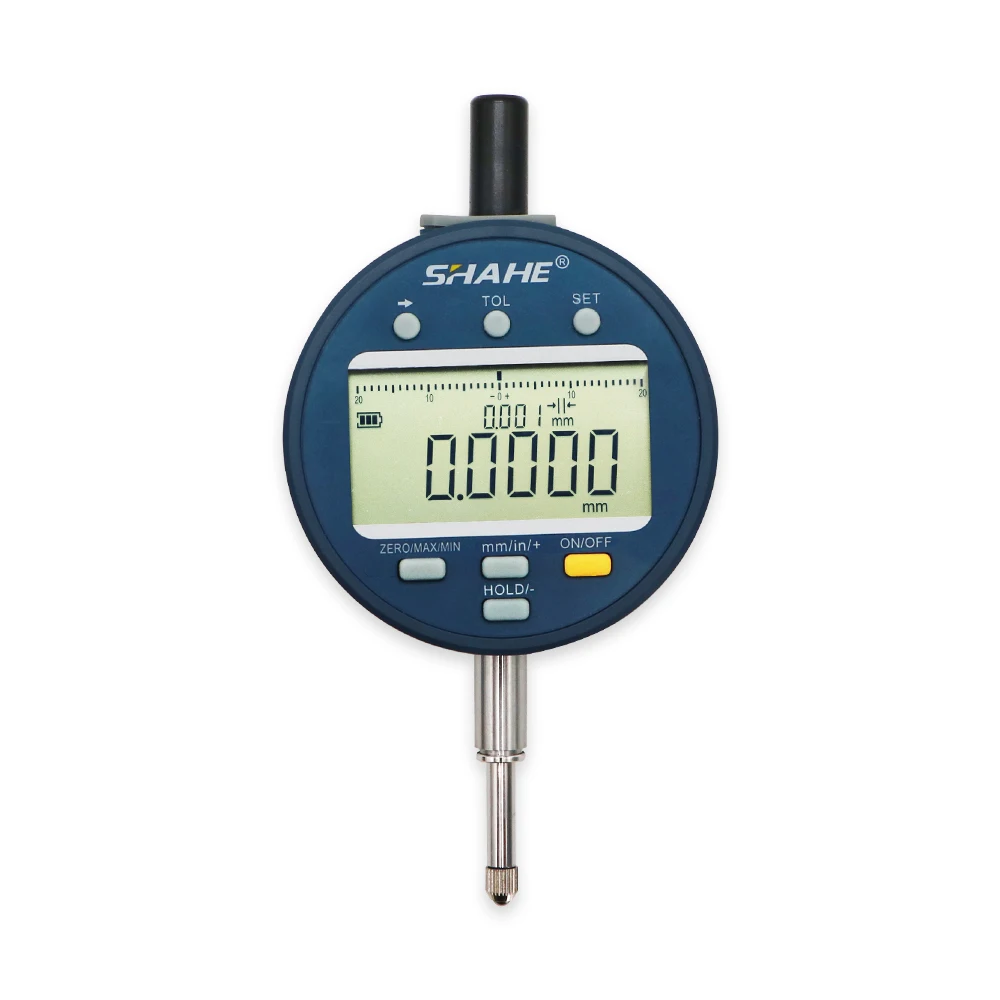

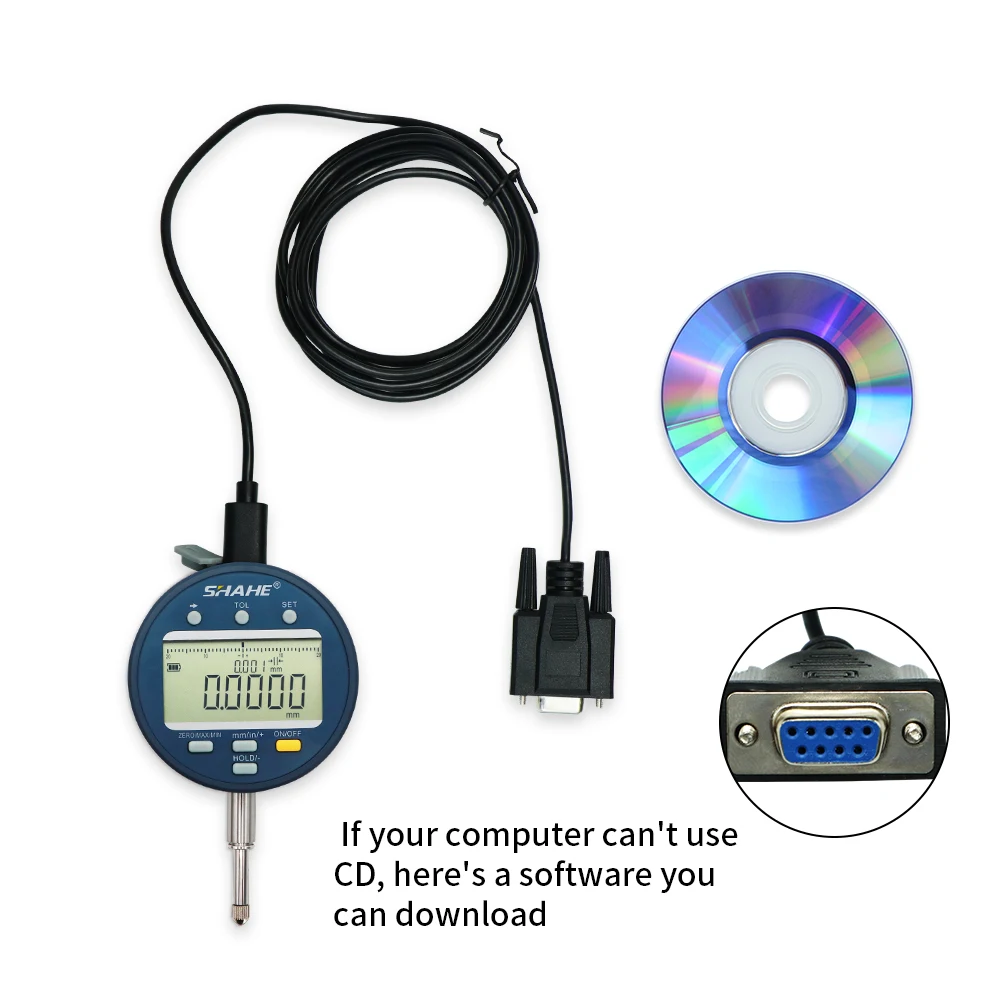

SHAHE NEW Metric/Inch 0 12.7 mm 0.0005mm Electronic Indicator with Rechargeable Battery Waterproof Digital Dial Indicator
- Category: Indicators >>>
- Supplier: Wenzhou Sanhe Measuring Instrument Co. Ltd.
Share on (1600513992328):
Product Overview
Description
Characteristic &Function

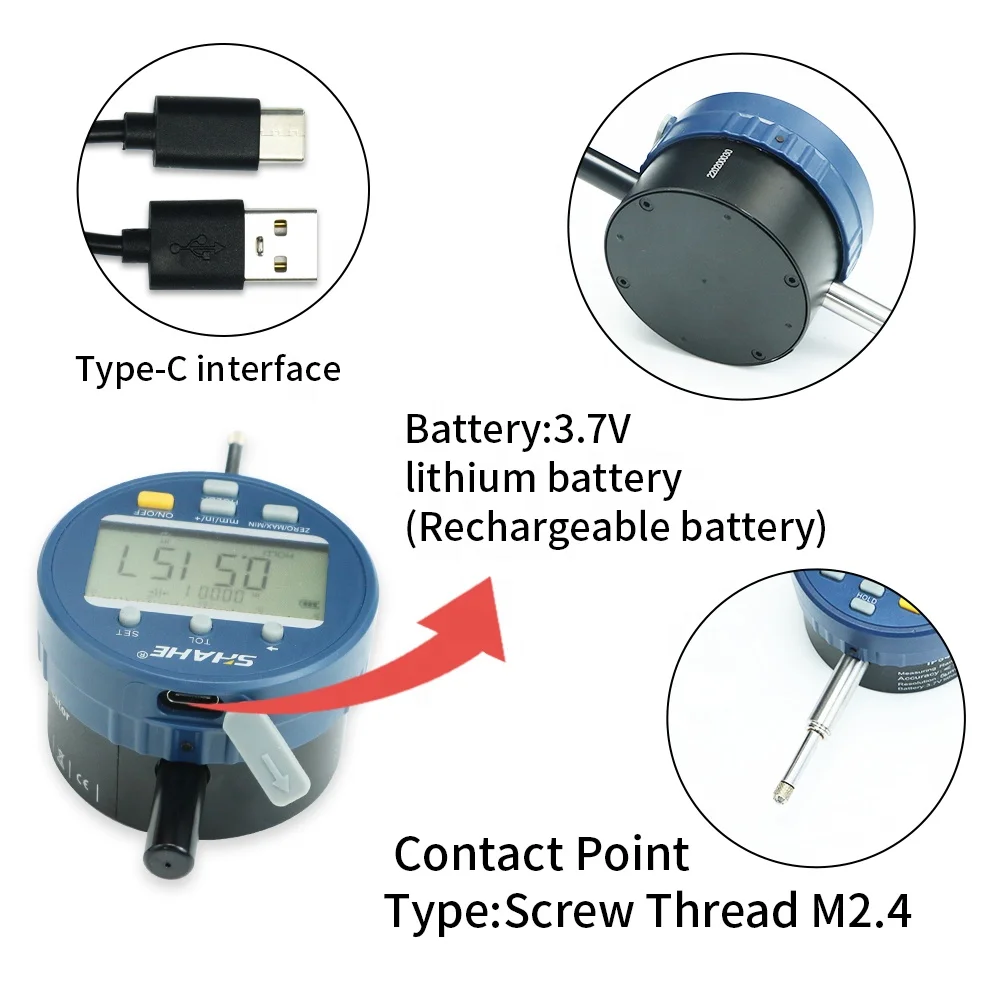

1.Buttons:on/off ,zero.mm/inch,data hold,max/min 2.Operating temperature :-10-40°C 3.Humidity:≤80% RH 4.Battery :3.7V lithium battery(Rechargeable battery),Charging /communication interface :USB Type-C 5.Directly measure the maximum,minimum value and range 6.Analog pointer 7.Absolute measurements 8.Data output 9.Waterproof :IP54/IP65(optional) 10.Measurement for form and position tolerance, such as runout, straightness, parallelism, flatness etc |

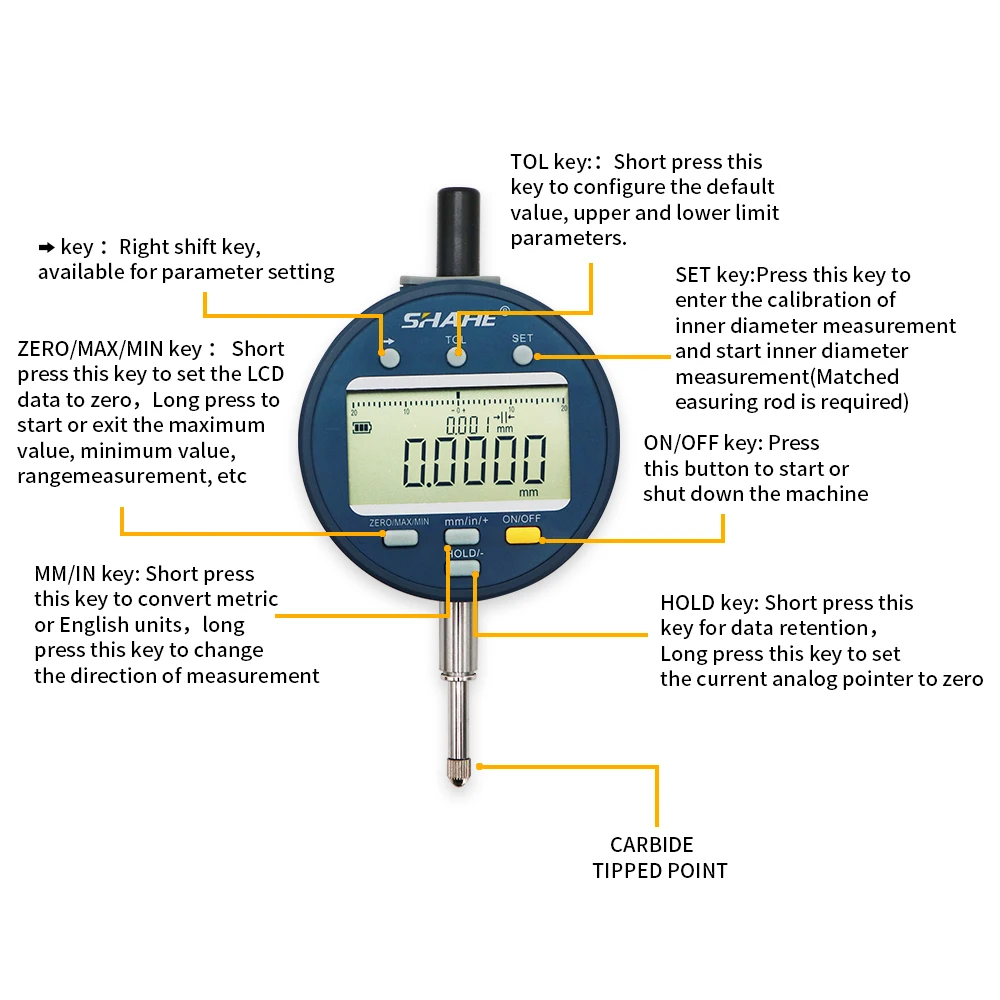

Button Function(how to use)
1.On/off key:Press this button to start or shut down the machine 2.MM/IN key:short press to convert metric to inch units,long press to change the direction of measurements 3.Hold key:short press for data retention,long press to set the current analog pointer to zero 4.ZERO/MAX/MIN key:short press to set the LCD data to Zero ,long press to start or exit the maximum value ,mininum value ,range measurement etc. 5.→key: Right shift key, available for parameter setting 6.TOL key:Long press this key to turn on or off the upper and lower limit measurement function; Short press this key to configure the preset value, upper and lower limit parameters 7.SET key:Short press this key to enter the inner diameter measurement calibration and start the inner diameter measurement (need to match the measuring rod), long press this key to enter the setting \\ exit the analog pointer resolution and automatic shutdown time, you can use the +/- key to set the parameters |

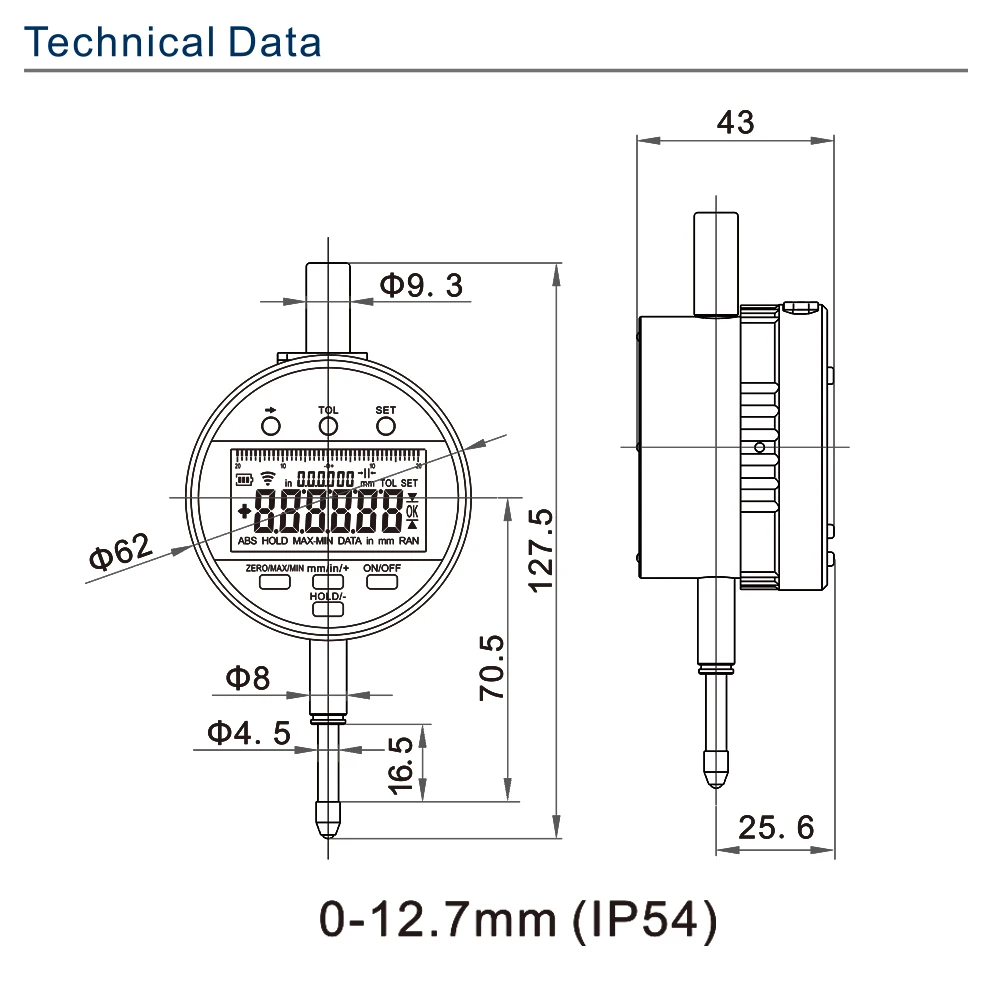

Specification
Model:GS-5311-7
|
FAQ:
Q:How can we place the order ?
A:Please place order online directly , or you can send us an inquiry , or check with our sales online, we will reply you within 12 hours.
Q:How can we send money ?
A:After you confirm the order , you can send money online directly , we can accept payment by BOLETO, Mastercard, Visa, e-Checking, PAYLATER, T/T etc.
Q:When will you send out our package ? And how long can i receive it ?
A:Usually we can send goods in 1-2 days except China holiday , and it will take 5-6 days to reach your country by DHL , TNT , UPS , FEDEX or e-packet etc.
Q:What is the warranty policy ?
A:Usually we provide 1 year warranty from the date we sent out the package.
Q:How about the product quality ?
A:Our products apply to CE , ROHS , ISO.
Q:If we receive the products without SHAHE logo from your store, are they produced by Wenzhou Sanhe Measuring Instrument Co.,LTD ?
A:Yes, we are SHAHE Factory Direct. We produce tools with SHAHE brand and neutral for meeting different customs’ demand, we will send products with SHAHE logo at first, if no stocks , we may send neutral one , but all are 100% quality products from SHAHE.
Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
