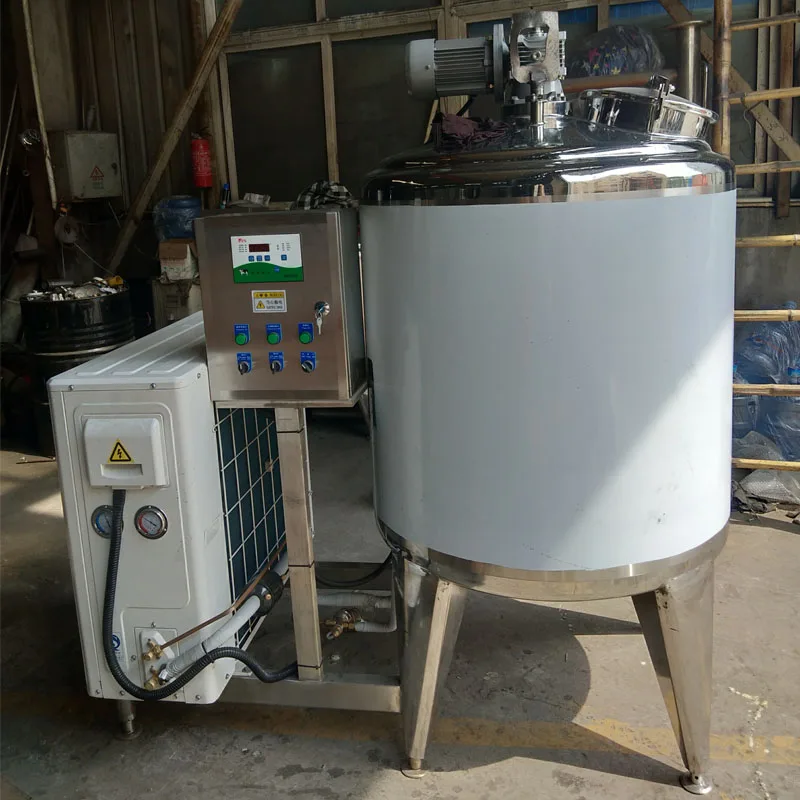

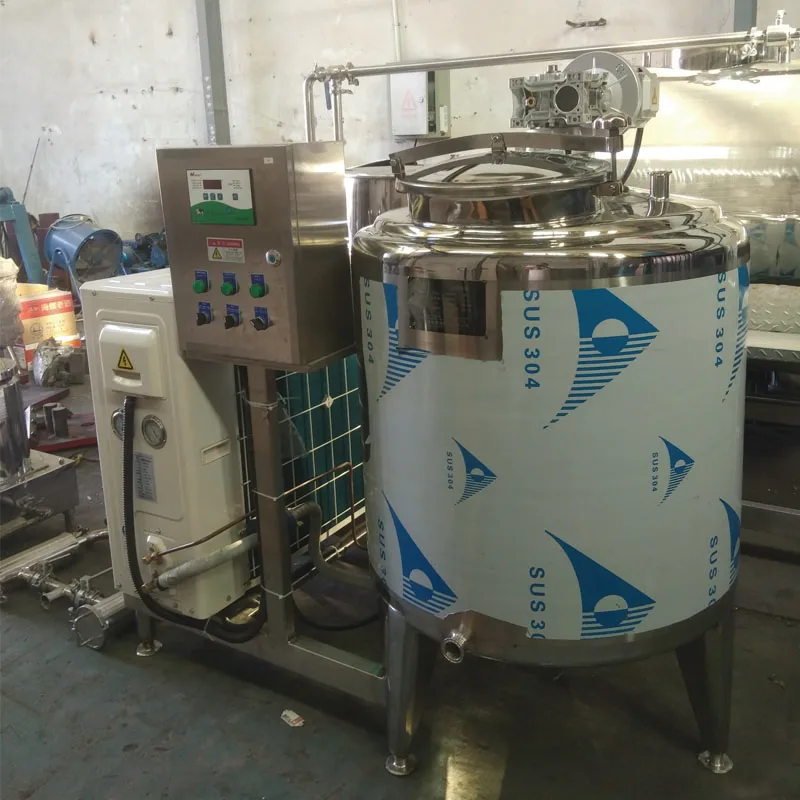

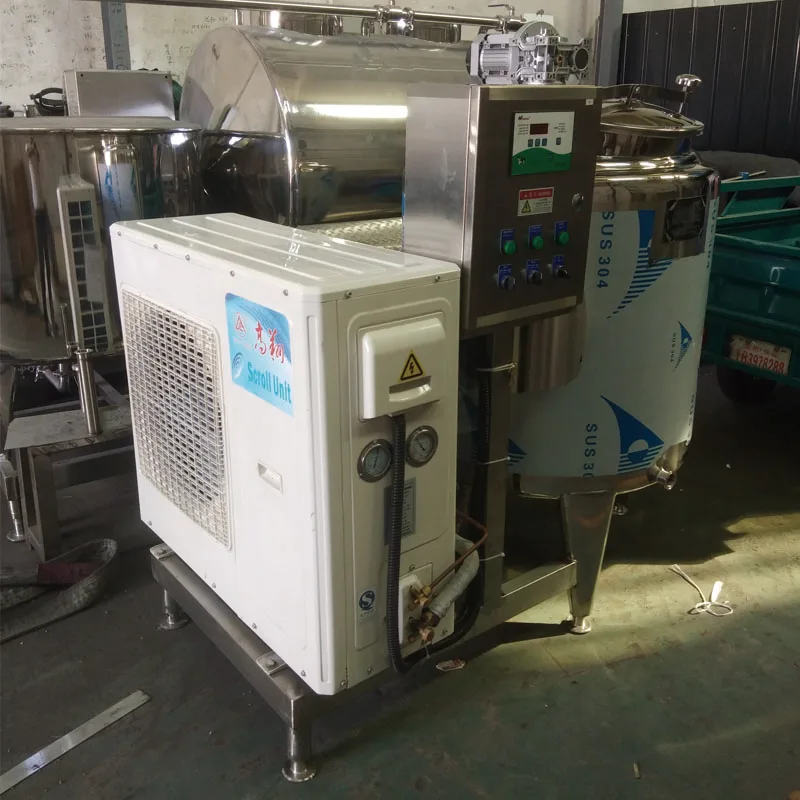

Vertical milk cooling tank dairy equipment
- Category: >>>
- Supplier: Wuxi Nanwei Machinery Technology Co. Ltd.
Share on (1600514108712):
Product Overview
Description
Specification
Vertical milk cooling tank dairy equipment
1. Material: Stainless steel 304/316L
2. Equipped with refrigeration system
3. Cooling jacket, PU insulated (50-80mm)
4. Capacity: 100L-30,000L
5. Consist of control box, refrigeration group, inlet, CIP cleaning head, agitation motor, manhole, temperature meter, tank body, outlet.
6. Working temperature: 35-4 Cels
7. Refrigerant: R404A(recommended)or R22
8. Custom made available
9. Vertical and horizontal two options
1. Material: Stainless steel 304/316L
2. Equipped with refrigeration system
3. Cooling jacket, PU insulated (50-80mm)
4. Capacity: 100L-30,000L
5. Consist of control box, refrigeration group, inlet, CIP cleaning head, agitation motor, manhole, temperature meter, tank body, outlet.
6. Working temperature: 35-4 Cels
7. Refrigerant: R404A(recommended)or R22
8. Custom made available
9. Vertical and horizontal two options
Milk cooling tank
The refrigerated mixing and storage tank is made up tank body, agitator, refrigerating unit and control box. The tank body is made of stainless steel 304, and be minutely polished. Insulation is filled by polyurethane foam, light weight, good insulation properties.
Products Description
Model | Volume (L) | Compressor Power (KW) | Dimension of tank(D*L) (mm) | Agitator power (kw) | Agitator speed (r/min) | |||||
SJ-500 | 500 | 4.5 | Φ800x900 | 0.55 | 36RPM | |||||
SJ-800 | 800 | 8 | Φ1000x900 | 0.75 | ||||||
SJ-1000 | 1000 | 12 | Φ1200x1000 | 0.75 | ||||||
SJ-2000 | 2000 | 15 | Φ1200x1000 | 1.5 | ||||||
SJ-3000 | 3000 | 15 | Φ1400x2000 | 2.2 | ||||||
SJ-6000 | 6000 | 30 | Φ1600x3000 | 3 | ||||||
SJ-8000 | 8000 | 30 | Φ1800x3000 | 3 | ||||||
SJ-10000 | 10000 | 44 | Φ2000x3500 | 3 | ||||||
We can customize the cooler tank according to customer requirements. | ||||||||||
Turnkey Solution
We also provide the match equipment, such as industrial steam generator, water cooler, air compressor and ice water machine. 100% turnkey solution.
Steam generator
Water cooler
Air compressor
Ice water machine
