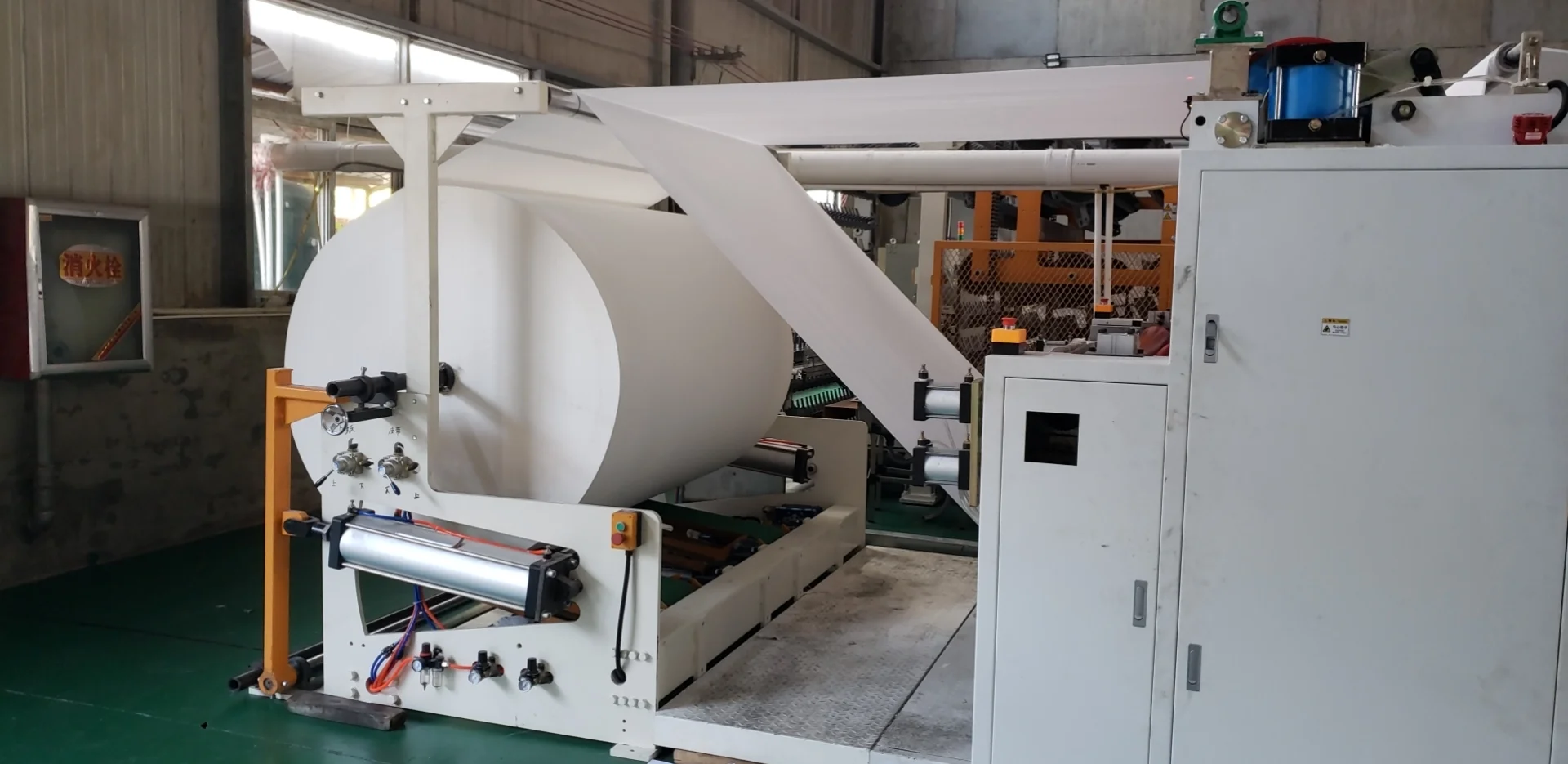

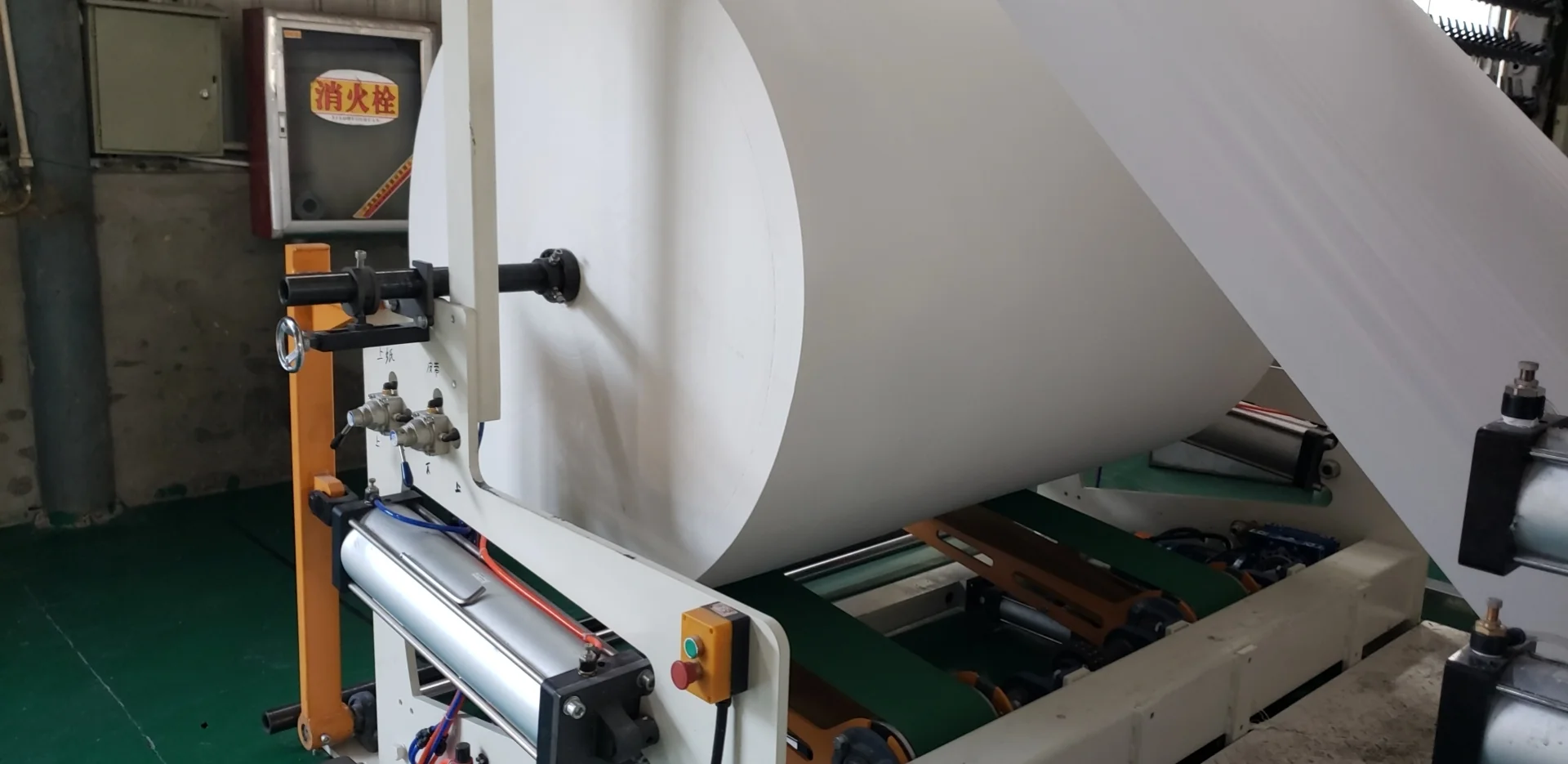

Полностью автоматическая обработка бумаги 10 полос V Складная машина для складывания тканей лица
- Category: Paper Processing Machinery >>>
- Supplier: Shanghai Soontrue Fengguan Packaging Automation Co. Ltd.
Share on (1600514129233):
Product Overview
Description
Product Description
Advantages for the machine:
1. When it is sent by the conveyor belt to the cutting device, the facial tissue is clamped by the upper and lower conveyor belts and sent onto the cutter for cutting. The cut is neat with high precision.
2. The machine is equipped with the advanced electronic detection system. The large diameter rotary cutter can automatically set the paper cutting length, and reach a precise cutting of more than 120 times per minute.
3. Through optimized design, the cutting device is provided with the automatic lubricating/knife grinding system. The grinding wheel can accurately grind the blade according to the cutting times.
| Items | Technical specification |
| Designed speed | 130 m/min |
| Operation speed | 110 m/min or 12 strip /min |
| Finished product open size (mm) | 190mm(+1, -2) (if different ,pls specify) |
| Finished product folded size(mm) | 95mm(+2, -0) (if different ,pls specify) |
| End product height (mm) | 40mm-150mm |
| whole machine structure | wall plank type frame |
| (wall plank thickness 50mm) | |
| Counting method | Adopts high resolution servo computing , counting 100% accurate |
| Folding unit | Folding via vacuum system |
| Folding method | V fold ( interleave) |
| Folding roller processing mythod | After quenching and tempering , and the use of high precision deep hole processing , ensure the rigidity and strength of each roll , and all the CNC machining center processing , G3.2 grade dynamic balance, to ensure the precision of the folding roller at high speed |
| Folding roller | 2 unit folding roller, and the roller with 3 sets paper knives and 3 folding V slots are evenly distributed (The quantity is subject to size) ,Make sure the tissue size of after-folded is 95mm, and vacuum adsorption holes are regularly arranged next to the V slot of each insert knife folding on the roller surface, use to adsorb tissue after cutted then attached to the roll surface |
| Tissue cutting dead knife | All imported materials are used for processing ,And the bottom knife side with suction hole structure to ensure that high-speed paper does not turn over paper separate , and the end product will be more tidy |
| Tissue cutting face knife | All imported materials are used for processing,And with the design of spiral face knife, ensure the durability of the face knife |
| Tissue cutting way | 1.Tissue cutting face knife roller 2 pcs , each roll with 1 pcs knife , face knife is fixed |
| 2.Tissue cutting dead knife roller 2 pcs , each roll with 3 pcs dead knife, the dead knife rotates and cut the paper | |
| 3.Spiral paper cutting structure; Paper breaking stability, long tool life | |
| Paper feeding way | Manual |
| Vacuum wind pipe | Arranged by user |
| Machine inching function | Machine can choose jogging function |
| Main motor power (kW) | 5.5KW |
| Machine vacuum pump power(kW) | 37KW |
| Machine Power required(V Hz) | 3 phase,380v 50Hz |
| ( if different ,pls specify) | |
| Control voltage (V) | 24 |
| Compressed air(MPa) | ≥0.6 |
| Air consumption | 1000 L/batch |

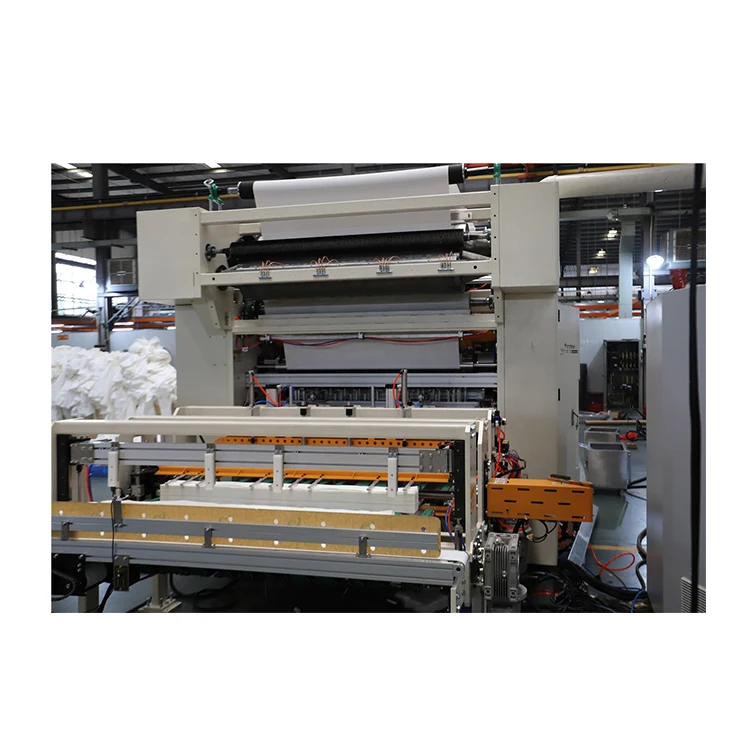

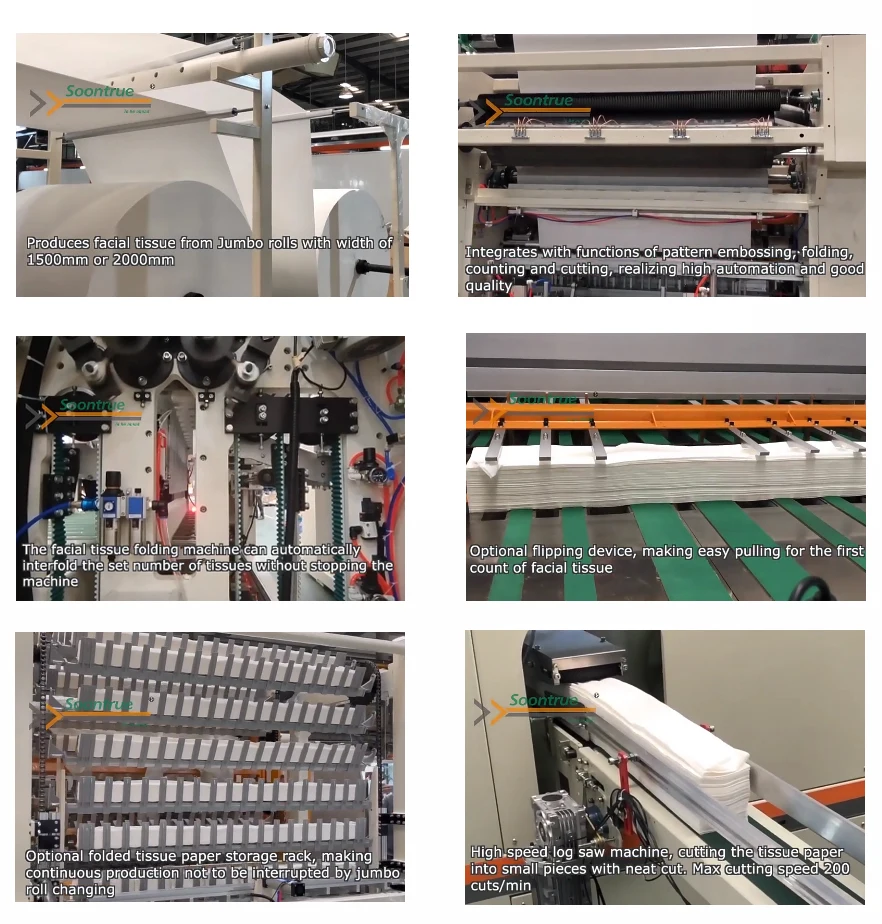

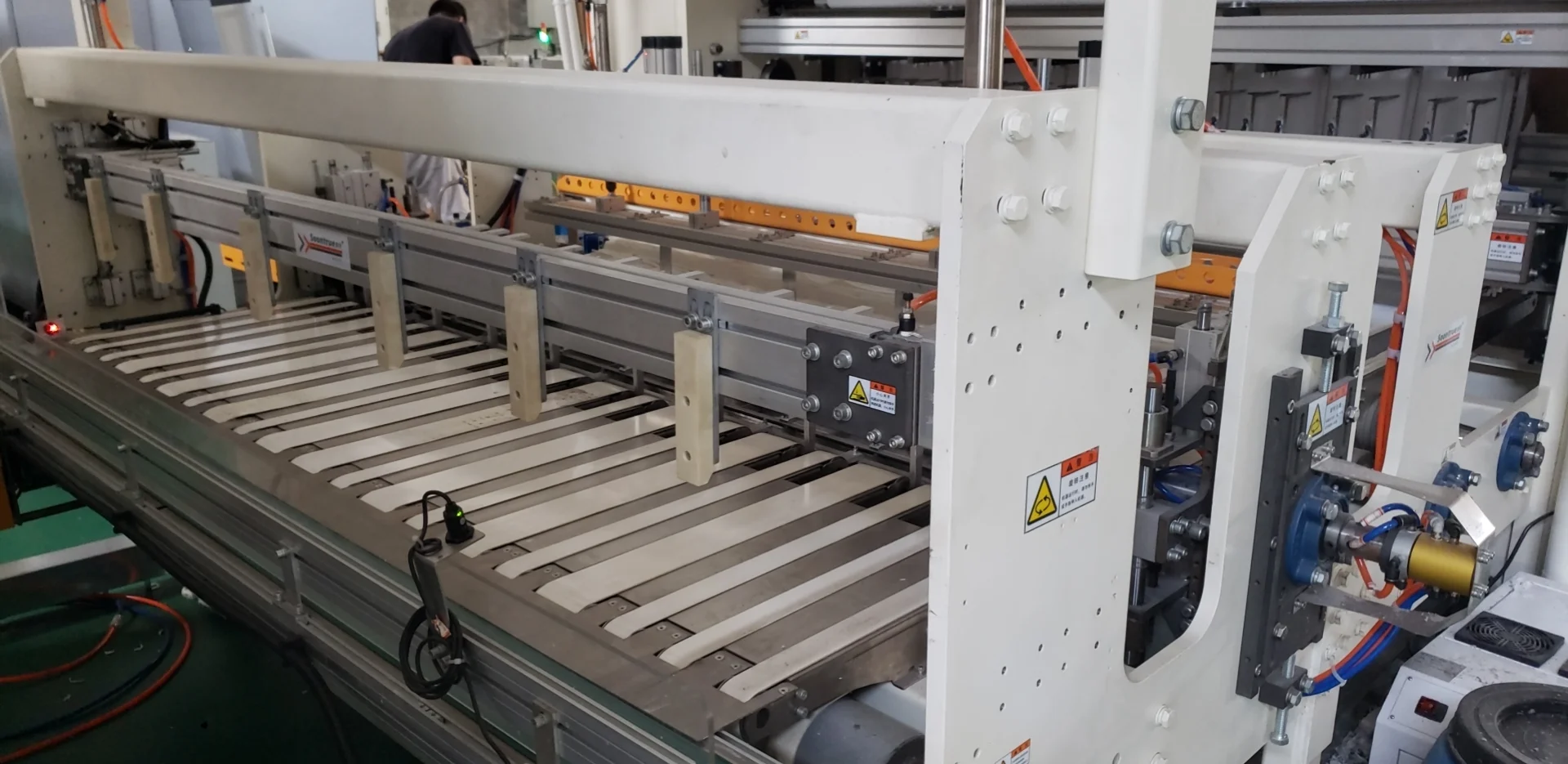

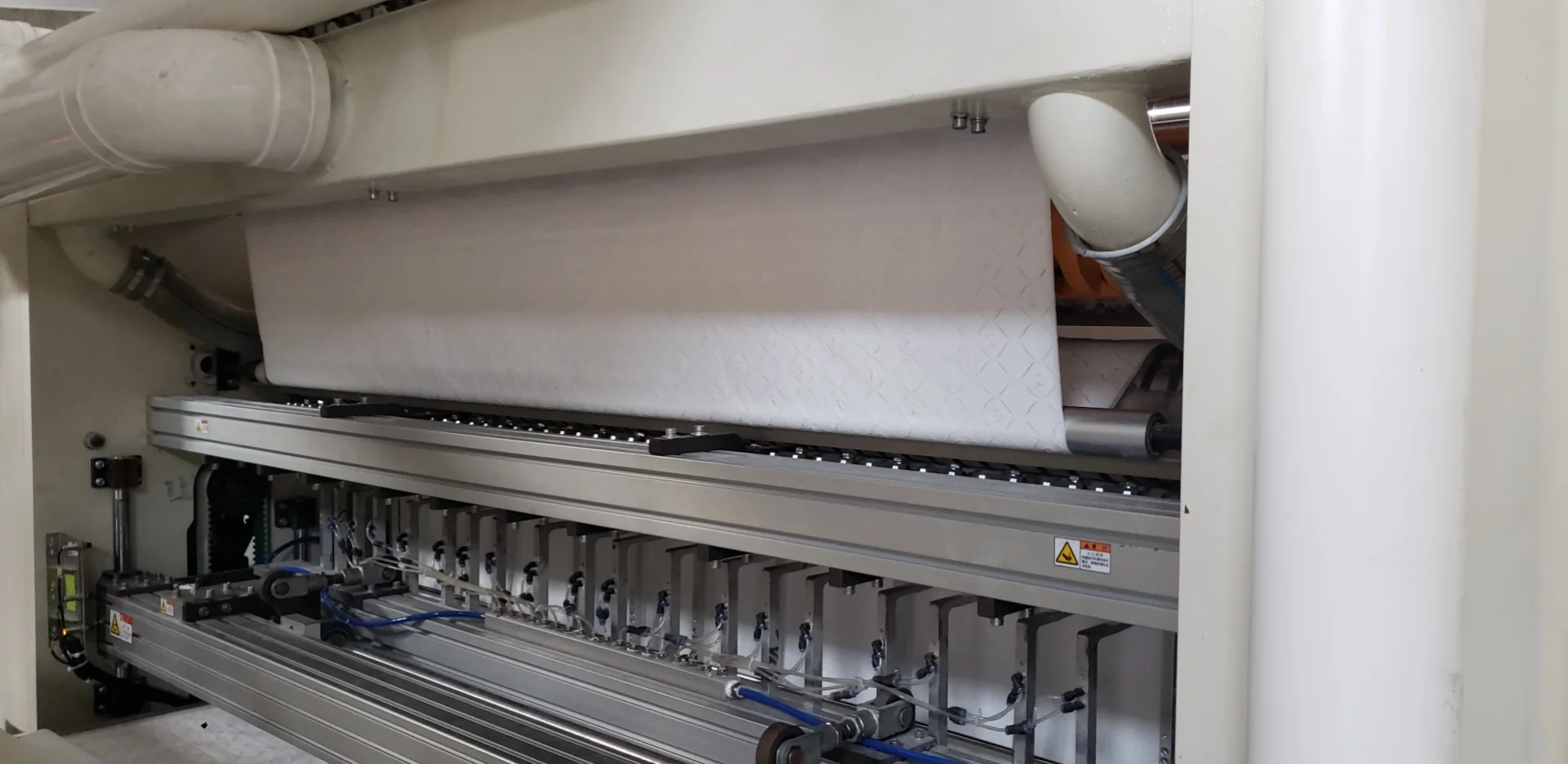

Detailed Images
Company Information
Soontrue is a professional tissue converting and packing machine manufacturer. Founded in 1993, with more than 133,500 square meters plant space and more than 2,000 well-trained and knowledgeable staff members, more than 700 of them are middle and senior technicians ; Our annual revenue reaches over USD300 million; with more than 2,000 patents to make sure our machines leading ahead in the industry. Soontrue has 4 manufacturing bases which are Shanghai, Foshan, Pinghu, and Chengdu factories, Not satisfied with our achievements in China, over the past few years, we have successfully provided solutions and services for our customers in 160 countries and regions around the world. In China, Soontrue is a famous brand and the machines are widely used in all the big tissue factories, with more than 70% of domestic market share. Innovation, Intelligence, efficiency and service are always what we are striving for, win-win situation with customers is our final goal! |

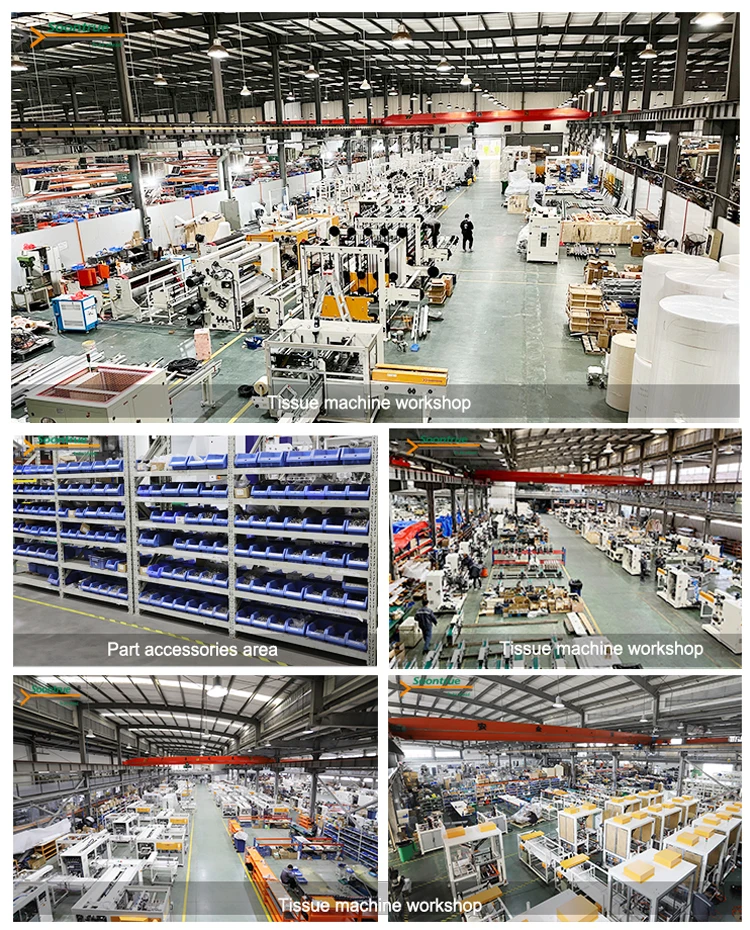

Our Factory
Our Exhibition
Packaging & Shipping
FAQ
Q1: Can the same production line produce different tissues
Answer: It depends. For kitchen towel and household tissue, the crafts and materials are different, (the patten engraving depth is different), so patten embossing unit needs different ones.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our tissue manufacturing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. We can also provide instructional videos to give you step-by-step tutorial if necessary.
Q3: If I buy your tissue making machine, what technical support can I get?
Answer: Whether you buy a toilet paper making machine, a paper napkin making machine, or a facial tissue making machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some customized tissue paper production line, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q5: How can I find the suitable automatic tissue paper manufacturing machine I need?
Answer: We will fully communicate of the information of your tissue, including the width and diameter of the jumbo roll, pattern type, paper thickness, grammage etc.
We have nearly 30 years of experience as a machinery manufacturer and can provide you with similar case videos for your reference. If necessary, we will ask you for samples of your tissue paper and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
