High manganese 65Mn steel wire vibrating sieve screen mesh for Mining and Quarry
- Category: >>>
- Supplier: Anping County BT Wire Mesh Products Co. Ltd.
Share on (1600514142392):
Product Overview
Description
Screens are commonly utilized in mining operations and aggregates production to separate rocks, ores, and other materials by size, shape or other characteristics. Whatever your process requirements, BTOSLOT Mesh Screen has the screening solution to fit your needs. Our screening professionals are eager to help you in finding the most productive and cost-effective solution for your application.
Product Description

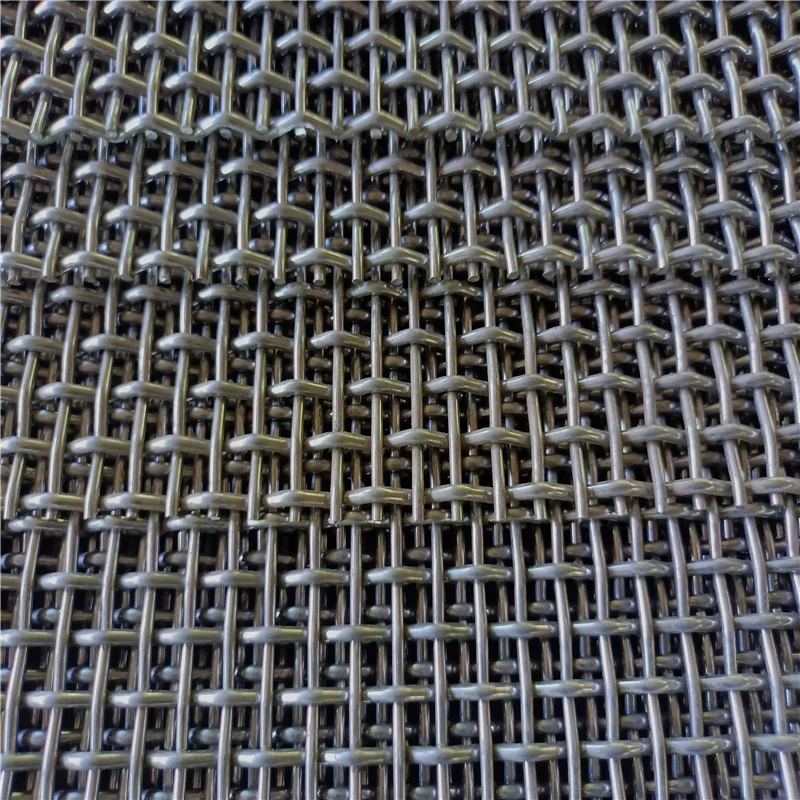

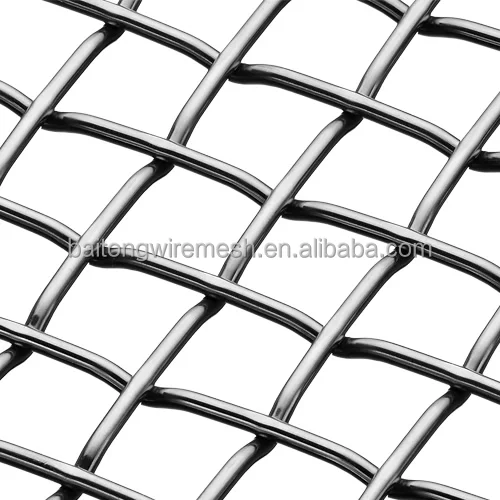

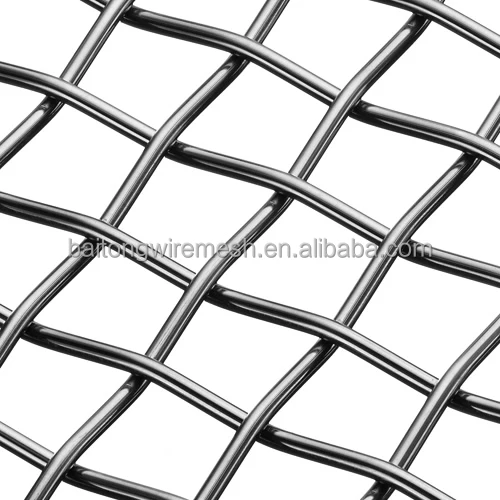

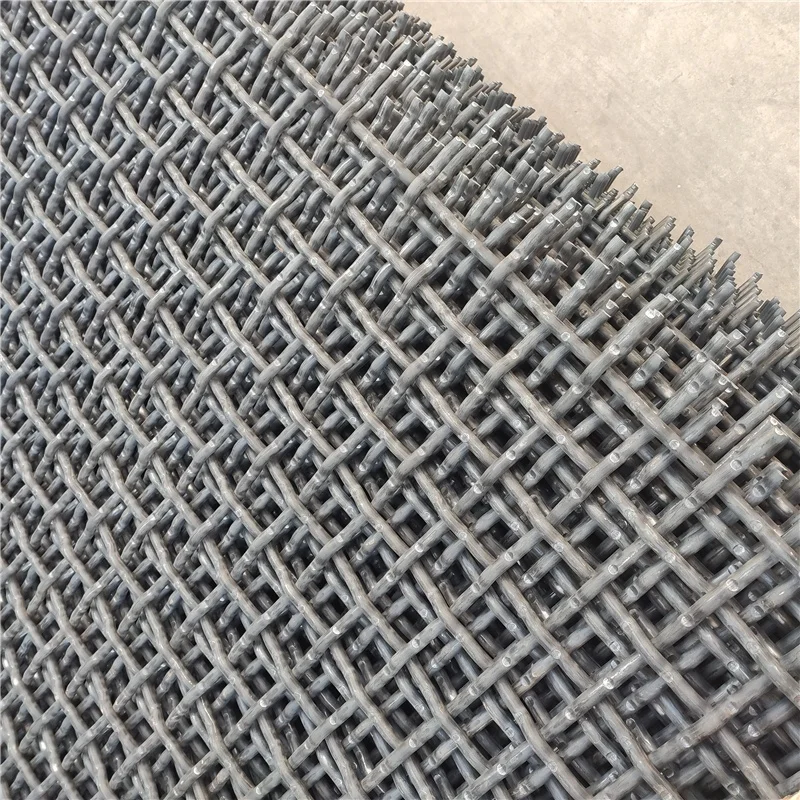

Plain Weave Double Crimped Woven Wire
This is the most common type of woven wire. It is used where the opening is relatively small in comparison to the wire diameter.

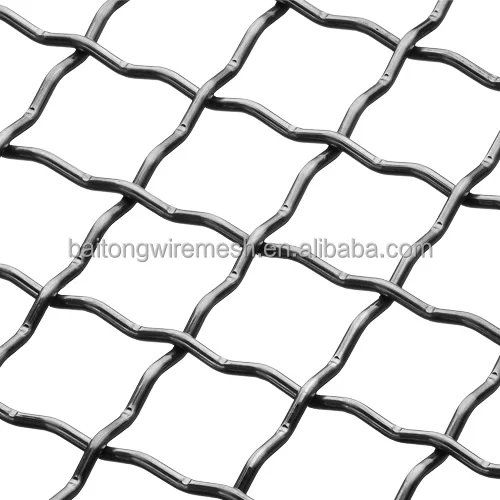

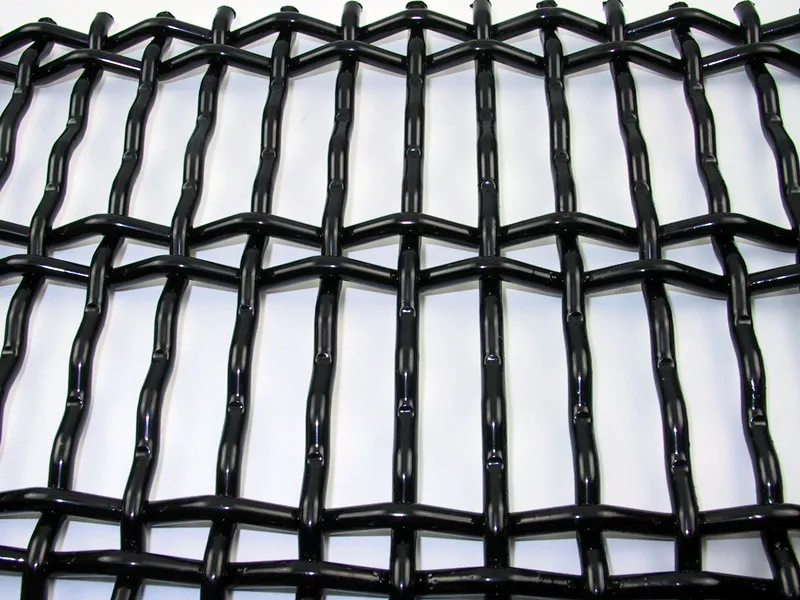

Intercrimp Woven Wire
This type of wire is used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. It is very common in wire mesh openings larger than 1/2 inch(12.7mm).

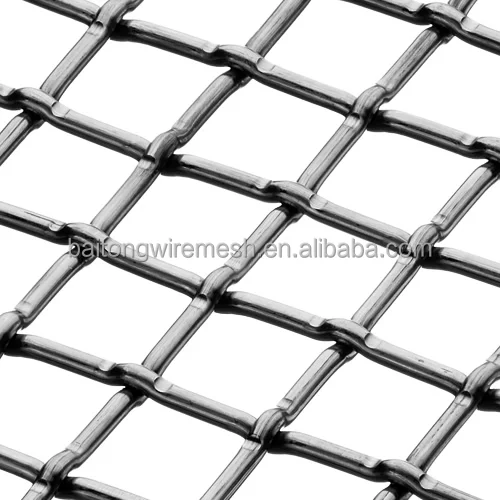

Lock Crimp Woven Wire
This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.
Flat Top Woven Wire
Usually starts at 5/8 inch(15.88mm) opening or larger. This type of wire provides long abrasive resistant life since there are no projections on top to wear. Flat top woven wire offers the least resistance to flow and is very popular in certain architectural and structural applications where a smooth surface on one side is desirable.

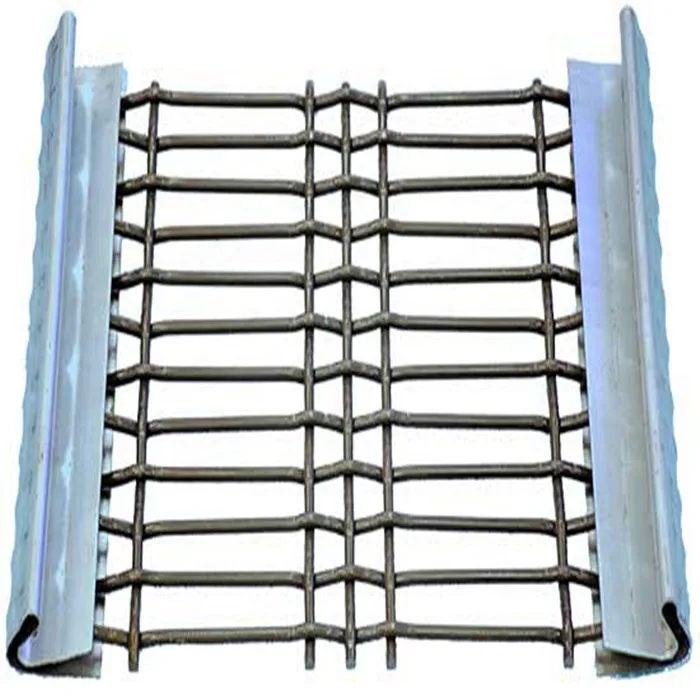

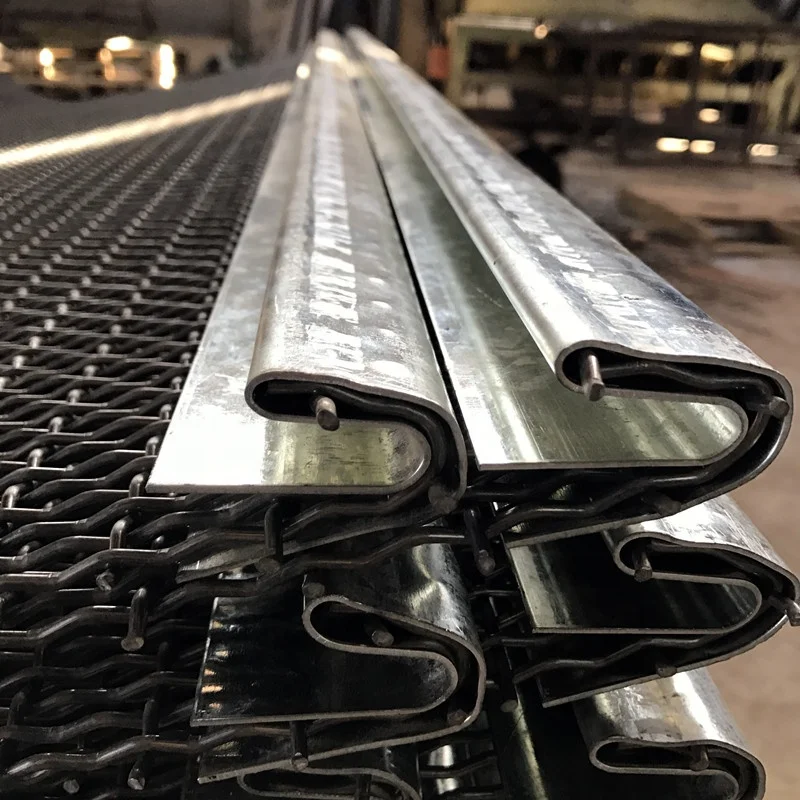

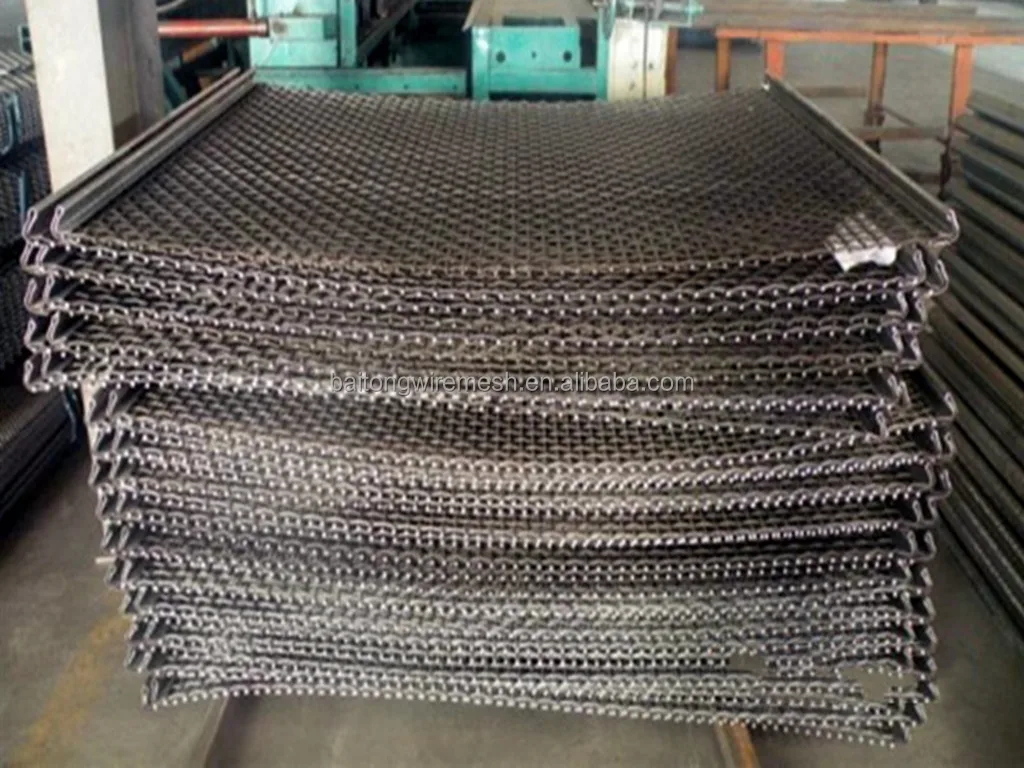

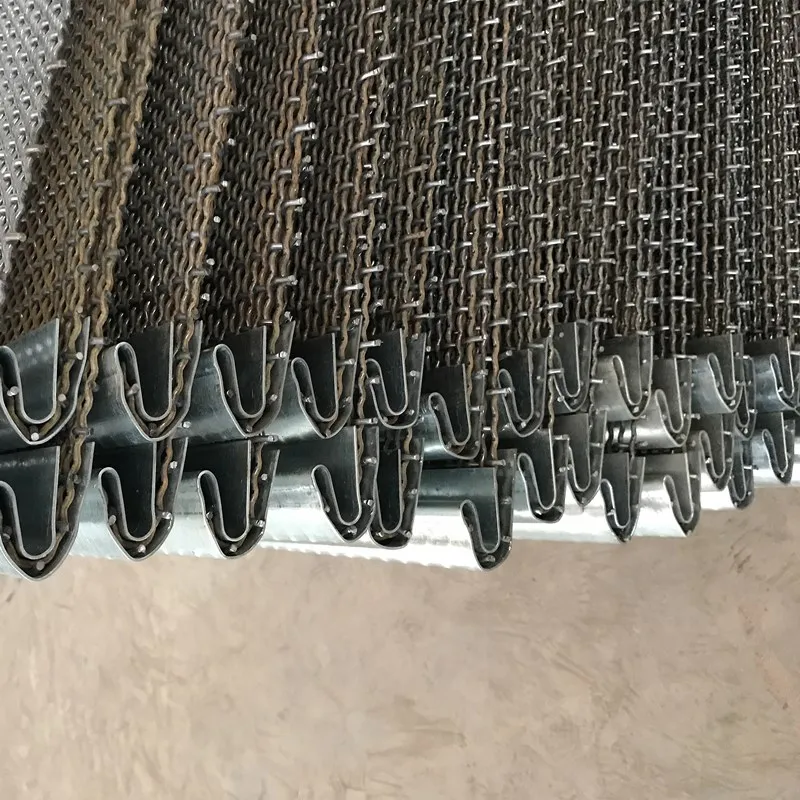

Hooks & Edge Preparation
Hooks & Edge Preparation
Proper screen size and tensioning are critical for effective screening and longer screen life. Unified edge preparations fit OEM and customer-designed equipment properly for optimum tensioning. Banded edges strengthen hooked edges and provide even tensioning across the screen.

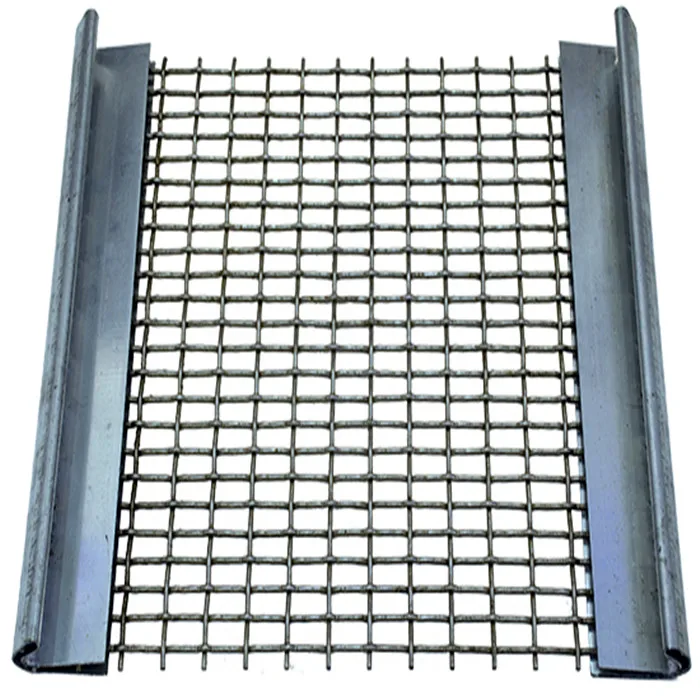

Plain Formed Edge for screens of 5/16” and larger diameter wire. Edges are annealed by controlled heating before forming to eliminate cracking and breakage.
Inside Reinforced Formed Edge for screens of .313” diameter wire and larger can provide superior tensioning.
A 1/8” steel angle insert is welded inside the wire hooks, strengthening the screen for uniform tensioning and ease of installation on vibrating equipment. Also available in end-tensioned format.
A 1/8” steel angle insert is welded inside the wire hooks, strengthening the screen for uniform tensioning and ease of installation on vibrating equipment. Also available in end-tensioned format.
Welded Bent Plate Edge for 5/16” wire diameters and larger.3/16” or 1/4” steel angle is welded on the screen edge.

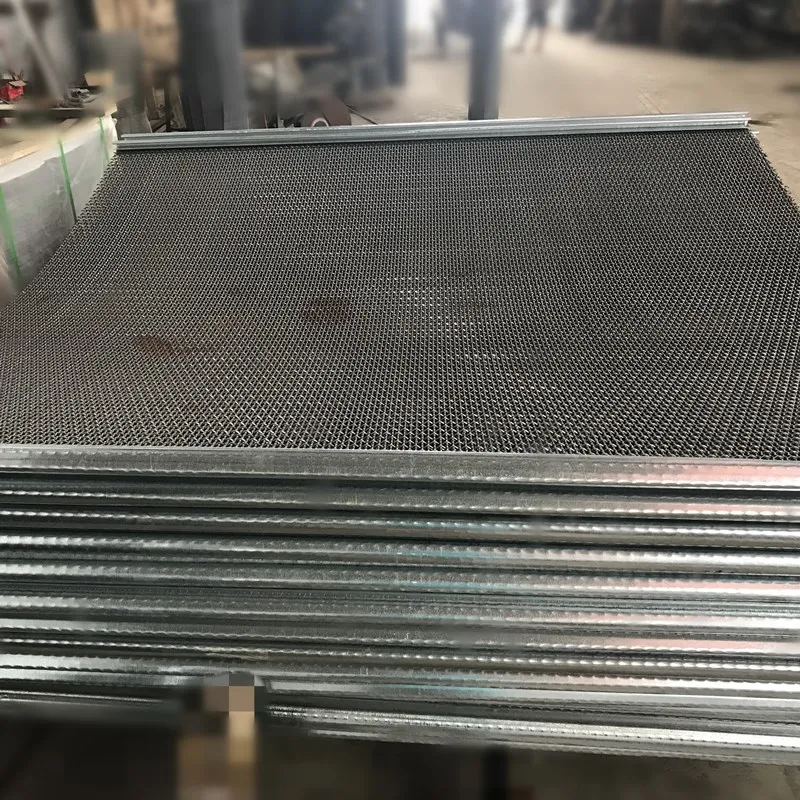

Reinforced Shroud Banded Edge is standard for screens of up to 3/8” wire diameter.
Standard shrouding is 18 gauge steel with other thicknesses available.
Standard shrouding is 18 gauge steel with other thicknesses available.
End Tension Reinforced Shroud Banded Edge is compatible with all OEM replacement applications. Excellent for .244” wire and
lighter. Hook lengths will vary to meet OEM specifications. Any dimension and profile is available upon request.
lighter. Hook lengths will vary to meet OEM specifications. Any dimension and profile is available upon request.
Any hook and angle will be manufactured to your specifications. Other hook dimensions are available upon request.
When ordering non-standard edges, give angle of formed edge and hook length.
Custom hook edges available
When ordering non-standard edges, give angle of formed edge and hook length.
Custom hook edges available
Cleaning Screens
• Reduce pegging, plugging and blinding and maintain sizing
• High % of open area and self-cleaning action = higher production rates
• Hook with any edge style to fit all screening equipment, side or end tension
• High % of open area and self-cleaning action = higher production rates
• Hook with any edge style to fit all screening equipment, side or end tension

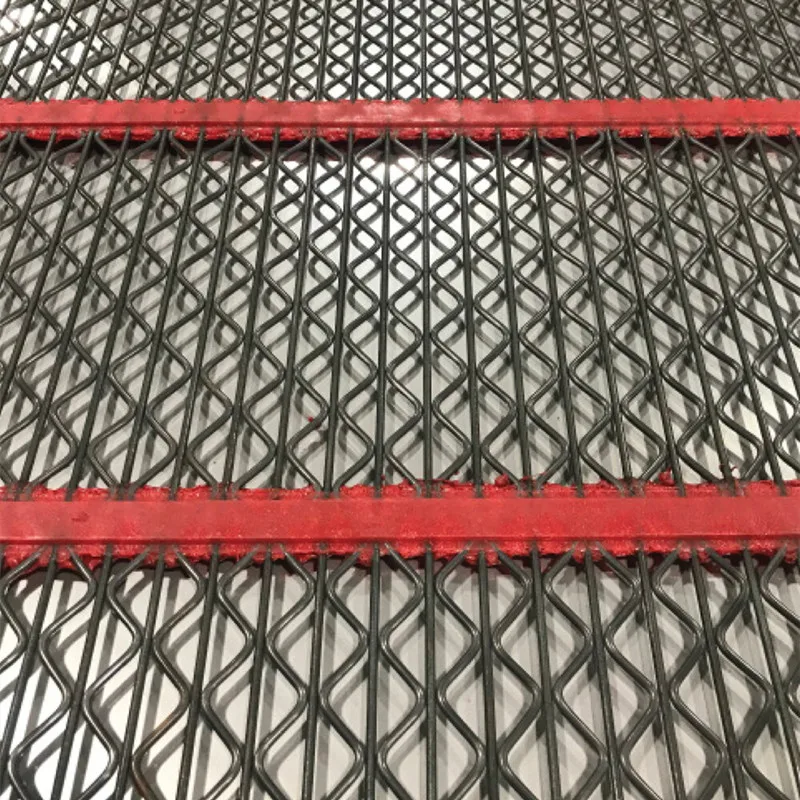

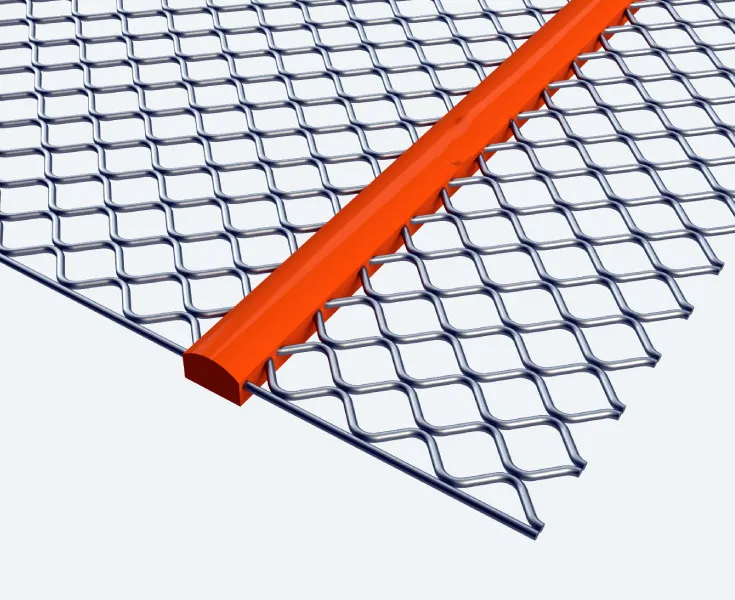

D-Style (Diamond) Screens
• Diamond-shaped openings for accurate sizing
• Accurately sizes dry or damp material
• Most accurate Clean Screen for sizing applications
• Range from 1/8” opening to 1-1/4” opening
• Accurately sizes dry or damp material
• Most accurate Clean Screen for sizing applications
• Range from 1/8” opening to 1-1/4” opening
W-Style Screens
• Alternating straight and formed wires vibrate at different frequencies to clean the screening surface
• Triangular-shaped openings for accurate sizing
• More resilient to damage from oversized material
• Range from 3/32” opening to 3/4” opening
• Triangular-shaped openings for accurate sizing
• More resilient to damage from oversized material
• Range from 3/32” opening to 3/4” opening
T-Style Screens
• Unified’s T-slot screens are an affordable alternative to high-cost piano wire screens
• Uncrimped tension wires
• Clusters located to suit your screen deck
• Almost any wire size and opening combination available - ask representative for details
• Also available in SuperFlow
• Range from 1/8” opening to 7/8” opening
• Uncrimped tension wires
• Clusters located to suit your screen deck
• Almost any wire size and opening combination available - ask representative for details
• Also available in SuperFlow
• Range from 1/8” opening to 7/8” opening
Specification
item | value |
Applicable Industries | Mining and Quarry |
Local Service Location | Canada, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, Mexico, Russia, Thailand, Japan, Malaysia, Kazakhstan, Uzbekistan, Tajikistan |
Showroom Location | none |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | More than 5 years |
Core Components | crimped woven mesh |
Condition | New |
Type | crimped woven mesh |
Application | mining |
Place of Origin | China |
Brand Name | BT |
Voltage | request |
Dimension(L*W*H) | customized |
Weight | customized |
Certification | ISO9001 |
Warranty | More than 5 years |
Online support | |
Product name | Vibrating Sieve |
Keyword | Rotary Vibrating Separator |
Material | High manganese 65Mn |
Usage | Seeds Screening |
Layer(s) | 1-5 Layers |
Function | Screening\\separation\\sorting\\sieving |
Width | 0.5-2.2m |
Length | 0.5-5.8m |
Hole shape | Square holes |
Capacity | 100Kg-10Tons/hour |
Product Presentation

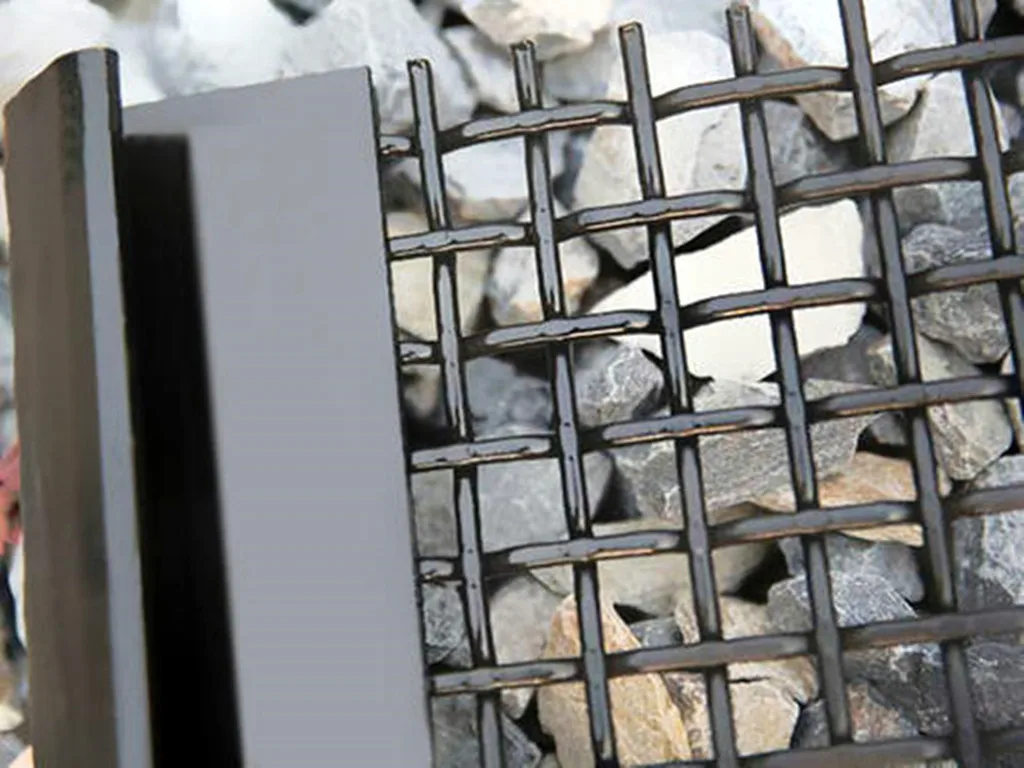

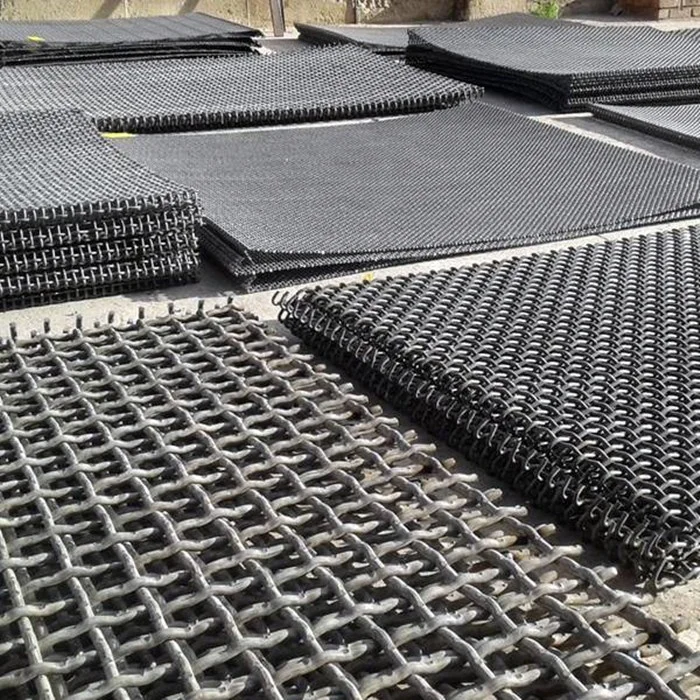

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screeningarea, precision and price ratio.
The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
Application
* In acid, alkali environment conditions sieving and filtering.
* Petroleum industry as mud mesh,.
* Chemical fiber industry as screen mesh.
* Plating industry as acid cleaning mesh.
* In acid, alkali environment conditions sieving and filtering.
* Petroleum industry as mud mesh,.
* Chemical fiber industry as screen mesh.
* Plating industry as acid cleaning mesh.

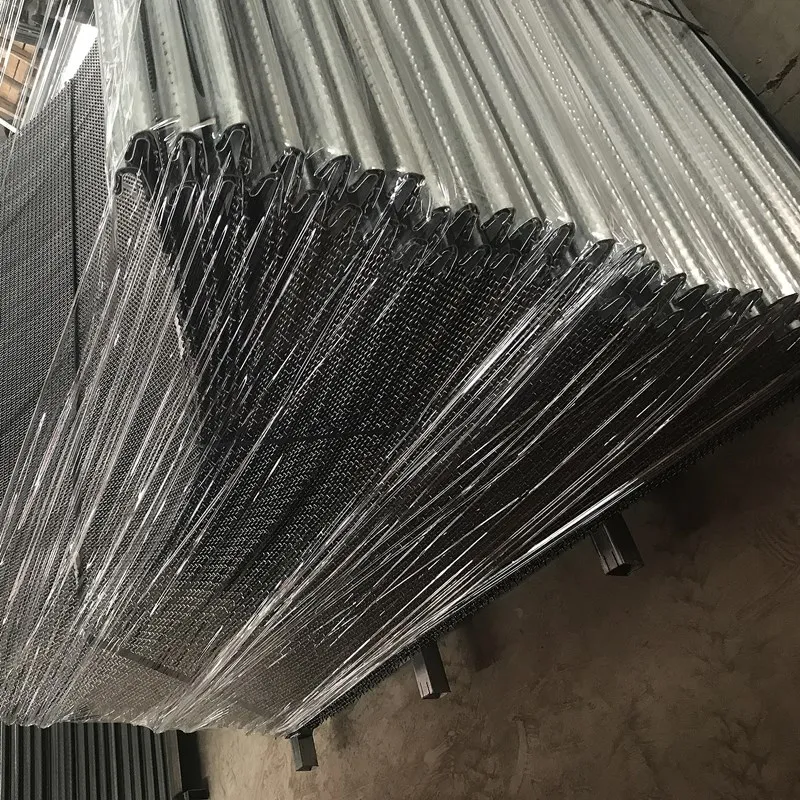

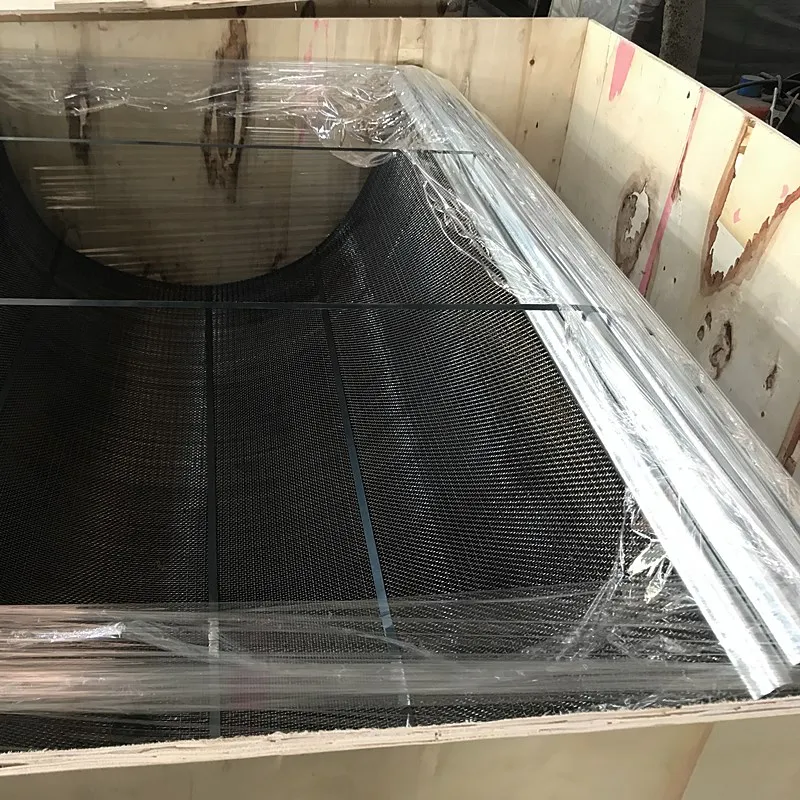

Packing & Delivery
Wooden Pallets or Wooden Boxes
