Product Overview

Description

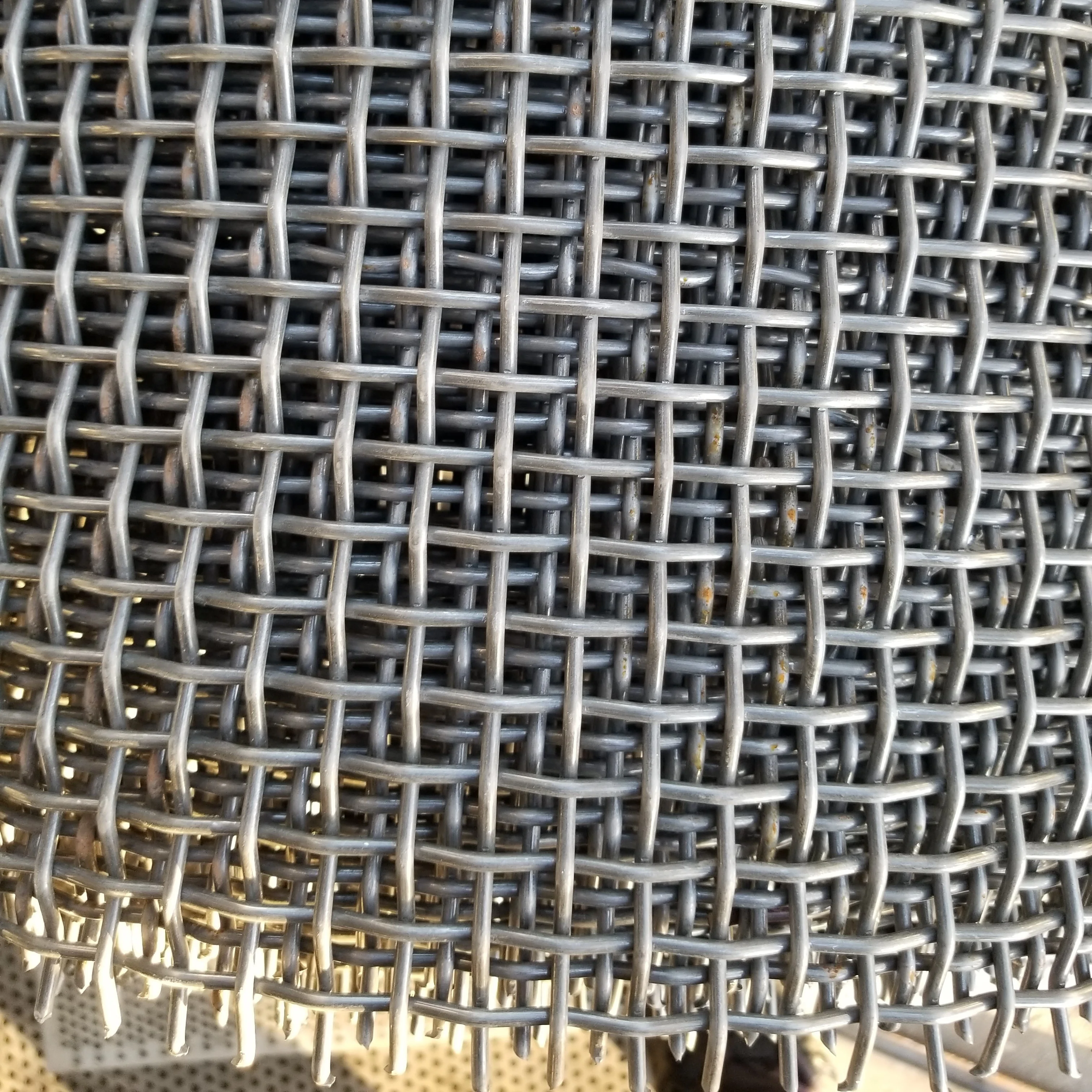

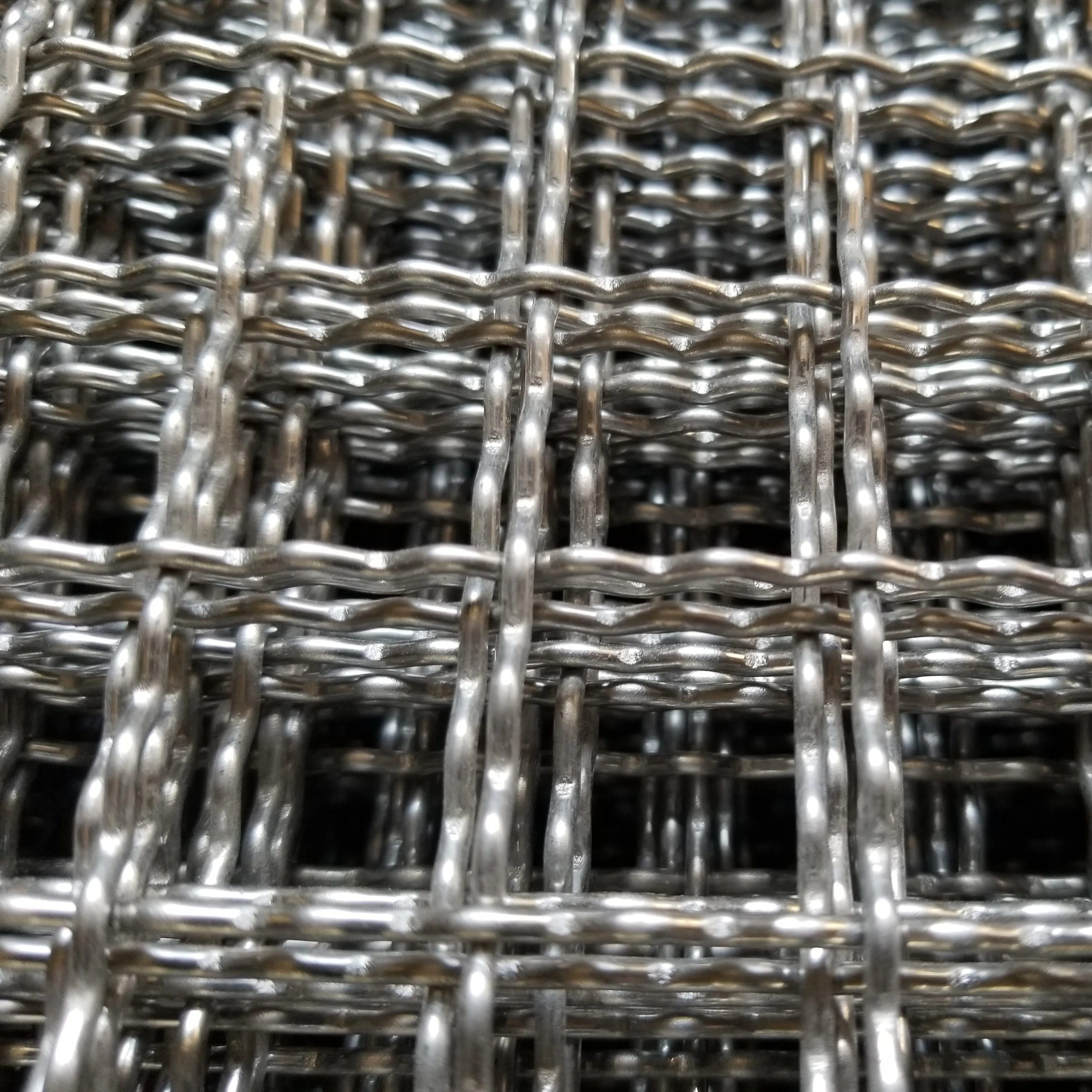

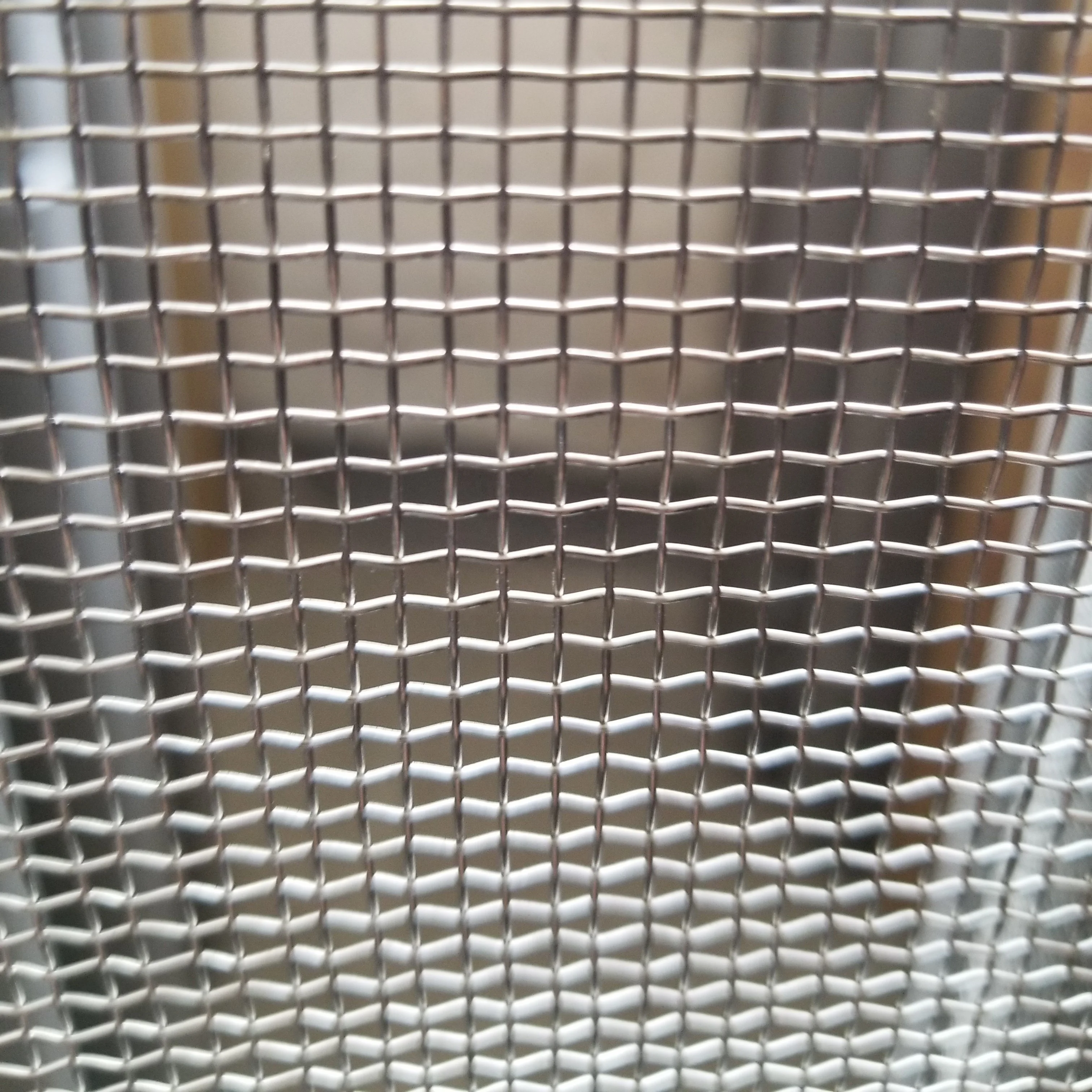

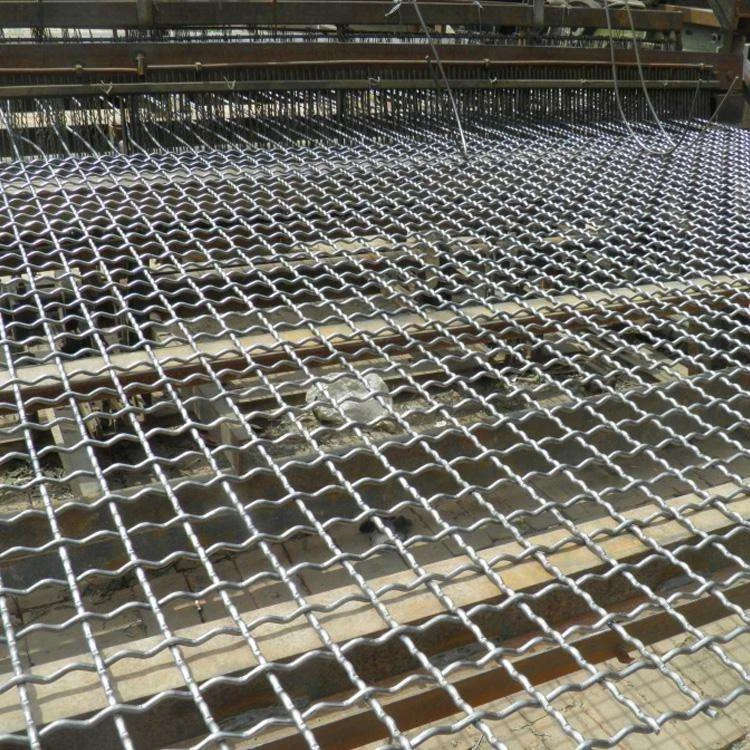

Mining Vibrating Screen Mesh SUS 304 316 316l Stainless Steel Crimped Woven Wire Mesh

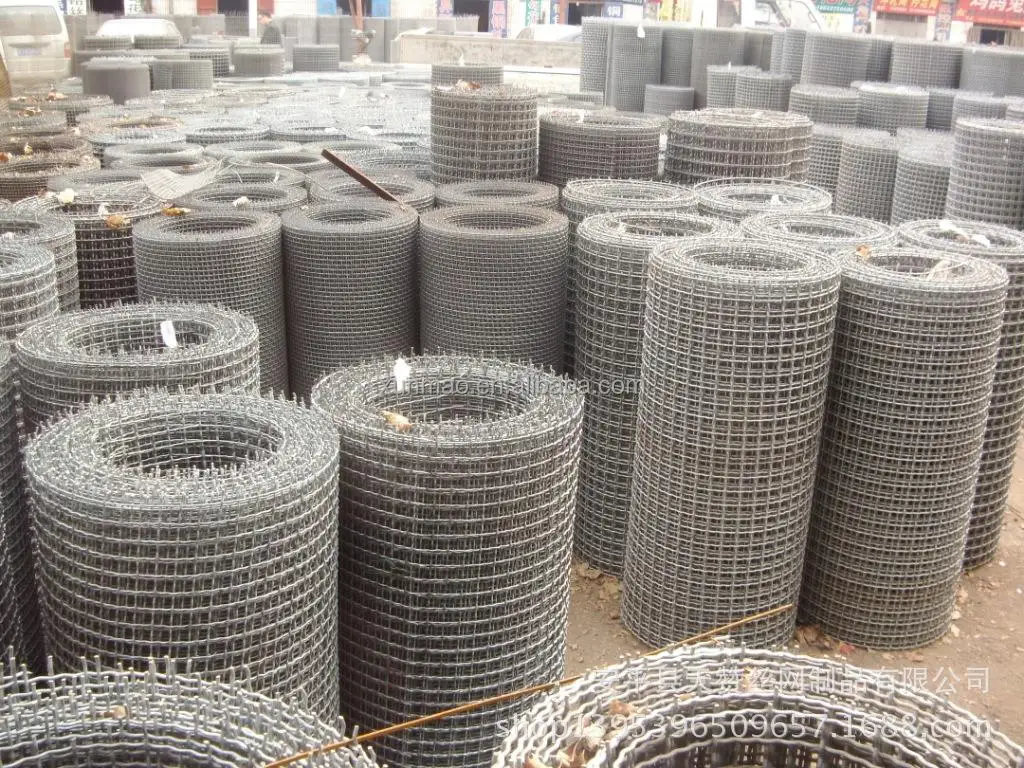

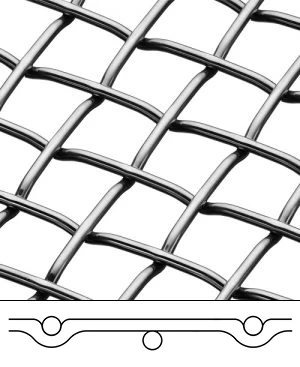

Crimped wire mesh also called square wire mesh is cloth made from wire strands. The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires). The cross and line wires are interwoven. That is, the wires cross over and under each other. Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size. Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.Crimped wire mesh is commonly employed as a filtration medium for sieving in a wide range of industries.


Advantage:
1.High mechanical strength, large carrying capability
2.High abrasion and chemical corrosion resistance
3.Excellent vibration and impact resistance
4.Large screening area
5.A long service life


Stainless Steel Wire Mesh
Mesh/inch
Wire Diameter/(mm)
Aperture/(mm)
Mesh/inch
Wire Diameter/(mm)
Aperture/(mm)
2mesh
1.8
10.9
60mesh
0.15
0.273
3mesh
1.6
6.866
70mesh
0.14
0.223
4mesh
1.2
5.15
80mesh
0.12
0.198
5mesh
0.91
4.17
90mesh
0.11
0.172
6mesh
0.8
3.433
100mesh
0.1
0.154
8mesh
0.6
2.575
120mesh
0.08
0.132
10mesh
0.55
1.99
140mesh
0.07
0.111
12mesh
0.5
1.616
150mesh
0.065
0.104
14mesh
0.45
1.362
160mesh
0.065
0.094
16mesh
0.4
1.188
180mesh
0.053
0.088
18mesh
0.35
1.06
200mesh
0.053
0.074
20mesh
0.3
0.97
250mesh
0.04
0.061
26mesh
0.28
0.696
300mesh
0.035
0.049
30mesh
0.25
0.596
325mesh
0.03
0.048
40mesh
0.21
0.425
350mesh
0.03
0.042
50mesh
0.19
0.318
400mesh
0.025
0.0385
Width of stainless steel wire mesh: 0.5m-1.5m

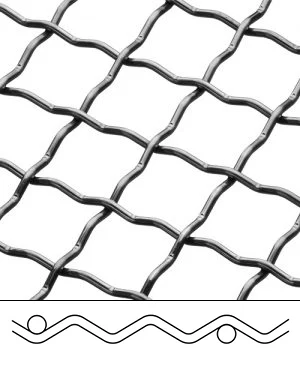

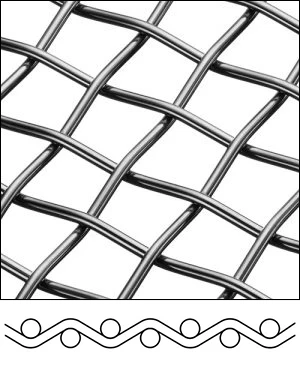

Double Crimp Woven Wire

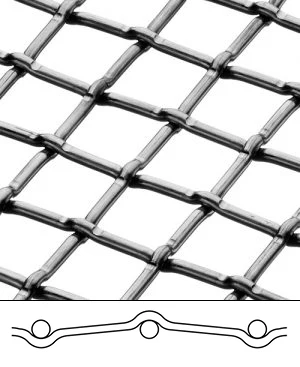

Lock Crimp Woven Wire


Flat Top Woven Wire

Intercrimp Woven Wire
This is the most common type of woven wire. It is used where the opening is relatively small in comparison to the wire diameter.
This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.
This type of wire provides long abrasive resistant life since there are no projections on top to wear. Flat top woven wire offers the least resistance to flow and is very popular in certain architectural and structural applications where a smooth surface on one side is desirable.
This type of wire is used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and
maximum rigidity.

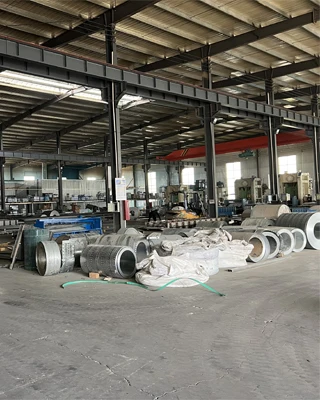

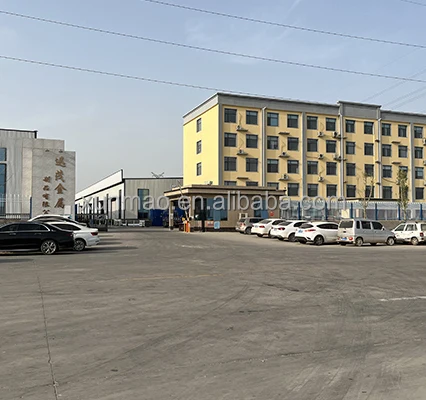

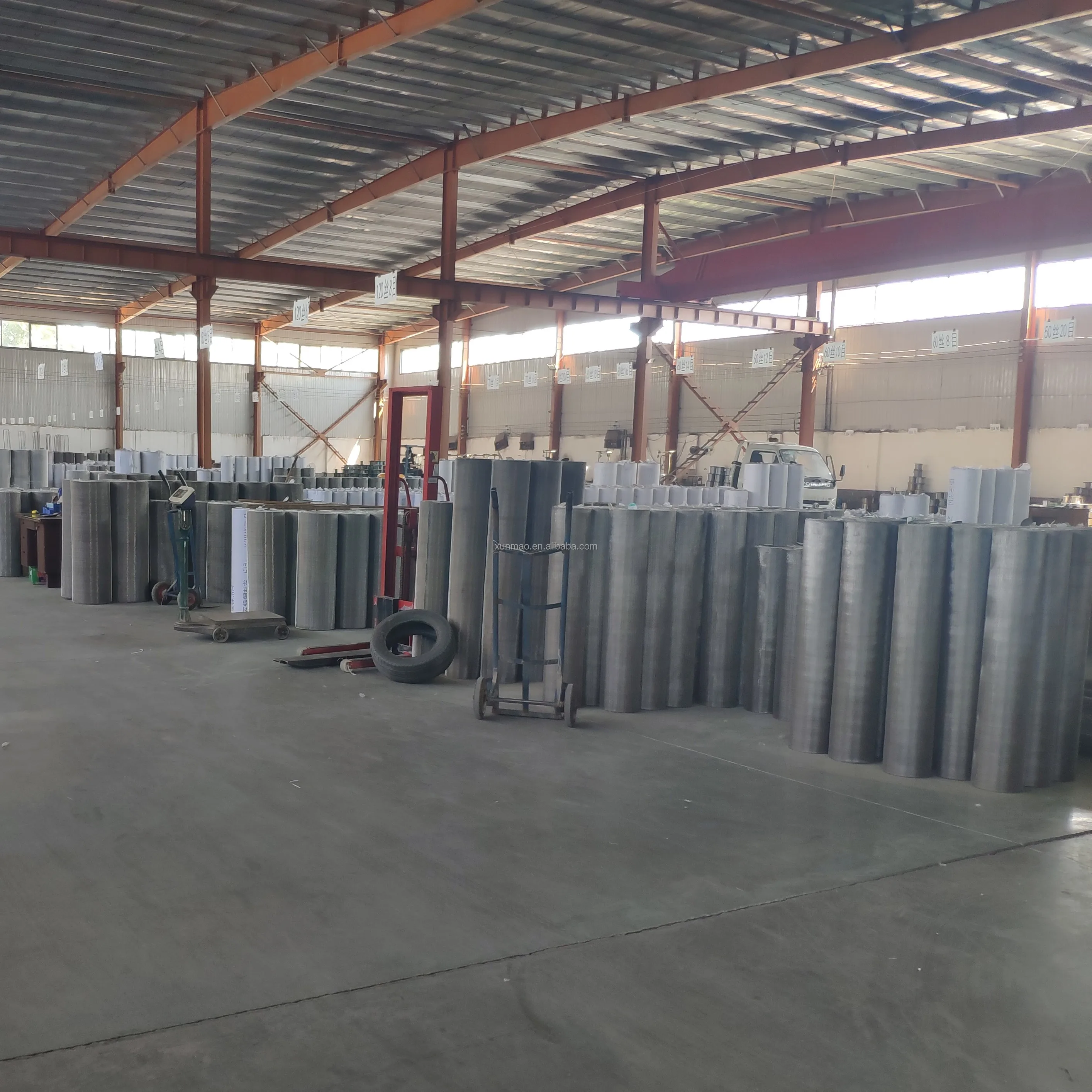

Company Profile

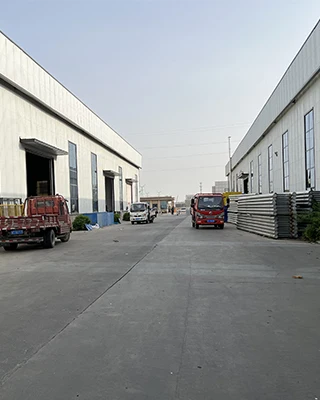

Anping Xunmao Metal Products Co., Ltd. was established in 2005, located in Anping County, Hebei Province. It is an entity factory integrating wire drawing, net weaving and finished product processing. Main products: Knitted metal mesh, wire mesh demister, structured packing, random packing and other wire mesh products. Over the years, with high-quality products, good reputation and excellent service, our company has established solid trade relations with many merchants, and our products are exported to various countries and regions all over the world. We are willing to cooperate honestly and seek common development on the basis of mutual honesty!
