Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
Plastic Garbage Trash Bag Making Machine
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Baihao Intelligent Equipment Co. Ltd.
Share on (1600514199075):
Product Overview
Description
Products Description
BL720B2-AR2 Double lines garbage bag making machine
The BL720B2-AR equipment is for making rolling garbage bags in efficient production by automatically changing plastic rolls. The rewinder rolls are tight and in order. Sealing type can be Star sealing. And it uses heat sealing and heat cutting, it also suits for printing and non-printing bag making. The materials for making bag can be HDPE, LDPE, LLDPE, PLA or any other biodegradable materials.
Machine type: Feeding Folded Film Rolls Before Sealing
Optional choice: Double V-folding Devices
Original supplier for all these types of machines
Product Video
Product Paramenters
Model | BL720B2-AR2 | |
Voltage | 380V | |
Total Power | 14KW | |
Average Power | 8KW | |
Film Width (Production roll width) | 100-280mm (Extra to 300mm) | 3.93 - 11.02 inches (Extra 11.81 inches) |
Bag Width | 200-1020mm (Extra to 1200mm) | 7.87 - 40.15 inches (Extra 47.24 inches) |
Bag Length | 300-2000mm | 11.81 - 78.74 inches |
Line Speed | 120-130m/min | |
Production Speed | 480-520pcs/min | |
Machine Weight | 2900KG | |
Machine Length | 6250mm | |
Machine Width | 2100mm | |
Machine Height | 1450mm |
Product Features
1. This bag making machine is applied to making perforation coreless rolling garbage bags or rubbish bags. And without paper-core star sealing bags.
2. Double bag film rolls with double functions unwinding structure.
3. Folding unit *2sets.
4. The machine adopts computer control system.
5. Automatic rewinder. This machine is equipped with automatic bag rolls rewinding and changing
6. With functions such as double bag film roll unwinding, folding system, photocell automatic tracking, strong heat-sealing device, microcomputer length setting, Taiwan Delta inverters, automatic counting, automatic alarm when reaching the set figure, digital temperature controller, automatic bag rolls rewinding and changing.
7. It is an ideal fully automatic equipment to produce roll garbage bags, or for the bag plant to improve efficiency and reduce the labor demand device of choice.
2. Double bag film rolls with double functions unwinding structure.
3. Folding unit *2sets.
4. The machine adopts computer control system.
5. Automatic rewinder. This machine is equipped with automatic bag rolls rewinding and changing
6. With functions such as double bag film roll unwinding, folding system, photocell automatic tracking, strong heat-sealing device, microcomputer length setting, Taiwan Delta inverters, automatic counting, automatic alarm when reaching the set figure, digital temperature controller, automatic bag rolls rewinding and changing.
7. It is an ideal fully automatic equipment to produce roll garbage bags, or for the bag plant to improve efficiency and reduce the labor demand device of choice.
8. This machine has IOT system, remote diagnosis & remote upgrade available.
Product Details

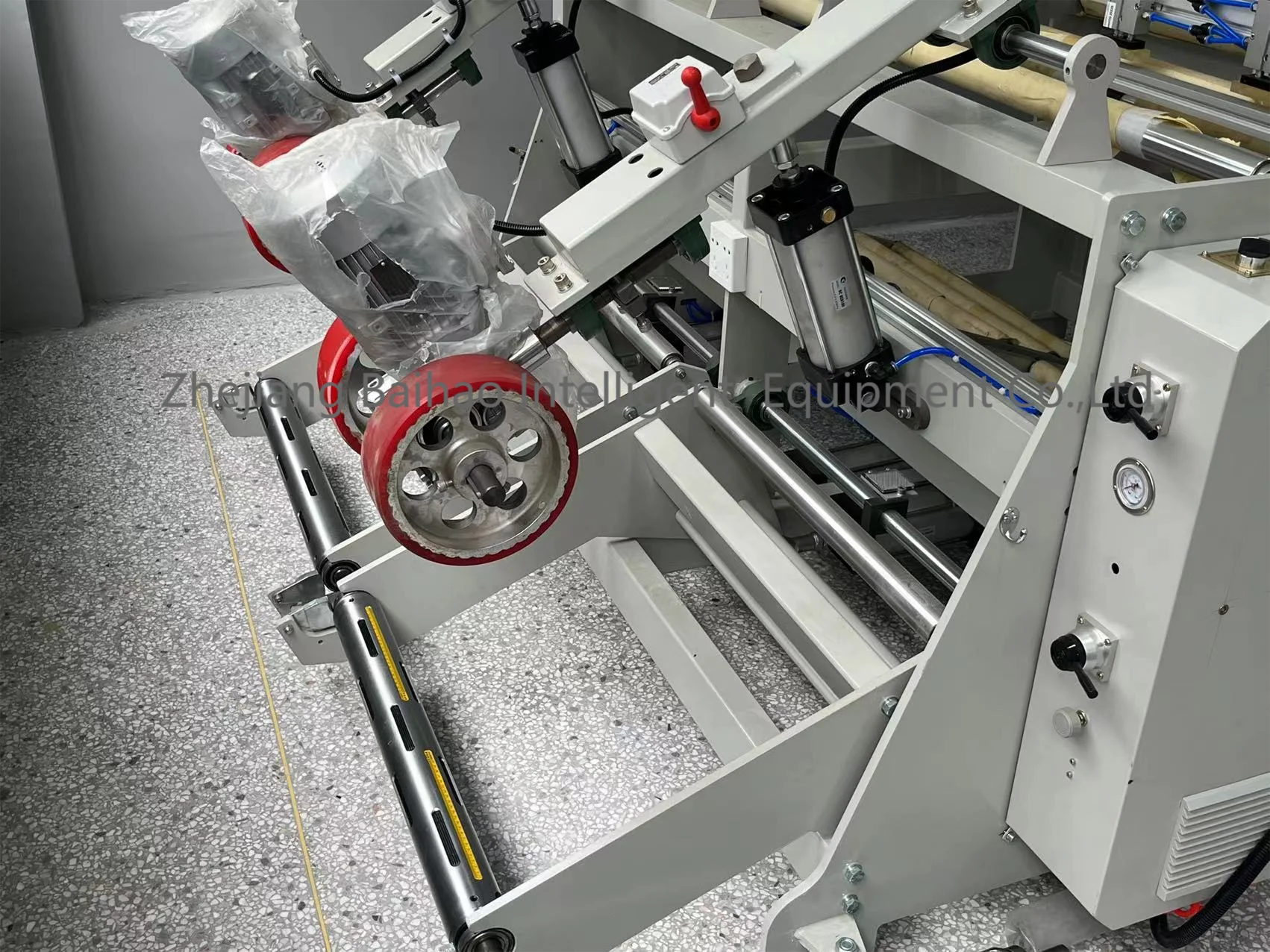

Automatic unwinding unit

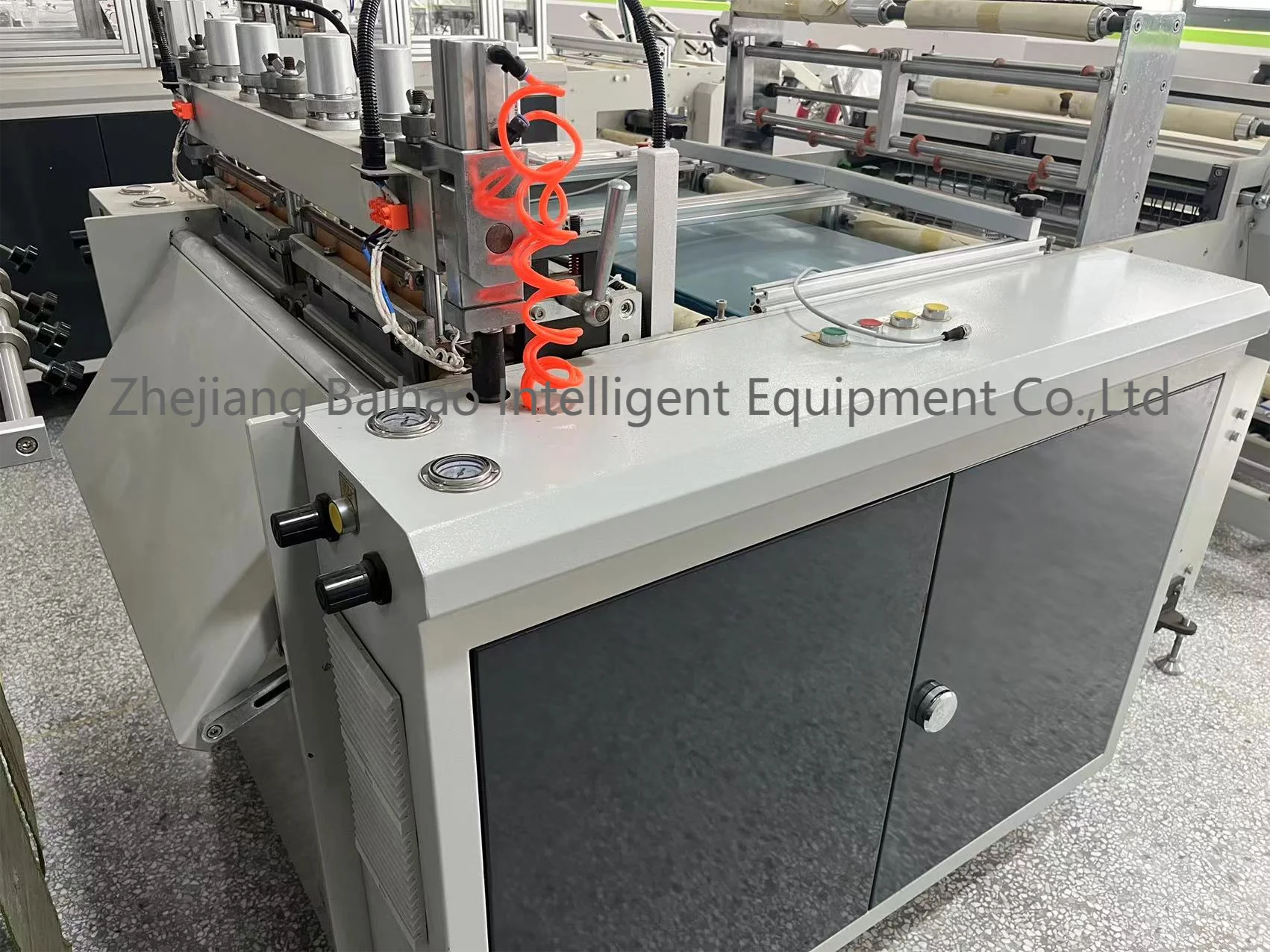

High precision perforation heat sealing & cutting

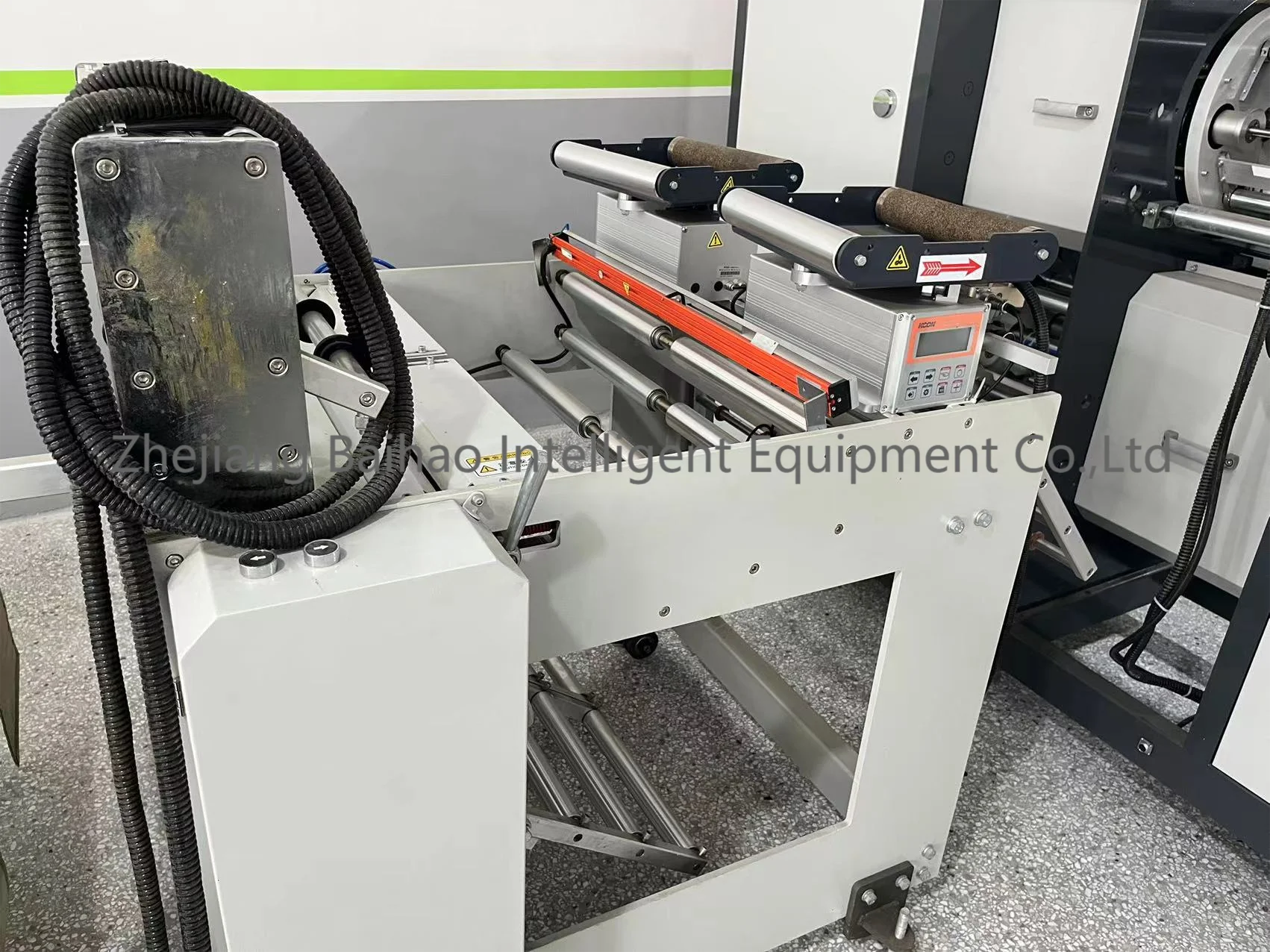

EPC + tension control

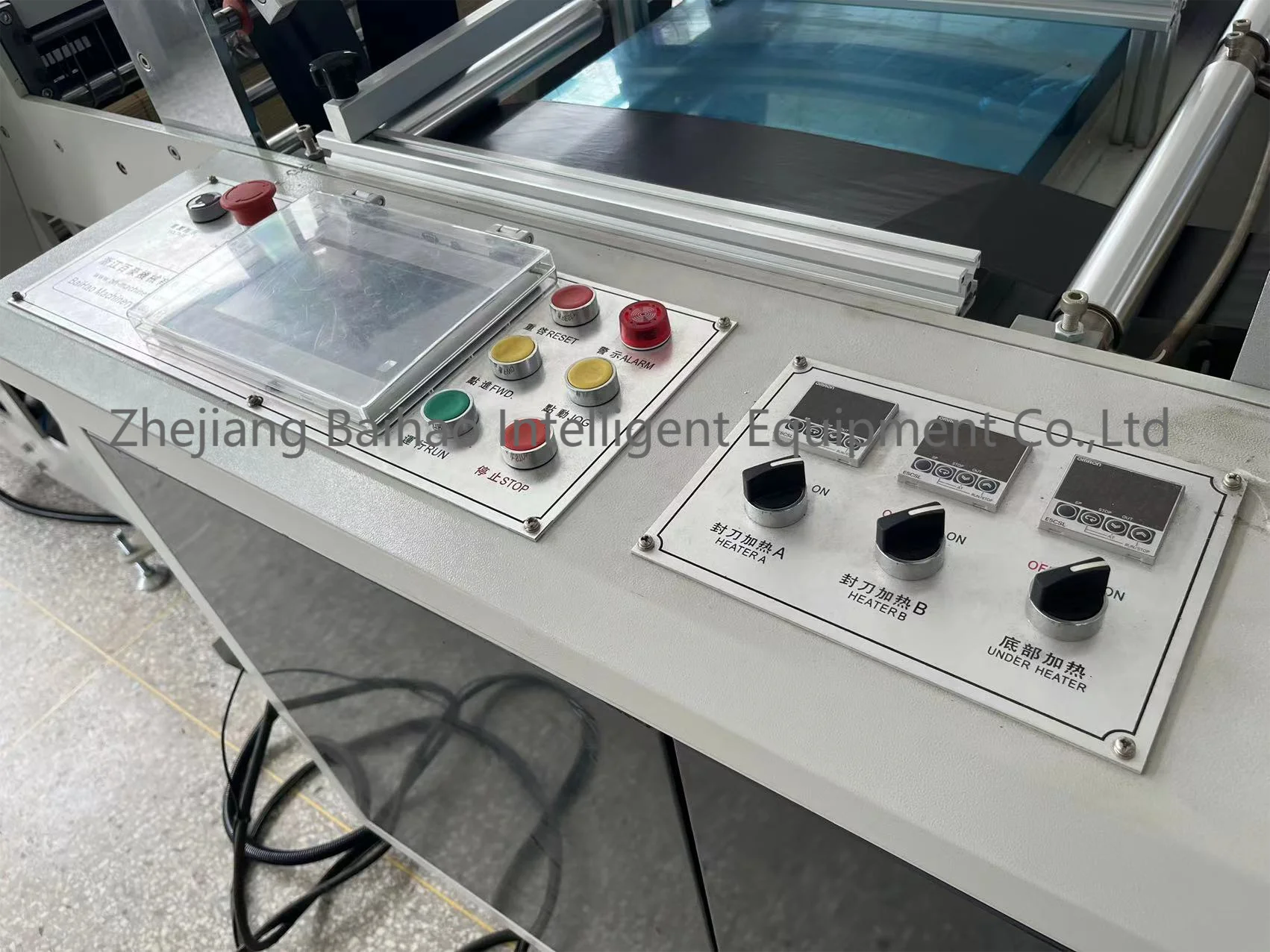

PLC Touch screen control

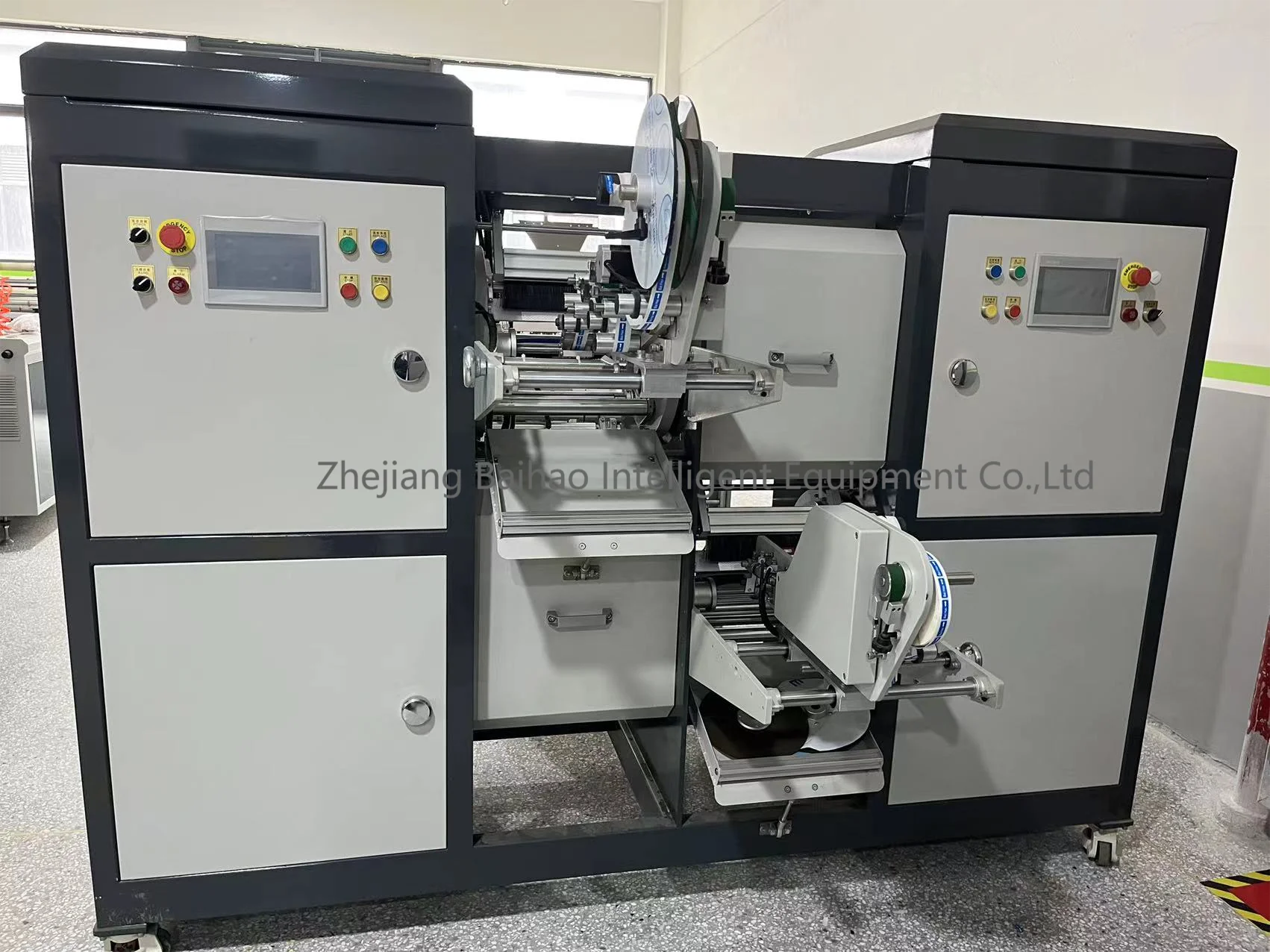

Automatic rewinding unit, optional choice for normal auto sticker or high-speed auto sticker.

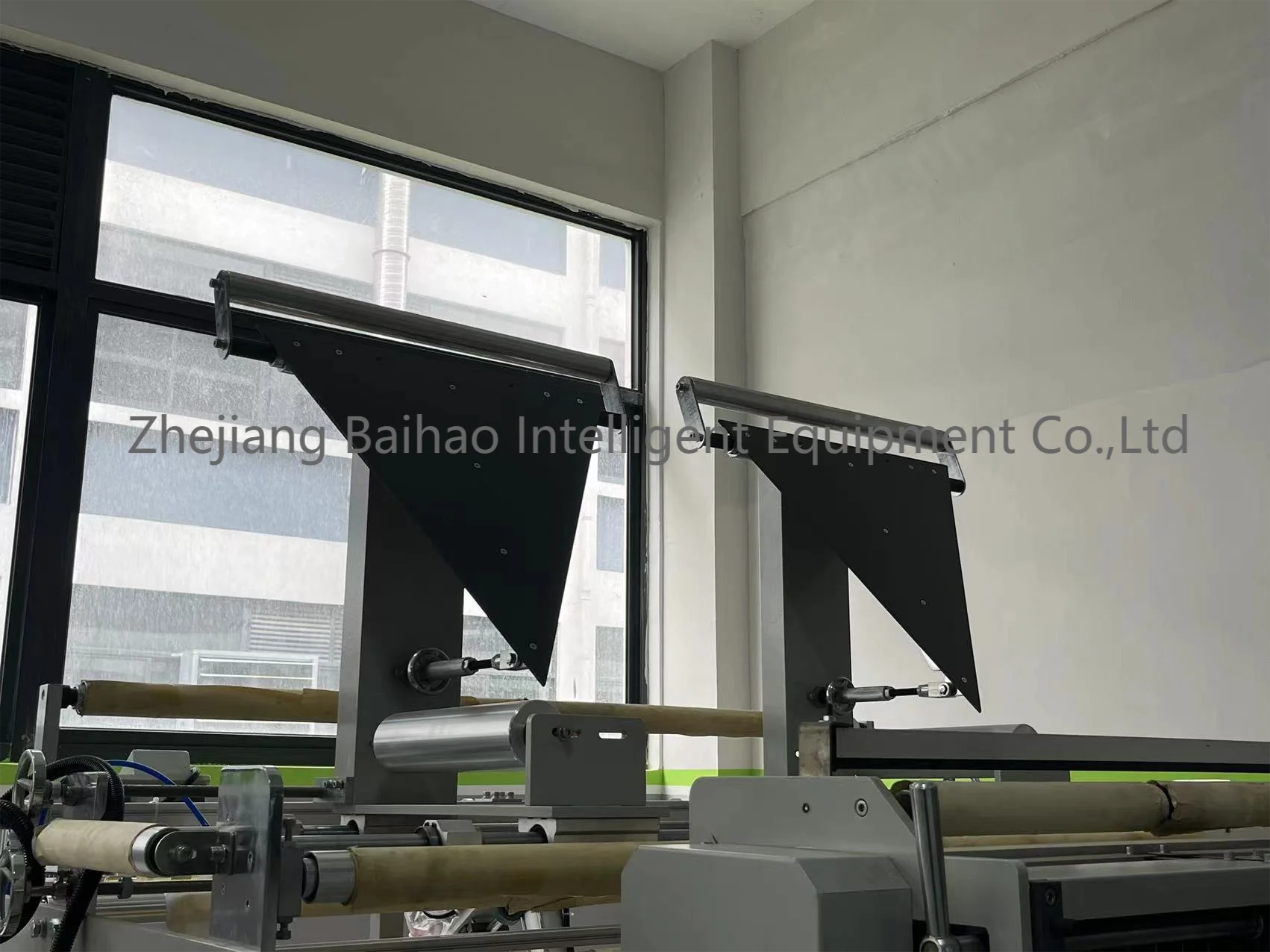

Optional choice: V-folding device

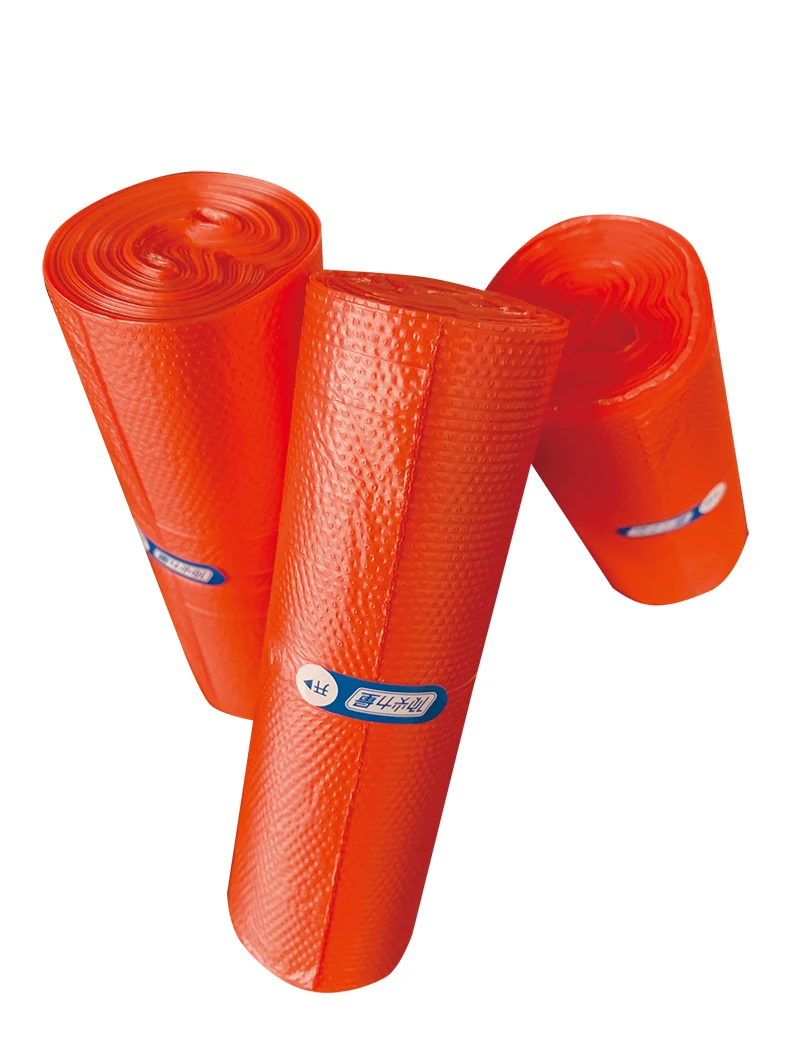

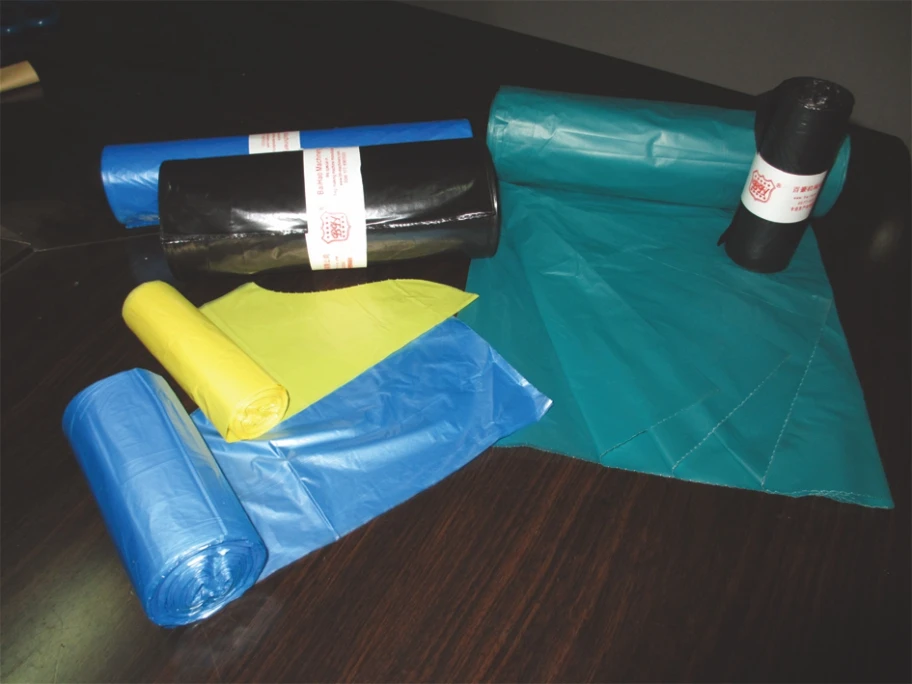

Production Bag Samples
