Mini twin screw multi layer pla plastic filter sheet mini extruder machine pvc production line
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1600514543803):
Product Overview
Description
Product Overview

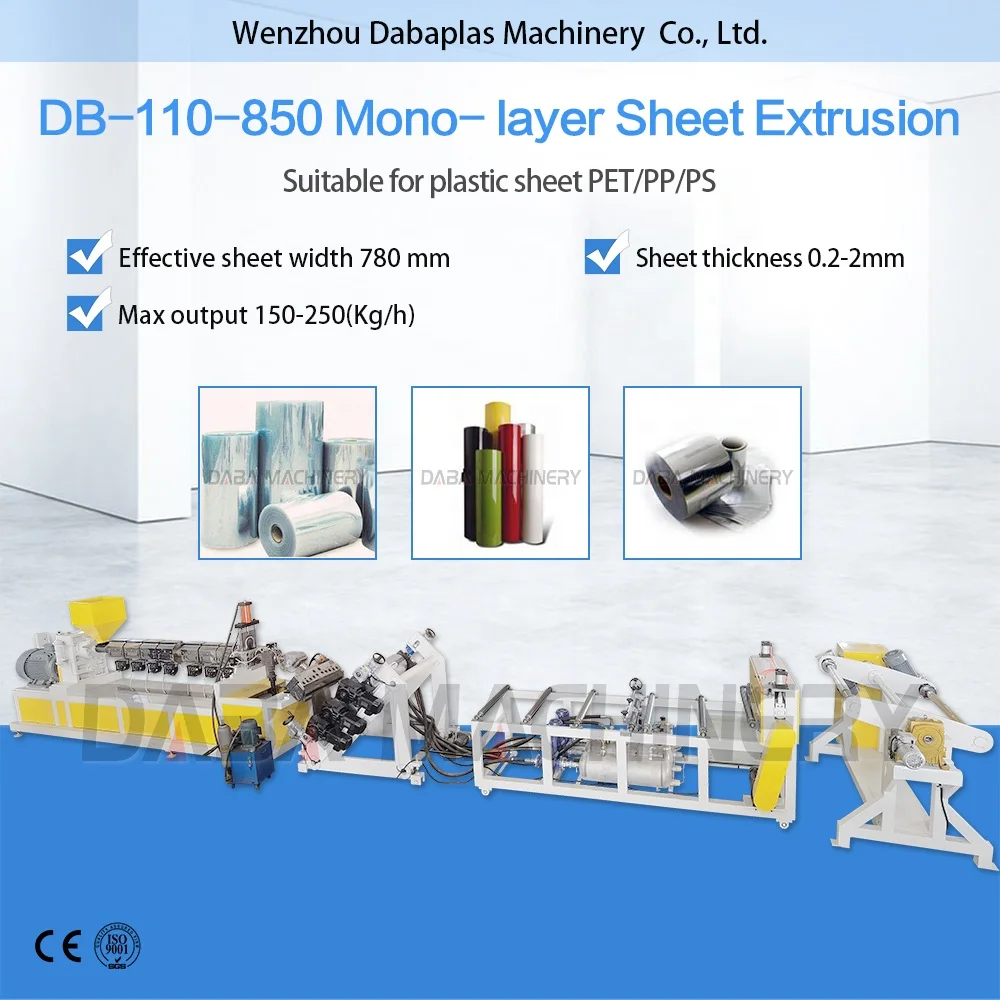

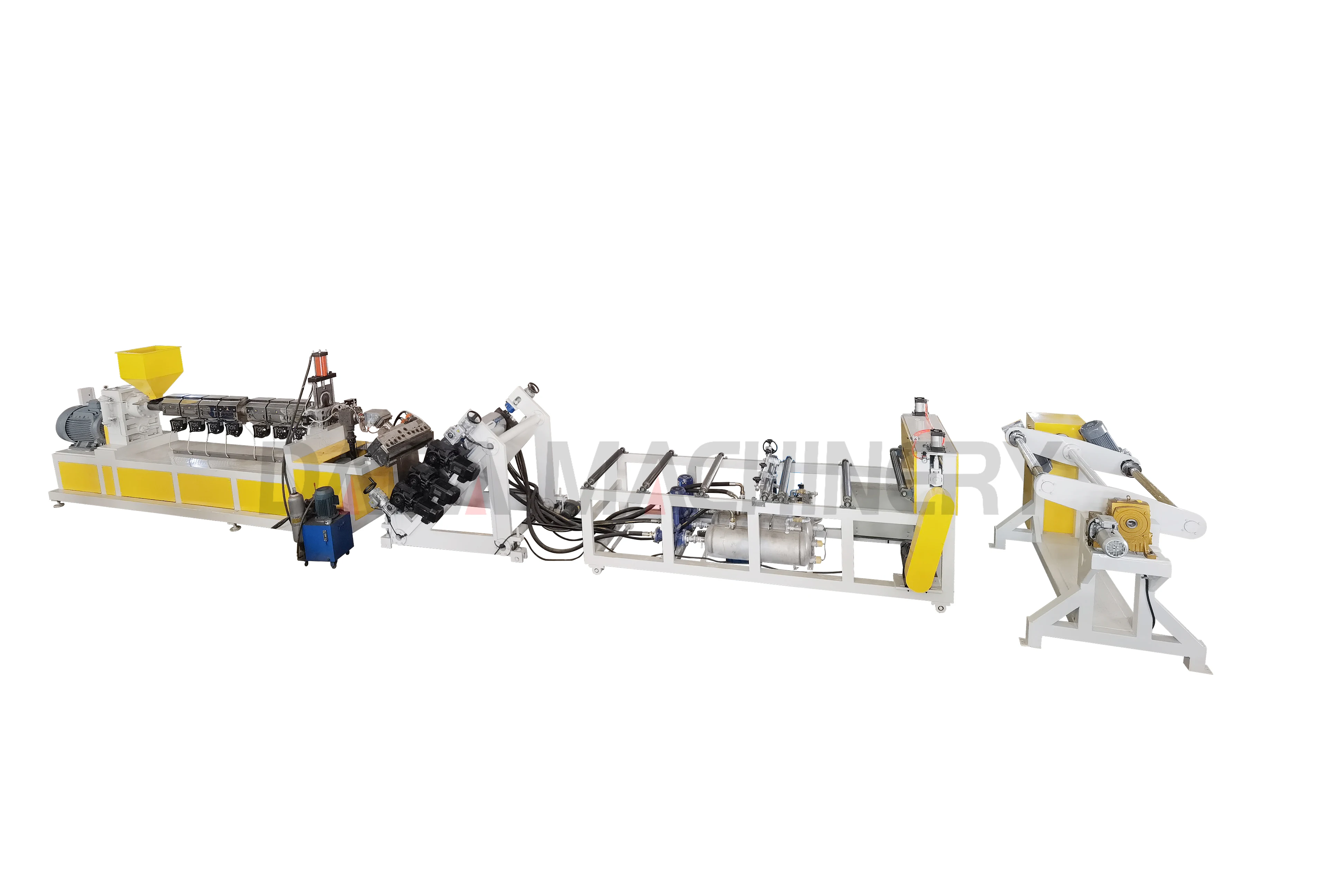

DB-110-850 PP/PS SHEET EXTRUDER
Introduction

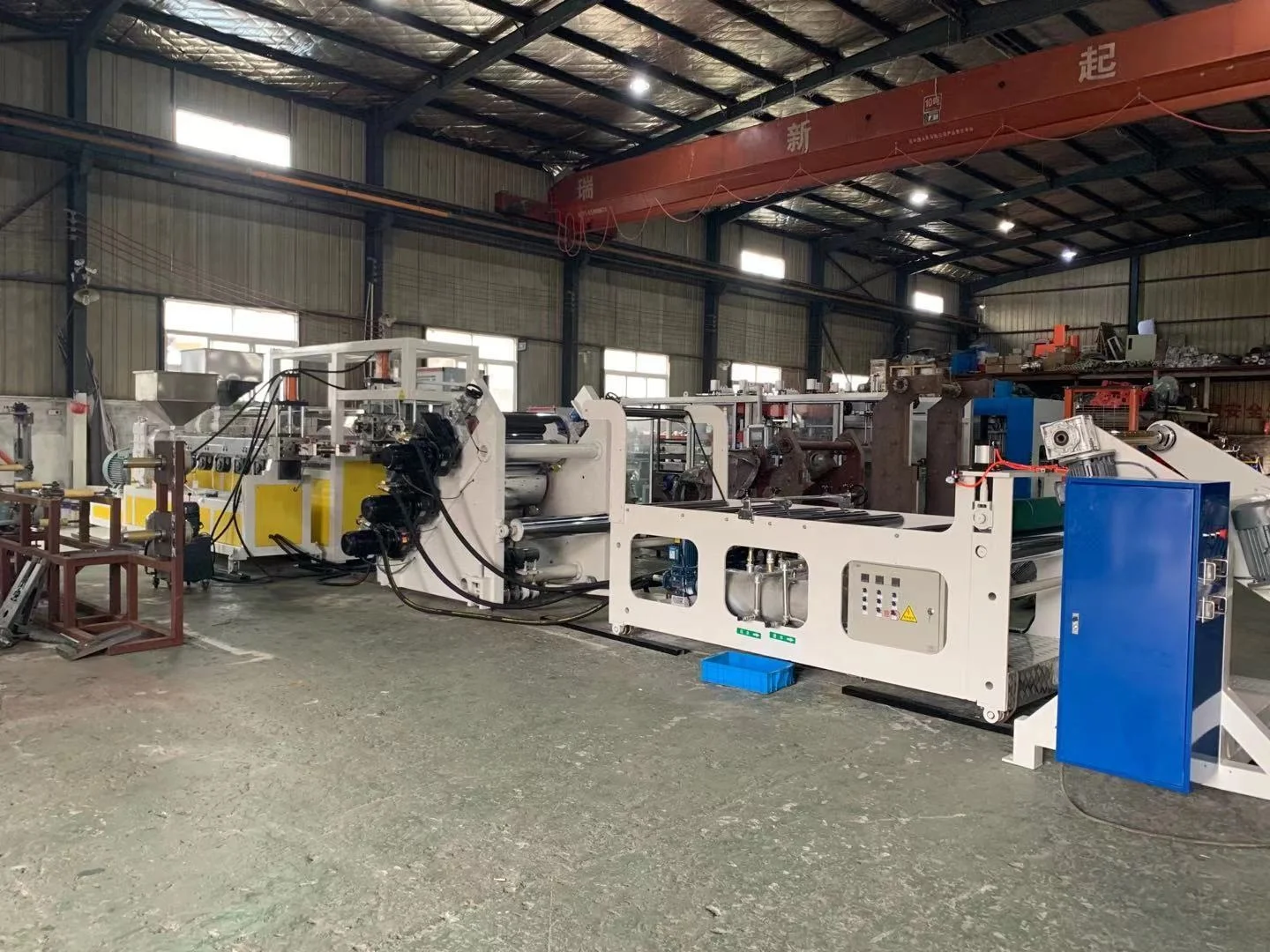

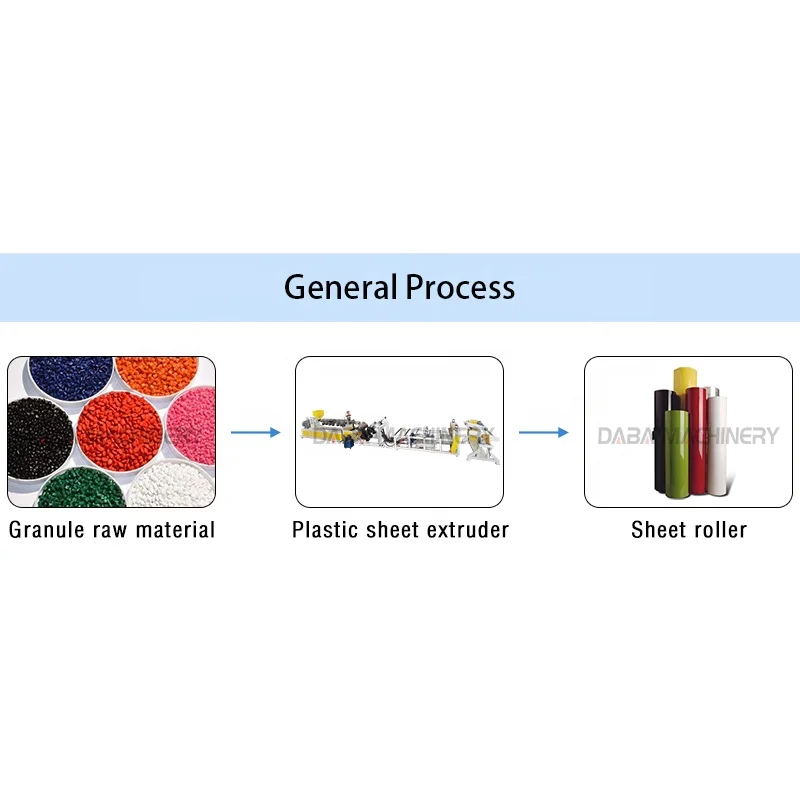

This machine is designed to produce plastic sheet for thermoforming/vacuum forming purpose or stationery use, which is composed of 7 parts extruder part, filter part, Die-head part, 3 rollers part, traction part, winding part and side trimming part.
This machine is designed to produce plastic sheet for thermoforming/vacuum forming purpose or stationery use, which is composed of 7 parts extruder part, filter part, Die-head part, 3 rollers part, traction part, winding part and side trimming part.

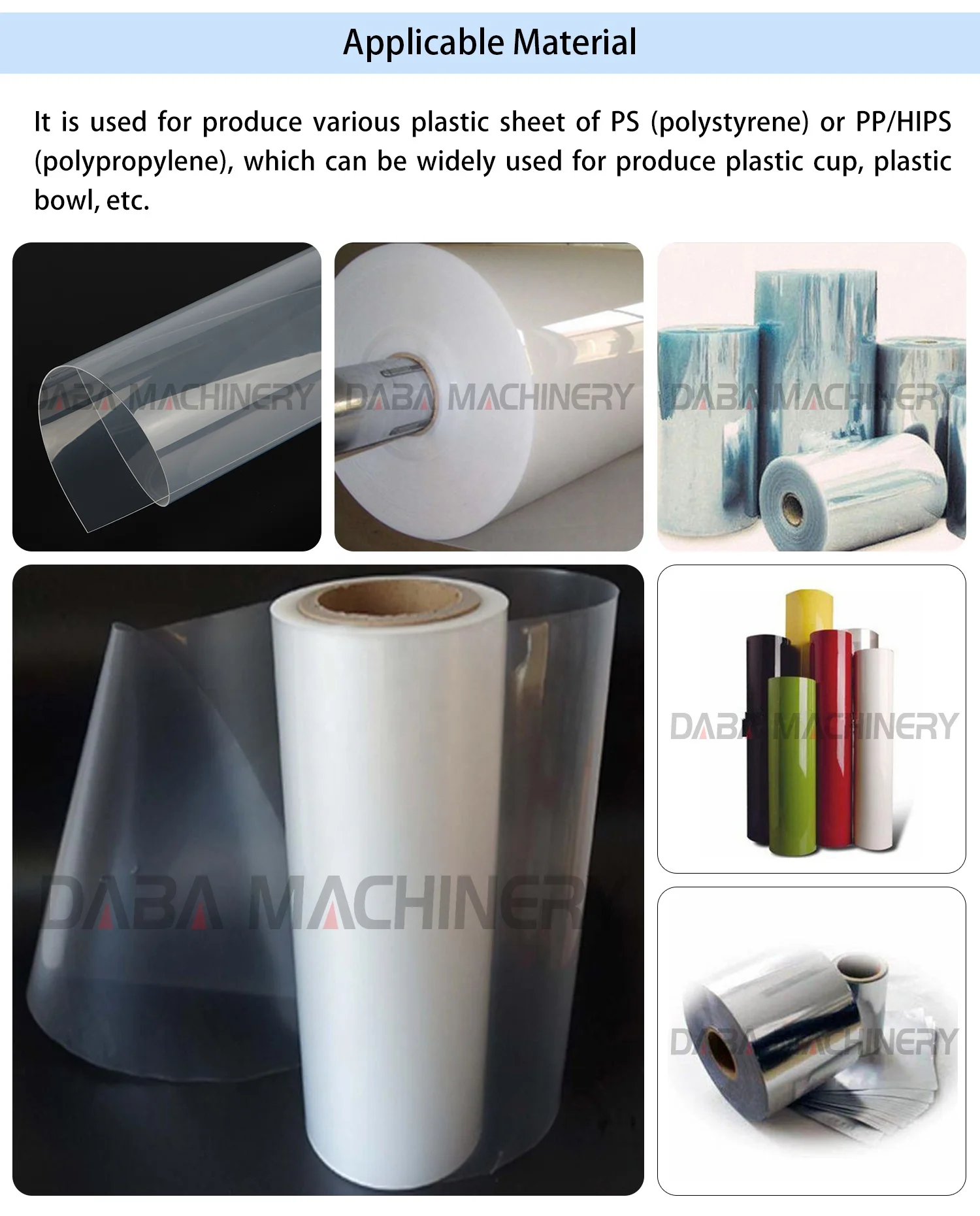

Applicable Material:

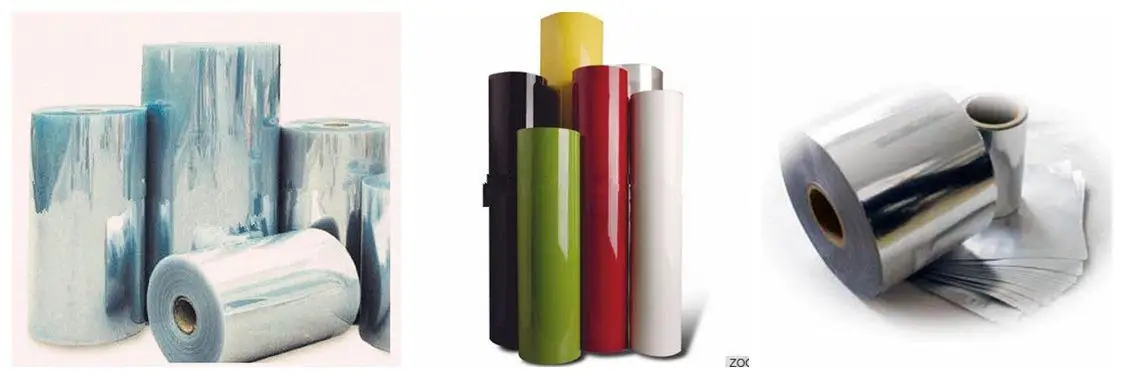

It is used for produce various plastic sheet of PS (polystyrene) or PP/HIPS (polypropylene), which can be widely used for produce plastic cup, plastic bowl.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Motor power | 55kw |
2 | Screw dia. (mm) | Φ110(mm) |
3 | L/D | 33:1 |
4 | Screw run speed | 80(rpm) |
5 | Effective sheet width | 780 mm |
6 | Sheet thickness | 0.2-2mm |
7 | Max output | 150-250（Kg/h) |
8 | Heating zone | 7 raws |
9 | Heating power | 50(kw) |
PRODUCT CONFIGURATION
Main parts:
1. Machine frame: Adopts high quality national steel, more stable.
2. Barrel & Screw ( Zhoushan)
a. Barrel & Screw material: 38CrMoALA
b. Nitrogen depth of screw: 0.4-0.6mm; Nitrogen hardness: 740HV
c. Screw dia.:120mm,L/D:34:1,Type: Graded separation
d. The surface roughness of screw: 0.4um,roughness of barrel: 0.8um

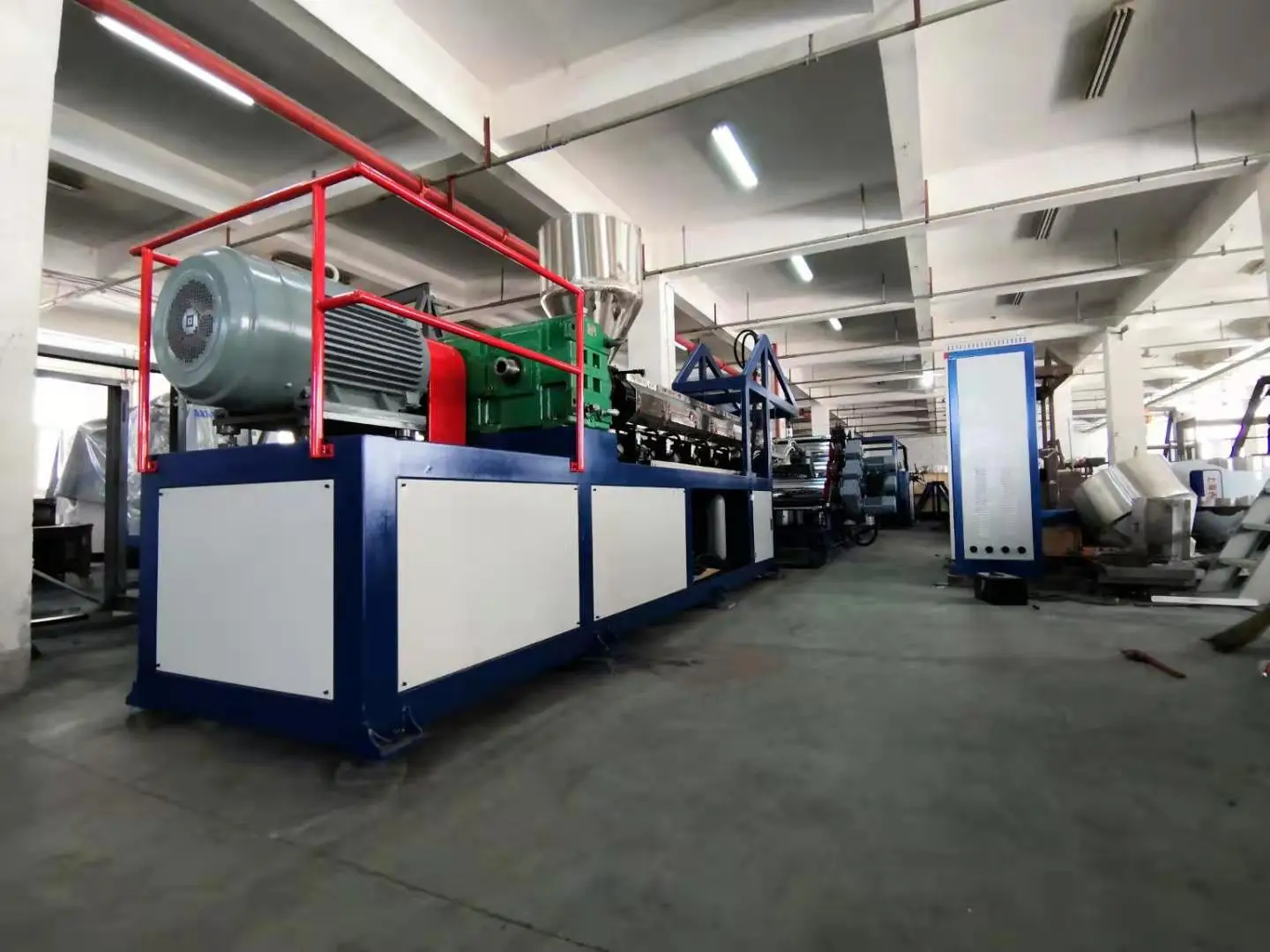

3. Main motor driver:
Power: p=110 kw-6 WNM motor, AC380v( three phase 380v. 50HZ)
4. Gear reduction box:
Adopts high quality GUOMAO reduction box, model:315. Rato: 12.5.
Gear reducer driven by helical gear on hard tooth surface. Its gear material is of high quality 20CrMoTi Forging parts, high frequency treatment, hardness hrc 54-58 (tooth surface grinding)

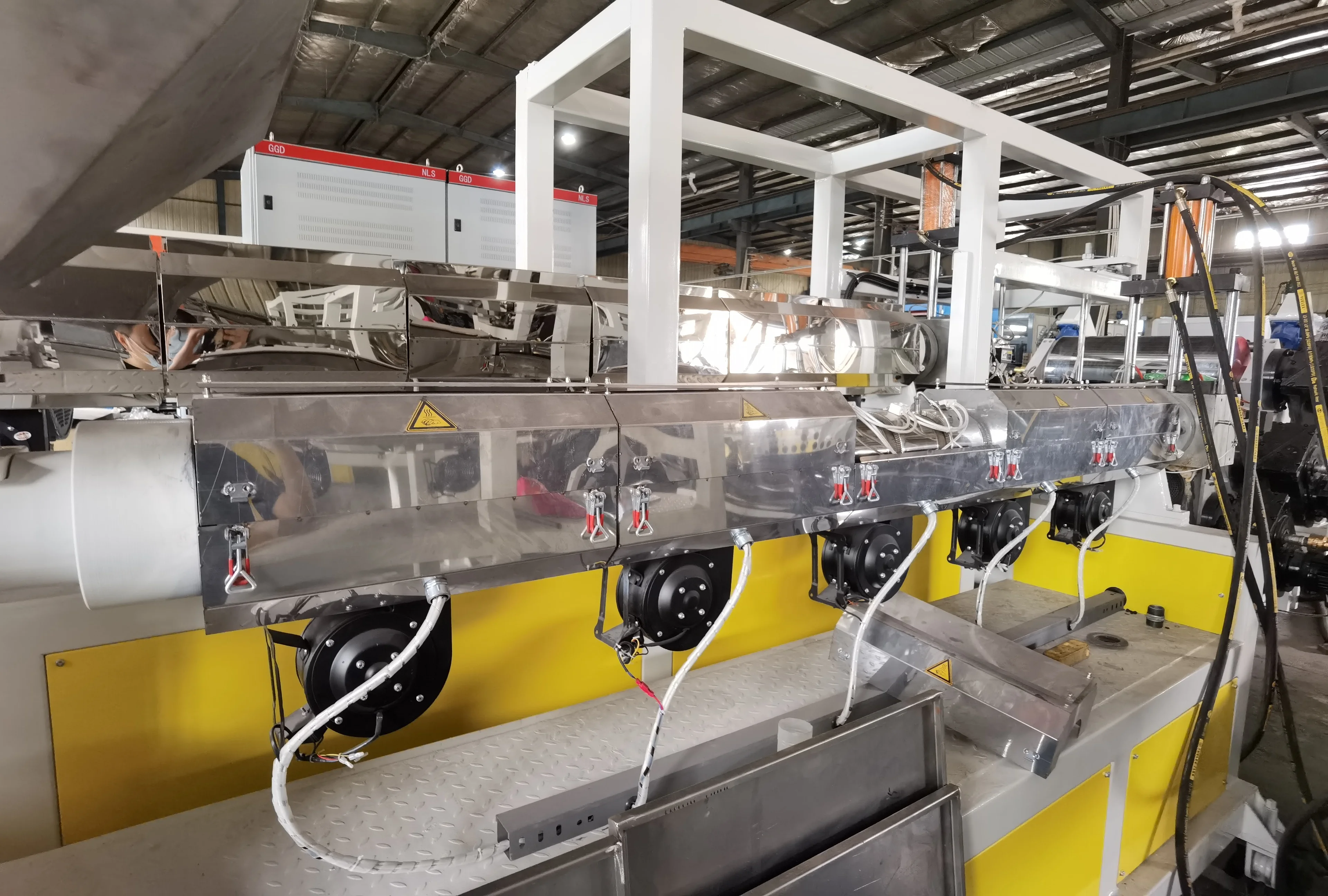

5.Oven Heating:
a. Adopts 7 rows Stainless steel heating ring
b. Power: AC 220 V, 50 HZ
6. Cooling Blower device: Each heating area have one cooling blower to control.
7.Fast hydraulic change net
8.Die head: Width of T die: 1000 mm, effective width of die head: 950 mm
Mold material adopts 40 Cr forge
The die heating area have 5 zones
1. Machine frame: Adopts high quality national steel, more stable.
2. Barrel & Screw ( Zhoushan)
a. Barrel & Screw material: 38CrMoALA
b. Nitrogen depth of screw: 0.4-0.6mm; Nitrogen hardness: 740HV
c. Screw dia.:120mm,L/D:34:1,Type: Graded separation
d. The surface roughness of screw: 0.4um,roughness of barrel: 0.8um
3. Main motor driver:
Power: p=110 kw-6 WNM motor, AC380v( three phase 380v. 50HZ)
4. Gear reduction box:
Adopts high quality GUOMAO reduction box, model:315. Rato: 12.5.
Gear reducer driven by helical gear on hard tooth surface. Its gear material is of high quality 20CrMoTi Forging parts, high frequency treatment, hardness hrc 54-58 (tooth surface grinding)
5.Oven Heating:
a. Adopts 7 rows Stainless steel heating ring
b. Power: AC 220 V, 50 HZ
6. Cooling Blower device: Each heating area have one cooling blower to control.
7.Fast hydraulic change net
8.Die head: Width of T die: 1000 mm, effective width of die head: 950 mm
Mold material adopts 40 Cr forge
The die heating area have 5 zones

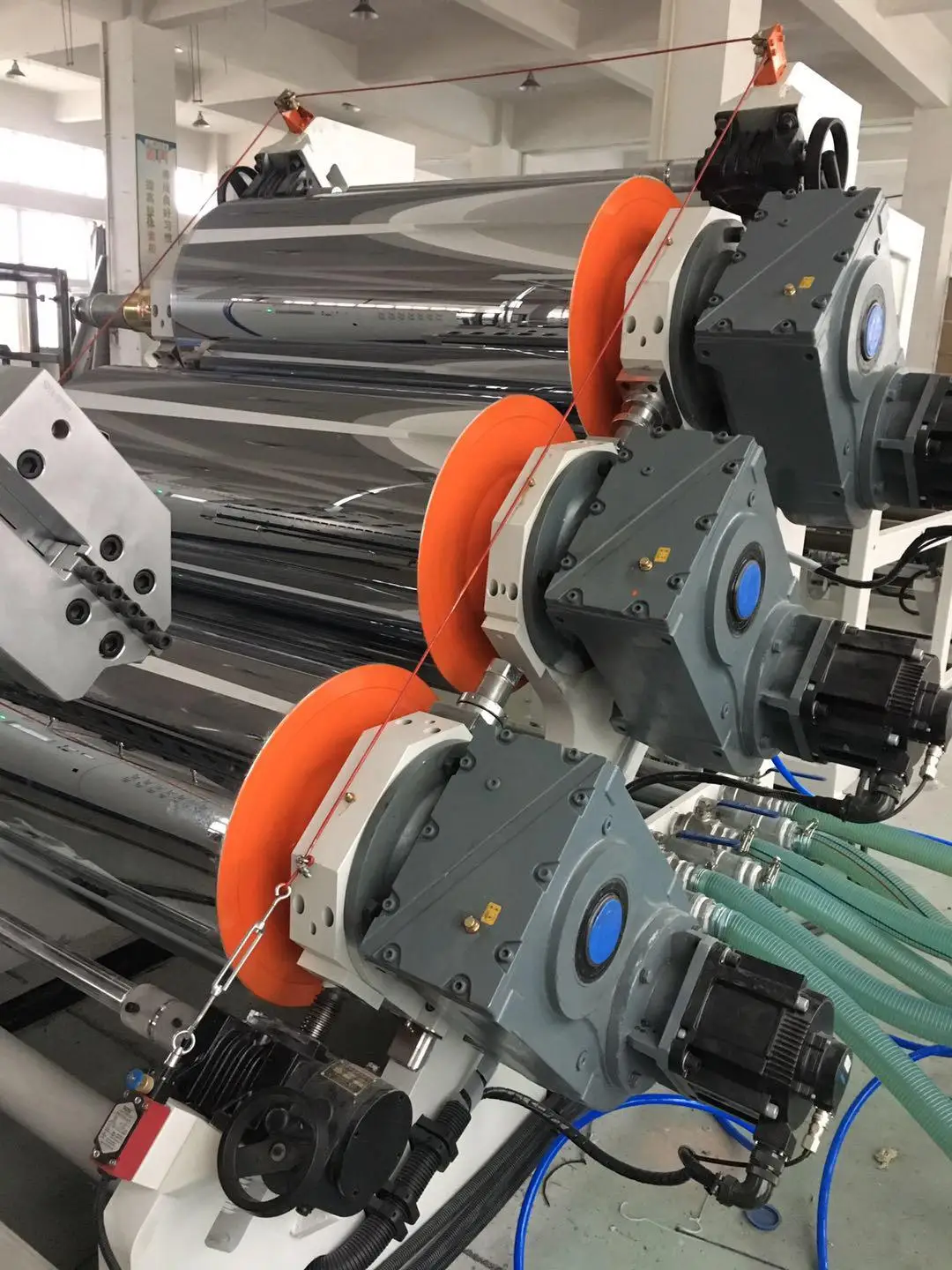

9. Three roller of calender.
Use to pressing and flattenning.
Transmission mode:
It has 3 independent variable
Frequency motor and reducer.
Each motors are control by
inverter.
It has liner sensor to ensure safe.
When an object close to it, it will
stop running.
Transmission mode:
It has 3 independent variable
Frequency motor and reducer.
Each motors are control by
inverter.
It has liner sensor to ensure safe.
When an object close to it, it will
stop running.
No | Item | Data |
1 | Press roller size | Φ350*950 |
2 | Cooling roller size | Φ350*950 |
3 | Roller error | ≤0.01mm |
4 | Roller roughness | Ra0.025ʯm |
5 | Servo Motor power (Japan) | 4.4kw |
6 | Surface temperature of roller | ±1℃ |
1. Roller adjust method: Control by turbine and worm synchronous.
2. Three- rollers circulating water cooling.
3. Inner screw type roller, ensure cooling effective.
4. The roller is processed by medium frequency. The surface hardness of the roller is HRc58 or above, and the quenching depth is 3-5mm.
5. The bearing pedestal is made of 45# steel. The structure is divided into sections for easy bearing replacement and maintenance.
2. Three- rollers circulating water cooling.
3. Inner screw type roller, ensure cooling effective.
4. The roller is processed by medium frequency. The surface hardness of the roller is HRc58 or above, and the quenching depth is 3-5mm.
5. The bearing pedestal is made of 45# steel. The structure is divided into sections for easy bearing replacement and maintenance.

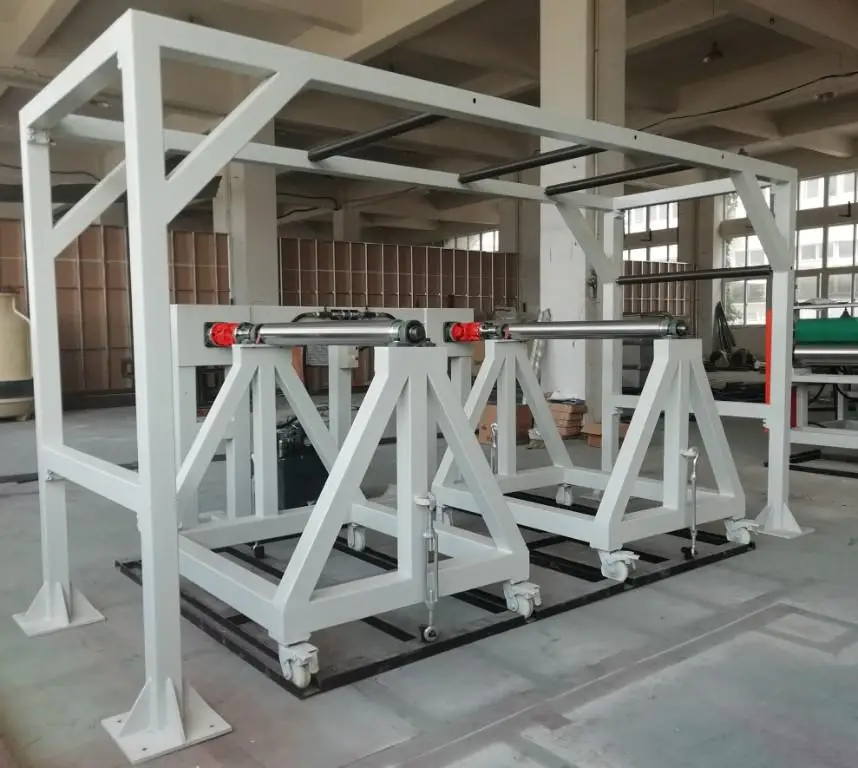

Traction frame.
Stable steel frame structure, two reeling frames with wheels, easy to switch back and forth, can be easily pushed to use
No | Item | Data |
1 | Rubber roller | Φ160×900mm |
2 | Chromium-plated roller | Φ160×900mm |
3 | Motor power | 2.2kw |
1. The bracket is welded by Q235-A, the national standard steel.
2. Edge cutting device: two cutting knives can be used on both sides to effectively remove the edge material and cut the sheet material to reach the required width.
3. The transition rollers are all wear-resistant aluminum guide rollers, and the surface is treated with
hard oxygen.
4. Guide Roller: Φ60×900.
5. The traction device adopts Φ 190 neoprene roller and steel roller, including steel roller to active roller, chain transmission, reducer, transmission power is 2.2 kw.
6. Hydraulic oil motor rewinder, the roller width can reach 1.5 m.
2. Edge cutting device: two cutting knives can be used on both sides to effectively remove the edge material and cut the sheet material to reach the required width.
3. The transition rollers are all wear-resistant aluminum guide rollers, and the surface is treated with
hard oxygen.
4. Guide Roller: Φ60×900.
5. The traction device adopts Φ 190 neoprene roller and steel roller, including steel roller to active roller, chain transmission, reducer, transmission power is 2.2 kw.
6. Hydraulic oil motor rewinder, the roller width can reach 1.5 m.
Electric control cabinet
No | Name | Brand | Qty |
1 | Temperature controller | Taiwan Yangming | 14+ 1 (extra) |
2 | Regulating Module | China | 14+ 1 (extra) |
3 | Air Switch | France Schneider | 19 PCS |
4 | Inveter | INVT | 2 PCS |
5 | Contactor | France Schneider | |
6 | Thermorelay | France Schneider | |
7 | Servo drive | Japan Yaskawa | 3 SETS |
Package and Shipment
Shipment and package.
1. Our standard packing method is film wrapping.
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of machine is within 45 days per set.
4. Shipment in Ningbo port or Shanghai port, China
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of machine is within 45 days per set.
4. Shipment in Ningbo port or Shanghai port, China
Exhibition
FAQ
Q：What's your delivery date?
A：Usually finish the production within 35 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment.
Also we could accept L/C at sight.
Q: How many days will the finish installing?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
A：Usually finish the production within 35 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment.
Also we could accept L/C at sight.
Q: How many days will the finish installing?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
