Automatic PLC Control TIG Welding Copper Foil Winder Dry Type Transformer Foil Winding Machine
- Category: >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (1600514703982):
Product Overview
Description
Product Description
Automatic PLC Control TIG Welding Copper Foil Winder Dry Type Transformer Foil Winding Machine

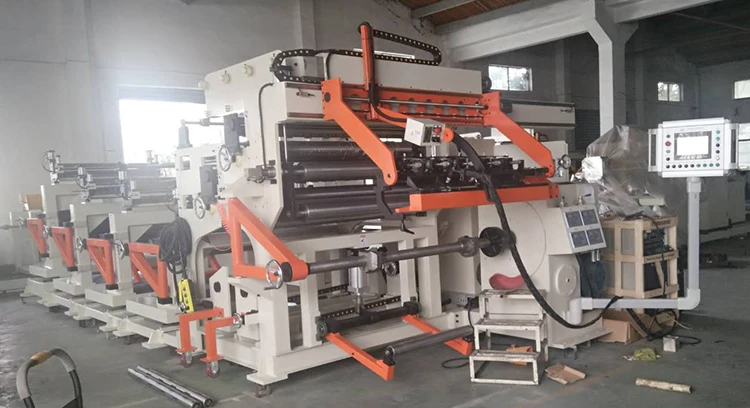

Automatic PLC Control TIG Welding Copper Strip Winder Dry Type Transformer Foil Winding Machine BRJ1200-4 is used to wind coils made of copper or aluminum foil. This electric rolling machine can handle four layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth. Programming of this machine is done by means of a touch screen user interface.
Main Components
1.Main frame

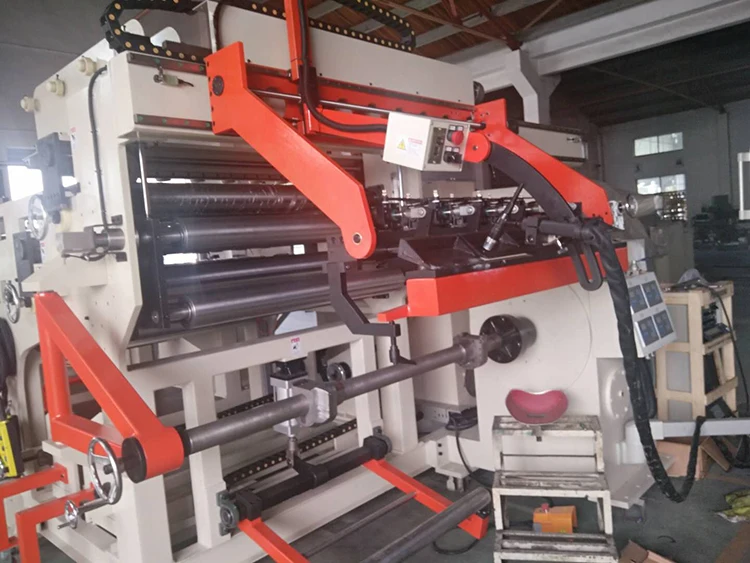

2.Winding unit

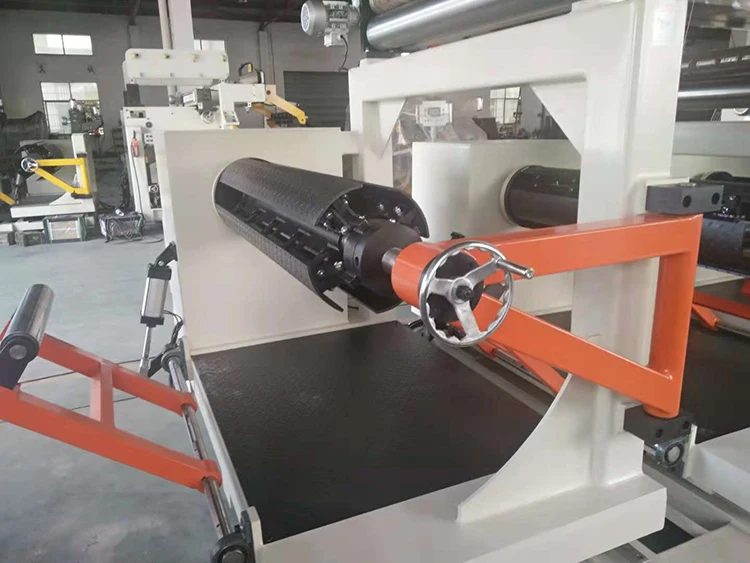

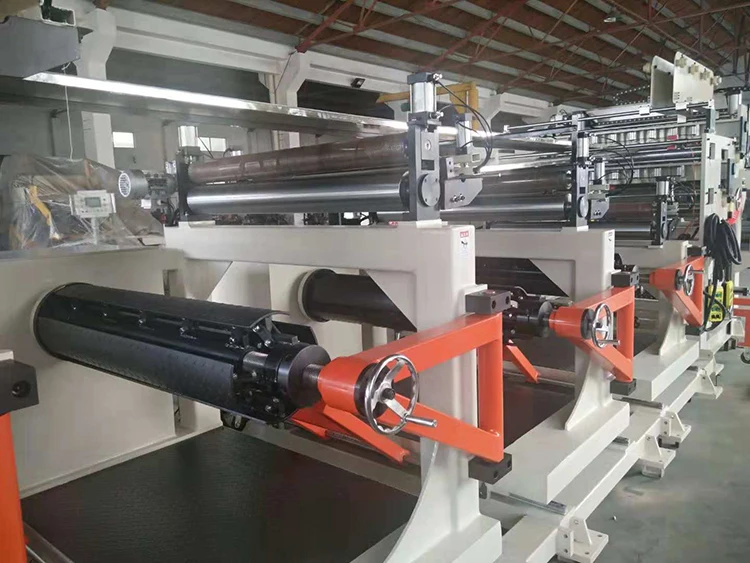

3.Foil decoiler

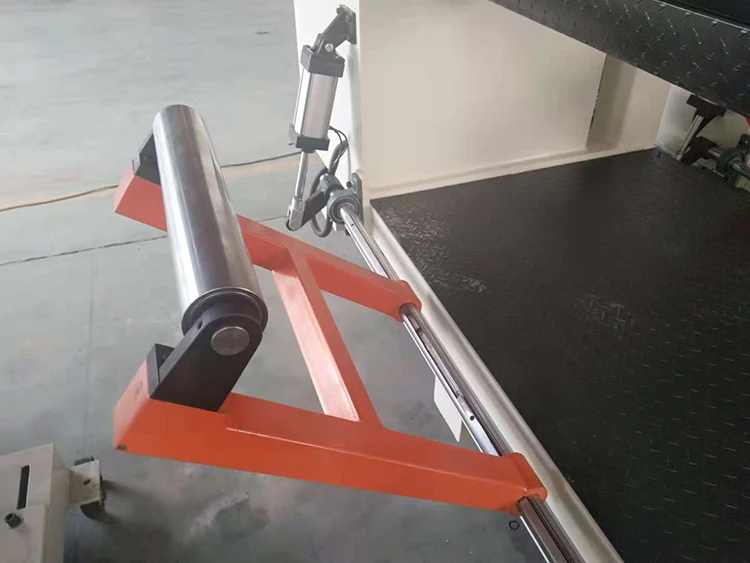

4.Insulation decoiler
5.End-fill strip feeder
6.Cleaning system
7.Cutting system
8.Foil deburring system

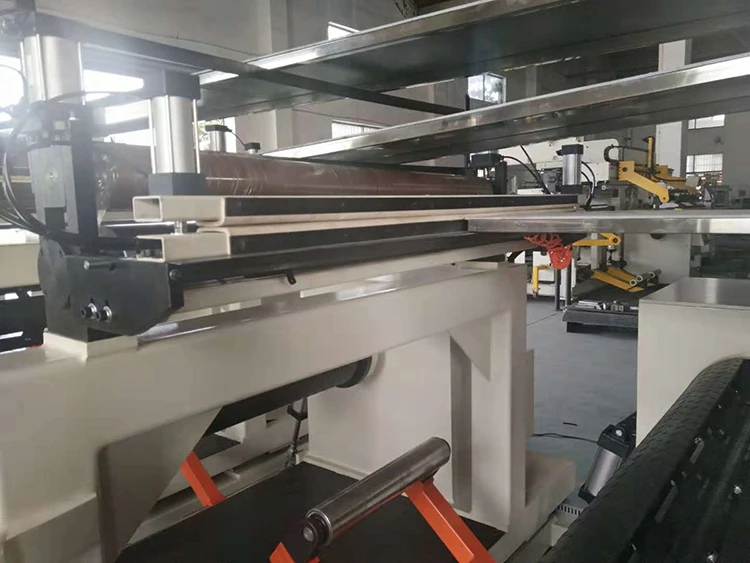

9.Edge alignment system
10.Automatic welding unit
11.Electronic control system
12.Pneumatic system
Technical Parameters
Typical standard specifications of BRJ1200-4 are shown below, these can be easily modified as requested.
Axial Length (foil width): | 1,200mm |
Max. OD. of Finished Coil: | 1,000mm |
Max. ID. of Finished Coil: | 130mm |
Conductor Foil Material OD.: | 1,000mm |
Conductor Foil Material ID.: | 500mm |
Number of Conductor Decoiler: | 4 |
Length of Conductor Decoiler: | 1,250mm |
Conductor Decoiler Shaft: | Hydraulic open/close action, adjustable Dia. range 455-515mm |
Number of Insulation Decoiler: | 2 |
Insulation Material OD.: | ≤400mm |
Insulation Material ID.: | 76mm |
Width of insulation material: | 1,250mm |
Insulation Decoiler shaft: | Expandable (pneumatic open/close action) |
End-fill Strip Feeder: | 8 |
Electronic Control System: | PLC |
User Interface: | 10inch (254mm) touch screen industrial PC / access controller |
Counting Turns Range: | 0 - 9999.9 |
