Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine
Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine

Automatic Syrup Chili Sauce Honey Glass Jam Jar Filling and Capping Machine

Share on (1600514713794):


Price:$38,000.00

Quantity:


Product Overview

Description



Product Description


The fully automatic sauce filling vacuum capping machine adopts the principle of piston servo drive, which is suitable for sauces in condiments, soups or chili sauce with granules and large concentration, bean paste, peanut butter, sesame paste, jam and cattle. The filling of the thicker sauces such as oil hot pot bottom material and red oil hot pot bottom material has high degree of automation. The machine can complete automatic filling, automatic capping and automatic vacuum sealing.Suitable for filling liquids in condiments, thick soups or thicker sauces with more concentrated chili sauce, bean paste, peanut butter, sesame paste, jam, butter,pepper sauce,seafood sauce material, etc.





Filling Machine

Filling valve can be customized according to customer's materials to meet the filling requirements of different customer
materials. Equipped with horizontal mixing hopper, the maximum guarantee of uniform material in the filling process, no oil sauce separation, to ensure the accuracy of each bottle filling. The equipment greatly shortens the filling distance from the hopper to the filling head in design, and overcomes the material with large oil content (such as: chili oil containing sesame seeds)


Voltage
380V ,2KW
Air pressure
0.4-0.5Mpa
Filling capacity
20-50 bottles / min
Filling capacity
100-500g
Filling accuracy
±1%
Machine size
2000×1600×2100 mm
conveyor size
2000×210×170 mm
Applicable for bottle diameter
38-82 mm
Applicable for bottle height
30-180 mm

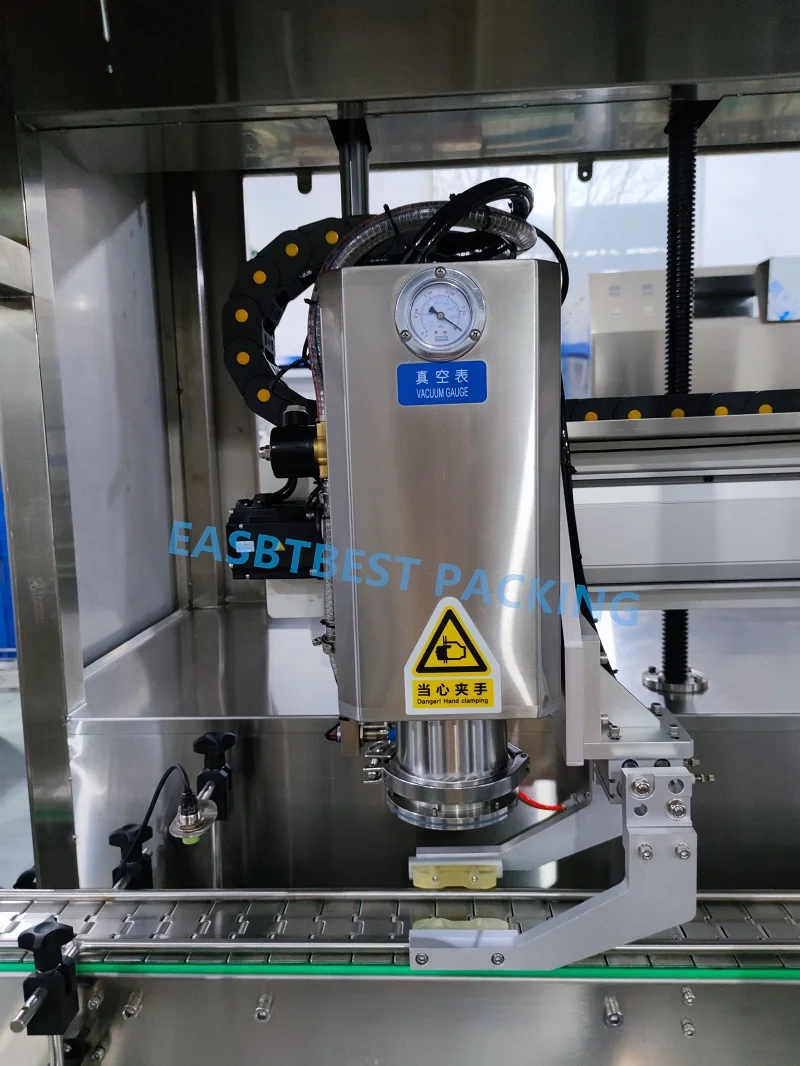

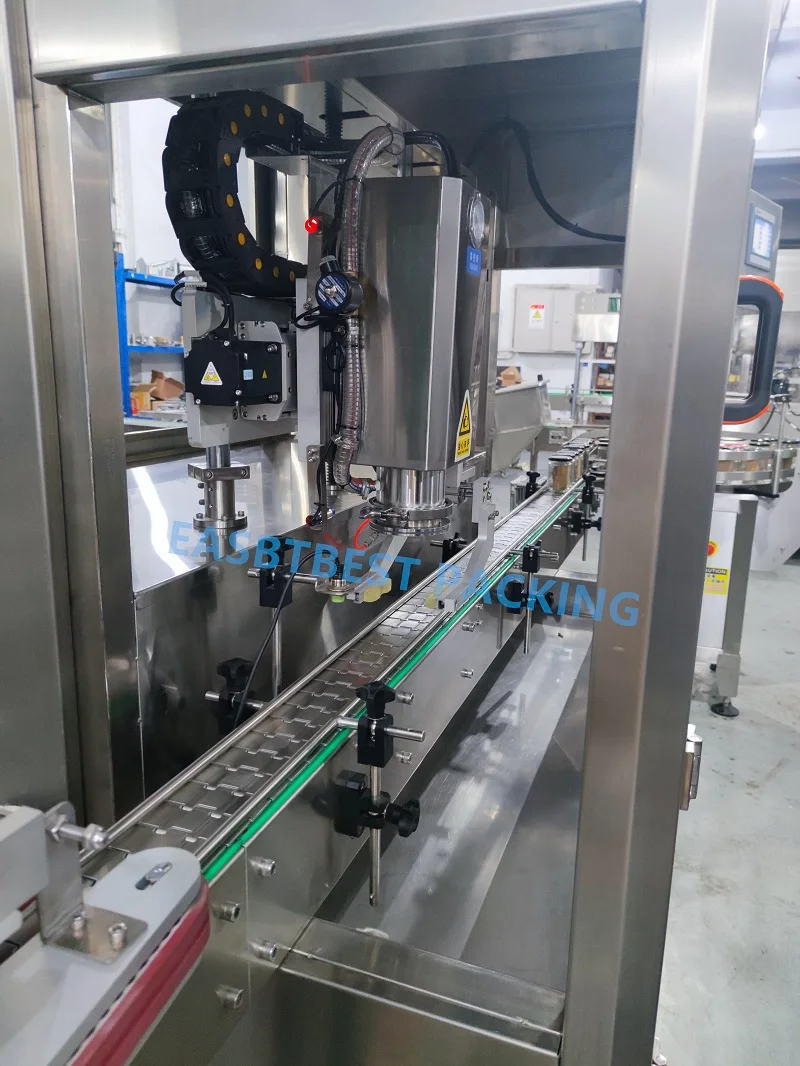

Follow-up vacuum capping machine

The fully automatic single-head follow-up vacuum capping machine consists of a cap-arranging and capping mechanism, a cap-hanging mechanism, a motion module, a conveying mechanism and a control system. The whole machine has simple structure and convenient adjustment. During the movement of the product, the capping action is completed. Different from the conventional capping machine, it needs to stop when capping, which will cause the material to shake out of the bottle mouth and pollute the bottle body. The machine does not stop capping, effectively avoiding the capping stop and shaking the liquid and keeping the bottle clean.


Name
Follow-up vacuum capping machine
Vacuum capping speed
30-35 bottles
Tightening torque
3-10N·m
Bottle pressure
≤67kpa
Bottle height
50-150 mm
Bottle Diameter
55-80 mm
Air pressure range
0.6-0.8Mpa


Labeling machine

The technology adopted by the whole machine, the microcomputer-PLC-electronic optical fiber sensor control system makes the whole machine run stably, the high-speed operating system adopts the operation interface control, the operation is simple, practical, high efficiency, and the speed of the production function is fast and stable. It has a wide application range and can be used for round bottle labeling and rolling type bottles of various sizes, so that the label can be attached more firmly and the front and rear sections can be connected.



Voltage
AC220V 50/60HZ 300w
Machine size
2000（L）×700（W）×1270（H）mm
Labeling speed
30-60 bottles/min
Weight
200kg
Labeling accuracy
±1mm
Applicable bottle type
glass bottle
Applicable bottle size
diameter 16-120 mm，height 35-300 mm
Applicable label size
height 15-200 mm,length 23-300 mm
