5.12Kwh 322Kwh Power Base FC household home use power wall wall mounted energy storage Lithium battery Wall mount or Stack mode

Product Overview

Description

5.12Kwh-322Kwh Power Base FC household home use power wall wall-mounted energy storage Lithium battery





FC energy module can accommodate up to 5.12 Kwh capacity and parallel up to 63 module.

Freely adapted in the interval 5.12kWh to 322kWh according to the needs of users.

Matches with mainstream brands of the global photovoltaic inverter.

Power base FC is a lithium iron phosphate battery system, which can be used to provide safe, reliable, and stable energy for various equipment. At the same time, the module supports expansion on both capacity and power by multiple parallel uses. It supports CAN, RS485, RS232 communication, and can meet the requirements of various PV inverter communication protocols.

Power base FC has the advantages of high safety performance, long life span, wide charging voltage range, simple installation, and standard modular design.

Products can be widely used in household energy storage, industrial and commercial energy storage and other fields.



Description:

• Use LiFePo4 cells with high safety, good reliability and long cycle life.


• The system has a built-in intelligent BMS to protect the battery system in all aspects.


• The system comes with a display module, which can display the charge and discharge status and SOC.


• Cycle life≥8000 times.



FEATURES & BENEFITS

• Good extensibility, supporting 63 modules to be used in parallel.


• Good adaptability and can be adapted to the global mainstream photovoltaic inverters.


• Support expansion and power expansion.


• The standard 19-inch 3U size, which can be installed in the cabinet, wall-mounting and stacking by brackets.


• Multiple parallel support,high current charge and discharge

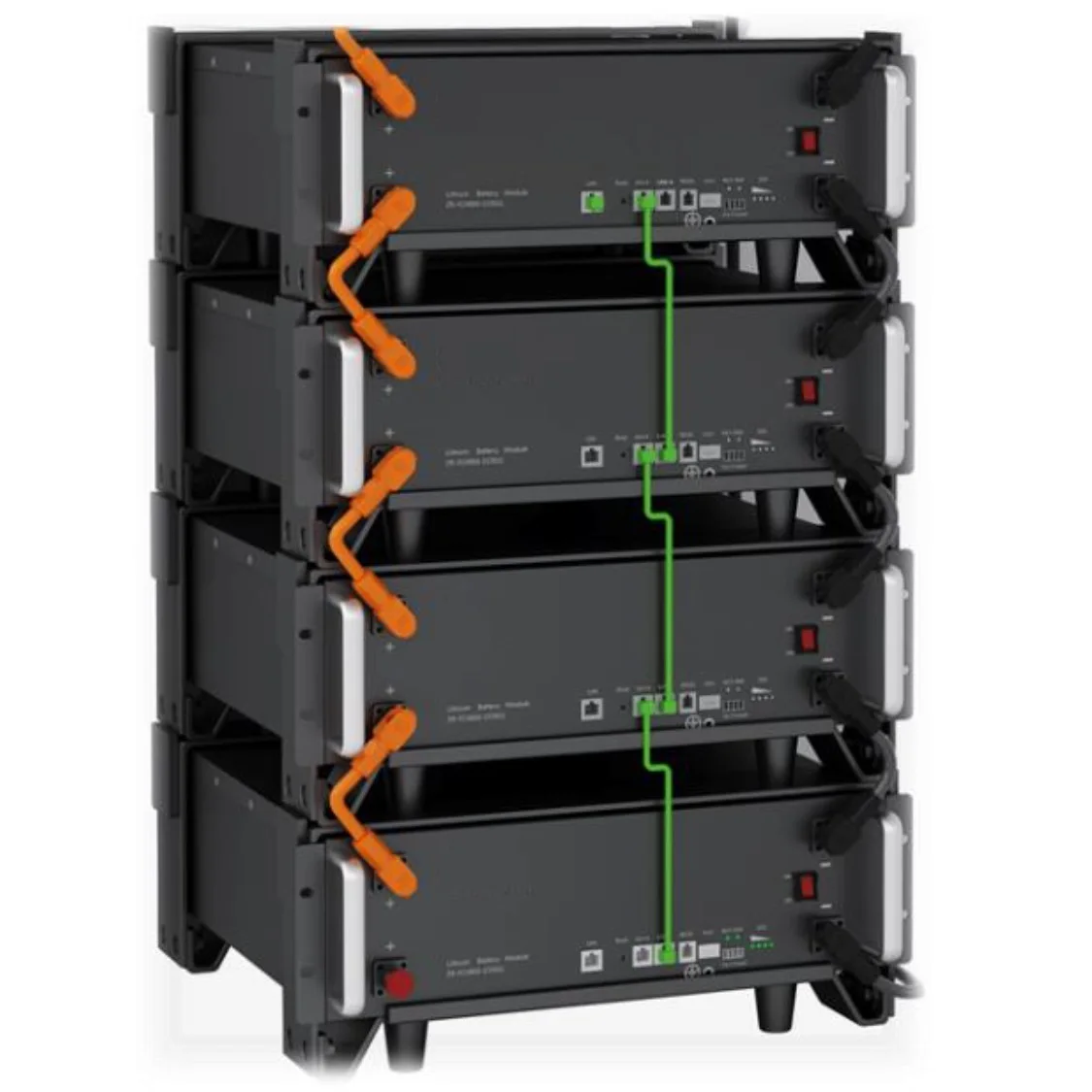

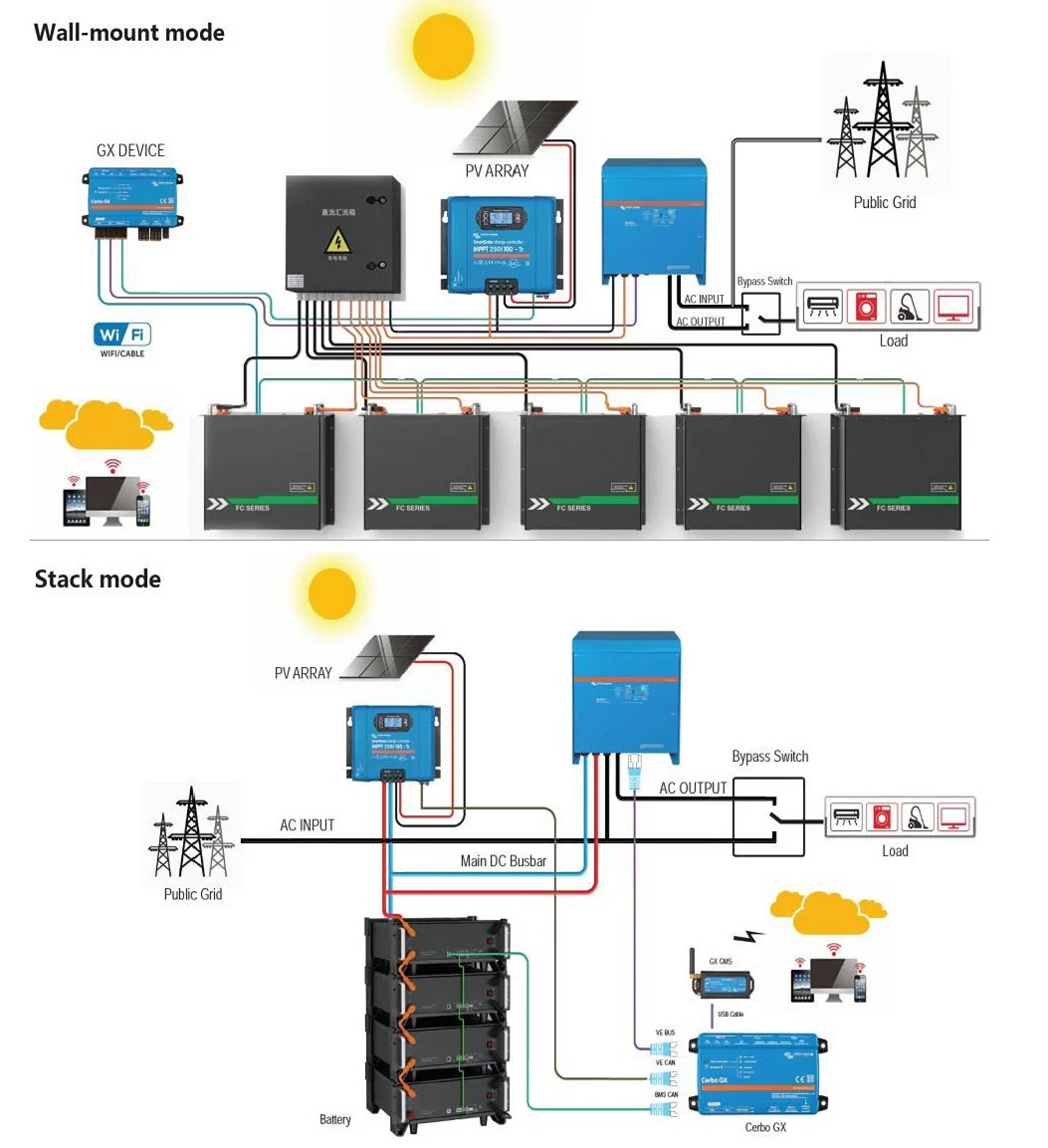

• Support both wall-mounted and stack mode installation, quick installation, and reduce the occupied area.


• High BMS compatibility,perfect match of energy storage inverter


• The adoption of high-performance processors,international brand devices,better stability
