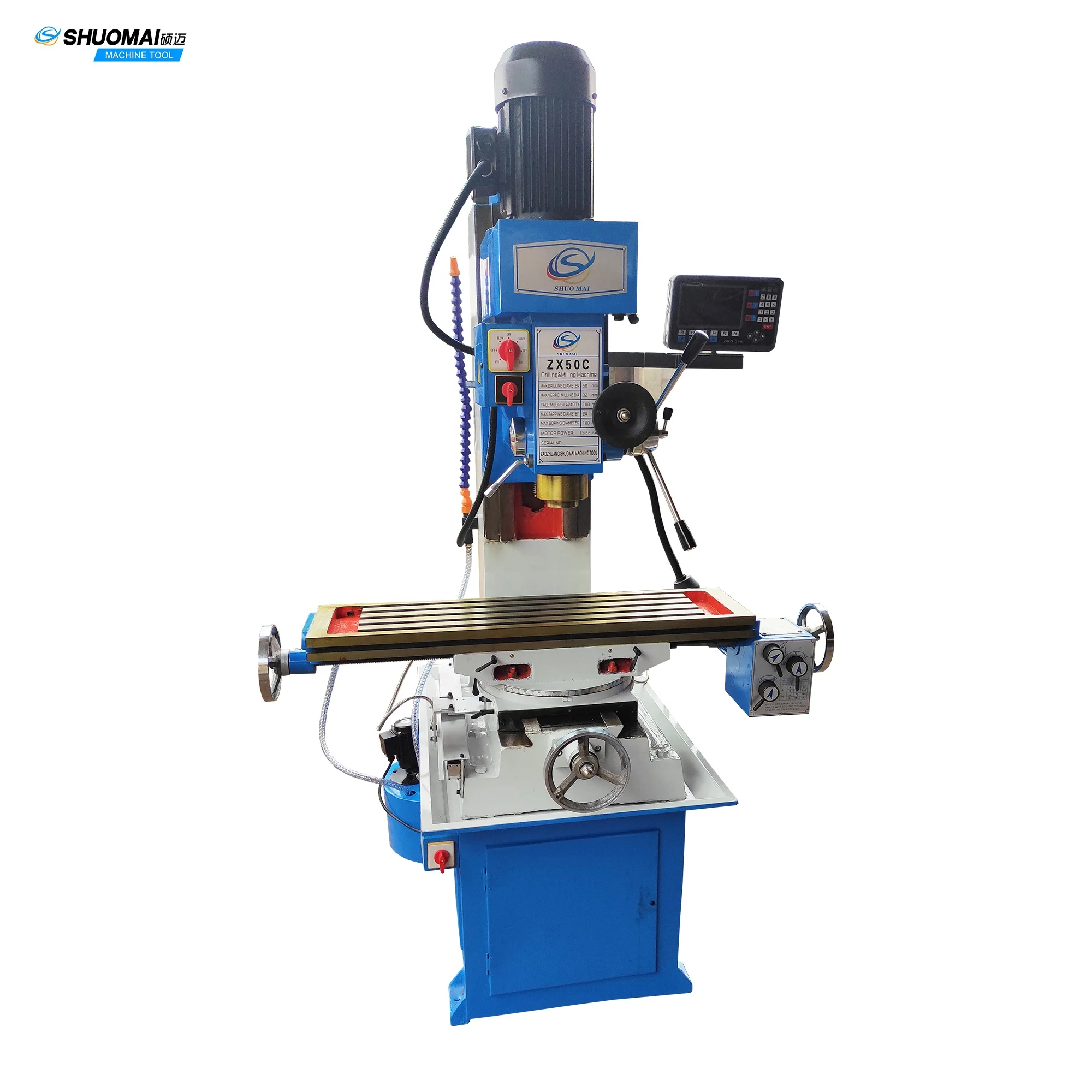

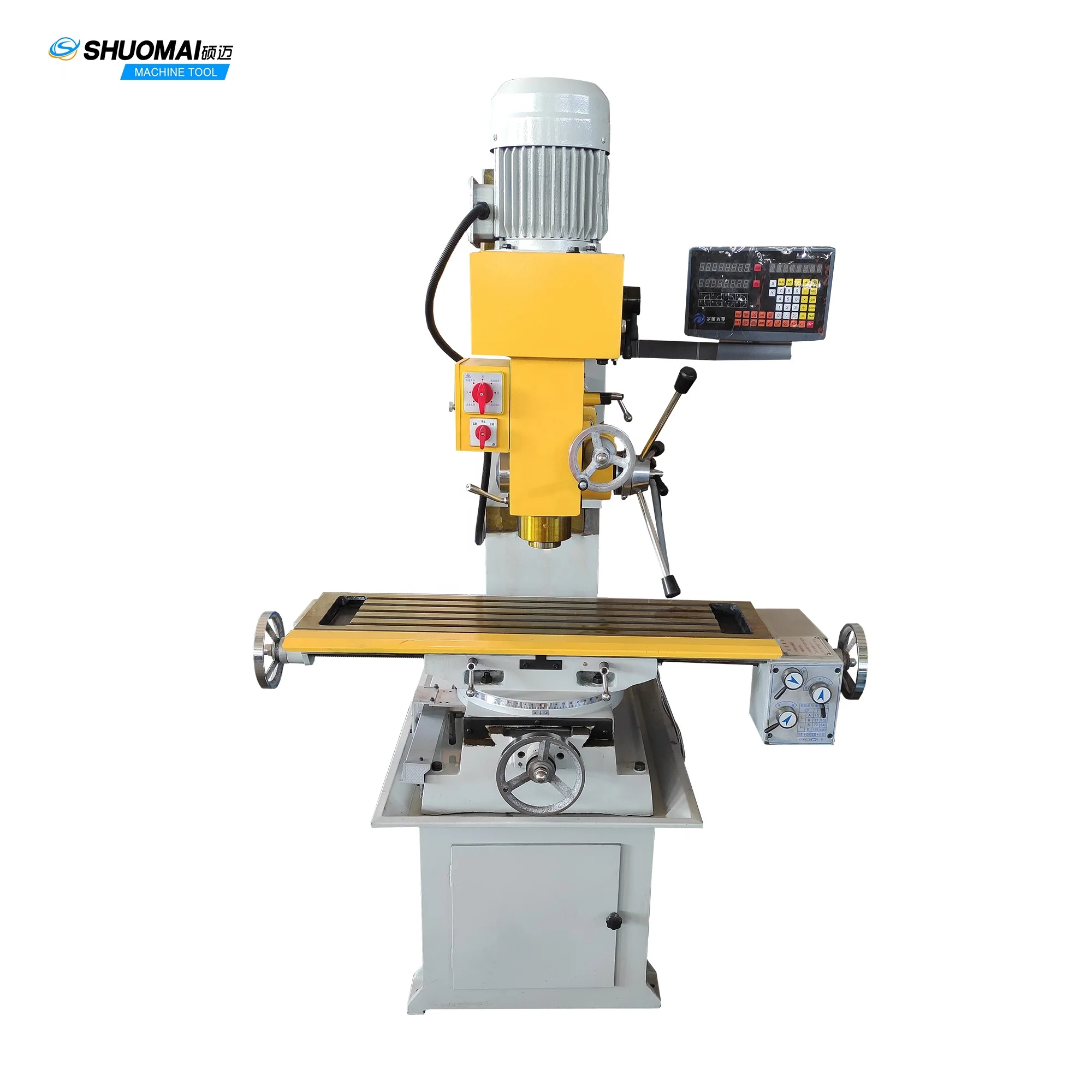

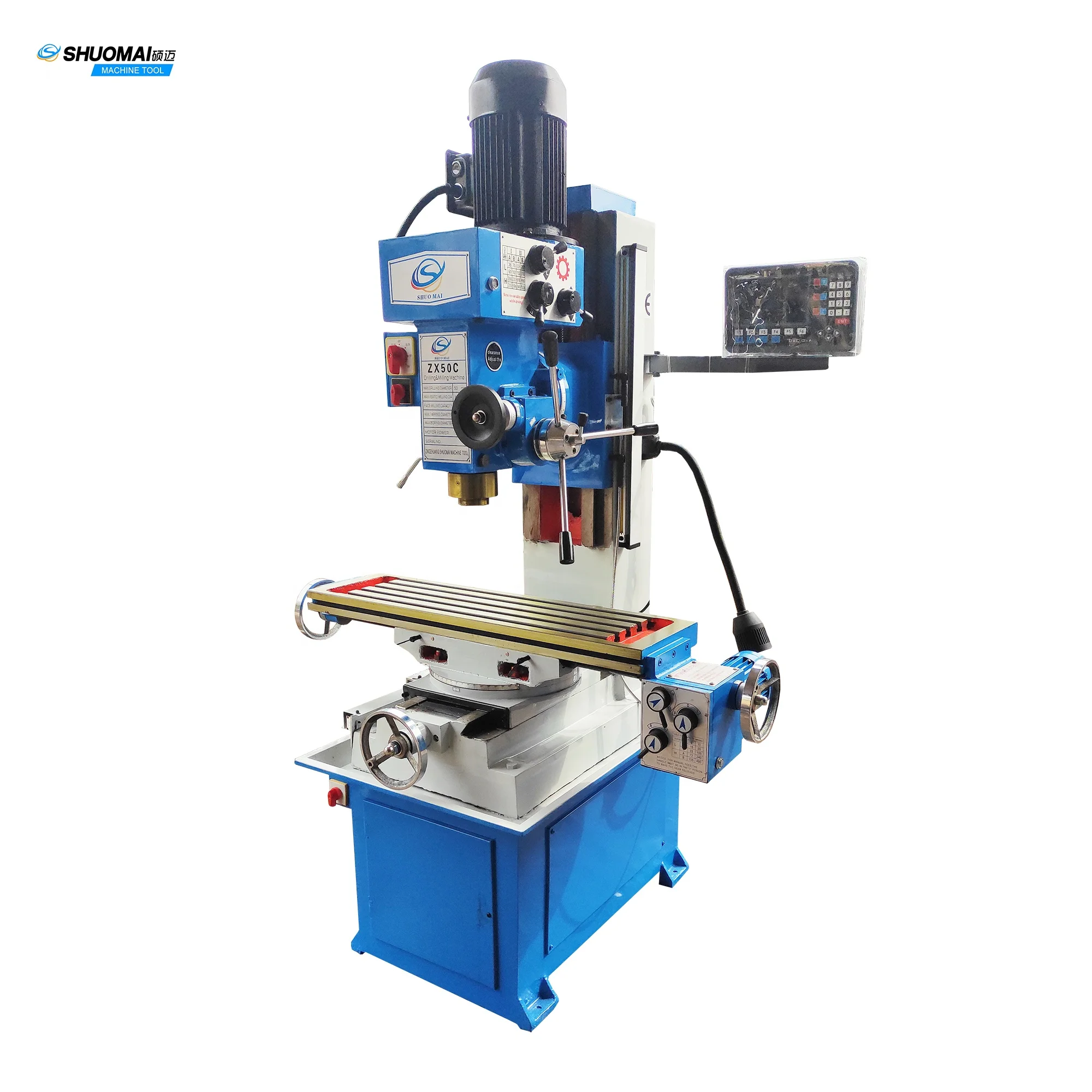

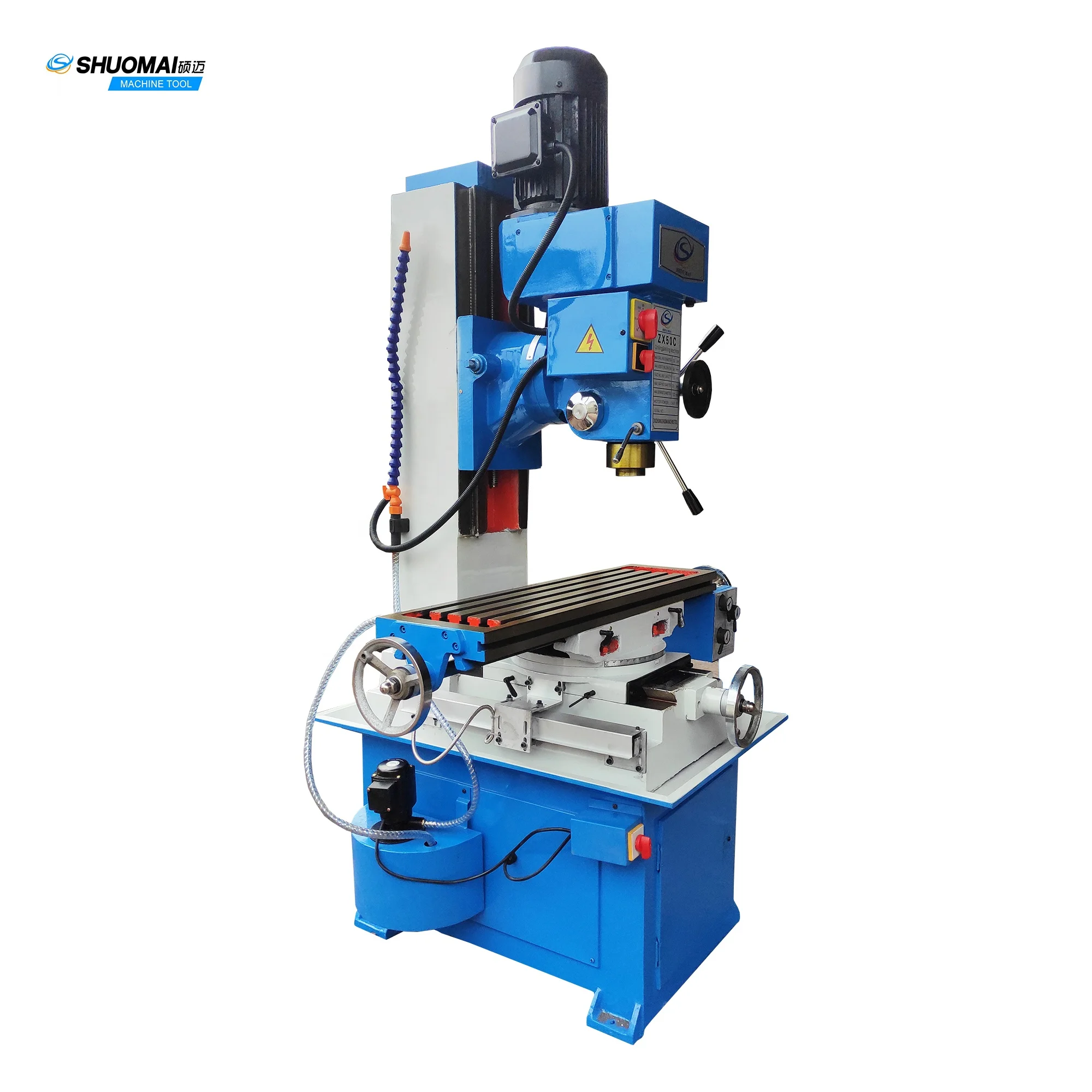

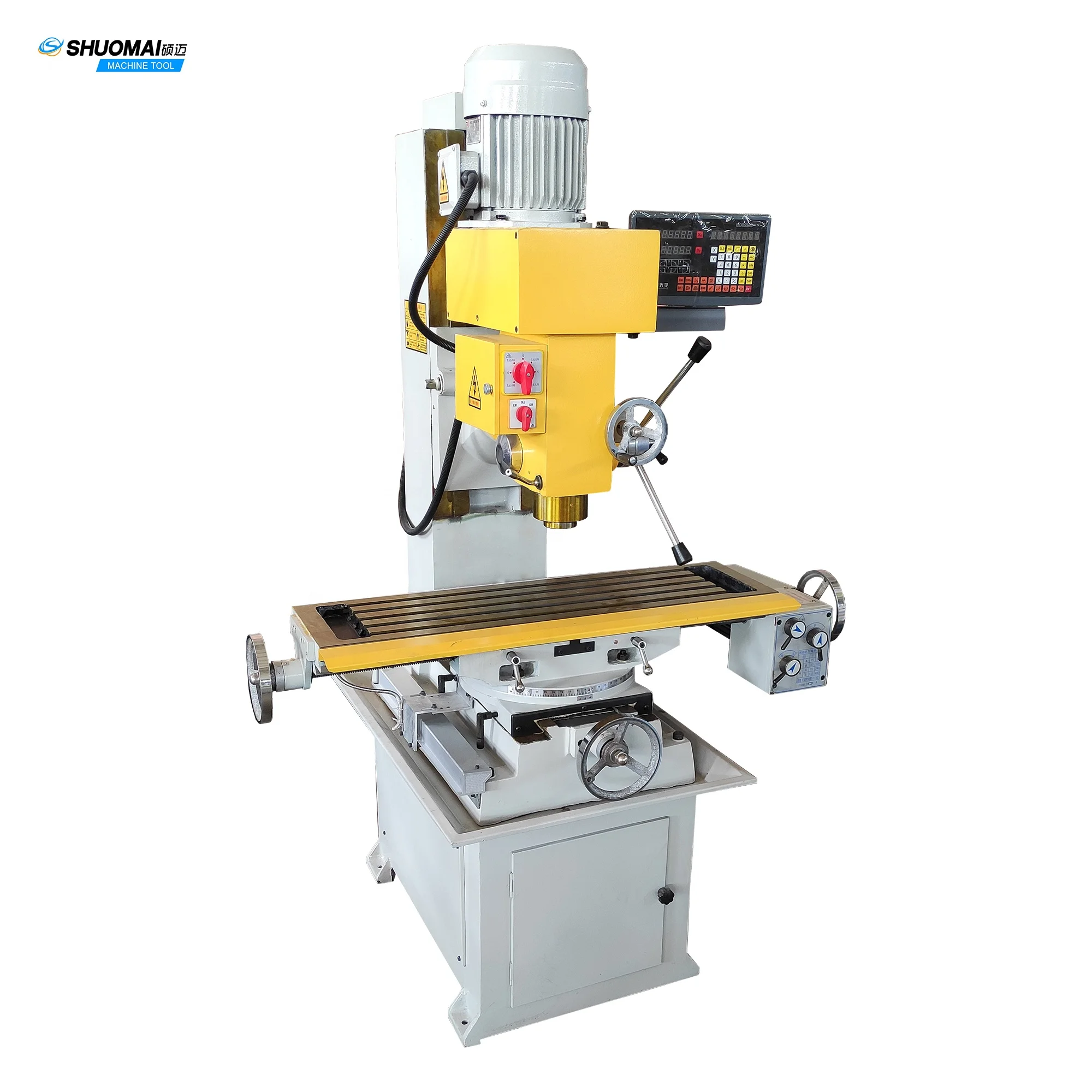

ZX50 ZX50C vertical universal manual mill drill metal milling and drilling machine
- Category: >>>
- Supplier: Zaozhuang Shuomai Industrial And Commercial Co. Ltd.
Share on (1600514793374):
Product Overview
Description
Product Description
Main specification
| MAIN PARAMETER | UNIT | ZX50C |
| max. drilling diameter | mm | 50 |
| max. width of end milling | mm | 100 |
| max. vertical mill diameter | mm | 25 |
| max.diameter of boring | mm | 120 |
| max. tapping diameter | mm | M16 |
| spindle taper | MT4 | |
| distance from spindle end to table surface | mm | 38-430 |
| spindle speed range | rpm | 230-1825 |
| spindle travel | mm | 120 |
| table size | mm | 800x240 |
| table travel | mm | 400x230 |
| main motor power | kw | 1.5/2.2 |
| overall size | mm | 1100x970x1650 |
| net weight | kw | 550 |

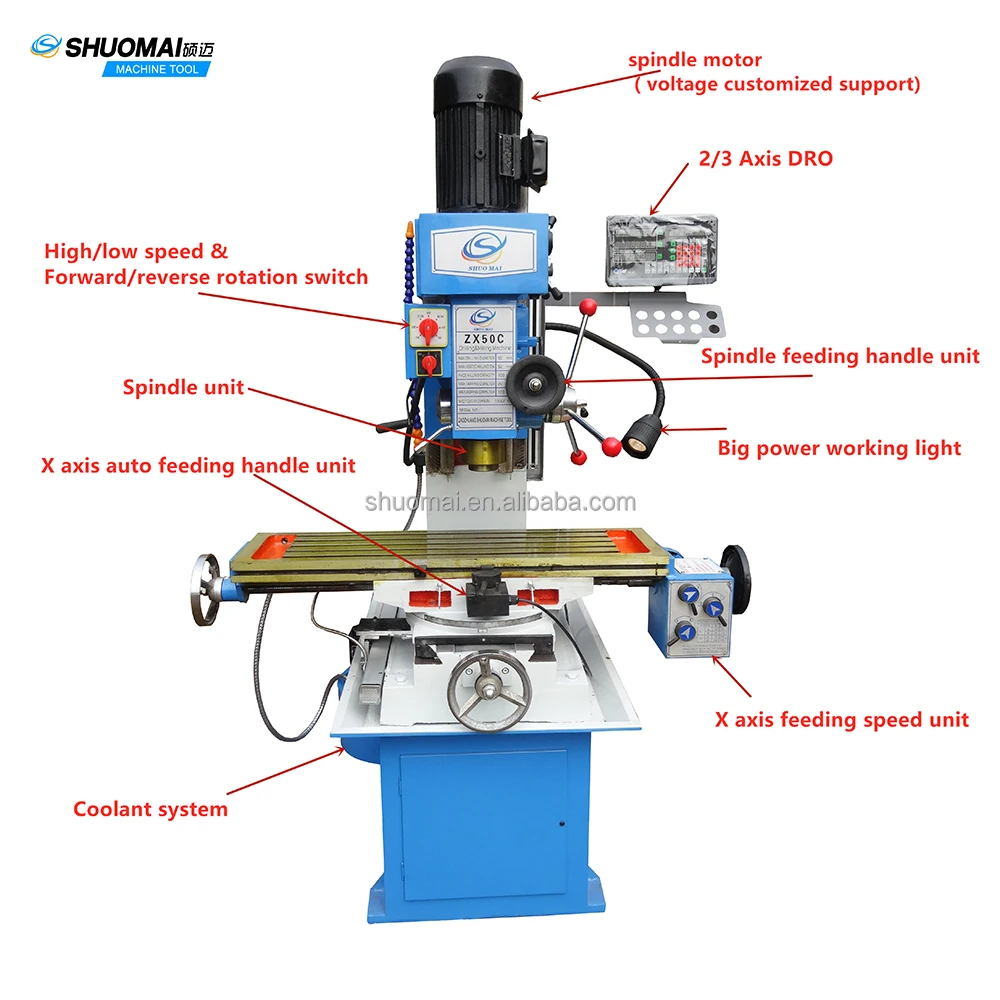

Detail display
Packaging & Shipping
Related products
Company Information
Zaozhuang Shuomai Industrial and commercial Co., Ltd is a foreign-oriented enterprise engaged in the development, design, manufacture, sales and import and export of metal cutting machine tools. Metal cutting machine tools include two major categories, one is CNC lathe, CNC machine center, CNC drilling machine, CNC milling machine, the other is the ordinary machine tools, include lathe machine, radial drilling machine, vertical drilling machine, drilling milling machine, metal band saw, grinding machine, hydraulic machine, boring machine and so on, more than 100 kinds of specifications. Market coverage of the country and exported more than 30 countries and regions.
FAQ
Before order, please kindly inform the following,
1.Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2.Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
4.Q: How long does it take to get machine?
A:It takes about 25 days.
