DW L9 Drawell UV/Spectrometer Double Beam UV VIS Spectrophotometer
- Category: >>>
- Supplier: Chongqing Drawell Technology Co. Ltd.
Share on (1600514808877):
Product Overview
Description

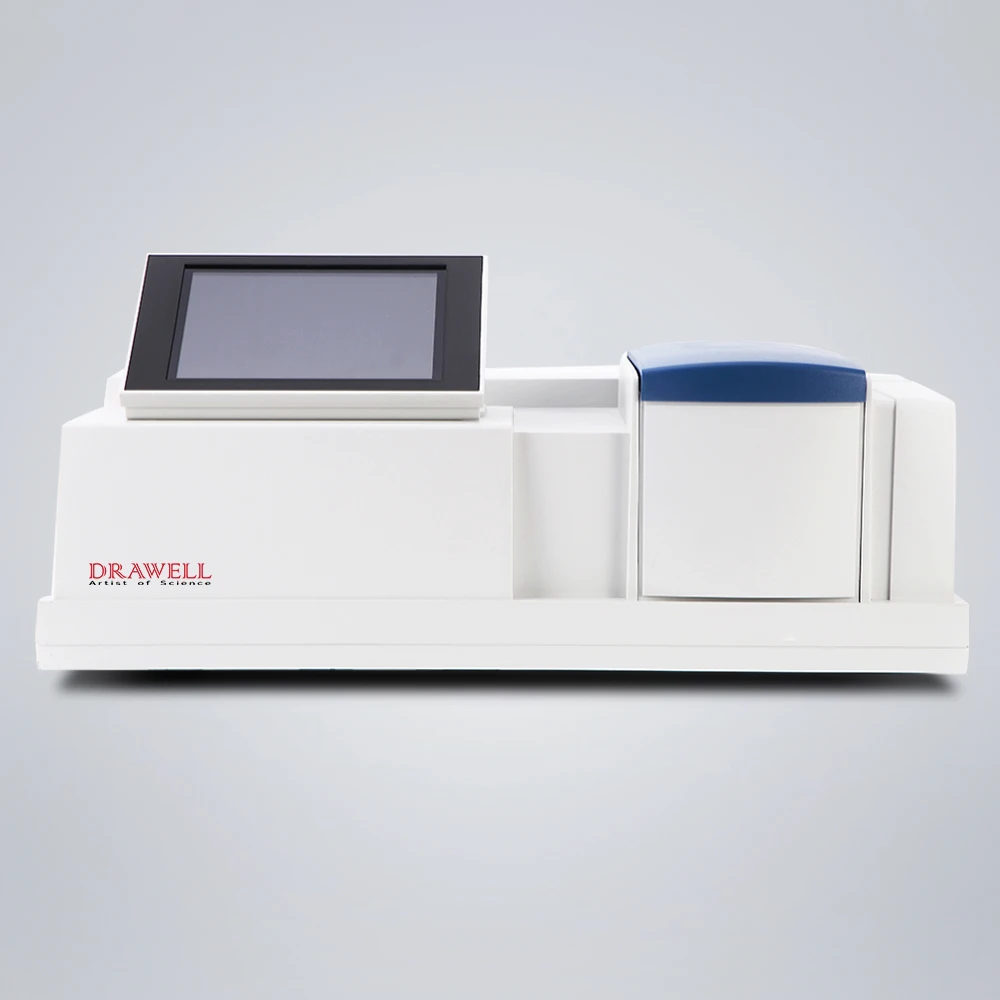

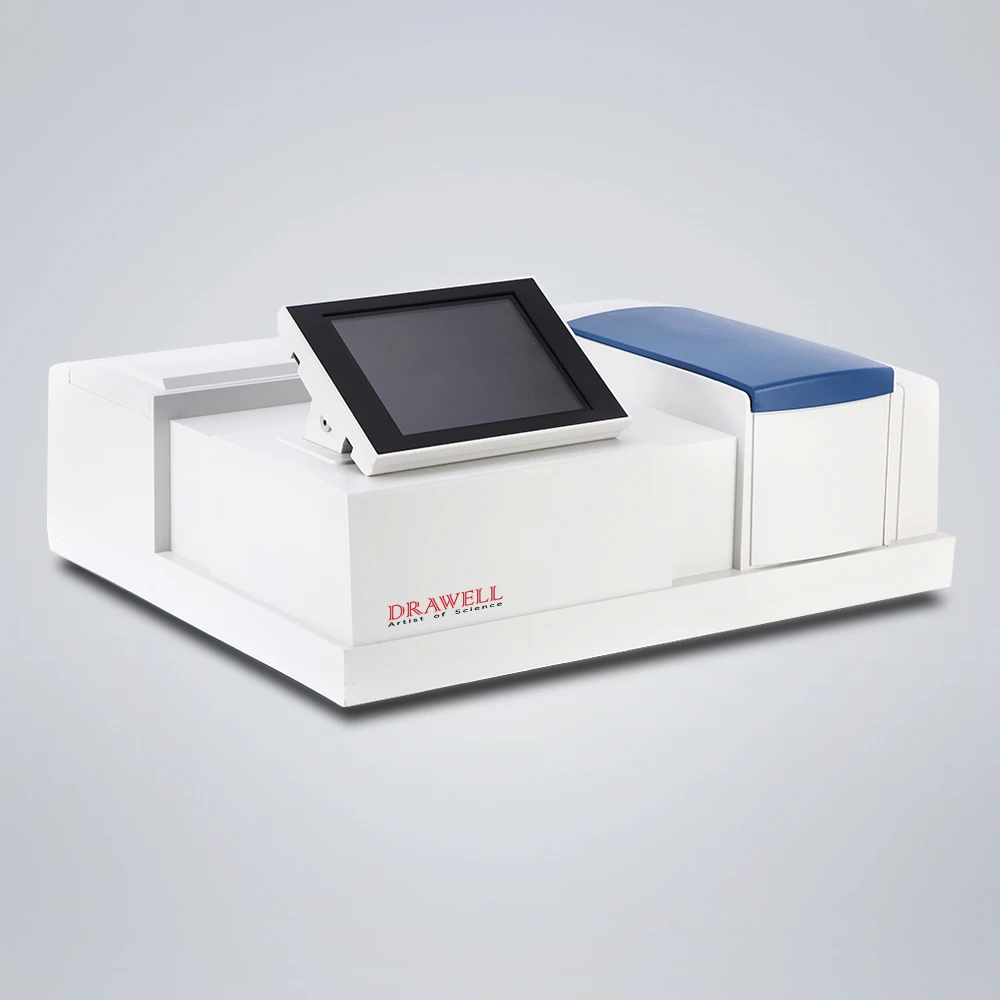

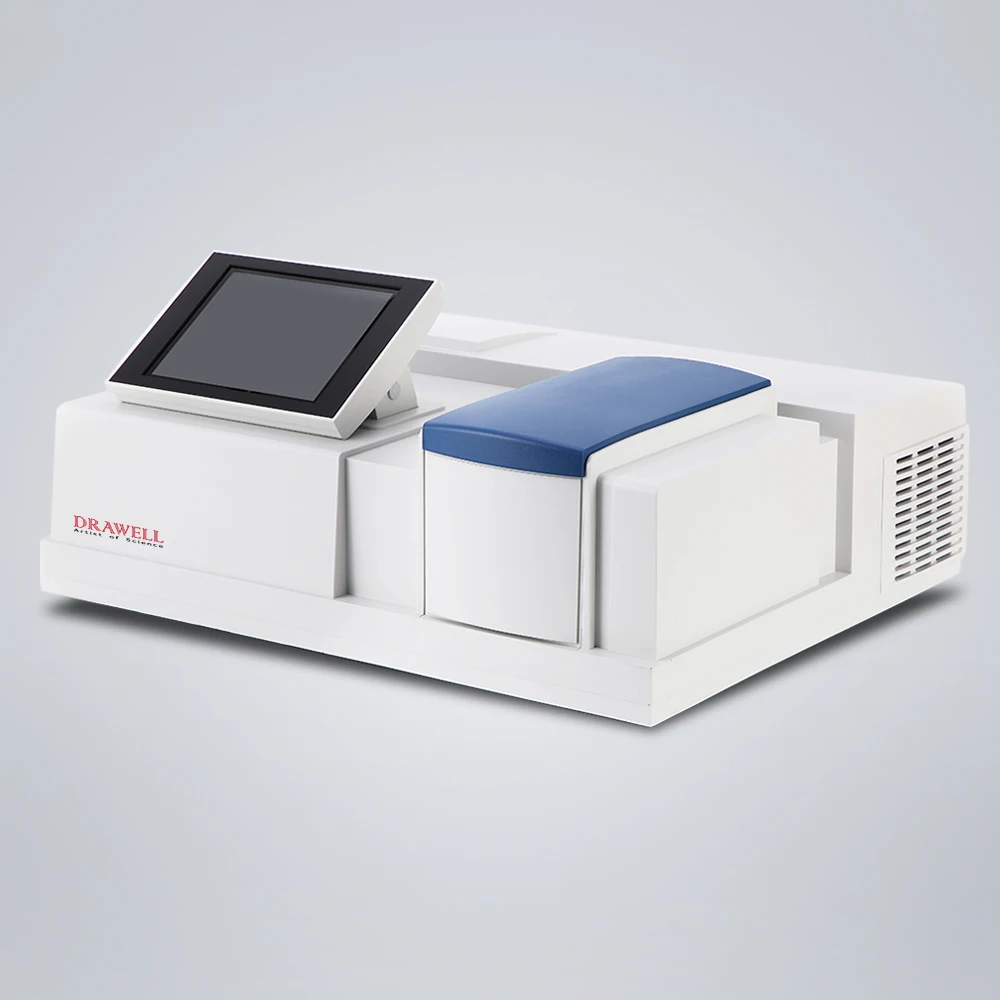

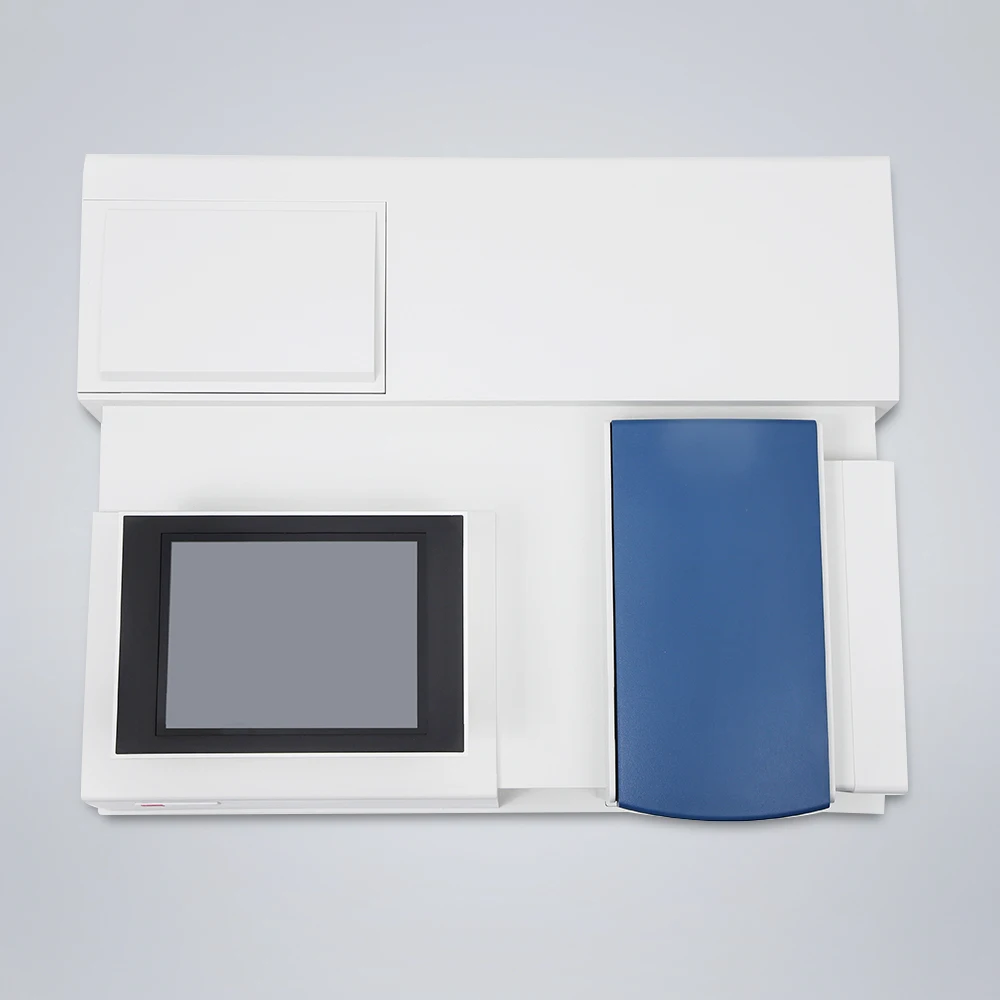

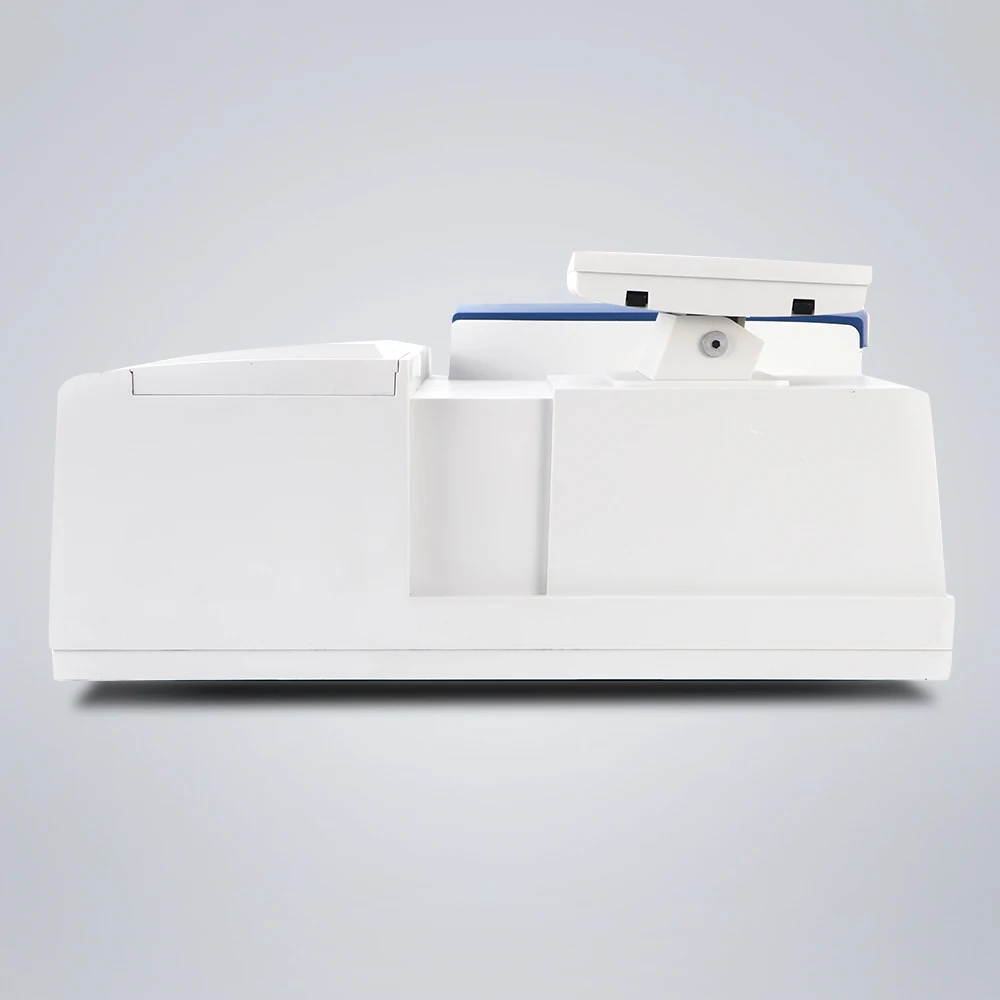

DW-L9 Drawell UV/Spectrometer Double Beam UV-VIS Spectrophotometer
The DW-L9 double beam UV-Vis spectrophotometer applies a new optical bench, with 5-speed adjustable bandwidth, ARM chip control and data processing, 8-inch color touch-screen which displays menu and spectral curve and can analyze spectrum test data. It's quite easy for user and computer interaction. The instrument can perform following operations, including photometry, automatic scanning spectral measurement, quantitative analysis, dynamic analysis, and multi-wavelength measurement.
The instrument serves as the basic equipment for quality control, technical evaluation and scientific research, and can be widely used in susceptibility testing, medicine and health, biochemistry, environmental monitoring, commodity inspection, petrochemical and other fields.
Main Features
● New optical platform, enabling the host machine with excellent optical properties, metering performance, low stray light and noise, high metering accuracy and stability.
● Unique system of deuterium and tungsten lamp installation, facilitating the light source to automatically switch to the best position, and allowing users to operate the instrument, replace the light source and maintain the instrument more conveniently, accurately and safely.
● Sophisticated hardware and software design, empowering the instrument with powerful spectral data processing and storage capabilities, and performing following functions,including automatic scanning of measured spectrum, multi-wavelength (1-3 λ) measurement, kinetic measurement, 1-3 curve fitting, 1-4 derivative spectra, spectra printing and storage and data analysis.

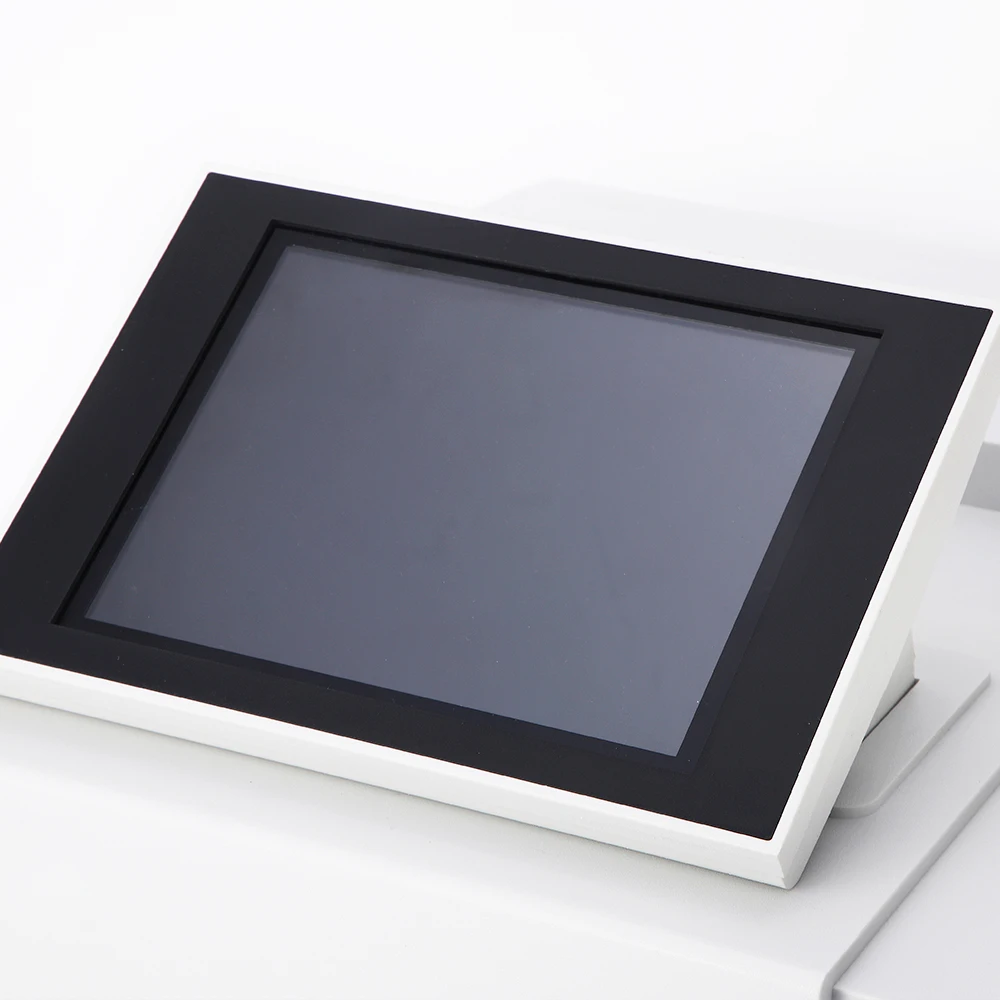

● 8-inch color touch-screen, with a good user-machine interface, easy-to- operate.
● USB communication port.
Photometry | Double Beam |
Monochromator Type | Czerny-Turner |
Focal Length | 200mm |
Grating | 1600 lines/mm |
Detector | Silicon Photocell |
Spectrum Bandwidth | 0.5nm,1nm,2nm,4nm,5nm |
Wavelength Setting | 8-inch color touch-screen |
Wavelength Range | 190-1100nm |
Wavelength Accuracy | ±0.3nm（actual test ±0.2nm ） |
Wavelength Repeatability | ≤0.1nm |
Scanning Speed | Fast-Medium-Slow |
Stray Light | ≤0.02%T( at 220nm NaI, 360nm NaNo2 ) |
Photometric Range | 0.0-200.0% T |
-0.301-4.000 A | |
0.000-9999 C | |
Photometric Accuracy | ±0.3% T |
±0.002 Abs (0-0.5A) | |
±0.004 Abs (0.5-1A) | |
Photometric Repeatability | ≤0.15% T |
0.001 Abs (0-0.5A) | |
0.002 Abs (0.5-1A) | |
Baseline | ≤±0.0008 A(200-1090nm) |
Noise | 100%（T）noise≤0.1%(T) ， 0%（T）noise≤0.02%(T) |
Drifting | ≤0.004 Abs/h (250nm and 500nm after 2h warm up) |
COM Port | USB |
Light Source | D2 lamp, halogen tungsten lamp |
Power | AC220V±22V 50Hz±1Hz, 200W |
Packaging Size | 730mm X 630mm X 450mm 0.21M3 42.5kg |
Standrad Accessories
● Operation manual 1pc
● Glass cuvette 10mm 4pcs
● Quartz cuvette 10mm 2pcs
● Power cable 1pc
● Fuse 2pcs
● Cuvette holder 10mm
Optional Accessories
● UV WIN8 station pro software
● Cuvette holder 50mm 100mm
● Cuvette 20mm 30mm 50mm 100mm
● Operation manual 1pc
● Glass cuvette 10mm 4pcs
● Quartz cuvette 10mm 2pcs
● Power cable 1pc
● Fuse 2pcs
● Cuvette holder 10mm
Optional Accessories
● UV WIN8 station pro software
● Cuvette holder 50mm 100mm
● Cuvette 20mm 30mm 50mm 100mm
