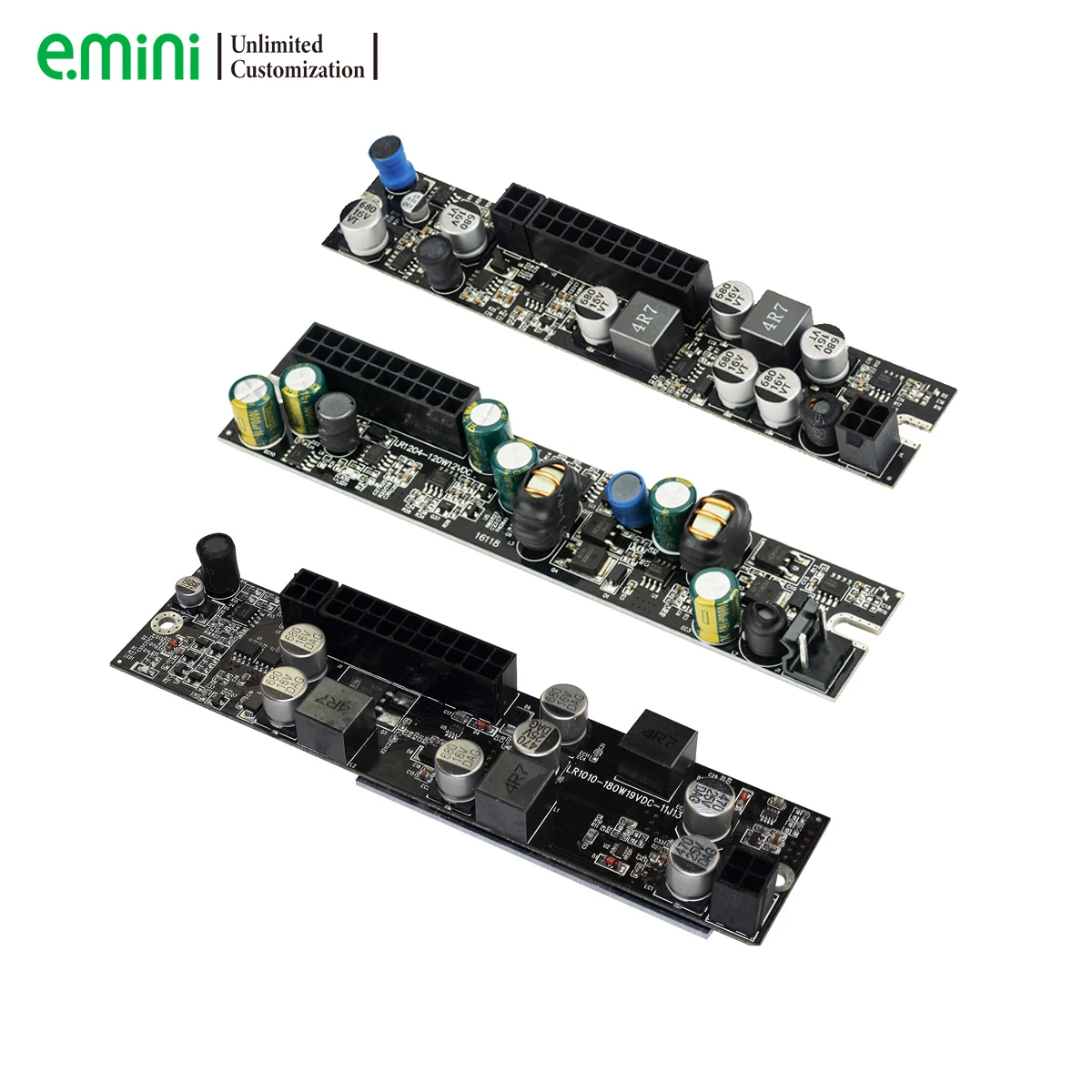

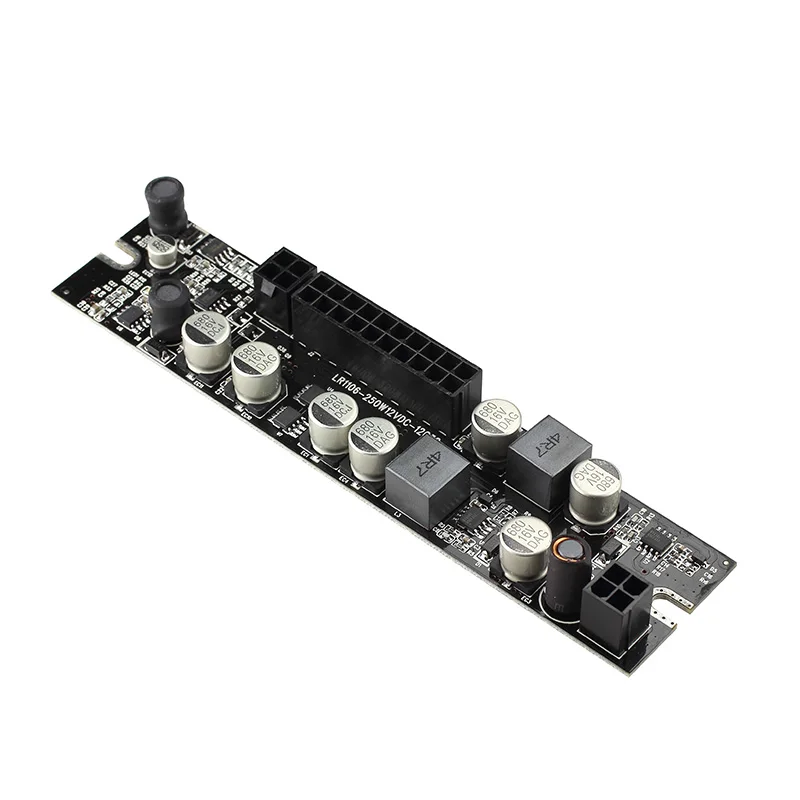

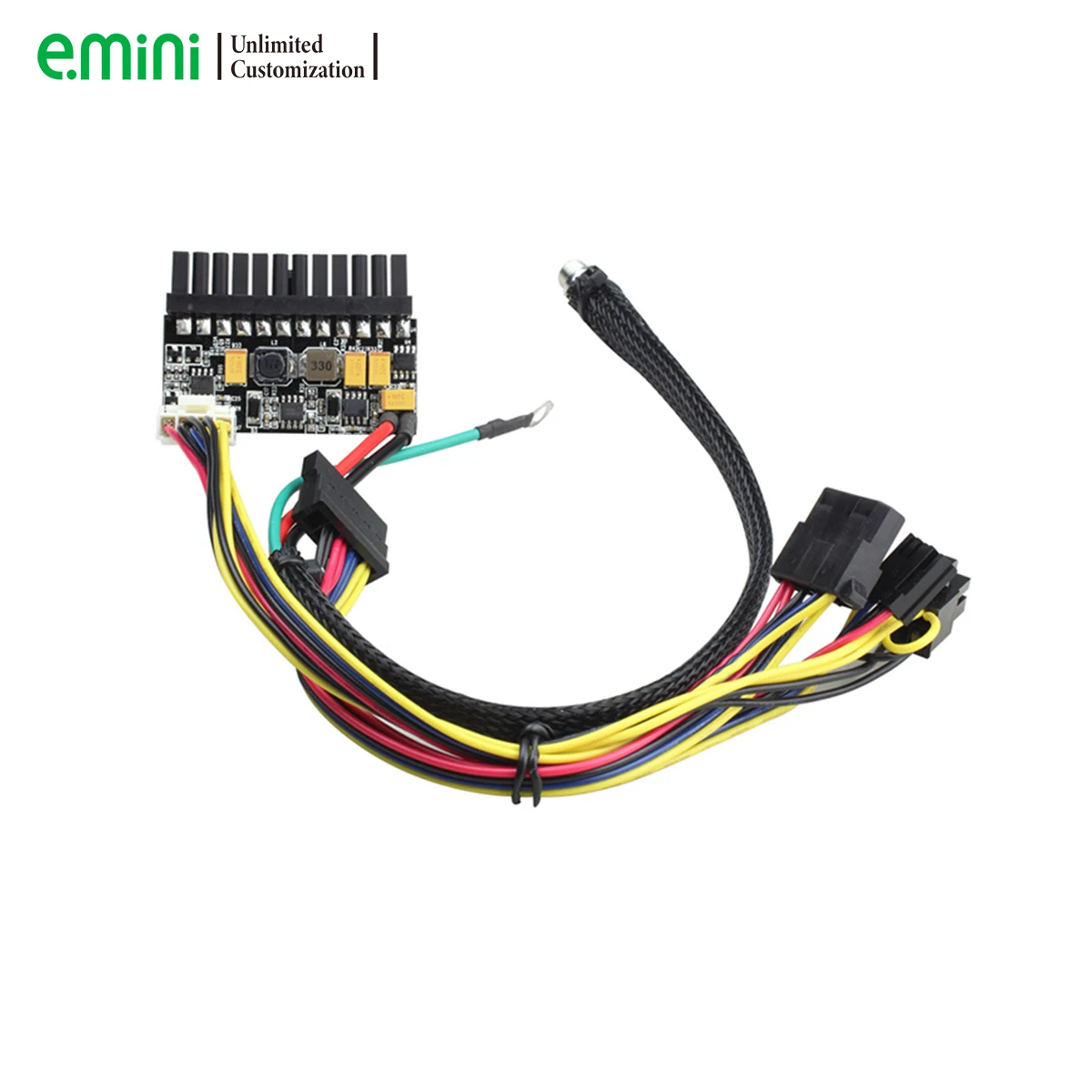

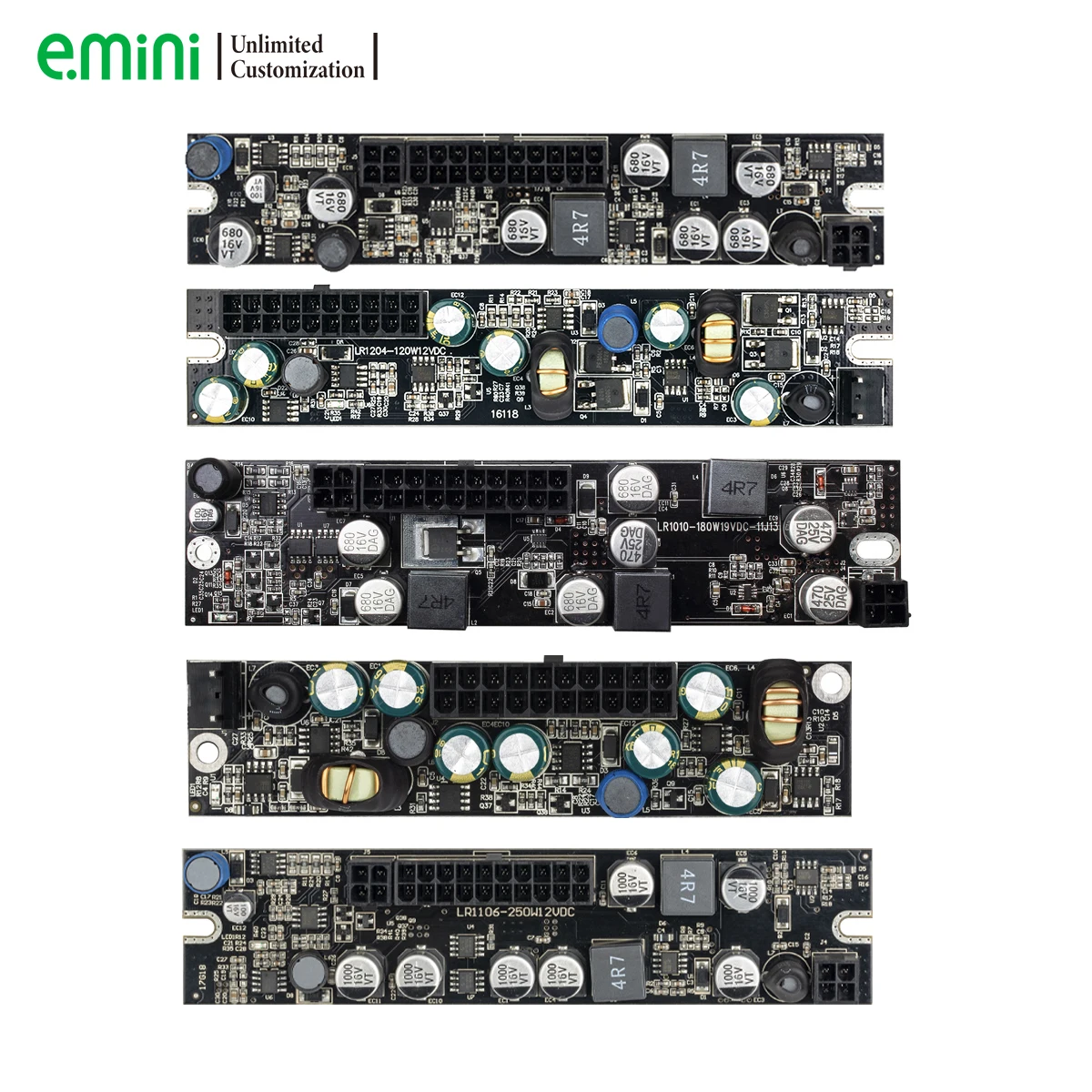

REALAN CUSTOM MINI MODULAR POWER SUPPLY FOR PC 120WATT TO 300WATT 12V 19V DC ATX

Product Overview

Description

Please contact our customer service for full specifications or need OEM/ODM customization services.



1. High Quality Electronic Components

2. Provide Quiet & Stable Power Output

3. Auto Overcurrent, Overload, Short Circuit Protection

4. Full Range, All Kind of Specs for You to Choose from

5. Accept OEM/ODM Orders

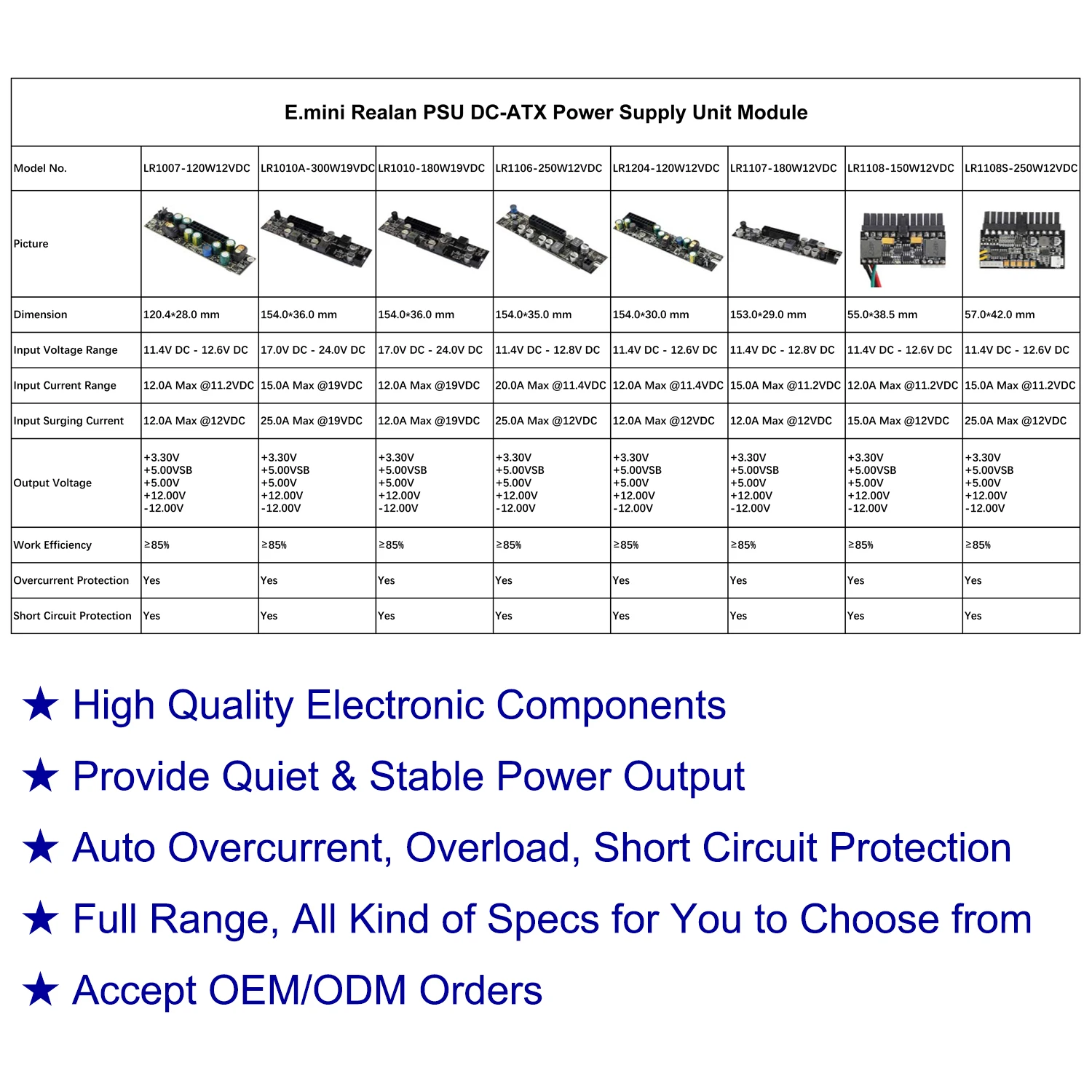

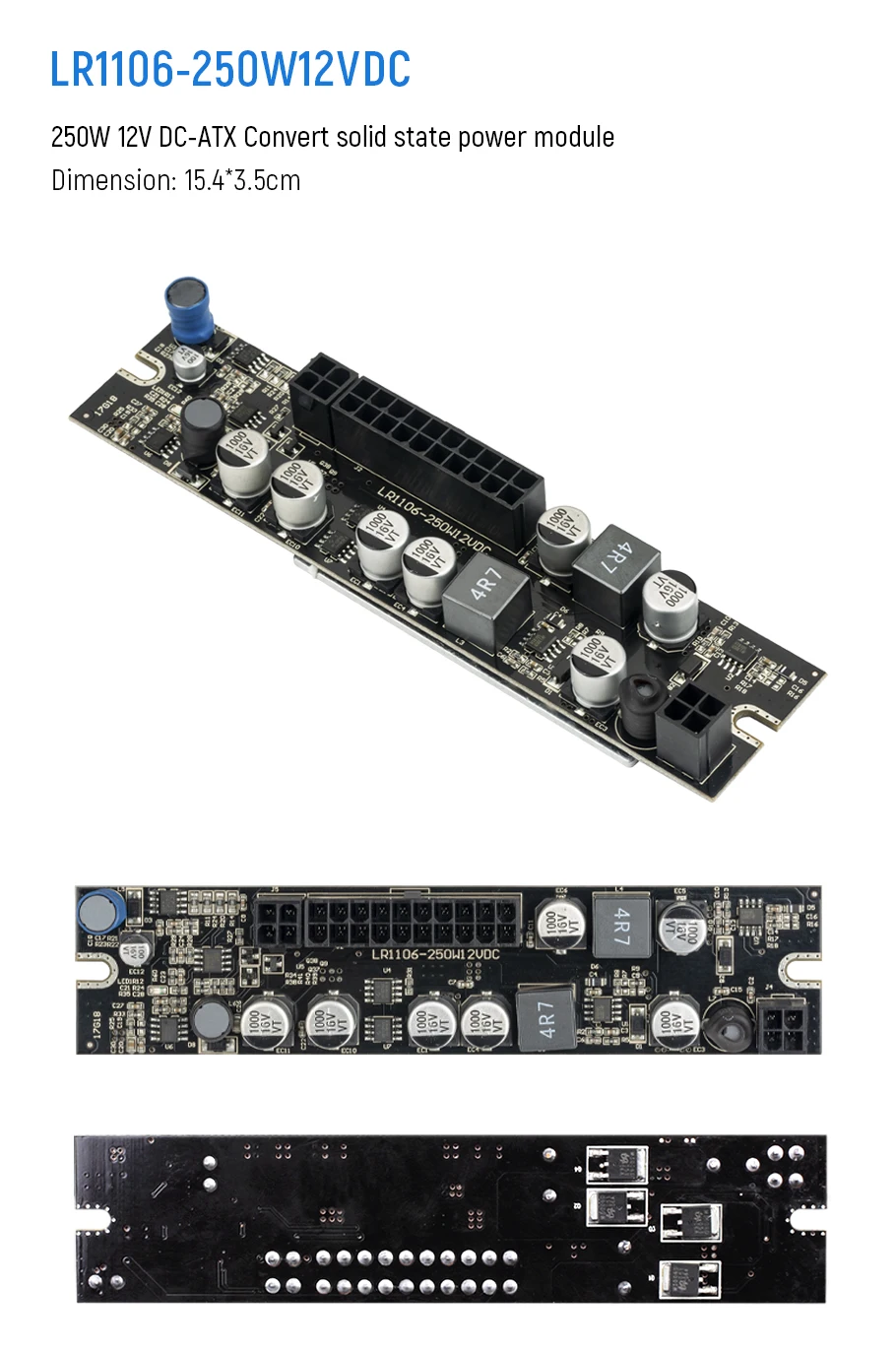

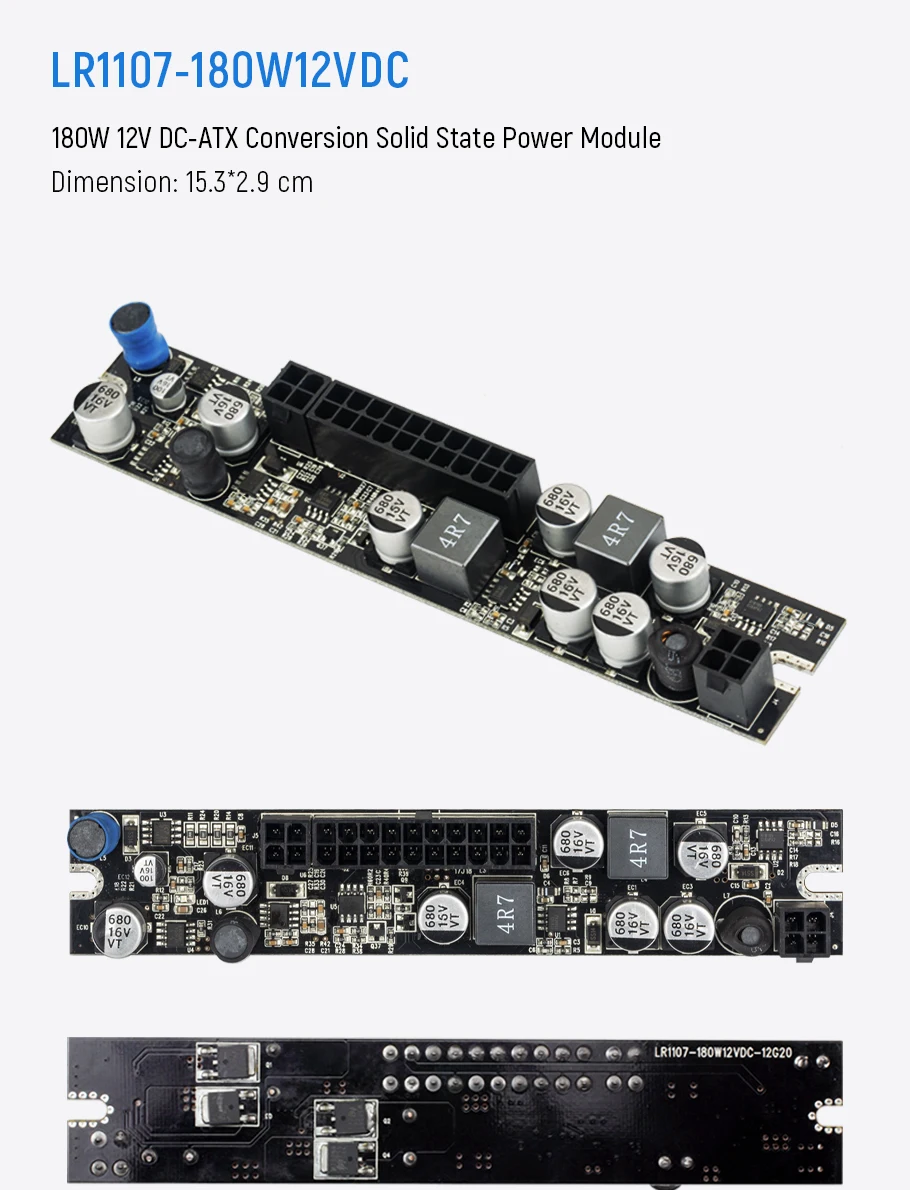

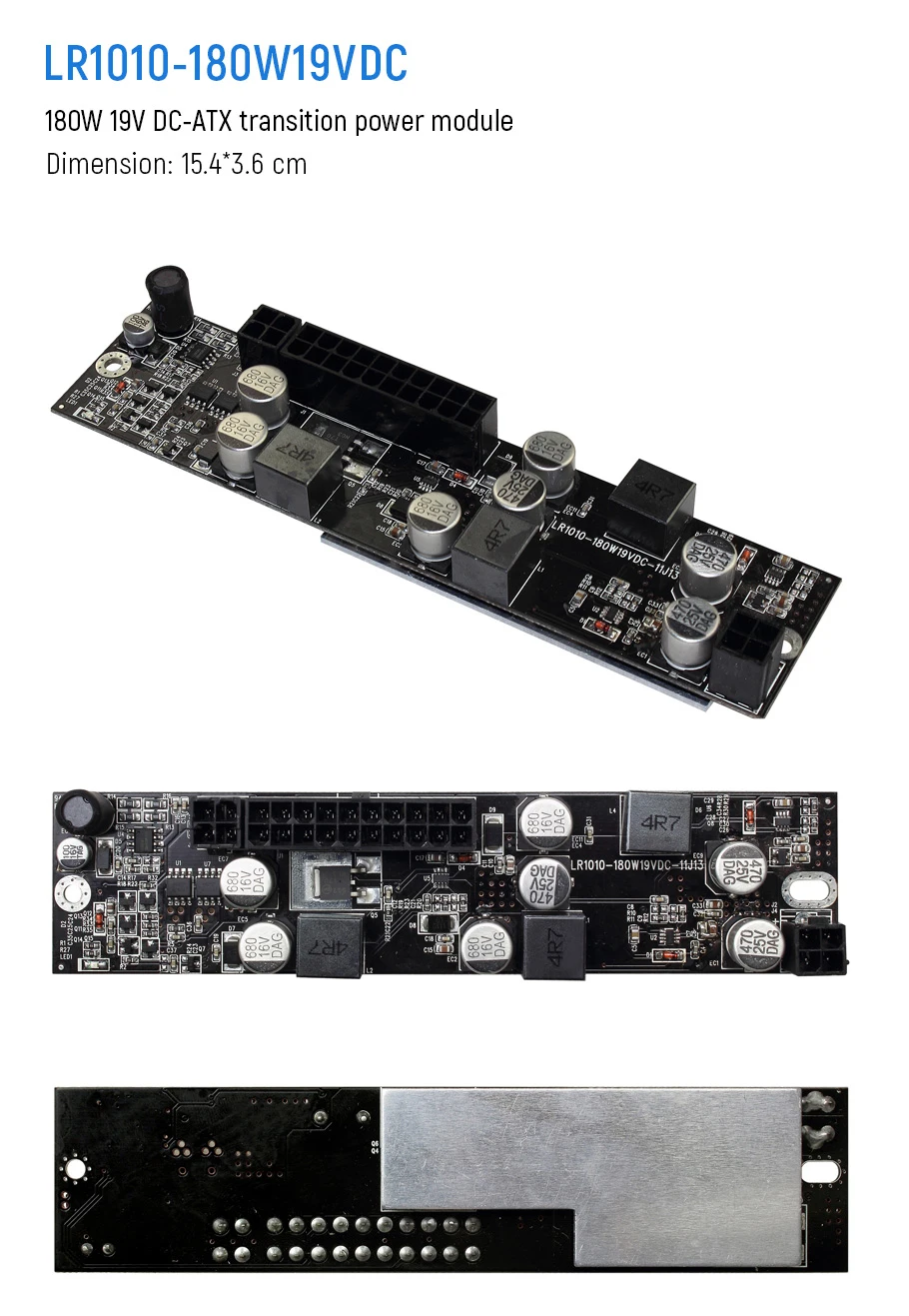

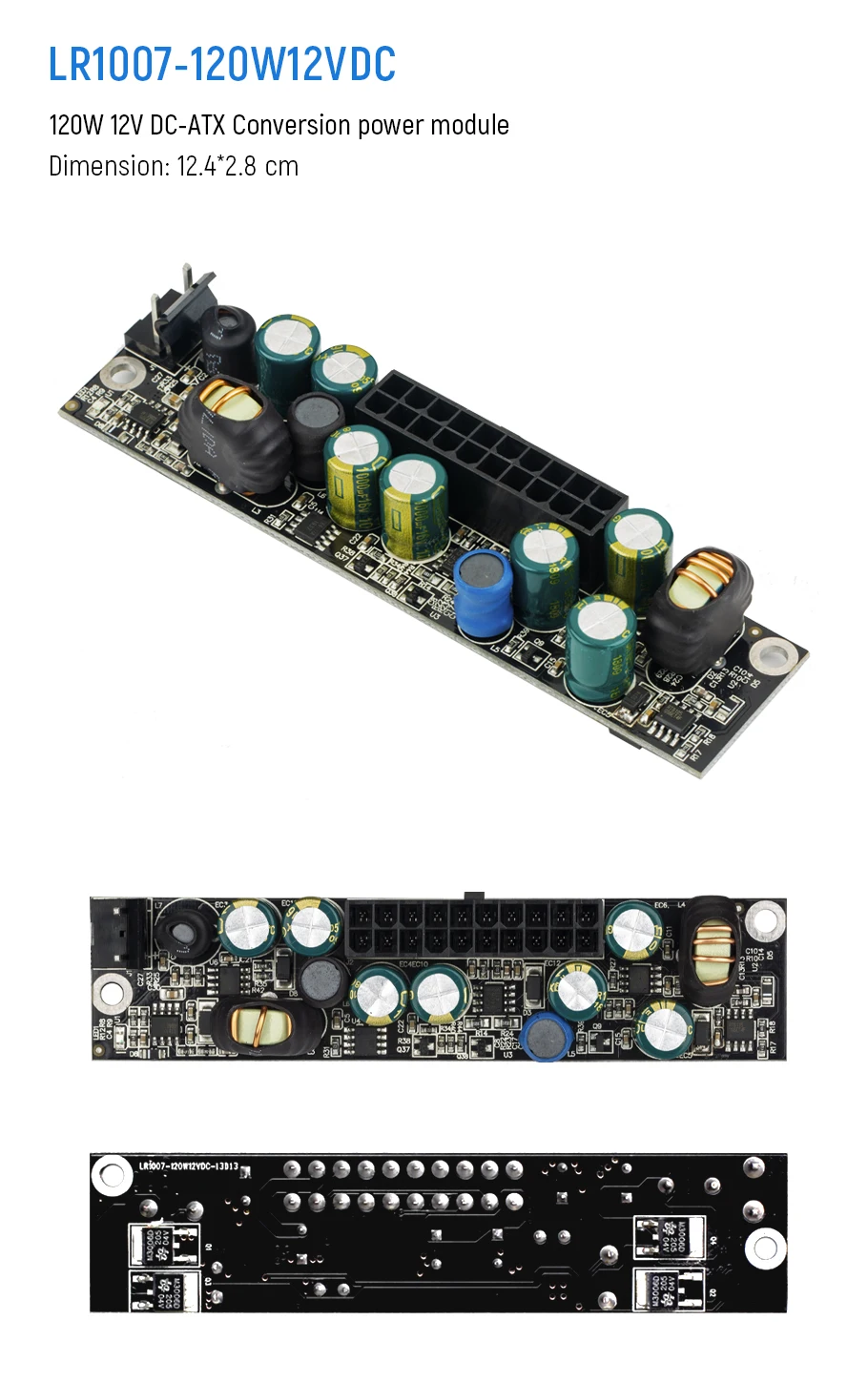

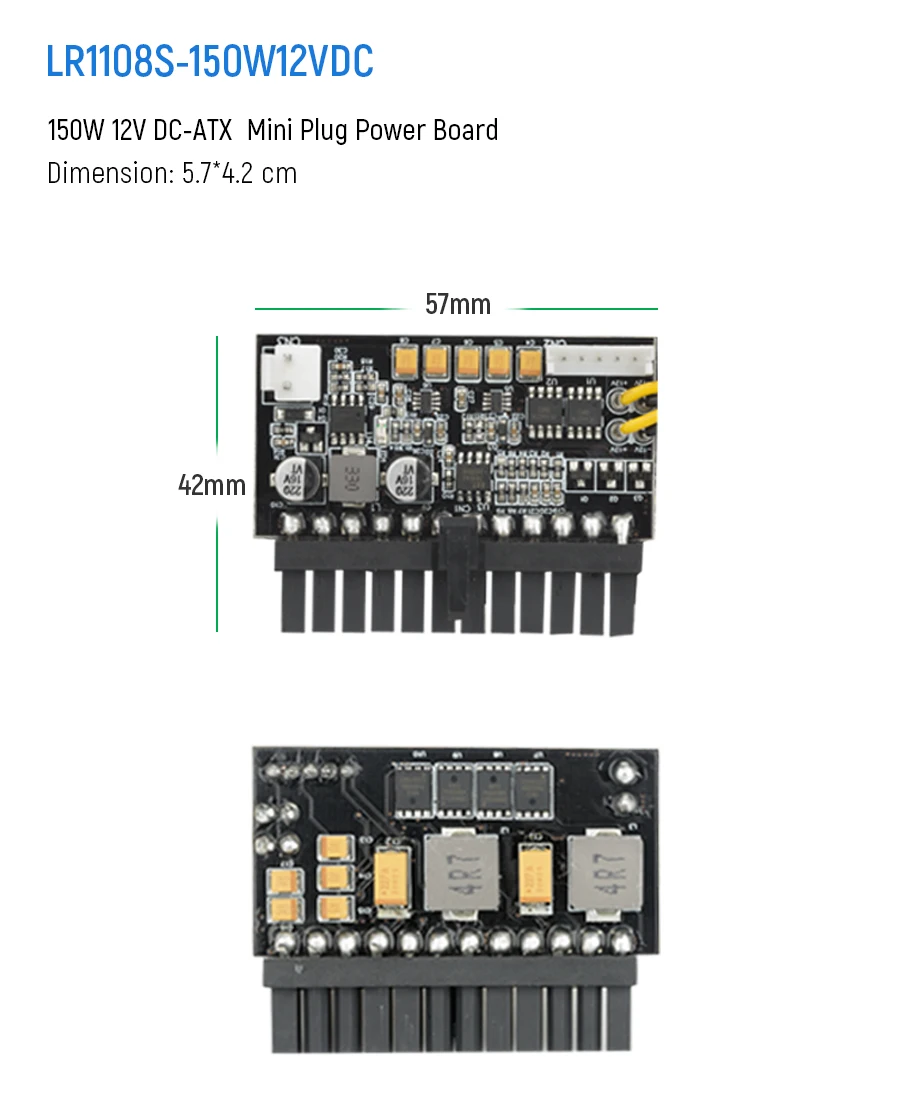

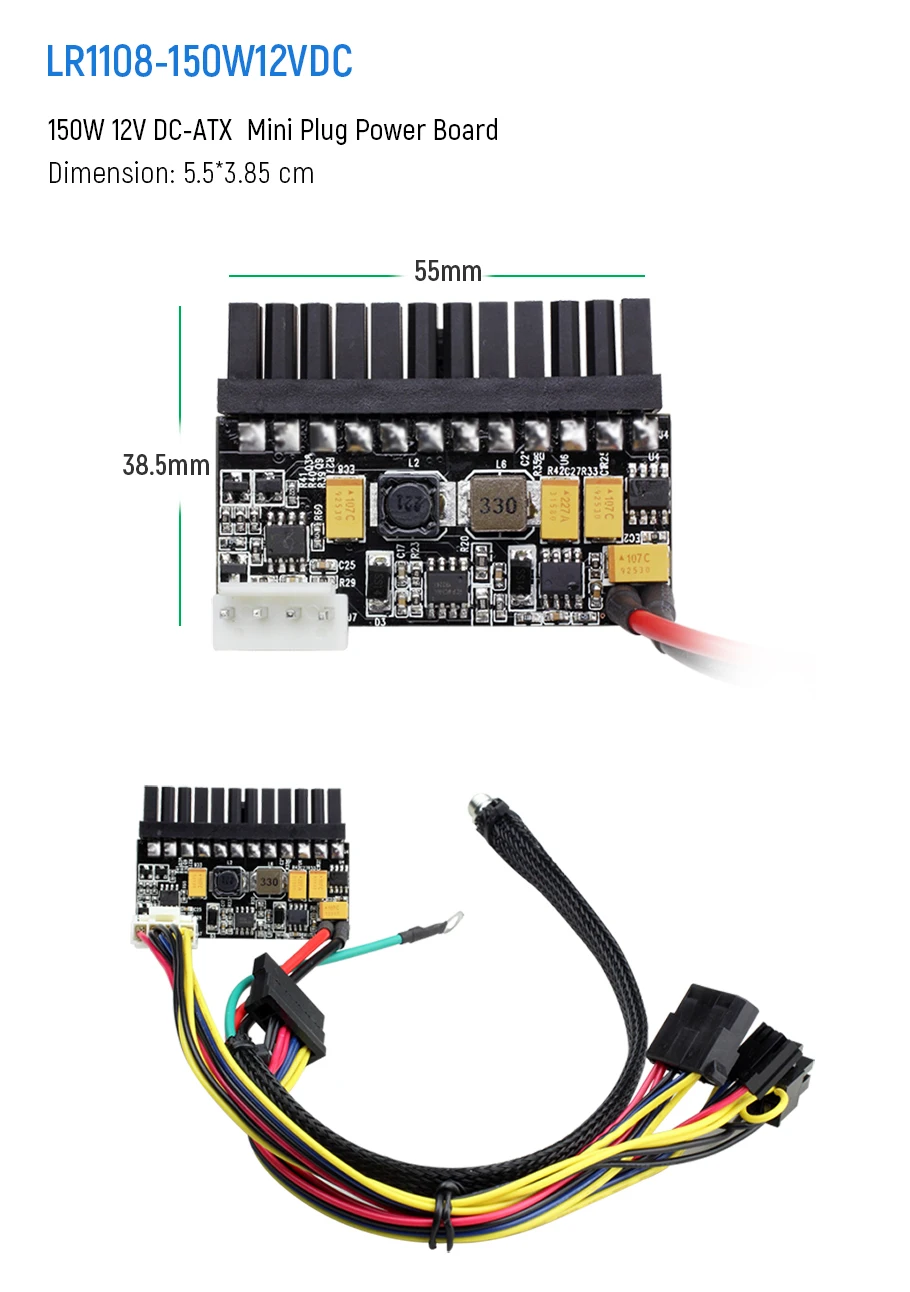

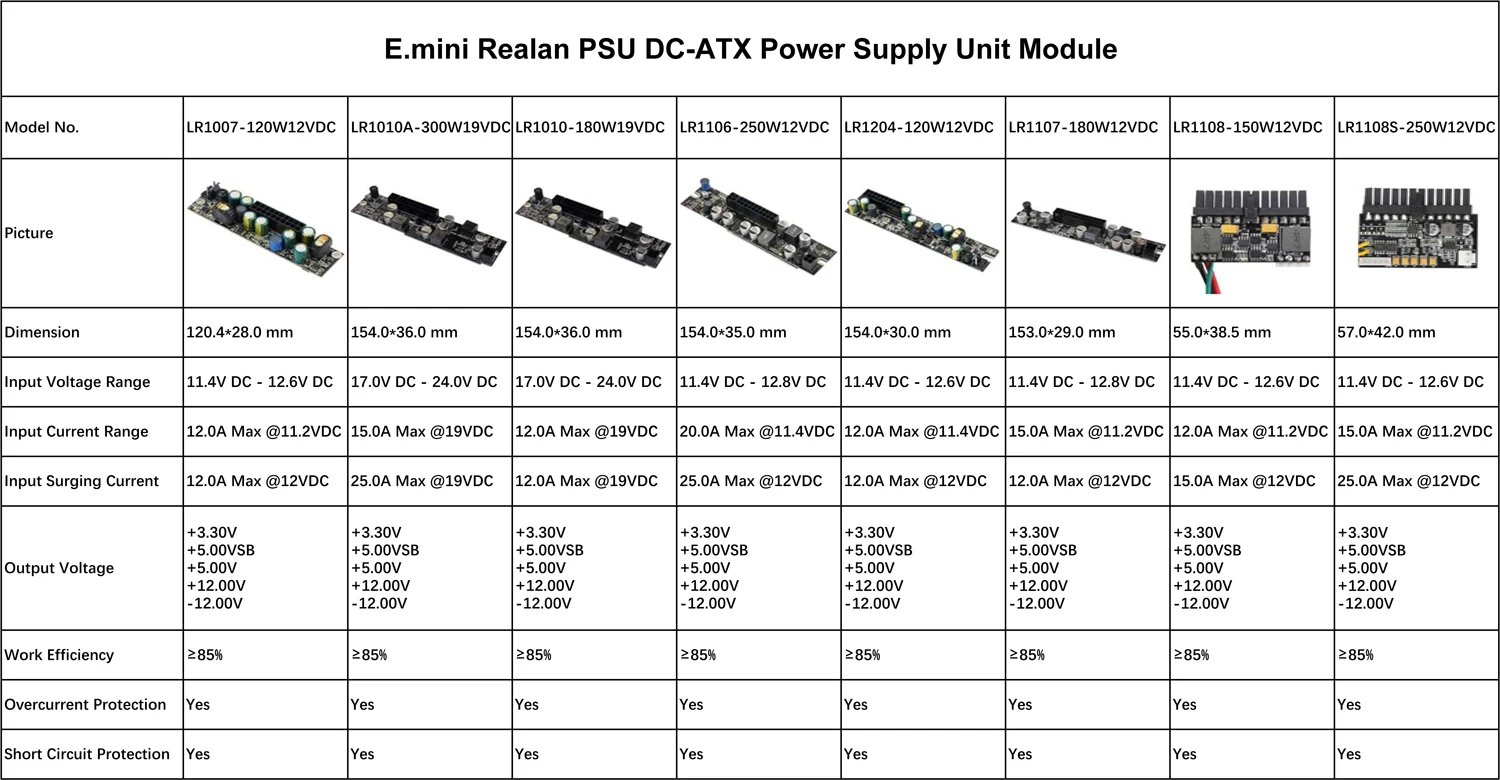

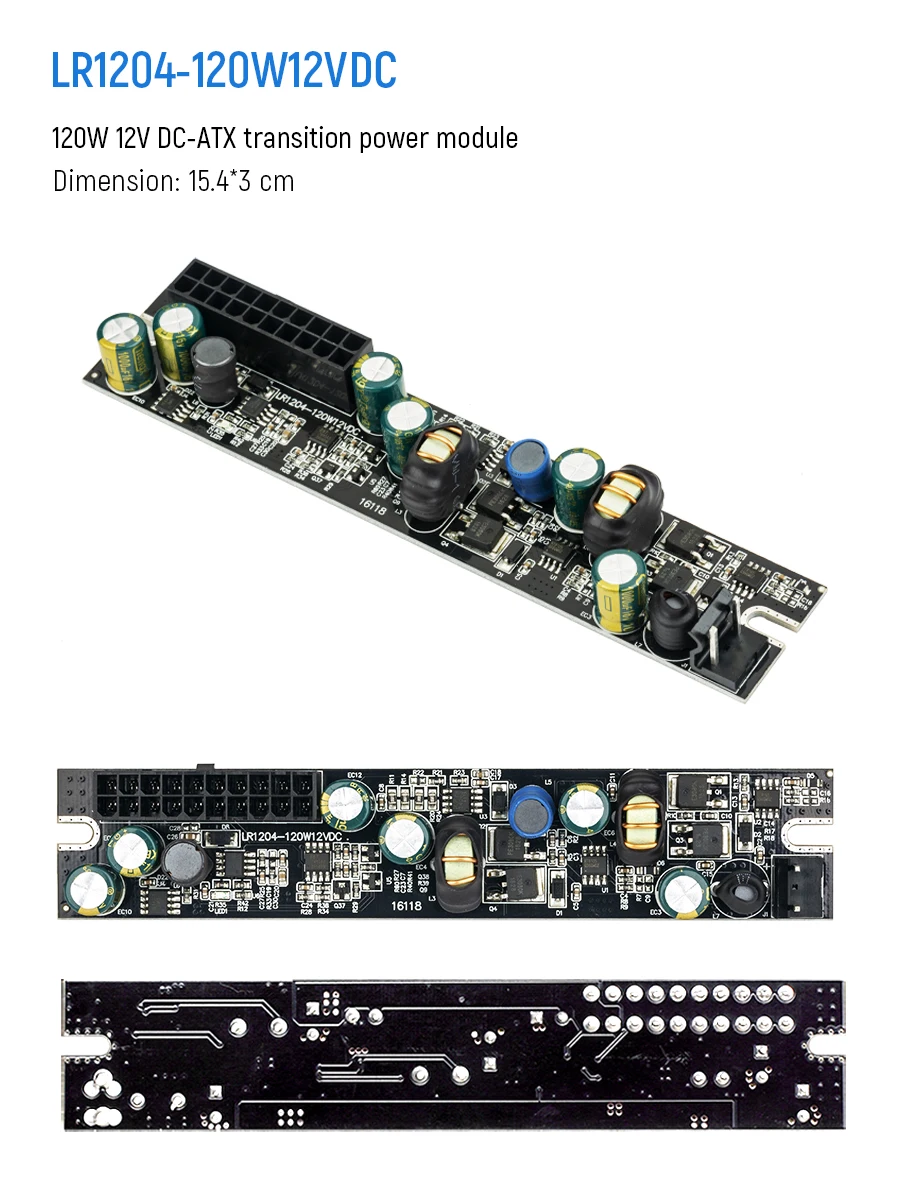

Model No.	LR1007-120W12VDC	LR1010A-300W19VDC	LR1010-180W19VDC	LR1106-250W12VDC	LR1204-120W12VDC	LR1107-180W12VDC	LR1108-150W12VDC	LR1108S-250W12VDC
Dimension	120.4*28.0 mm	154.0*36.0 mm	154.0*36.0 mm	154.0*35.0 mm	154.0*30.0 mm	153.0*29.0 mm	55.0*38.5 mm	57.0*42.0 mm

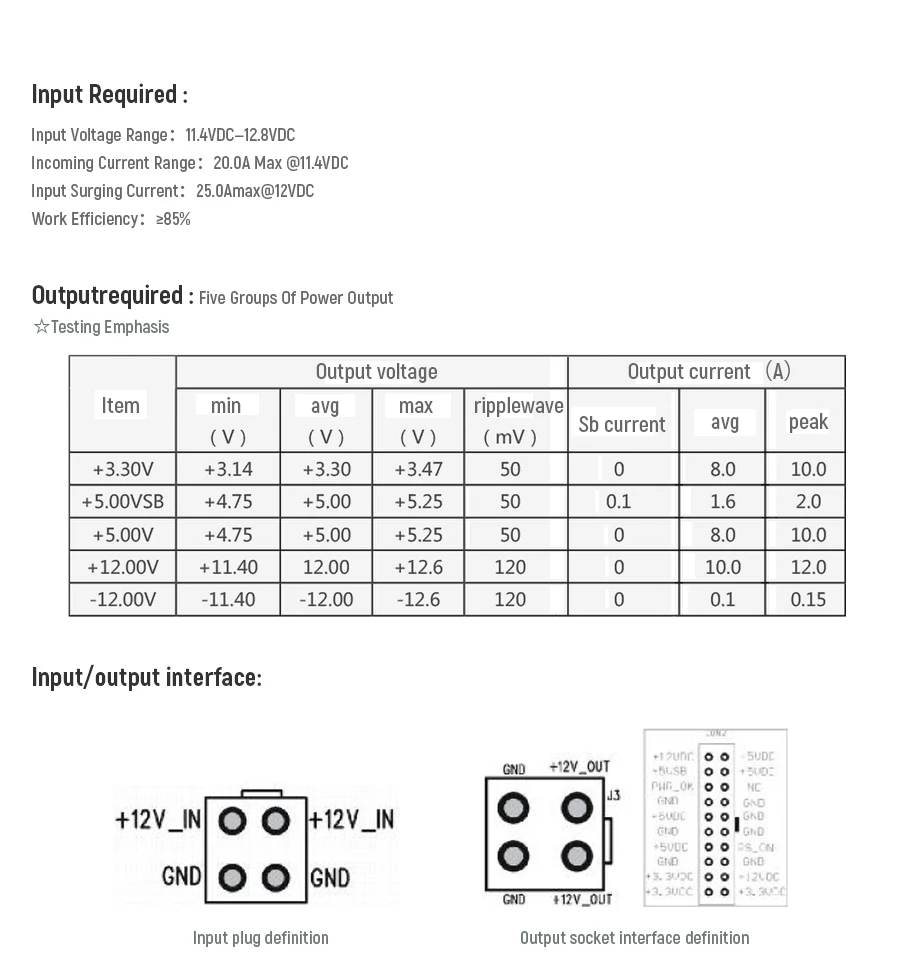

Input Voltage Range	11.4V DC - 12.6V DC	17.0V DC - 24.0V DC	17.0V DC - 24.0V DC	11.4V DC - 12.8V DC	11.4V DC - 12.6V DC	11.4V DC - 12.8V DC	11.4V DC - 12.6V DC	11.4V DC - 12.6V DC
Input Current Range	12.0A Max @11.2VDC	15.0A Max @19VDC	12.0A Max @19VDC	20.0A Max @11.4VDC	12.0A Max @11.4VDC	15.0A Max @11.2VDC	12.0A Max @11.2VDC	15.0A Max @11.2VDC
Input Surging Current	12.0A Max @12VDC	25.0A Max @19VDC	12.0A Max @19VDC	25.0A Max @12VDC	12.0A Max @12VDC	12.0A Max @12VDC	15.0A Max @12VDC	25.0A Max @12VDC
Output Voltage	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V	+3.30V +5.00VSB +5.00V +12.00V -12.00V
Work Efficiency	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%
Overcurrent Protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Short Circuit Protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
