Стандартные аксессуары для гаражных дверей 16x7, фурнитура для гаражных дверей (1600514844095)

Share on:


Price:15,00 $ - 30,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Garage Door Hardware Kit - Hinges, Rollers,cable drums,bearing brackets&other accessories.

Hardware kits are available for clients who get their own garage door sections assembled of for those who buy the sections already made. All the parts needed for assembling the garage door sections can be found in our store, including the garage door hardware kit with hinges, rollers, and fixtures that tie together the sections and allow them to roll in the tracks.





Garage Door Hardware Kits for single door (8x7)
NO.1 Hinge
NO.2 Hinge
Slide lock
cable
Angle Iron
Top Roller Bracket
Bottom Bracket
Bearing Bracket
Nylon Roller
Side Bring Bracket
Screw
carriage bolt
Cable Drum
Jamb Bracket
Steel Handle






Garage Door Hardware Kits for single door (16x7)
NO.1 Hinge
NO.2 Hinge
NO.3 Hinge
slide lock
cable
Angle Iron
Top Roller Bracket
Bottom Bracket
Bearing Bracket
Nylon Roller
Side Bearing Bracket
Screw
carriage bolt
Cable Drum
Jamb Bracket
Steel Handle





Detail Images


Garage Door Hinge
Garage Door Hinge, for Non-finger protection panel
1. Item.No for hinges: MAS0001.1, MAS0001.2, MAS0001.3, MAS0001.4
2. Material: Zinc plating & normal galvanized steel
3. Steel thickness: 1.8 mm
4. For 4'' stem rollers only ;
5. Type: garage door hinge


NO.1 Hinge
NO.2 Hinge
NO.3 Hinge



Nylon roller
1. Model: MAS0007, MAS0707, MAS0807, MAS0907;
2. Stem: 4''/7 ball, 7''/11 ball, 4''/ Precision 6200ZZ, 7''/ Precision 6200ZZ, 11 ball;
3.Diameter: 2'', for 2'' track only.







Top Roller Bracket
1. Top bracket model: MAS0803
2. Thickness: 2.5mm;
3. Material: steel/galvanized steel
4. For 4” stem rollers only





Bottom roller bracket
1. Bottom bracket model: MAS0604
2. Thickness: 2.5mm
3. Material: Zinc plated/galvanized steel ;
4. Max Lifting:165KG
5. Both left and right available.

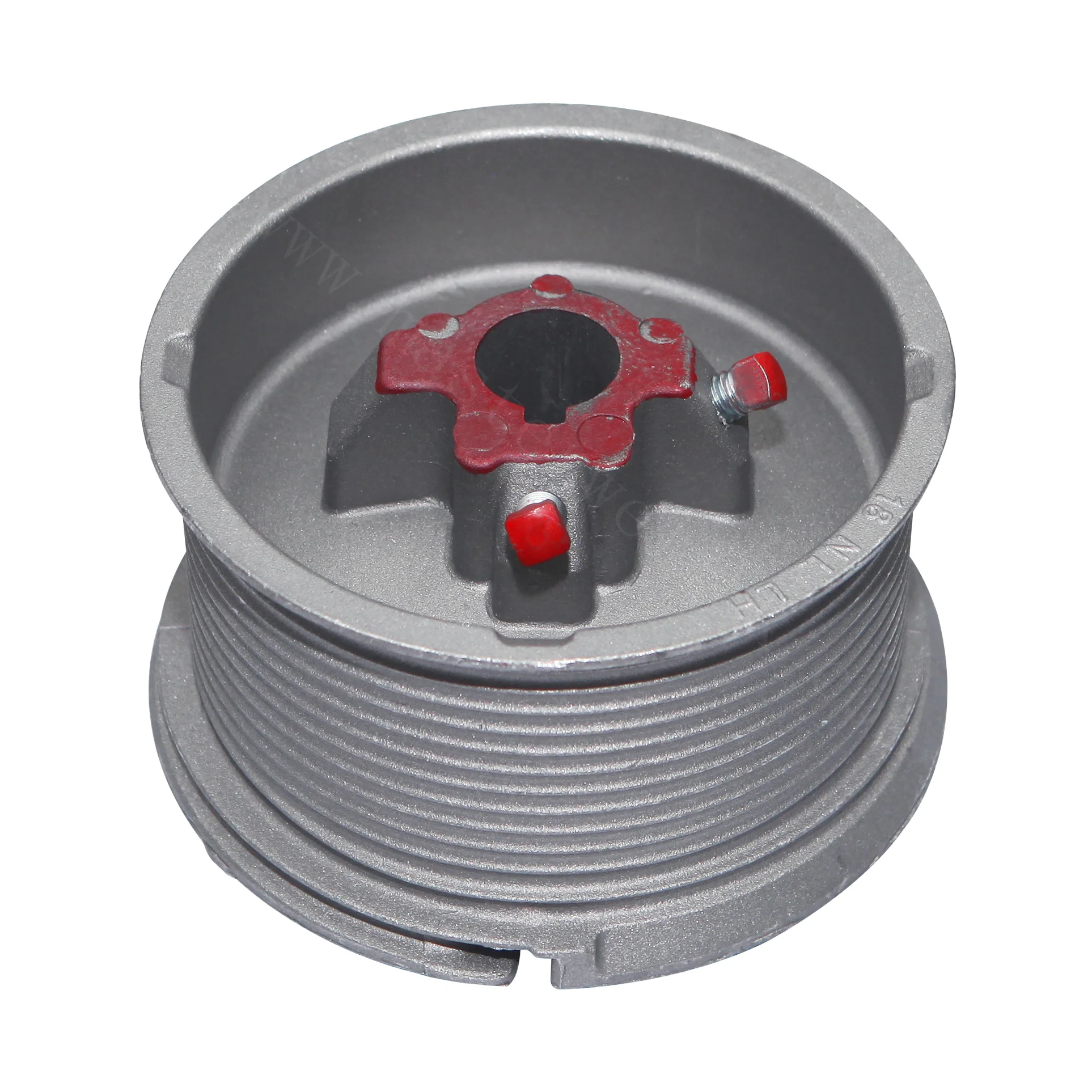

Cable drum
Normal lifting cable drums for torsion spring system
1. Model:
MAS0013.NL8, MAS0013.NL12, MAS0013.NL12B, MAS0013.NL10, MAS0013.NL18, MAS0013.NL18B, MAS0013.NL32, MAS0013.NL32B;
2. Max lifting height: 8', 10', 12' 18', 32';
3. Max cable diameter: 1/8'', 3/16'', 5/32'', 1/4''.




Bearing Brackets
Central bearing bracket
1. Model: MAS005
2. Distance: 84mm
3. Thickness:2.5mm







Side bearing bracket
1. Model: MAS0606;
2. Distance: 60mm / 84mm;
3. Material: Zinc Plating;
4. Thickness: 2.5mm;
5. Both left and right are available.






Jamb Bracket Cable Steel Handle




Corner Angle Flag Bracket Slide Lock


Quality Assurance




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Exhibition



Relying on our excellent business performance and R&D, we are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professional service for you.


Certifications




FAQ


Q1: What is your MOQ?
A: NO MOQ

Q2: Can you do color spraying on the surface of torsion spring? What colors can you do?
A: Yes, we can do color spraying on the surface. As for the color, it depends on the specification&wire size of torsion spring.

Q3: What is the manufacturing capacity?
A: 500KG per month.

Q4: Can I get a sample of garage door for quality check?
A: Sample is available.

Q5: How can I get a price of needed garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Q9: What is the fatigue limit of Torsion Spring? Do you conduct fatigue test on your product?
A: 10000 on-off cycles. Yes, we do fatigue test on Torsion Spring.

Q10: Could you tell me the lead time?
A: If the requested quantity is 100 sets, the lead time will be 15 days. If the requested quantity is greater than 1000 sets, the lead time will be 1 Month.
