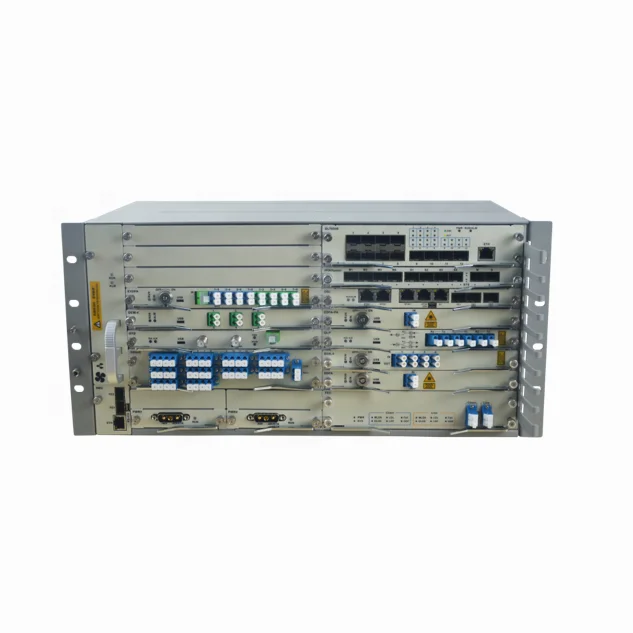

5U WDM integrated platform standard 5U rack active transmission DWDM system with OTU ODM EDFA DCM OLP interface card
- Category: >>>
- Supplier: Shanghai B And A Technology Co. Ltd.
Share on (1600515100809):
Product Overview
Description
DWDM/CWDM/OTU EDFA Integrated service access platform for communication transmission system
Products Description
Overview:
The ISAP561 type optical transmission network system, which is mainly used in metro convergence layer and metro core layer, is a new generation of optical transmission system with high integration, huge capacity and long distance. The equipment applies the advanced transmission technology and high integration technology, applicable to the whole IP transmission. It provides the function of wide broadband, high capacity and fully transparent transmission, which can realize smooth capacity upgrade, offer a comprehensive, flexible and mature protection solution. It’s a stable platform for multiple service operation and future network upgrade and expansion.
Product Paramenters
Performance Parameters | Technical indicators |
Product Model | ISAP561 |
Equipment Size | 5U: 220 mm (height) x 482 mm (width) x 240 mm (depth) |
Service Slot | 18 slots |
Wavelength | DWDM：C- Band, 100GHz or 50GHz CWDM：1270nm~1610nm |
Max Transmission Rate of Single Channel | 200Gbit/s |
Service Type Supported | 1.25G~100G all kind of services, including services of STM-16/64, OC-48/192, GE, 10GE, 100GE, FC100/200/400/800/1200, FICON, ESCON, CPRI 1/2/3/4/5/6/7 |
Network Topology | Point to point, chain, star, ring, ring-with-chain, ring-cross, and ring-tangency type |
Heat Dissipation | Fan cooling |
Power Supply Mode | AC: 90~260V or DC: -36~-72 V (support 1+1 power input backup) |
Power Consumption | 200W (Typical),400W(Max.) |
Power Supply Mode | AC: 90~260V or DC: -36~-72 V (support 1+1 backup power) |
Power Consumption | 100W (Typical),130W(Max.) |
