Product Overview
Description
LZZG Sand Washing & Recycling Machine Is The Best Machine In China !
The First Brand Of Sand Washer In China —— LZZG !
Products Description

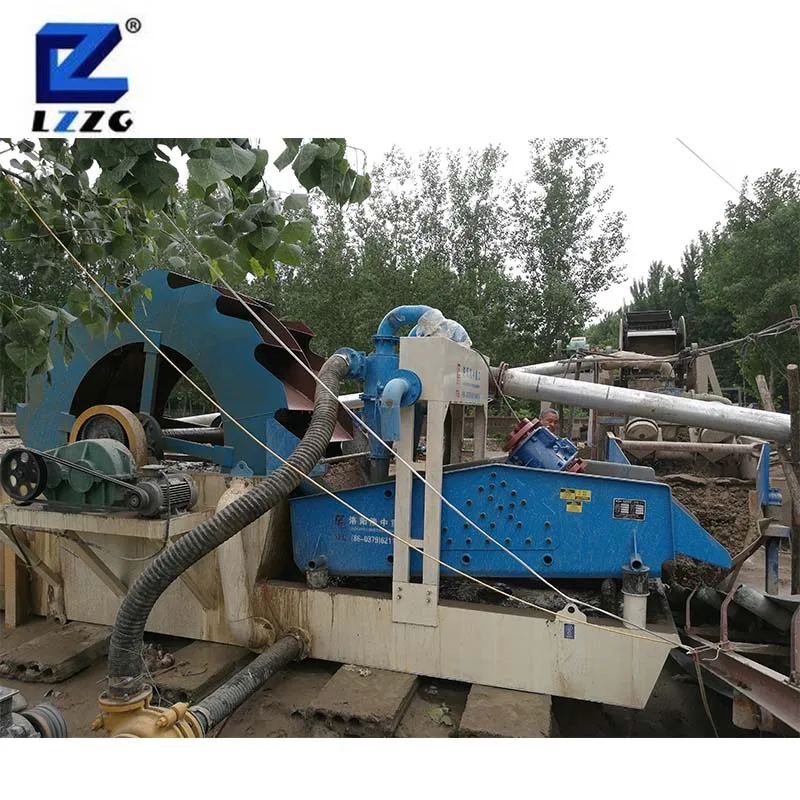

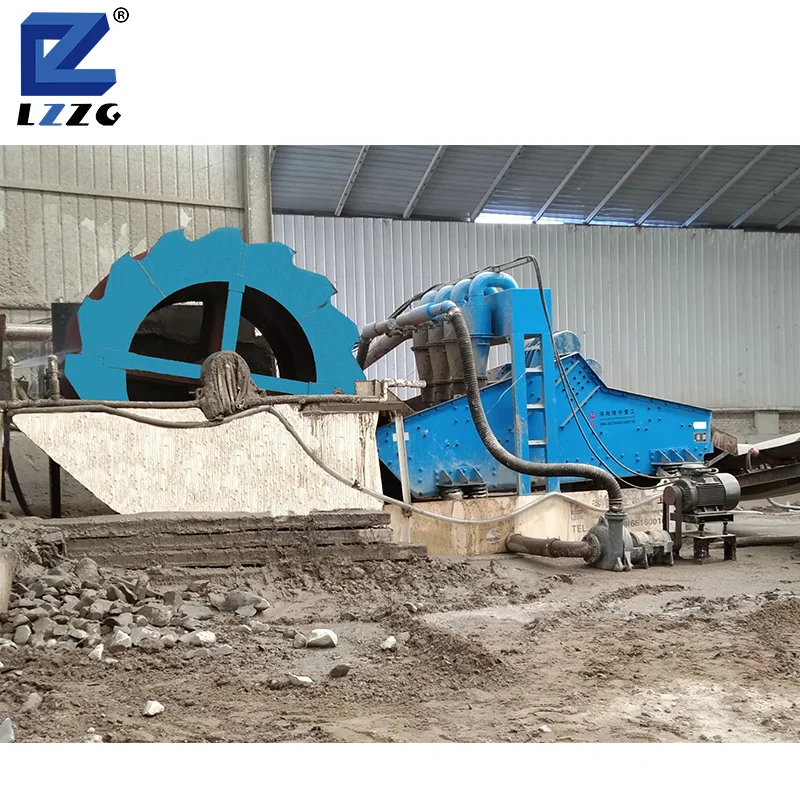

LZ Sand Washing & Recycling Machine
LZZG sand washing & recycling machine is designed based on sand washer and sand recycling system and adopted foreign advanced technology. This machine main parts include: XSD wheel sand washer, high frequency dewatering screen, high pressure cyclone, cleaning tank, return box, high pressure wearable slurry pump, motors, etc. The machine has simple structure and multiple function, and is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.
Working Principle
*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and
bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after
being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.
bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after
being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.
Technical Parameters
Model | Capacity (t/h) | Dianater Impeller (mm) | Hydrocyclone (mm) | Screen Panel (mm) | Power (kw) | Weight (kg) | Overall Size (mm) |
LZ1808-55-1224 | 20-40 | 1800*800 | 250*2 | 1200*2400 | 29.4 | 4800 | 5800*5000*1950 |
LZ2612-65-1530 | 30-60 | 2600*1200 | 300*2 | 1500*3000 | 40 | 5390 | 5800*5560*2750 |
LZ3016-65-1842 | 40-80 | 3000*1600 | 300*2 | 1800*4200 | 46.5 | 10500 | 7950*6200*3700 |
LZ3016-75-1842J | 60-100 | 3000*1600 | 350*2 | 1800*4200 | 57.5 | 11200 | 7950*6200*3700 |
LZ3620-120-2442J | 100-150 | 3600*2000 | 300*4 | 2400*4200 | 89.5 | 15150 | 8500*6800*3700 |
LZ3624-140-3048J | 120-200 | 3600*2400 | 350*4 | 3000*4800 | 115 | 16990 | 7950*7400*4100 |
LZ3624-140-3060J | 120-200 | 3600*2400 | 350*4 | 3000*6000 | 122 | 18620 | 7950*7400*4100 |
LZ4230-180-3660J | 160-250 | 4200*3000 | 300*6 | 3600*6000 | 149 | 24600 | 8580*8020*4860 |
Features & Benefits
1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3.Compact structure and easy installation.
4.High productivity and 95% of fine particles kn the material can be recycled.
5.Solve cleaning problem of seclimentation tank and improve economic performance at the same time.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3.Compact structure and easy installation.
4.High productivity and 95% of fine particles kn the material can be recycled.
5.Solve cleaning problem of seclimentation tank and improve economic performance at the same time.

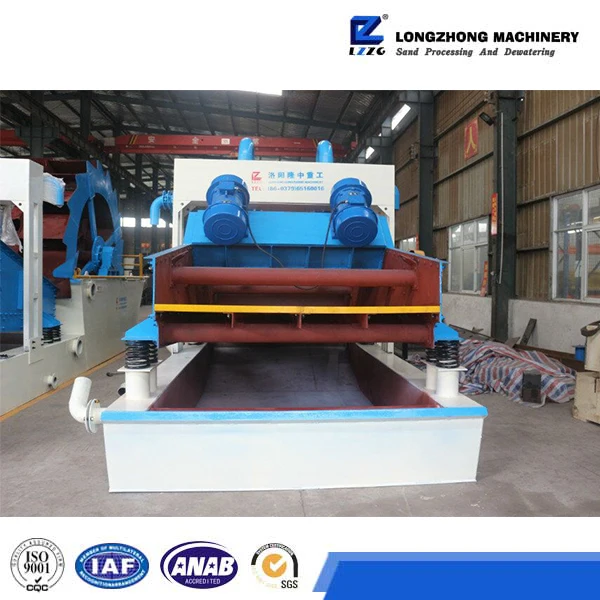

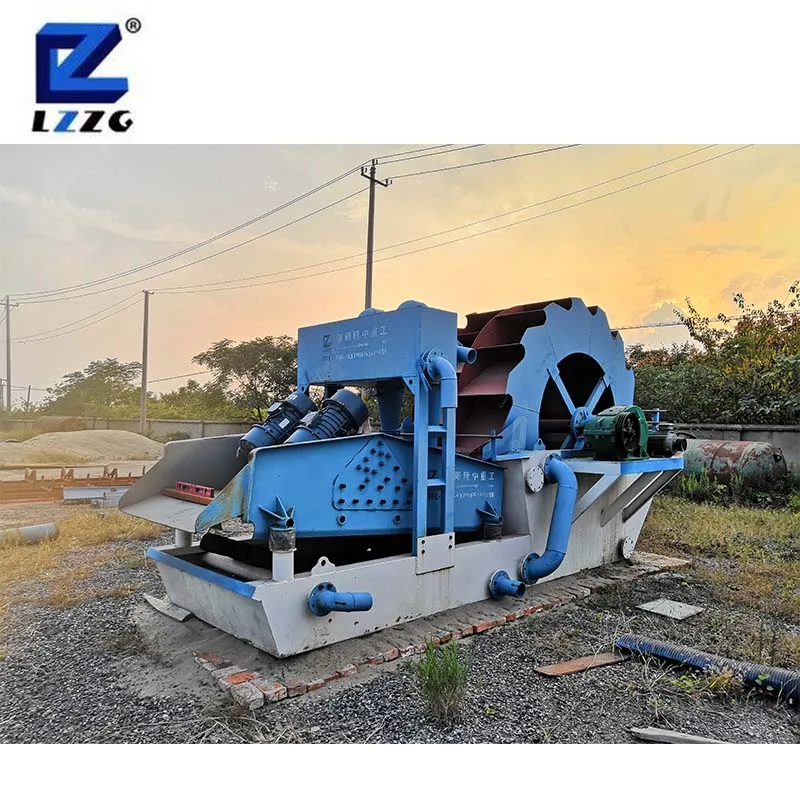

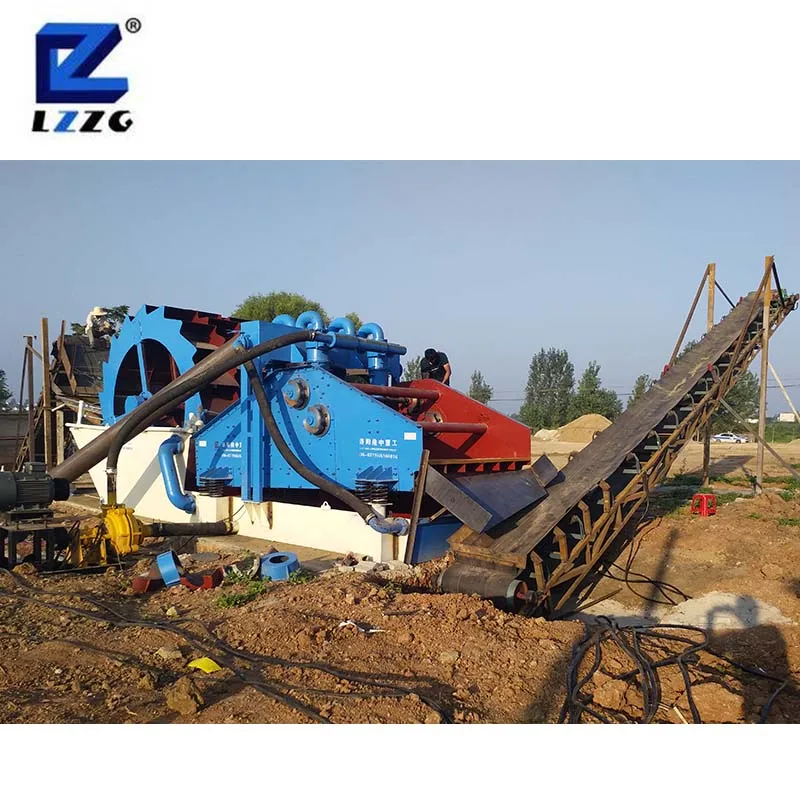

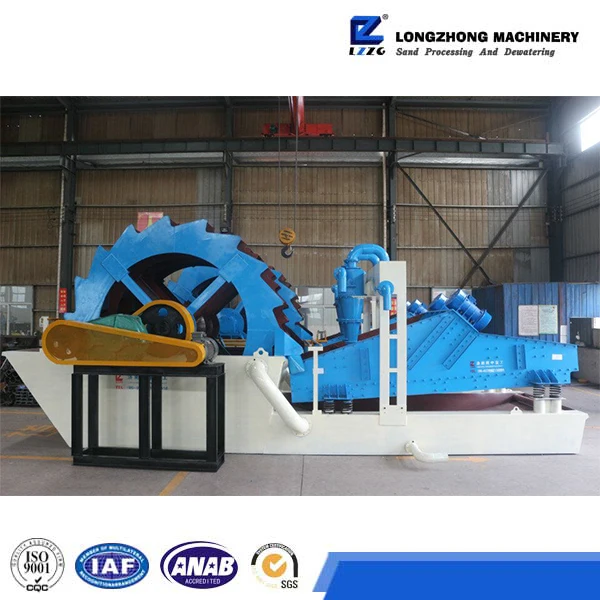

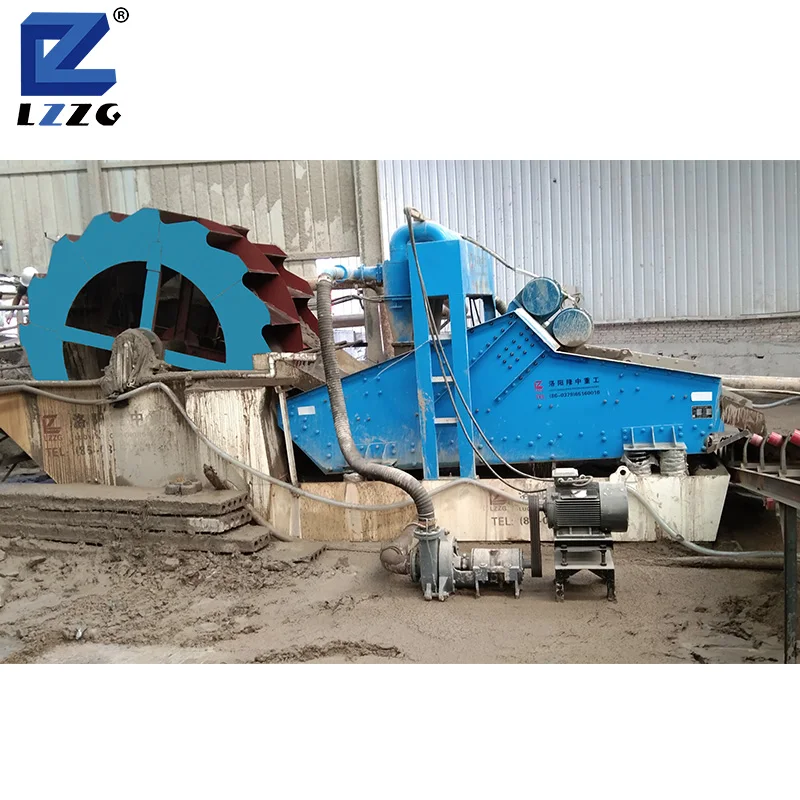

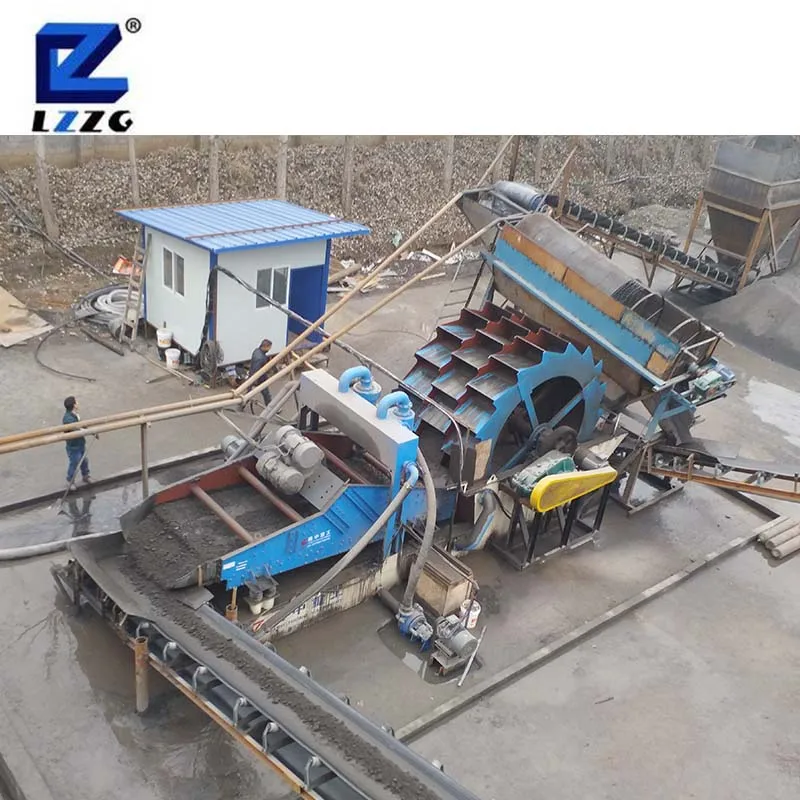

Product Display

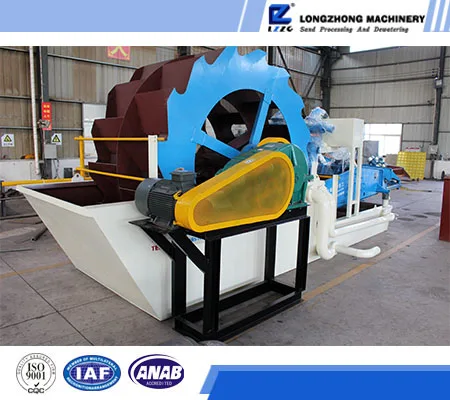

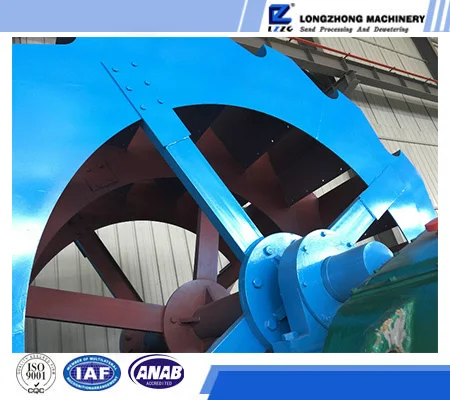

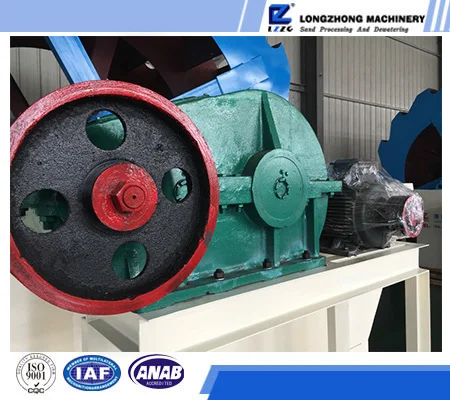

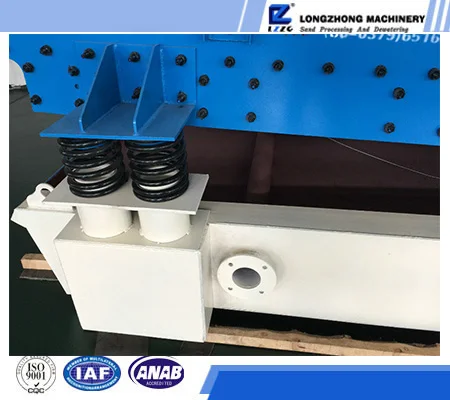

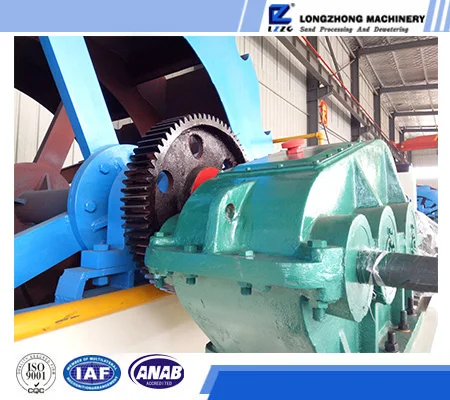

Detailed Images
Packing & Delivery
Company Profile
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipment along with all kinds of mobile, fixed, and compact sand plants. We aims to improve our equipment quality, designs and solutions with the latest technologies. We strive to utilize our experience help our customers be more efficient and profitable.
Our Team
Certifications
Exhibition
Our Service
Pre-sale:Passionate
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
Sale: Integrity
All products are strictly inspected with the drawings and process flow according to the contract before they delivery from storage.We assigned the technicians to the producing spot to provide installation guide, testing and training.
After-sale:Considerate
To establish good business relationship,we always periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
Sale: Integrity
All products are strictly inspected with the drawings and process flow according to the contract before they delivery from storage.We assigned the technicians to the producing spot to provide installation guide, testing and training.
After-sale:Considerate
To establish good business relationship,we always periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
Sales Network
FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
