Dividing Head BS series Semi Universal Center Milling Machine accessory with Optional Accessories 3 jaw chuck

Product Overview

Description

Semi-Universal Center(Dividing Head)



Features:

Semi-Universal Index Center is a simplified type of Universal Index Center and can be used for direct and indirect dividing .No accessories for the differential dividing and spiral work are included, but the whole construction of the universal type.The direct index plate of 24 and three plates in the standard accessories make the indirect dividing possible in any number from 2 to 50 and in certain numbers up to 380.

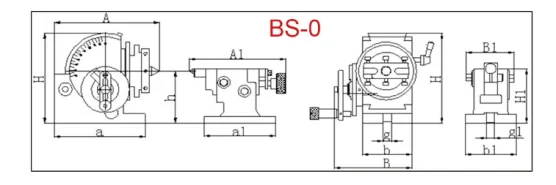

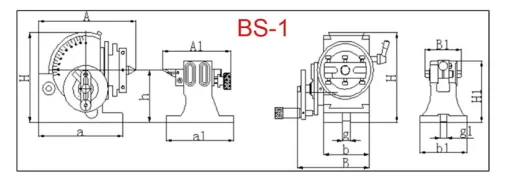

Item No.	Model	A(mm/in.)	B(mm/in.)	H(mm/in.)	h(mm/in.)	a(mm/in.)	b(mm/in.)	g(mm/in.)	Morse Taper	N.W.(kg)
521040	BS-0	204	140	173	100	166	90	16	MT2	23.8
		8.03	5.51	6.81	3.93	6.53	3.54	0.63	B&S NO.7
521042	BS-1	242	175	220	128	206	113	16	MT3	35.8
		9.52	6.89	8.66	5.04	8.11	4.45	0.63	B&S NO.9





SEMI-UNVERSAL INDEX CENTER B&S TYPE NO.0 ,NO.1(TAIL-STOCK)                           Unit:mm/in

Model	A1(mm/in.)	B1(mm/in.)	H1(mm/in.)	h(mm/in.)	a1(mm/in.)	b1(mm/in.)	g1(mm/in.)	Note
TS-BS0	175	87	107	100	130	92	16	Packed with the Dividing head
	6.89	3.42	4.21	3.93	5.12	3.62	0.63
TS-BS1	183	87	134	128	158	110	16
	7.2	3.42	5.27	5.04	6.22	4.33	0.63





OPTINAL ACCESSORY:4" or 5" 3-jaw Chuck for BS-0,"5"or "6" 3-jaw Chuck for BS-1





STANDARD ACCESSORIES

Dividing plate A,B,C.

Numbers of holes of dividing plate(worm gear reduction ratio 1:40)                         Unit:mm

Numbers of hole	Plate A	15	16	17	18	19	20
	Plate B	21	23	27	29	31	33
	Plate C	37	39	41	43	47	49
