Price:US$ 19.50 - US$ 21.50

Quantity:


Product Overview

Description

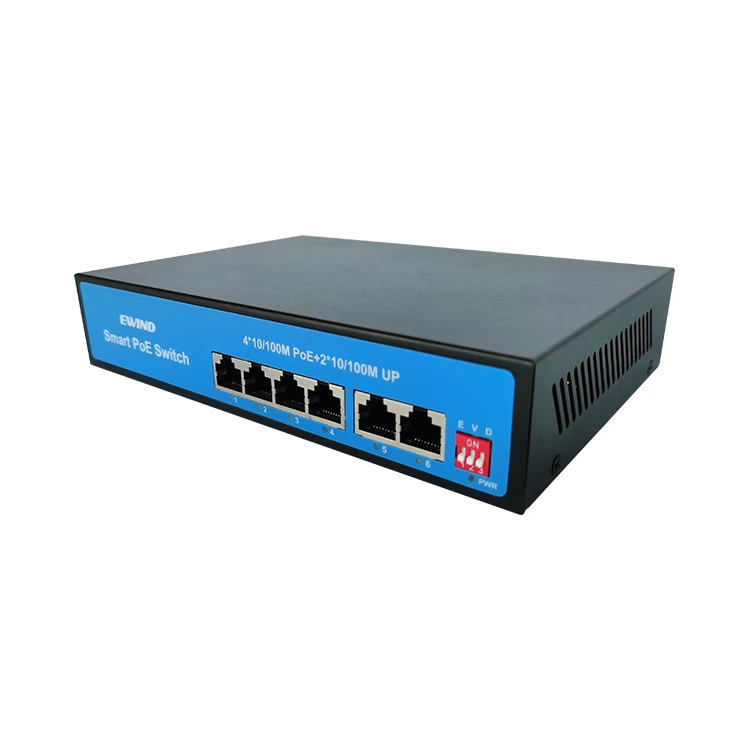

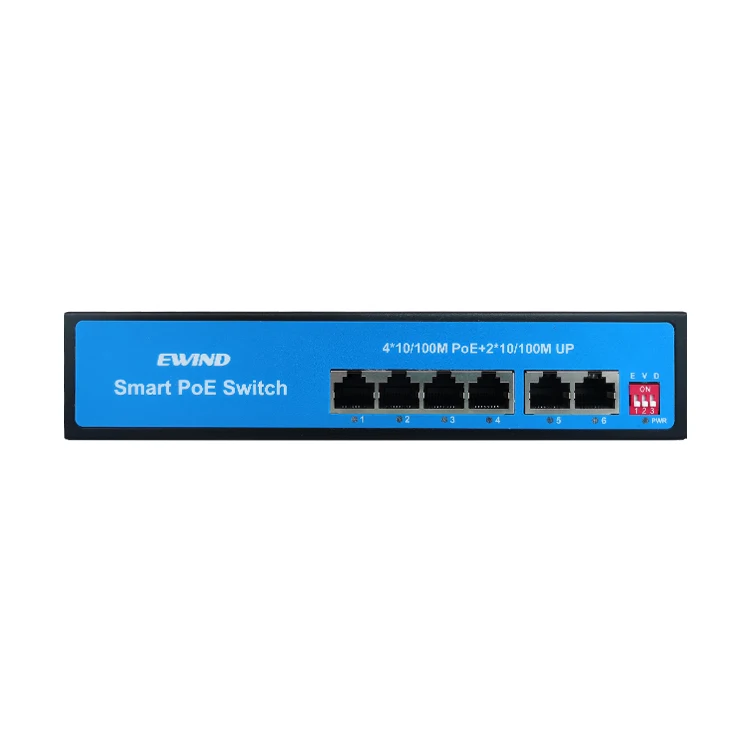

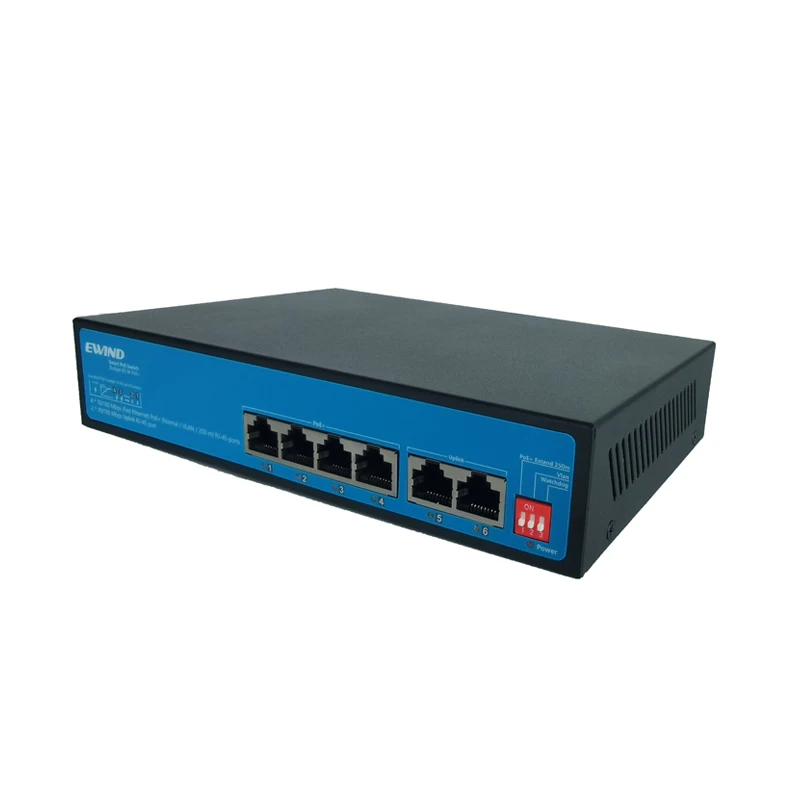

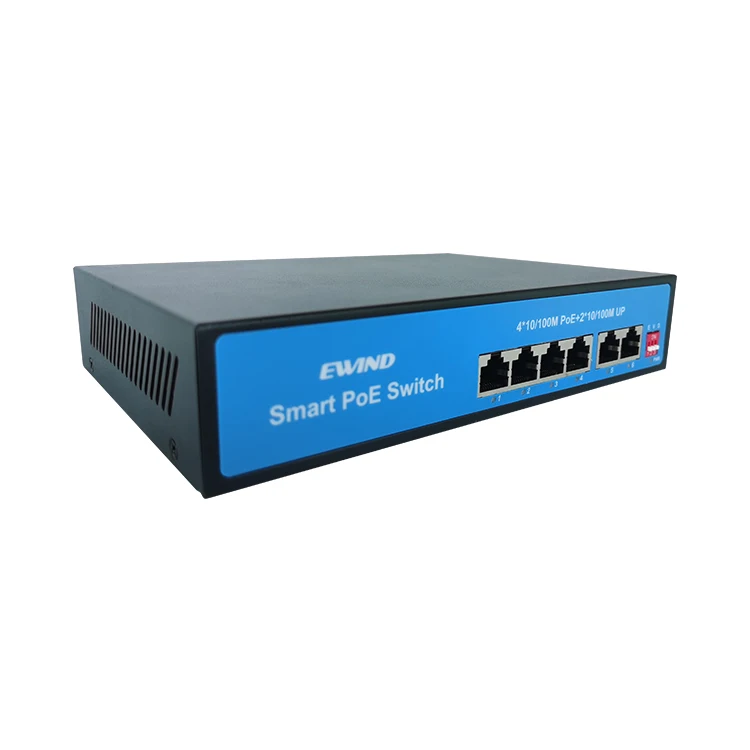

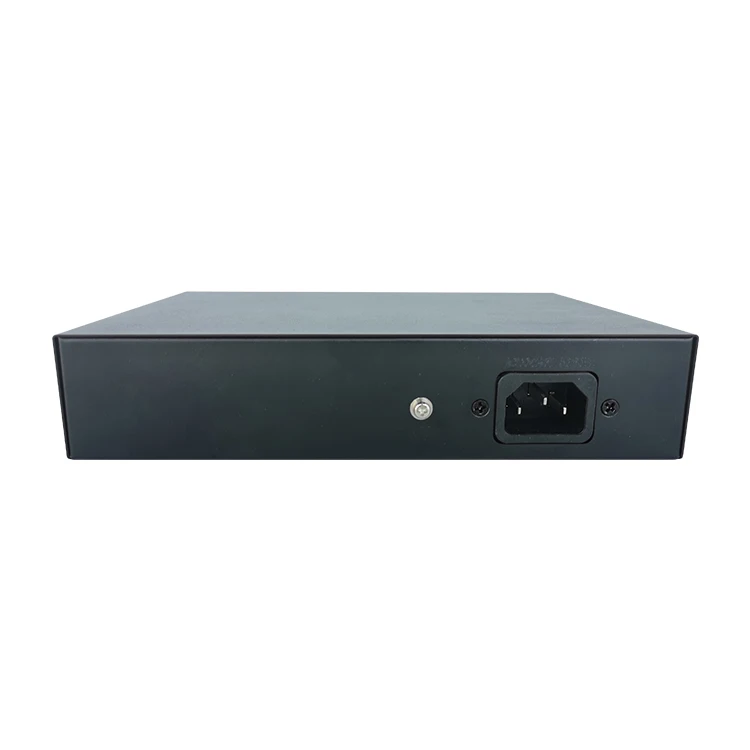

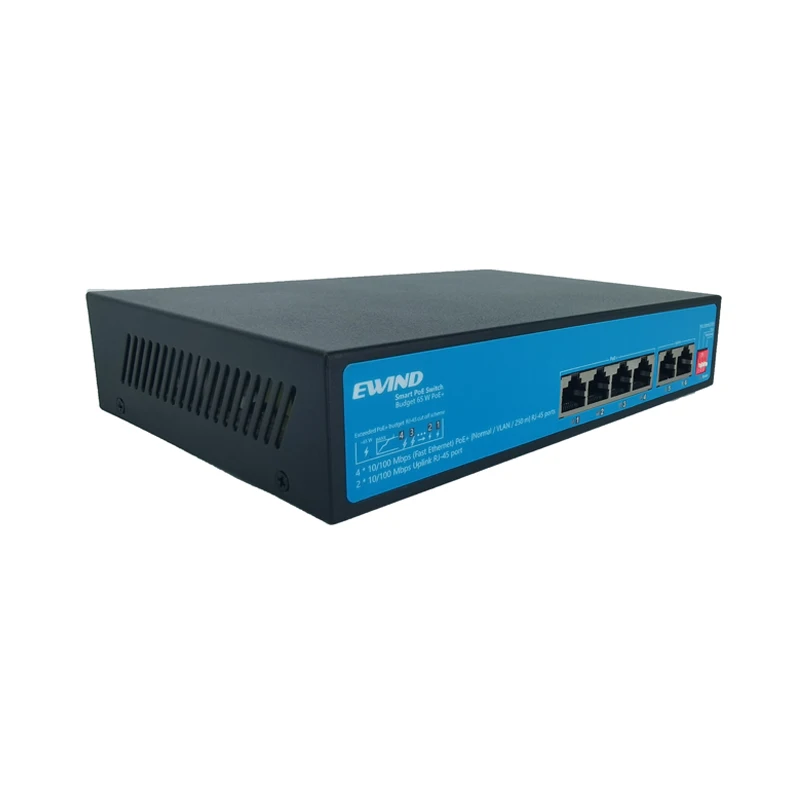

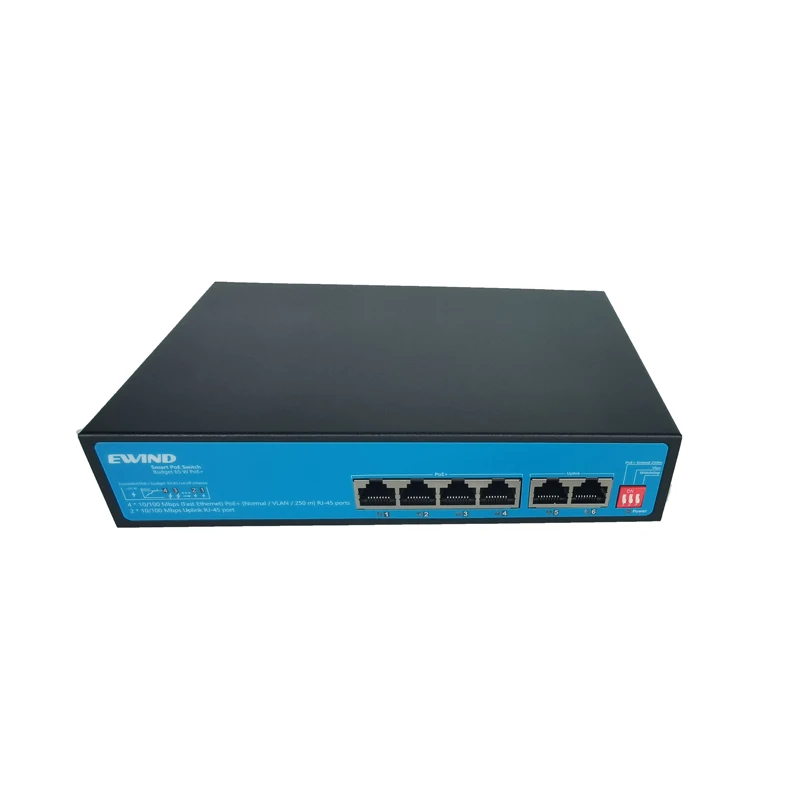

4port power over Ethernet Switch network Switch with poe af standard for ip camera


Products Description








Technology Specification


Model
EW-S1806CF-AP
Fixed Port
4*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-T Uplink RJ45 ports (Data)
POE Port
Port 1-4 support PoE
Function
With the Dial code switch,1-4 Ports support watch dog function, Priority port, Port self-healing, Vlan & 250M long distance, video
monitoring and isolation mode;
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3x
Operation TEMP / Humidity
-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH non condensing
Port lightning protection / level
Port lightning protection : 4KV 8/20us;
Protection level: IP30
Certification
CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Ethernet Port Feature
10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Buffer Memory
768K
Twisted Pair Transmission
10BASE-T:Cat5 UTP(≤250 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
65W (52VAC)
Power Consumption
Standby:<4W;Full load:<60W
Warranty
2 years, lifetime maintenance.








Company Profile








Why Choose Us

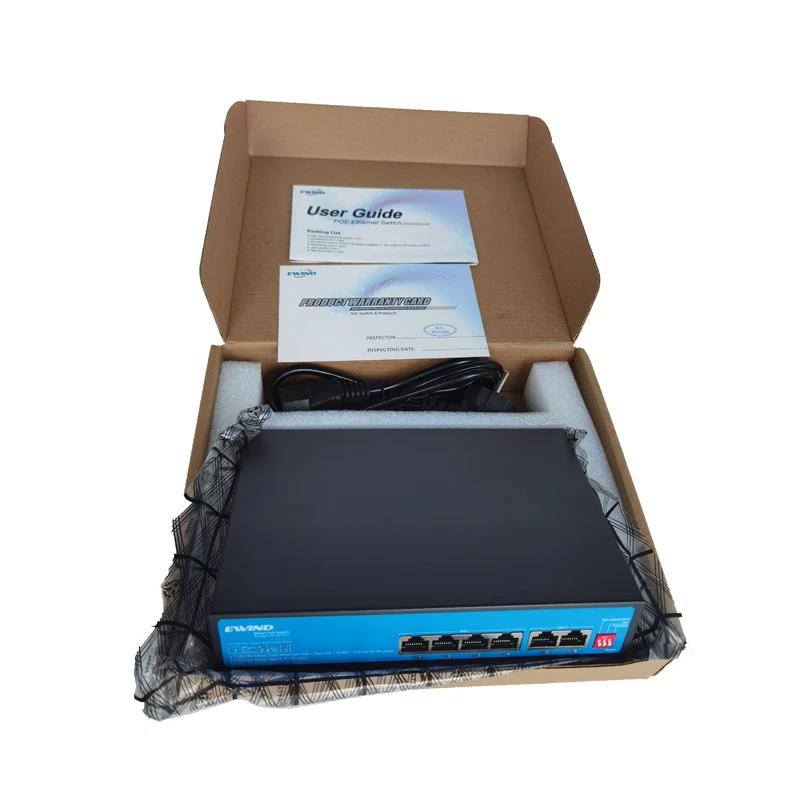

Package & Shipment




FAQ




1.Whats Your Main Products?
POE Switch,industrial POE Switch,Ethernet Switch,POE Injector,Media Converter,etc.

2.lt Is Safe To PayWith Alibaba ?
Yes,we Can Do The Trade Assurance On Alibaba ,Which Will Guarantee Your Products Receiving.

3.Which Payment Terms Do You Accepte?
We Can Accept The Tt，alibaba Escrow,western Union

4.How Long Can I Expect To Get The Sample ?
Usually Within 3 Days But Depends On Your Requirements .

5.How About The Shipping ?
We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On

6.How About The After-sales Services?
Professional Services Team,24 Hours On Line.

7.How Many Years Of The Warranty?
The Warranty Of The Commercial Switch Is 3 Years And The Industrial Switch Is 5 Years.
