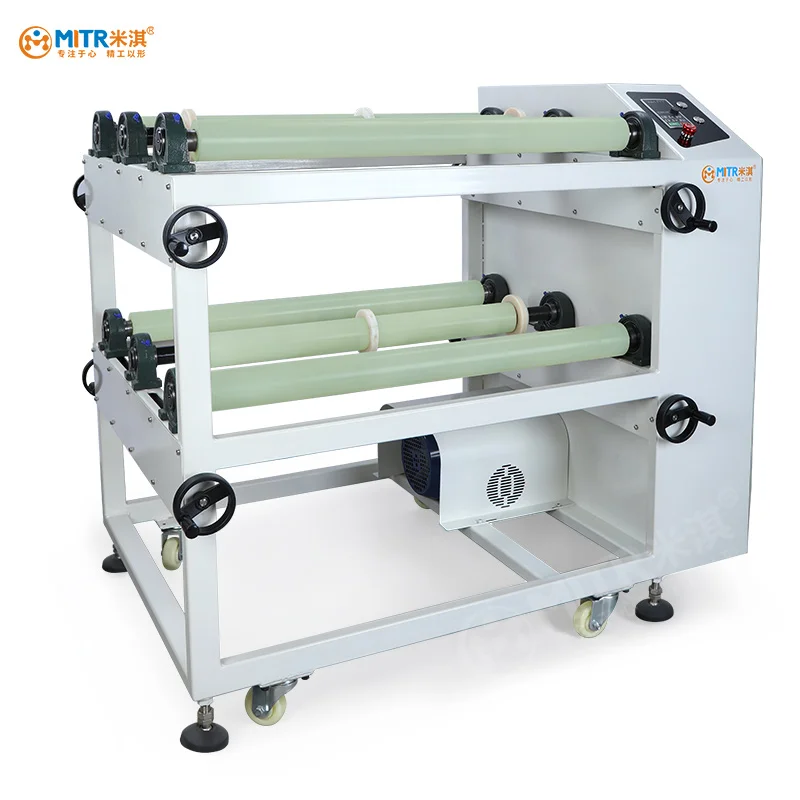

Used In The Processing Of Electronic Material GMS5 1 Lab Pot Mill Grinding And Mixing Ball Mill Laboratory

•


  Used In The Processing Of Electronic Material GMS5-1 Lab Pot Mill Grinding And Mixing





•







  Main application




  1.Widely used in electronic,ceramic,daubing,glass flour,luminophore material,nonmetallic ore,explosive,medicine etc.




  2.Used in the processing of electronic material,magnetic material,equipment battery,biological cultivation,food packaging,battery material.

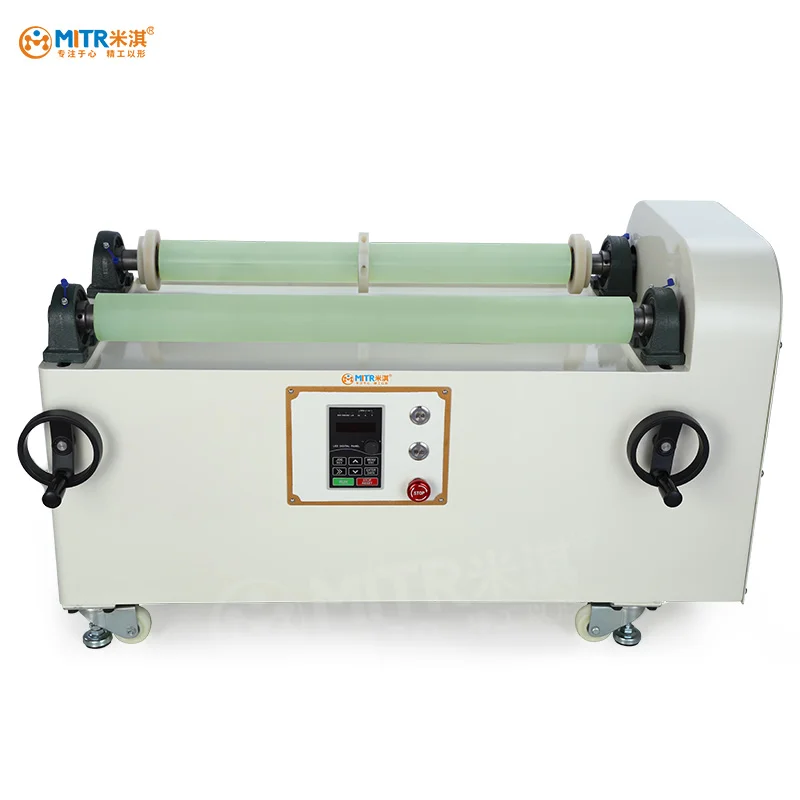

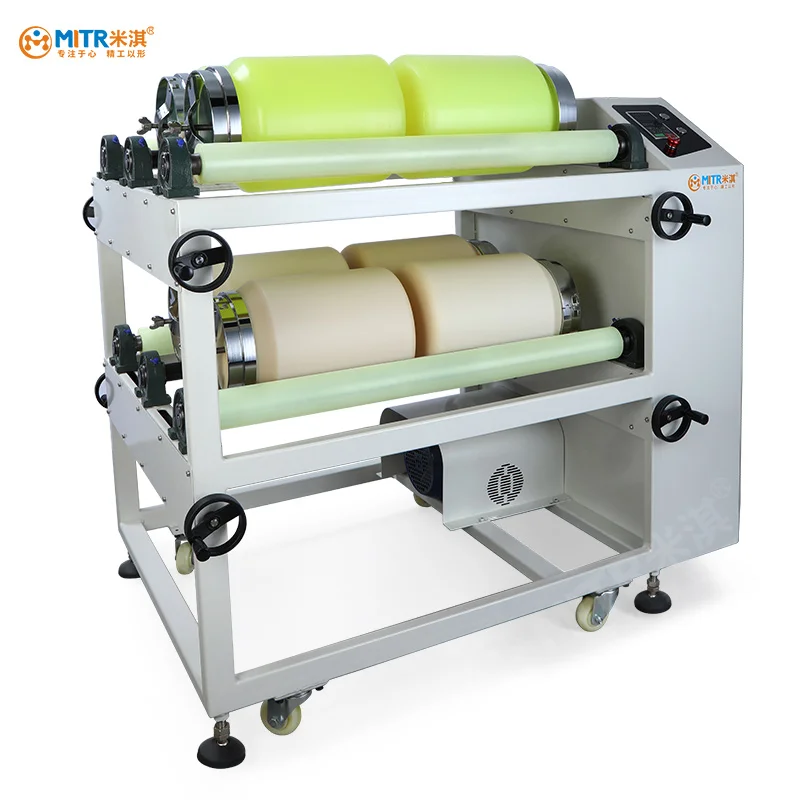

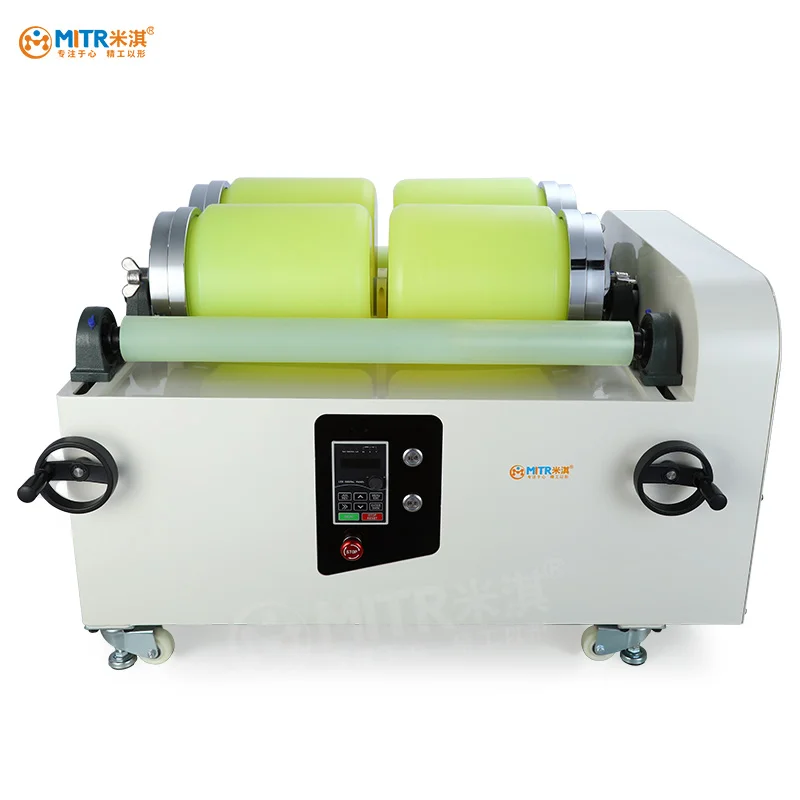

  3.Small horizontal jar mill mainly used in the laboratory and small batch production.Because of the flexible and convenient operation,also used for production of some small enterprises.









  Main features

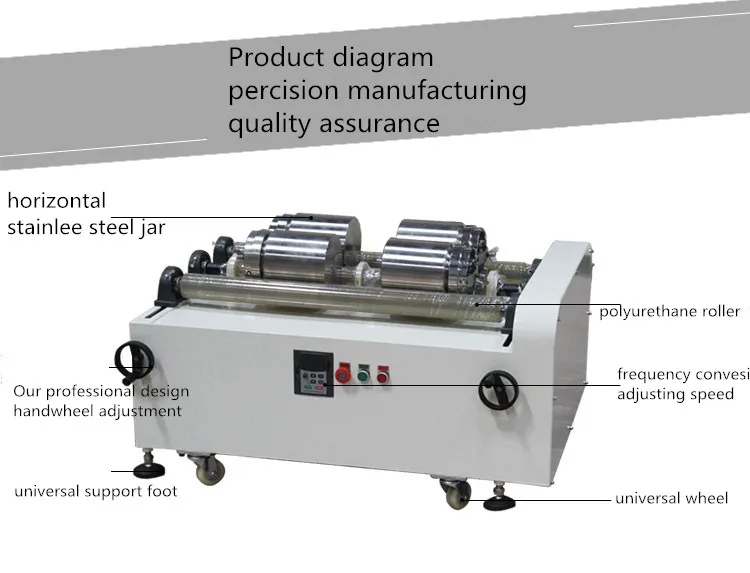

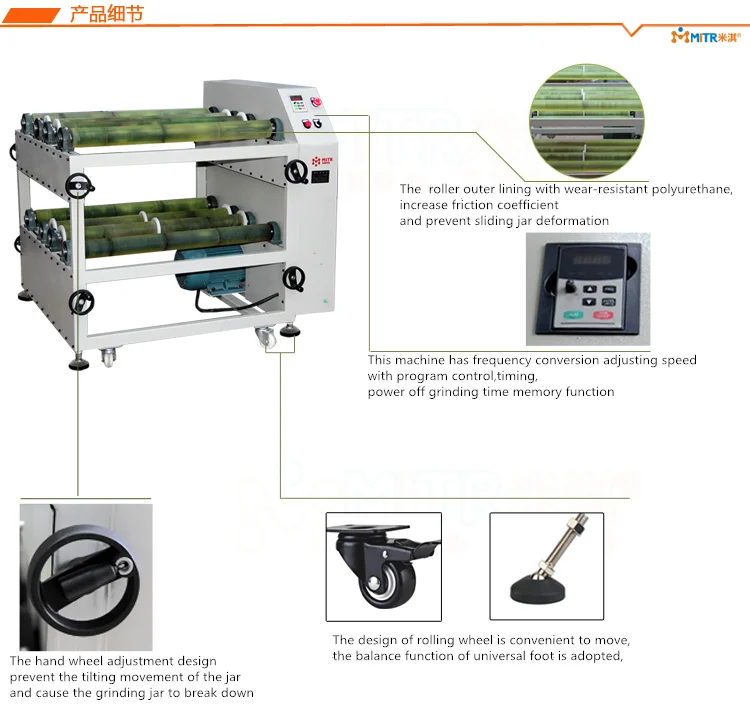

  Frequency conversion control speed,program control.




  Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.




  The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.




  Feeding granularity less than 3mm,soil <=10mm;Discharge size: About 300 mesh.




  Optional configure

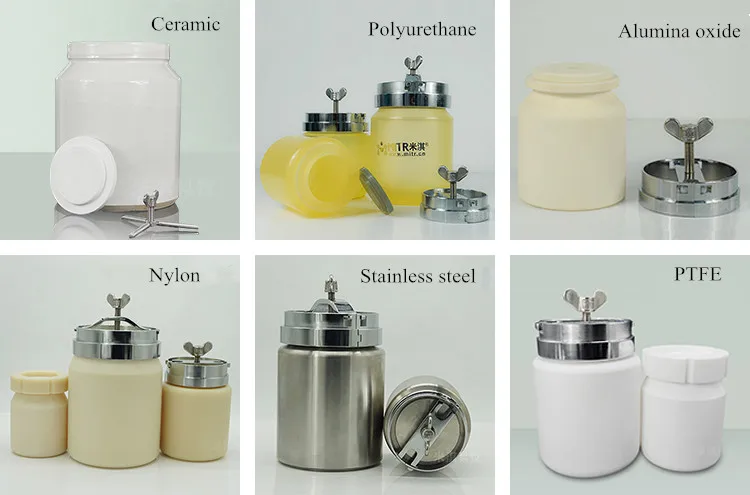

  Material of grinding jar:Nylon,corundum/alumina oxide,stainless steel,polyurethane etc such as special material could be customized




  Material of grinding balls selection:stainless steel balls,alumina oxide balls/corundum balls,agate balls,zirconium oxide balls,hard alloy balls and so on.









  Technical parameter:

















































































































































































































































































  Model	Jar valume*quantity(piece)	Roller layers	Roller piece	Roller diameter*length*part	Adjust distance with handwheel	Jar diameter selection range to adjust(mm)	Frequency conversion speed range min	Voltage(V)	Power(KW)	External dimenstion W*L*H mm	Driving mode
  GMS1-2	(0.5-1L)*2	1	2	φ40*180	52~160	φ50-φ160	0~300	220V	0.75	580*420*410	Belt
  GMS3-2	(0.5-3L)*2	1	2	φ50*220	52~210	φ50-φ200	0~300	220V	0.75	660*440*410	Belt
  JGMS3-2	(0.5-3L)*2	1	2	φ58*220	76~225	φ60-φ200	0~300	220V	0.75	940*440*400	Belt
  GMS5-2	(0.5-5L)*2	1	2	φ60*390	67~280	φ70-φ260	0~270	220V	0.75	760*610*530	Belt
  GMS10-2	(0.5-10L)*2	1	2	φ70*390	67~230	φ60-φ280	0~220	220V	1.5	790*630*530	Synchronize belt
  GMS20-2	(0.5-20L)*2	1	2	φ80*470	30~340	φ60-φ320	0~220	380V	2.2	827*952*724	Synchronize belt
  GMS30-2	(1-30L)*2	1	2	φ80*(425*2)	35~290	φ60-φ360	0~200	380V	2.2	1328*658*720	Synchronize belt
  GMS1-4	(0.5-1L)*4	1	3	φ40*180	62~160	φ50-φ160	0~300	220V	0.75	580*520*410	Belt
  GMS3-4	(0.5-3L)*4	1	3	φ50*230	76~230	φ70-φ180	0~270	220V	0.75	780*648*5305	Belt
  GMS5-4	(0.5-5L)*4	1	3	φ60*390	67~280	φ70-φ260	0~270	220V	1.5	850*748*530	Belt
  GMS10-4	(0.5-10L)*4	1	3	φ70*(390*2)	67~230	φ60-φ280	0~220	380V	2.2	1189*890*680	Synchronize belt
  GMS10-4B	(0.5-10L)*4	2	2	φ70*(390*2)	67~230	φ60-φ280	0~220	380V	2.2	742*890*1111	Synchronize belt
  GMS20-4	(0.5-20L)*4	2	3	φ80*(470*2)	30~340	φ60-φ320	0~220	380V	2.2	1309*1128*724	Chain wheel
  GMS30-4	(1-30L)*4	1	3	φ80*(425*2)	35~290	φ60-φ360	0~200	380V	4	1328*1048*680	Synchronize belt
  GMS3-8	(0.5-3L)*8	2	3	φ50*(230*2)	76~230	φ70-φ200	0-280	380V	1.1	780*717*965	belt
  GMS5-8	(0.5-5L)*8	2	3	φ60*(310*2)	67~280	φ70-φ260	0-270	380V	2.2	1020*868*950	Chain wheel
  GMS10-8	(0.5-10L)*8	2	4	φ70*(410*2)	67~302	φ60-φ280	0~220	380V	3	1210*890*1050	Chain wheel
  GMS20-8	(0.5-20L)*8	2	4	φ80*(470*2)	30~340	φ60-φ320	0~220	380V	3	1390*1128*1100	Chain wheel










•
