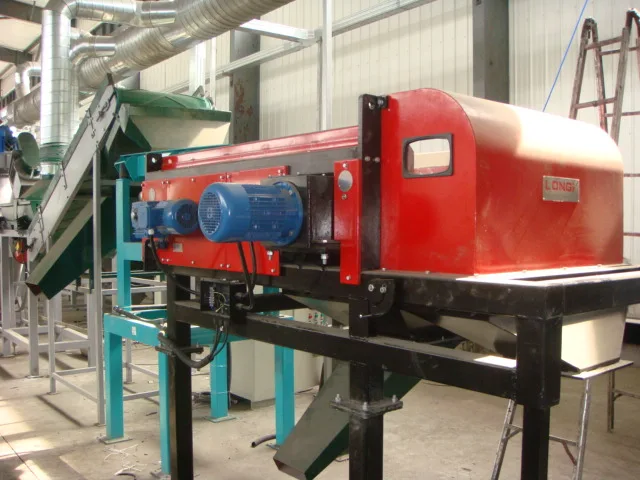

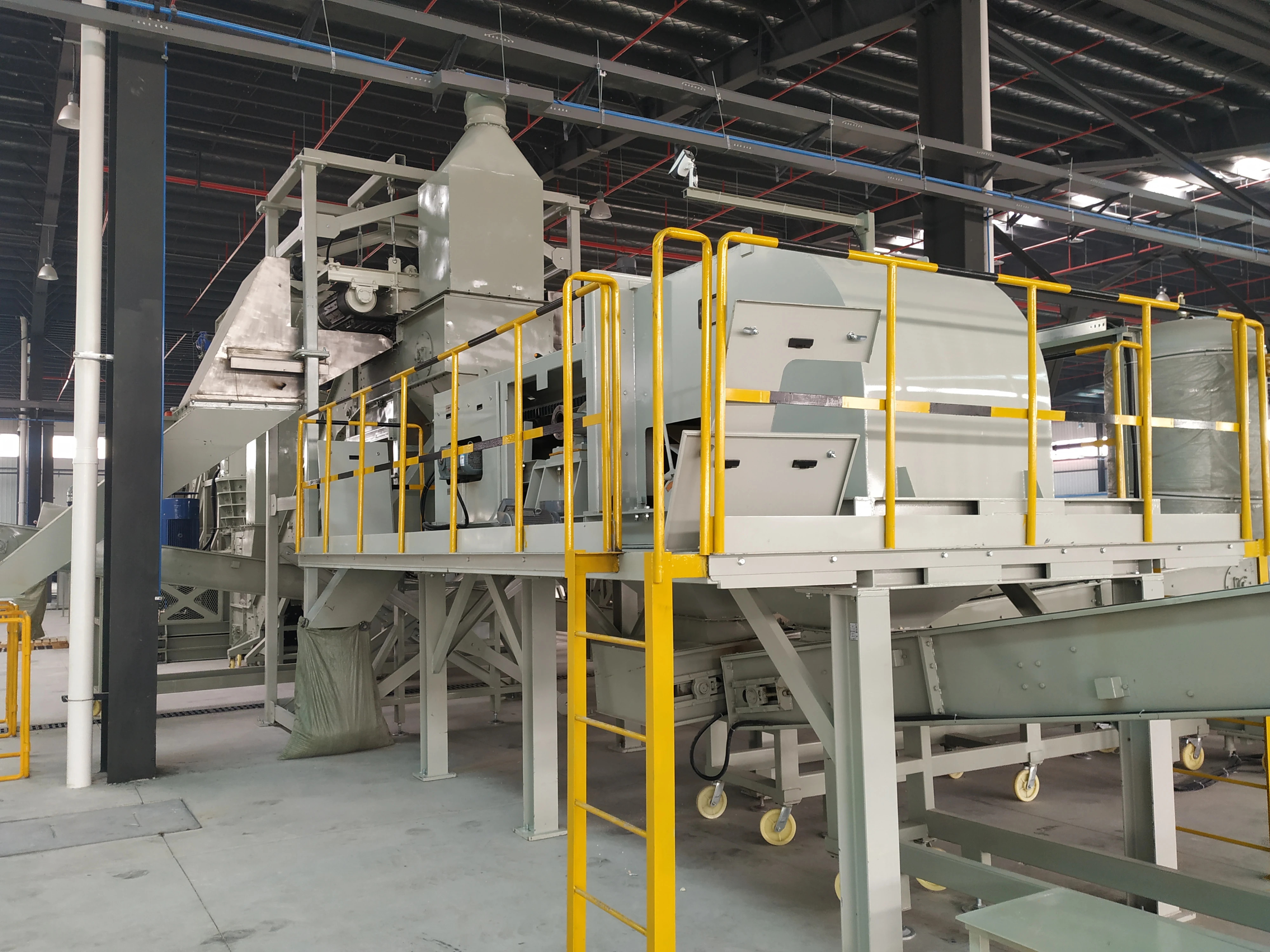

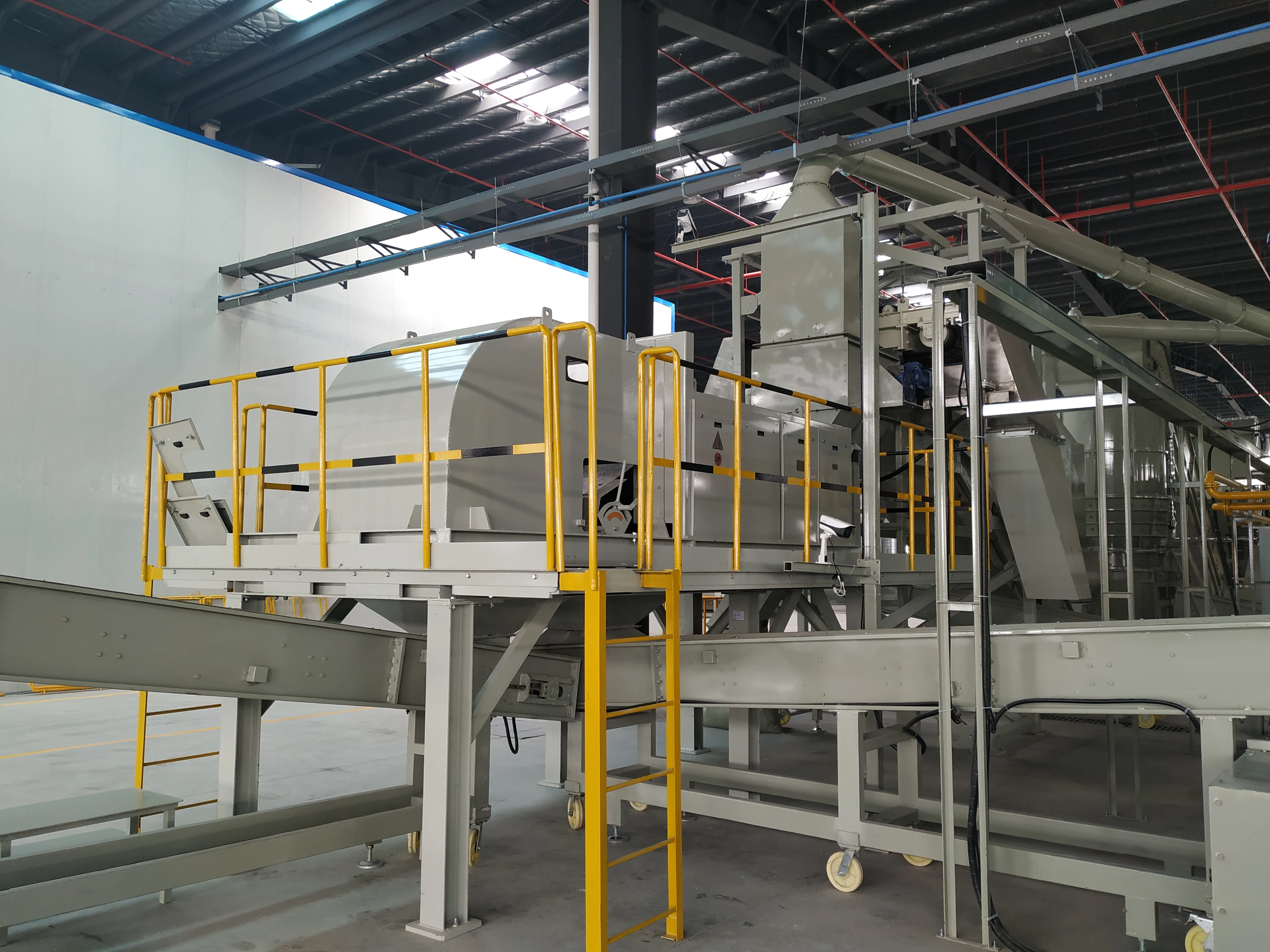

Non ferrous Metals Eddy Current Separator
- Category: >>>
- Supplier: LONGi Magnet Co. Ltd.
Share on (1600515131309):
Product Overview
Description
Products Description
Eddy Current Sorting
The eddy current sorting separator is used to remove of non-ferrous particles from bulk streams (plastic fractions, cable scrap, etc.), generation of non-ferrous concentrate (e.g. WEEE, incineration slag, non-ferrous granules ) and separate conductors from each other (e.g. cooper-lead granules).
Products features
The eddy current magnetic separator (ECS) was designed on the basic theory that an inductive current generates inside a conductor while it is in a state of a high frequency, alternating polarity, magnetic field. When the conductive material reaches this stage in the ECS an eddy current is formed. The alternating polarity causes the conductive material to be forced away from nonconductive material and it is “thrown” forward and away from the other materials.
This allows for an efficient separation by allowing the single stream to be split into two and the materials can be recycled very effectively. LONGi offers multiple styles and designs. Based on the customer’s specific needs either a concentric or eccentric rotor may be recommended as well as different belt and rotor speeds and sizes.

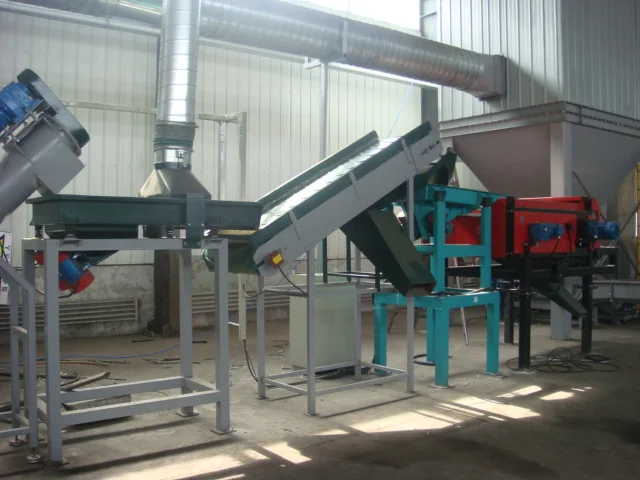

This equipment is well suited for small particles, after the iron has been removed. The non-ferrous metal and non-metallic mineral are separated continuously and automatically. Available with LONGi’s vibrating feeder, rare earth drum and cross belt separator for separation.
This allows for an efficient separation by allowing the single stream to be split into two and the materials can be recycled very effectively. LONGi offers multiple styles and designs. Based on the customer’s specific needs either a concentric or eccentric rotor may be recommended as well as different belt and rotor speeds and sizes.
This equipment is well suited for small particles, after the iron has been removed. The non-ferrous metal and non-metallic mineral are separated continuously and automatically. Available with LONGi’s vibrating feeder, rare earth drum and cross belt separator for separation.
Product Paramenters
Model | Motor Brand | Bearing Brand | Outline Dimensions A*B*C | Weight（kg） |
LECS-60 | SEW | SKF | 2250*1750*1075 | 1100 |
LECS-80 | SEW | SKF | 2360*1960*1110 | 1200 |
LECS-100 | SEW | SKF | 2470*2200*1140 | 1400 |
LECS-120 | SEW | SKF | 2560*2450*1180 | 1500 |
Applications
The eddy current sorting separator separates valuable non-ferrous metals from all waste types, it can be used in different industries, for example: the production of all type of metals, recycling and waste industry (including municipal and commercial waste, building site remains, scraps, light packaging and landfill remediation), chemical and plastic industry，slag processing (handing of slag from bulk material) and various other industries.
