Product Overview

Description

Universal Index Center(Dividing Head)

Features:

The Universal Index Center has been designed to carry out all types of gear cutting.Precision dividing and spiral word with greater precision and efficiency than ever. The Center face can be tilted from a Horizontal position of 90° down to -10° from vertical,and inclinations can be read off a scale graduated in degrees.The center is built to highest engineering standards and is factory inspected and tested to assure complete satisfaction.The ratio of worm to gear is 1:40.

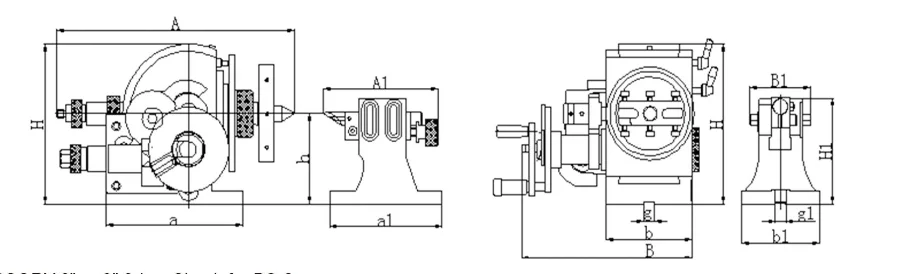

Item No.	Model	A(mm/in.)	B(mm/in.)	H(mm/in.)	h(mm/in.)	a(mm/in.)	b(mm/in.)	g(mm/in.)	Morse Taper	N.W.(kg)
521044	BS-2	370	280	236	133	212	134	16	MT4	76
		14.57	11.02	9.29	5.24	8.35	5.28	0.63	B&S NO.10



UNIVERSAL INDEX CENTER B & S NO.2(TAIL-STOCK)                                                    Unit:mm/in

Model	A1(mm/in.)	B1(mm/in.)	H1(mm/in.)	h(mm/in.)	a1(mm/in.)	b1(mm/in.)	g1(mm/in.)	Note
BS-2	183	90	156	133	175	122	16	Packed with the Dividing head
	7.2	3.54	6.14	5.24	6.89	4.8	0.63



OPTIONAL ACCESSORY:6" or 8" 3-jaw Chuck for BS-2





STANDARD ACCESSORIES

Dividing plate A,B,C.

Numbers of holes of dividing plate(worm gear reduction ratio 1:40)                Unit:mm/in

Numbers of hole	Plate A	15	16	17	18	19	20
	Plate B	21	23	27	29	31	33
	Plate C	37	39	41	43	47	49
