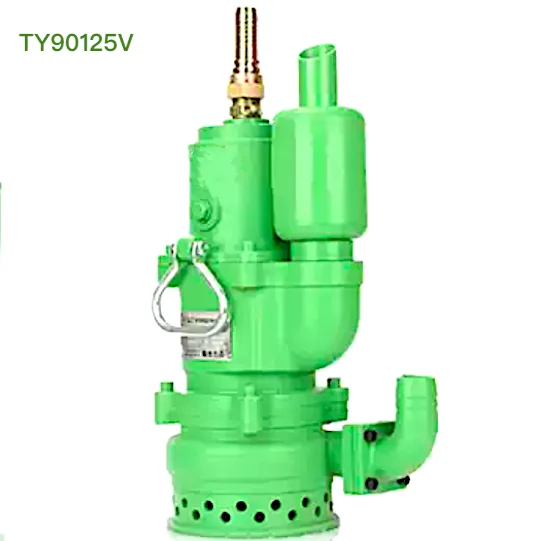

TY90125V Mining Slurry Transfer Engineering Company Submersible Pump Dewatering Pump 110 GPM (25 m3/hr) marine pump

Product Overview

Description

Model	TY90125V
Model Numbering Designation	9, Specialty Tools 0, Pumps 1, Dewatering Pumps 25, Working Flow (25m3/hr) V, Vane Motors
Current	Pneumatic
Power	3 hp
Water Outlet	1-3/4“ (45 mm)
Air Inlet	1” ( 26 mm)
Rec Air Hose	1-3/4” (43mm )
Working Flow	110 GPM (25 m3/hr)
Max. Flow	176 GPM (40 m3/hr)
Working Head	70 m (229 ft.)
Max. Head	90 m (295 ft.)
Pump Housing Material	Cast Iron
Sound Power	78 dB
Weight	45 kg (99 lb)
Air Consumption	210 CFM @ 90PSI
Suspended solids maximum diameter	14 mm ( 1/2”)
Working Temperature	2-40 ℃
Fluid PH Value	4-10
Fluid Density Max.	1.1*103 kg/m3
Max. Working Depth	4 m ( 13 ft)
Size	59mm * 32mm *27mm (2-5/16” x 1-1/4” x 1”)
SKU	358912



Air operated submersible pumps, also known as pneumatic submersible pumps, are commonly used in the mining and construction industries for multiple applications. With no aluminium parts, these air operated submersible pumps are suitable where electric sparks may occur.

- Working Flow, 110 GPM (25 m³/hr)

- Working Head (Lift), 70 m (229 ft.)

- Ideal for below applications,

• underground mining


• construction


• dewatering


• general industry


• sump drainage


• emptying ballast tanks in marine vessels


• draining cargo holds during and after washing procedure

Tarboya Catalog could be downloaded from www.tarboya.com

Tarboya warrants TY90125V Pneumatic Dewatering Pumps will not have any material or manufacturing defects for the period of 12 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 12 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine


• Use contrary to national or international standards


• Incorrect installation


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance


• Unauthorized modifications and/or interventions


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others
