JZM Series Concrete Mixer Machine Civil Engineering Equipment Machine Construction Tool
- Category: >>>
- Supplier: Henan Broad Top Metalwork Ltd
Share on (1600515176305):
Product Overview
Description
PRODUCT SPECIFICATIONS

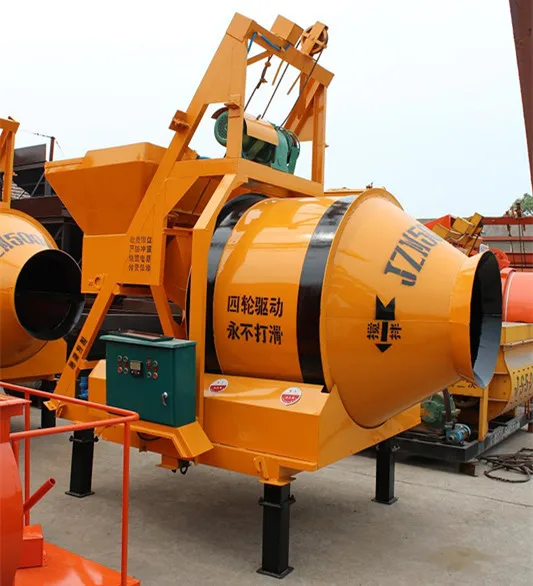

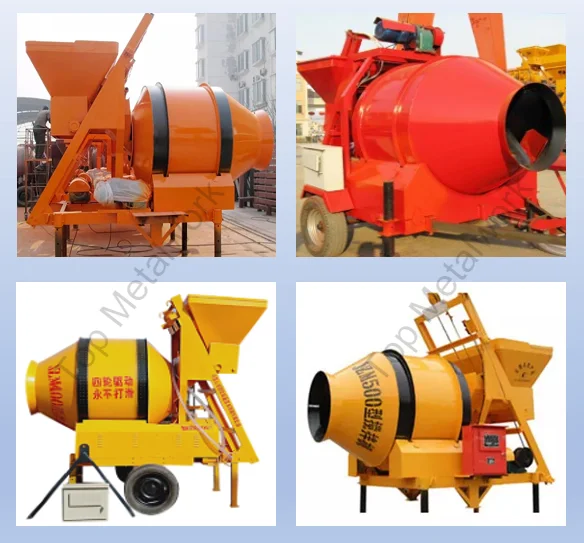

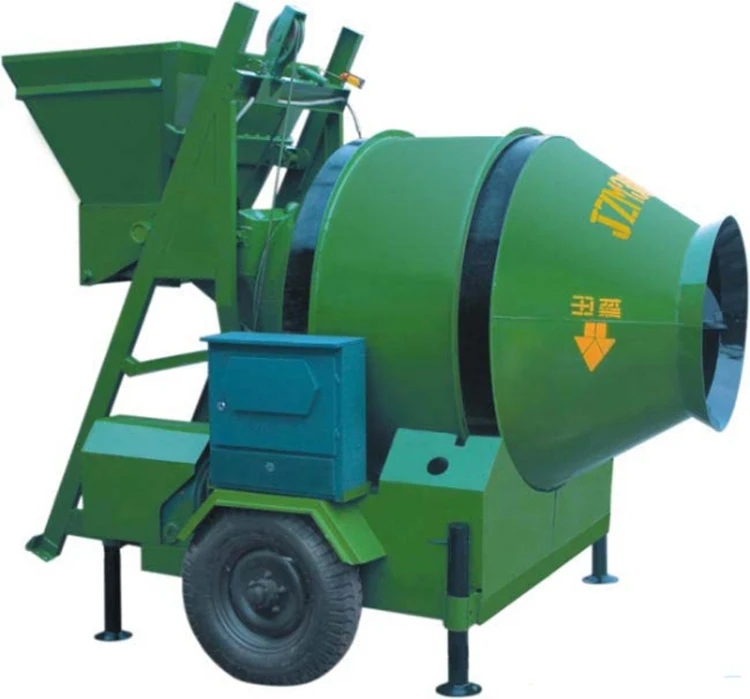

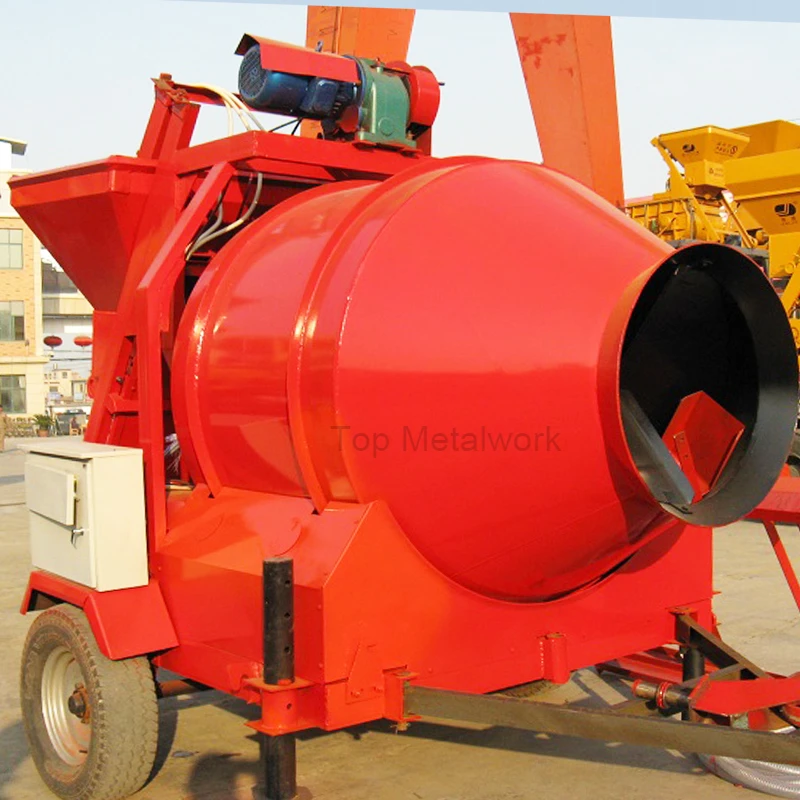

JZM Series Electric Engine Concrete Mixer Machine
JZM series concrete mixer is a kind of self-falling and reversal discharging mixing machine. The mixing drum is driven by the
friction between rollers and drum, which is quieter than the gear driving JZC type. Also compared with JZC concrete mixer, JZM mixer has bigger capacity and is more durable. The drum rotates clockwise during mixing and anti-clockwise during discharging. It can be used separately or combined with concrete batching machine for a small concrete batching plant. The mixer can mix plasticity, low fluidity concrete and damp half-dry concrete. This kind of mixer services for ordinary construction site, roads, bridge projects, engineering and small and medium-sized concrete component plants.
friction between rollers and drum, which is quieter than the gear driving JZC type. Also compared with JZC concrete mixer, JZM mixer has bigger capacity and is more durable. The drum rotates clockwise during mixing and anti-clockwise during discharging. It can be used separately or combined with concrete batching machine for a small concrete batching plant. The mixer can mix plasticity, low fluidity concrete and damp half-dry concrete. This kind of mixer services for ordinary construction site, roads, bridge projects, engineering and small and medium-sized concrete component plants.
Long Life
Wide Range of Application
Easy To Move
Good Mixing Quality
Low Noice
Products Description
Feeding mechanism
Feeding mechanism consists of electric winch, lifting frame and feeding hopper. When the hopper climbs to a certain height, the roller under the hopper will go to the horizontal rails and then the hopper door will be opened and the material will be
discharged into the mixing tank. There are travel limits to limit the hopper climbing and falling to guarantee safety
discharged into the mixing tank. There are travel limits to limit the hopper climbing and falling to guarantee safety
Mixing mechanism
Mixing mechanism consists of mixing drum. gear roller and driving system. When the drum rotates clockwise, the inside blades and the discharging blades at the discharging port help the mixing. When the drum rotates counter-clockwise, the discharging blades will make the concrete out. The mixing is driven by the friction between 4 rollers and the drum.
Chasis

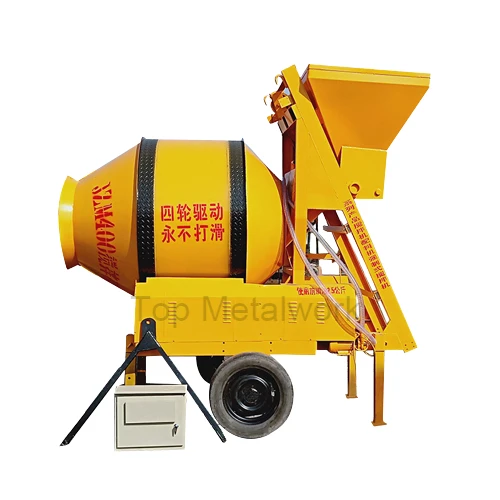

Chasis includes four supporting legs and two wheels. The leg height can be adjusted and the wheels are for transportation. When the mixer works, the four legs shall support the mixer, but no the wheels.
Product Parameters
Application
