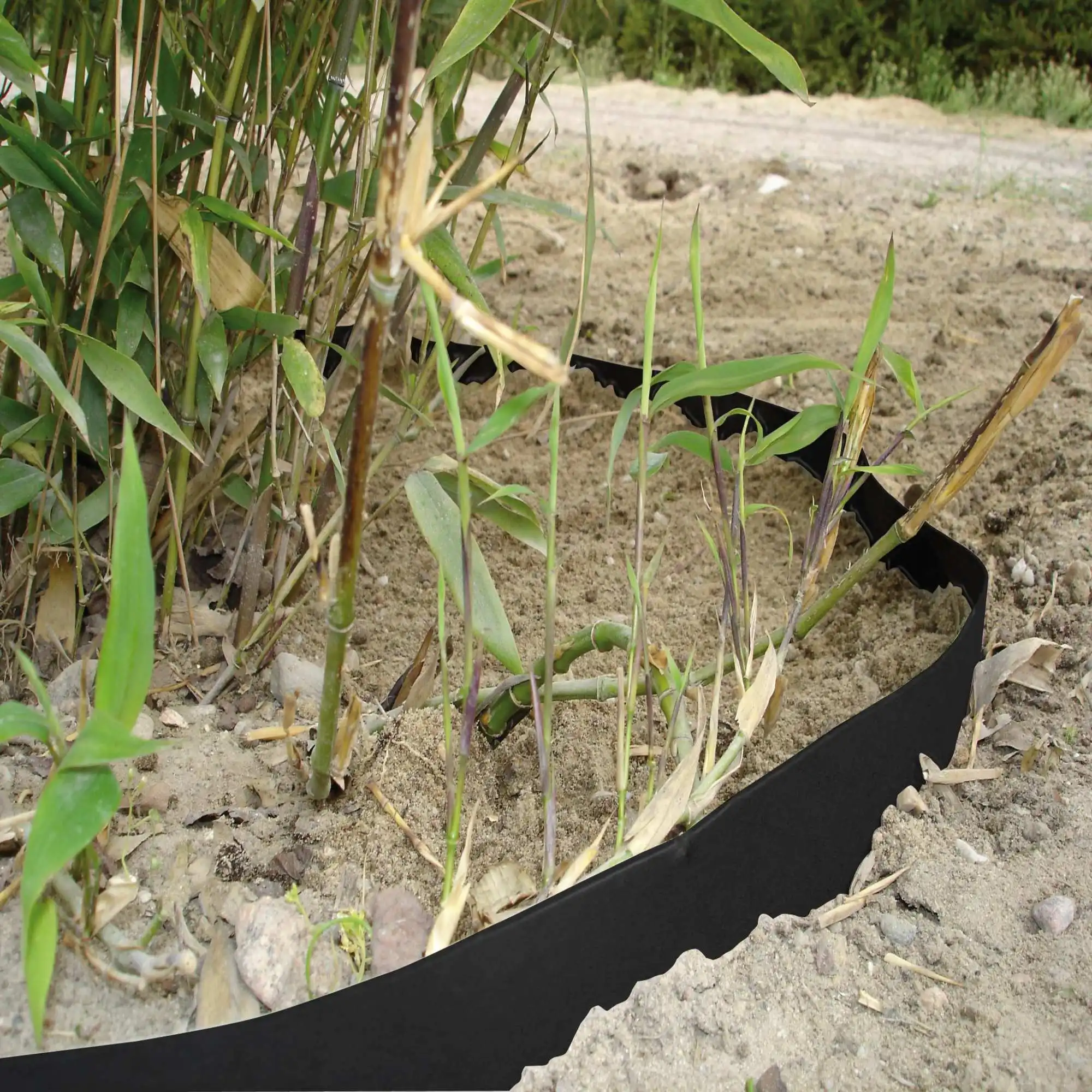

1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier
1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier

1m width 2mm thickness Black HDPE Geomembrane used for Tree Root Barrier

Share on (1600515177420):


Price:$1.70 - $1.80

Quantity:


Product Overview

Description








Affordable Polyethylene(PE) Geomembrane


                                                              China Real Geomembrane OEM Factory In China Since2005


                                       We never crook customers ,Trade assurance order is avaiable here







China real geomembrane OEM factory over more than100 countries since 2005.afforadable price ,quality product,geomembrane of all standard from Recycled to GB, CJ and ASTM, GRI - GM13
































FinishSmooth or single textured or double textured
Prime finishesBlack, white, green and blue
Width1m, 2m, 3m, 4m, 5.8m, 6m, 7m, 8m, 12m
Length50m,100m or as you requested
Thickness0.15mm-3mm
 Feature

      1)     Good physical and mechanic performance
      2)     High tearing resistance, strong deformation adaptability
      3)     Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
      4)    Good adaptability to high and low temperature, non-toxicity, long  service life
      5)     Good waterproof, drainage, anti-seepage and damp proof effects
      6)     Complete width and thickness specifications, low cost and easy installation.

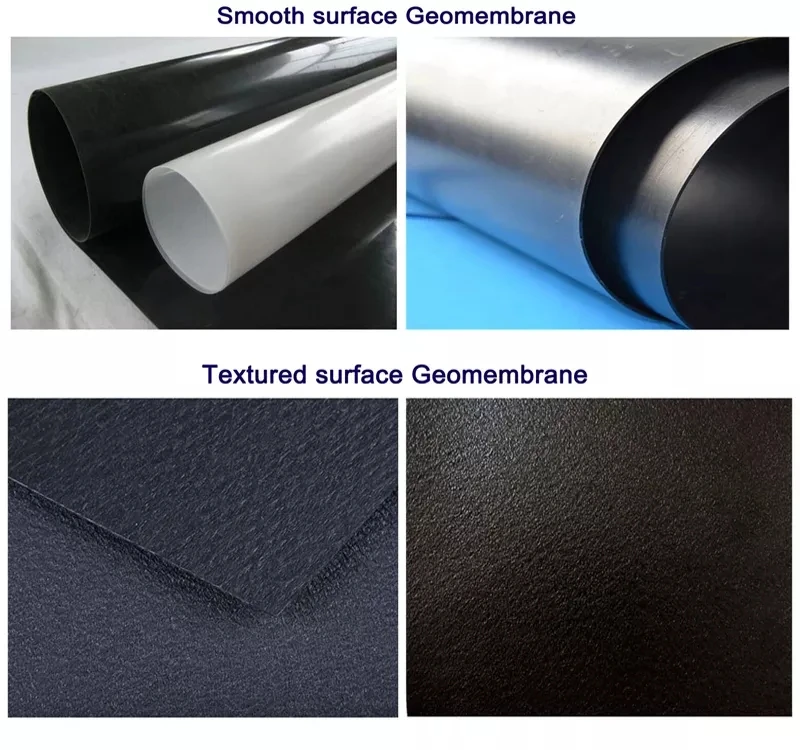

smooth&texture


















































































































ASTM GRI GM13 Geomembrane Parameter
 Thickness (mm)0.751.01.251.52.02.53.0
1Density (g/m2)≥0.94
2Tensile yield strength (N/mm) ≥11≥15≥18≥22≥29≥37≥44
3Tensile breaking strength(N/mm) ≥20≥25≥33≥40≥53≥67≥80
4Elongation at yield(%)≥12
5Elongation at break(%)≥700
6Tear resistance(N)≥93≥125≥160≥190≥250≥315≥375
7Puncture strength(N)≥240≥320≥400≥480≥640≥800≥960
8Tensile load stress cracking(h)≥300(no requirement for 0.75mm thick)
9Carbon black content(%)2.0-3.0
10Oxidative induction time, OIT(min)

Constant pressure OIT≥100


11 High pressure OIT≥400
1285 ℃ thermal aging ≥55
13Ultraviolet rays, OIT retention rate after 1600 hours of UV irradiation(%) ≥50
Note

A. The technical performance index of thickness specification not listed in the table shall be implemented according to interpolation method;


B. Either constant OIT or high pressure OIT of Item 11 and 13 could be tested.

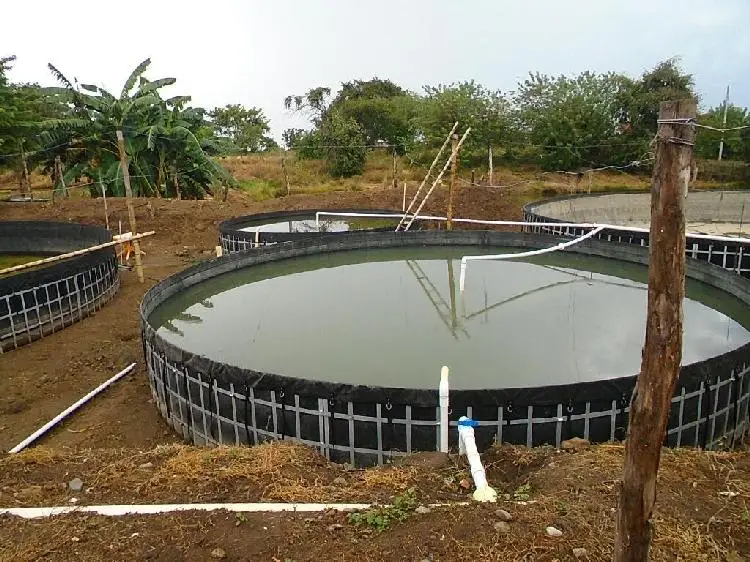

Aquaculture:Using the geomembrane anti-seepage feature; fish ponds, shrimp pond, tank liner and others.

1 (18)

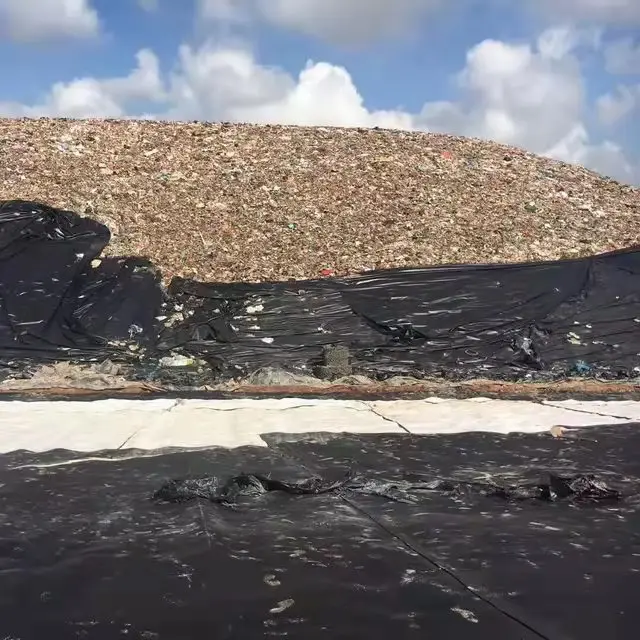

Landfill: landfill anti-seepage engineering,the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

139

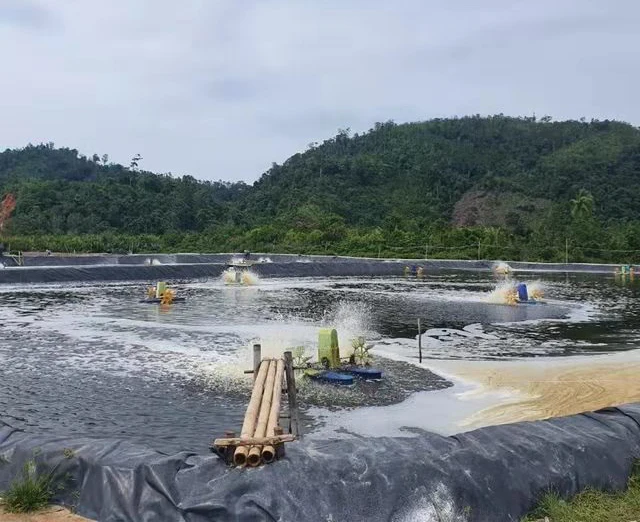

Water Treatment System: adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.

110

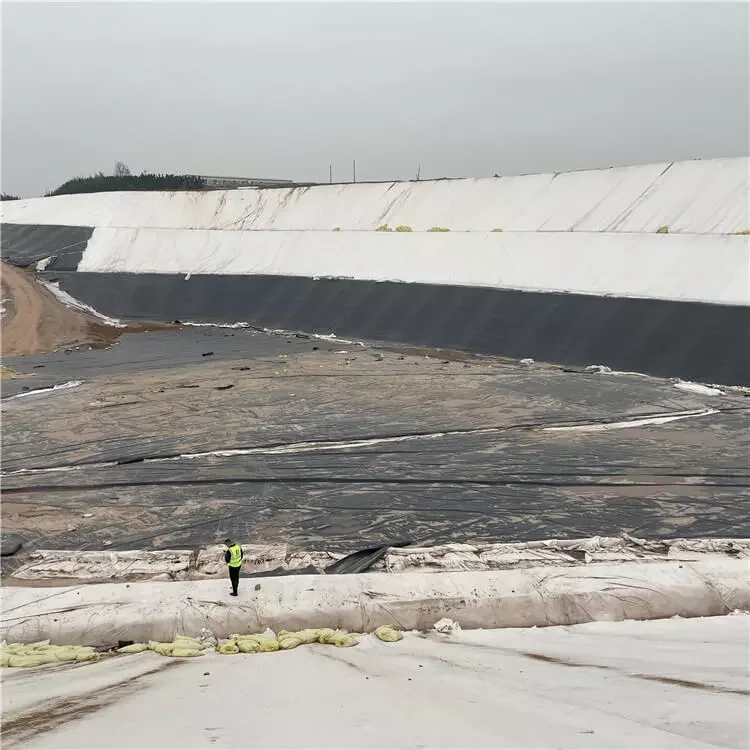

Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc


.jpg

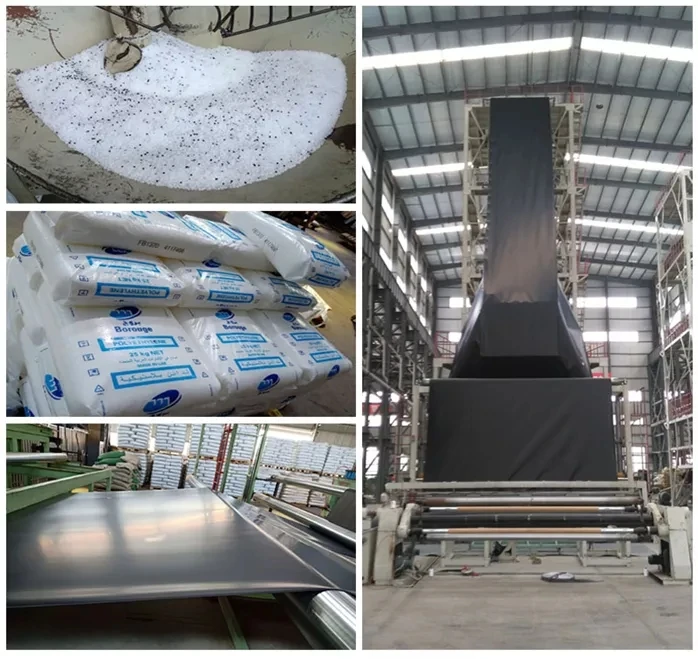

Production

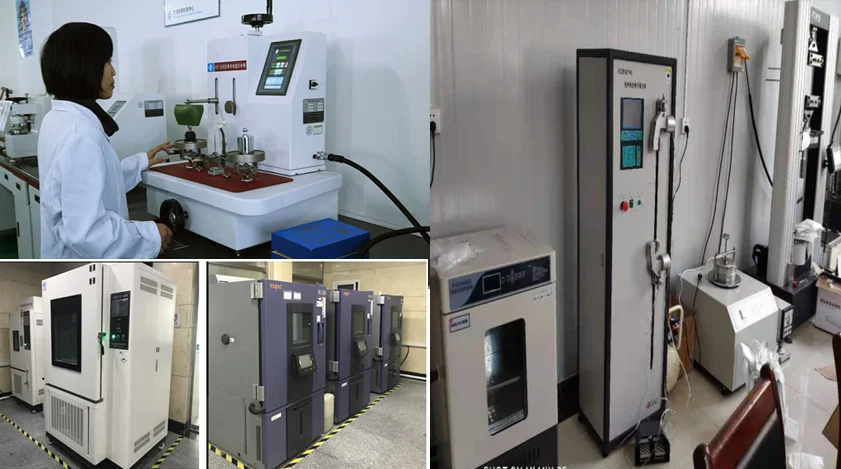

Geomembrane Testing

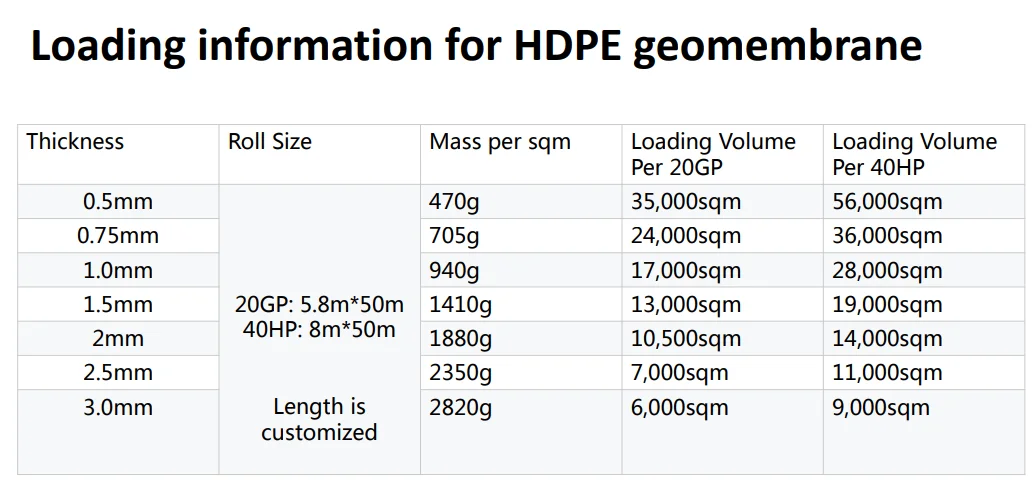

SIZE










1649396683(1)
