Product Overview

Description


SY3220-5LZE-C6/C4/M5 SY3240-3420-5LZD-5G-1L/4LZ valve SMC brand SY Pneumatic Solenoid valve



Product Description


 1LOGO

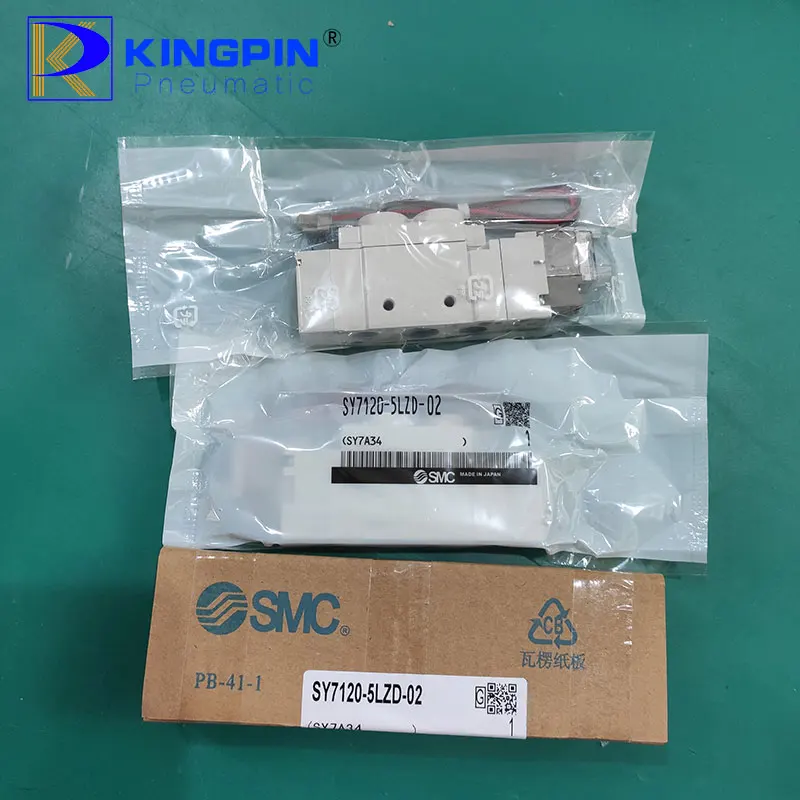

SY7120-5LZD-02Specification














































































Series



SY3000




SY5000




SY7000




SY9000



Applicable Fluid



Air




Inside Pilot TypeApplicable Pressure Range



Two-Position Single Electric Control



0.15-0.7 MPa



Two-Position Double Electric Control



0.1-0.7 MPa



Three-Position



0.2-0.7 MPa



Ambient And Fluid Temperature



-10-50℃(Not Frozen)



Max Frequency


Two-Positon Single/Double Electric Control



10Hz




5Hz




5Hz




5Hz



Three-Position



3Hz




3Hz




3Hz




3Hz



Hand Switch



Pressure Locked By Screwdriver



Pilot Valve Exhaust Way



Master Valve and Guide Valve Centralized Exhaust Type



Oil Feed



No



Installation



Free



Shock/Vibration Resistance



150/30m/s2



Protective Structure



Dust-Proof
































Series




Tripod Model




Side Bracket




SY3000




SX3000-16-2A




SX3000-16-1A




SY5000




SX5000-16-2A




SX5000-16-1A




SY7000




SX7000-16-2A




SX7000-16-1A

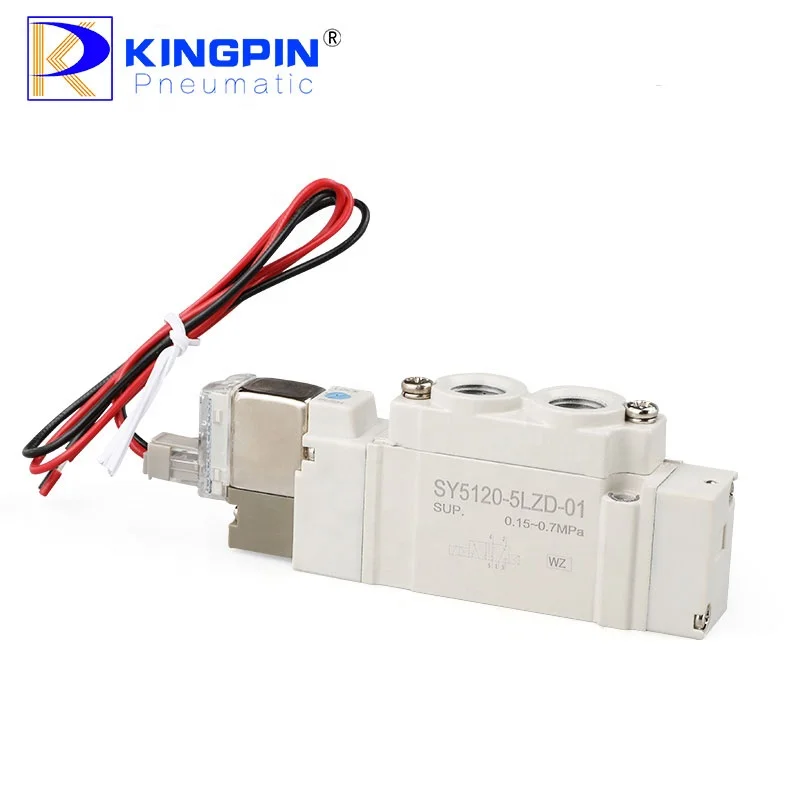

2LOGO4LOGO5LOGO









































































































































































Model


Specification


Position Number


Reaction Time(m/s)


Effective Section Area(mm)


Port Connection


Weight Direct Line Type


SY3120- D-M5


Two-Position Single Electric Control



Less Than12






2.88(0.16)








M5×0.8




51



SY3220- D-M5


Two-Position Double Electric Control



Less Than11




2.88(0.16)




68



SY3320- D-M5


Three-Position Close Type



Less Than15




2.34(0.13)




71



SY3420- D-M5


Three-Position Exhaust Type



Less Than15




2.34(0.13)




71



SY3520- D-M5


Three-Position Pressure Type



Less Than15




2.7(0.15)




71



SY5120- D-01


Two-Position Single Electric Control



Less Than19




8.82(0.49)




1/8




70



SY5220- D-01


Two-Position Double Electric Control



Less Than18




8.82(0.49)




88



SY5320- D-01


Three-Position Close Type



Less Than32




8.1(0.45)




93



SY5420- D-01


Three-Position Exhaust Type



Less Than32




7.38(0.41)




93



SY5520- D-01


Three-Position Pressure Type



Less Than32




10.98(0.61)




93



SY7120- D-02


Two-Position Single Electric Control



Less Than31




16.74(0.93)




1/4




101



SY7220- D-02


Two-Position Double Electric Control



Less Than27




16.74(0.93)




120



SY7320- D-02


Three-Position Close Type



Less Than50




12.6(0.7)




128



SY7420- D-02


Three-Position Exhaust Type



Less Than50




11.7(0.65)




128



SY7520- D-02


Three-Position Pressure Type



Less Than50




17.46(0.97)




128



SY9120- D-03


Two-Position Single Electric Control



Less Than35




34.2(1.9)




3/8




236



SY9220- D-03


Two-Position Double Electric Control



Less Than35




34.2(1.9)




255



SY9320- D-03


Three-Position Close Type



Less Than62




34.2(1.9)




279



SY9420- D-03


Three-Position Exhaust Type



Less Than62




34.2(1.9)




279



SY9520- D-03


Three-Position Pressure Type



Less Than62




39.6(2.2)




279



Represent for
Service Voltage
3=110VAC
4=220VAC
5=24VDC
6=12VDC


Represent for Connection Mode
G Mode Of Connection(Wire Length Is 300mm)
Type L Outlet Type(Wire Length Is 300mm)
Type L Outlet Type(Wire Length Is 300mm,Indicator Light And Overvoltage Protection Circuit)


1)Order Two-Position Five Way Single Electric Control
Solenoid Valve. Voltago:220VDC
Direct Line Type,Caliber:M5,With Tripod
Correct Model:SY3120-5GD-M5 1pcs
SX3000-16-2A 1pcs
2)Order Three-Position Five Way Close Type Solenoid
Valve.voltage:220VAC
Type L Socket Type,Caliber:Rc3/8,With Indicator Light And Overvoltage Protection Circuit
Correct Model:SY9320-4LZD-03
