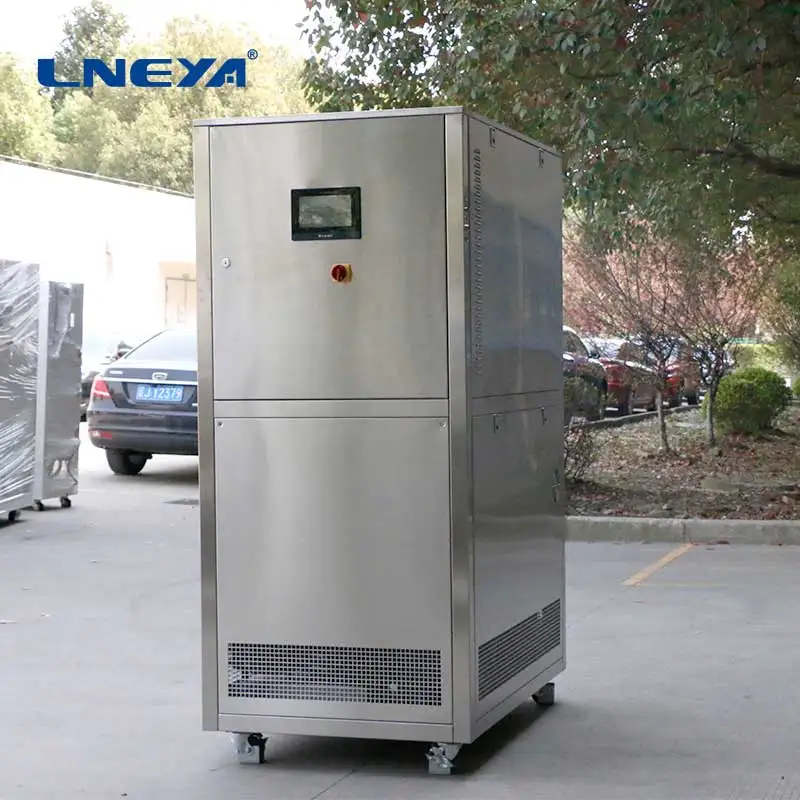

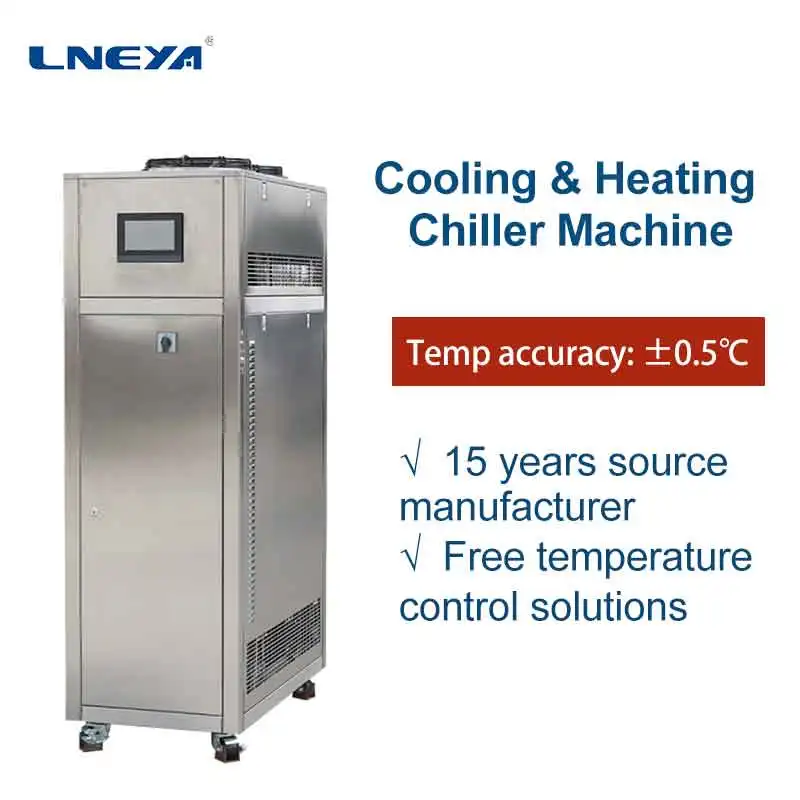

LNEYA Cooling Heating Thermostat Chillers for Laser Cutting Machine






Products Description




SUNDI are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, Miniplant/Pilot systems, reactor blocks and calorimeters. SUNDI temperature control systems with their unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change. Environmentally and economically SUNDI stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs.

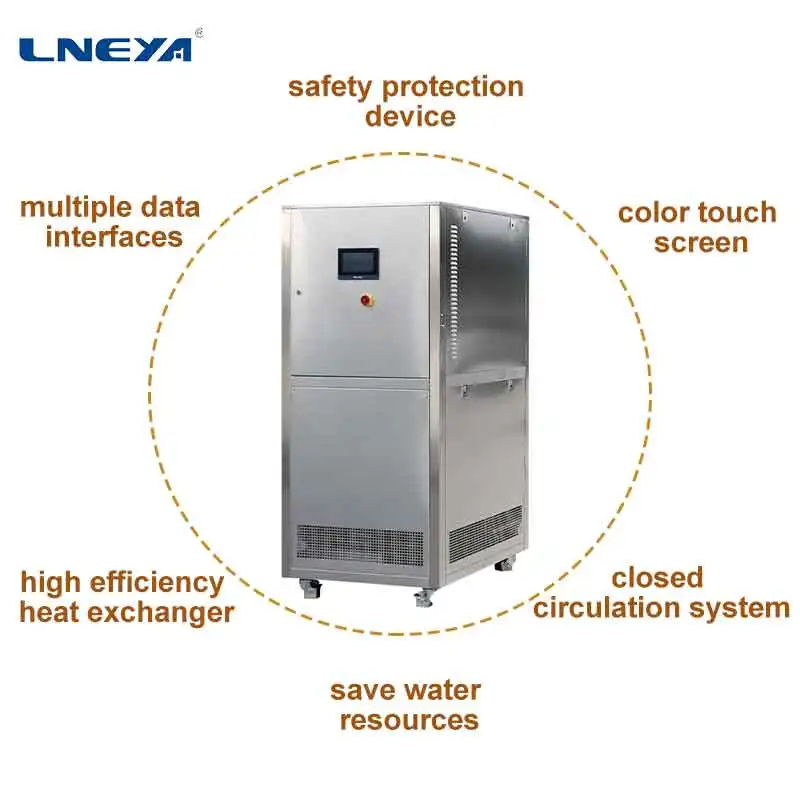

Features of industrial chiller

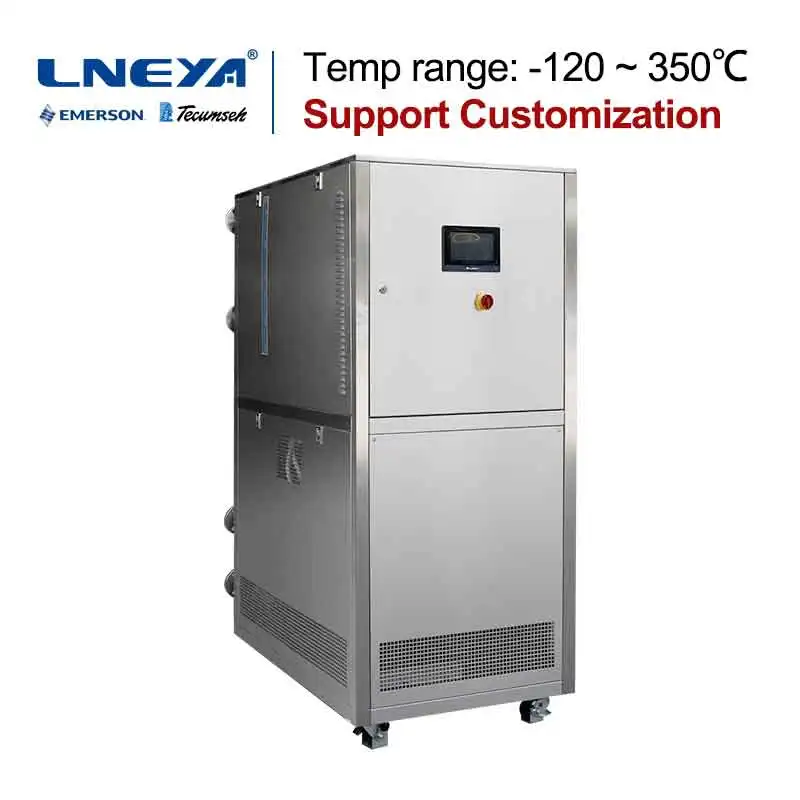

* Temperature range: - 120 ~ + 350 ℃
* Superior performance, high precision and intelligent temperature control
* Plate heat exchanger and pipe heater are used to improve the heating and cooling rate
* Refrigerating power: 0.5 ~ 1200kW
* There is no need to replace the liquid medium
* Fully closed system to prolong the service life of heat conducting liquid
* Graphic display of 7-inch and 10 inch color FTF touch screen
* Multifunctional alarm system and safety device
* Ultra high temperature cooling technology, direct cooling from 300 ℃






Product Paramenters


Model

SUNDI-
1035W
SUNDI-
1055W
SUNDI-
1075W
SUNDI-
10A10W
SUNDI-10A15W
SUNDI-10A25W
SUNDI-10A35W
SUNDI-10A60W
SUNDI-10A80W
Temp range
-100 ~ 100℃ (optional: -120 ~ 350℃)
Heating power (KW)
3.5
5.5
7.5
10
15
25
38
60
80
Cooling capacity (KW)
3.5@100℃
5.5@100℃
7.5@100℃
10@100℃
15@100℃
25@100℃
38@100℃
60@100℃
80@100℃
3.5@0℃
5.5@0℃
7.5@0℃
10@0℃
15@0℃
25@0℃
38@0℃
60@0℃
80@0℃
1.9@-80℃
2.8@-80℃
3.4@-80℃
4.1@-80℃
5@-80℃
8@-80℃
13@-80℃
22@-80℃
30@-80℃
0.7@-90℃
1.2@-90℃
1.6@-90℃
2@-90℃
3@-90℃
4.8@-90℃
7.5@-90℃
12@-90℃
16@-90℃
0.45@-95℃
0.7@-95℃
0.9@-95℃
1.2@-95℃
1.8@-95℃
2.9@-95℃
4.5@-95℃
7.2@-95℃
9.5@-95℃
Circulation pump max L/min
bar
35
35
50
60
110
150
250
400
400
2
2
2
2.5
2.5
2.5
Refrigerant
R-404A/R23/R14
Connection size
G3/4
G3/4
G1
G1
DN32
DN32
DN40
DN65
DN65
Dimension cm
70*100*175
80*120*185
80*120*185
150*100*185
150*100*185
205*145*205
245*145*225
300*160*225
400*160*225
Weight kg
435
565
705
890
1250
1600
2100
2950
3350
Power
380V 50HZ
12KW
18KW
24KW
30KW
40KW
60KW
85KW
135KW
200KW


Why Choose Us


Our advantages
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.




Company Profile




Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.




Exhibition




LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.


Certifications


So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.


FAQ


Q: How many years have your factory been established？
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.

Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.

Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.

Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
