Optical Spec
| Coms size | 2P 1/9" |
| Pixel size | 1.4*1.4um |
| Fno | 4.5 |
| Diagonal Fov | 100 degree |
| TV-distortion | <12% |
| Relative illumiance | 64% |
| Chief ray angle | <32% |
| Maximum image circle | 2.1 mm |
| Depth of filed | 5-100 mm |
Electric spec
| Sensor | 1/9" 1280*720 |
| Max frame rate | 720P 30fps |
| Interface | USB 2.0 |
| USB output solution | MJPG 1280*720 |
| White balance auto mode | Auto mode |
| Operating temperature | -10 ~+50 degree |
| Steel tube temperature | ≤ 41 degree |

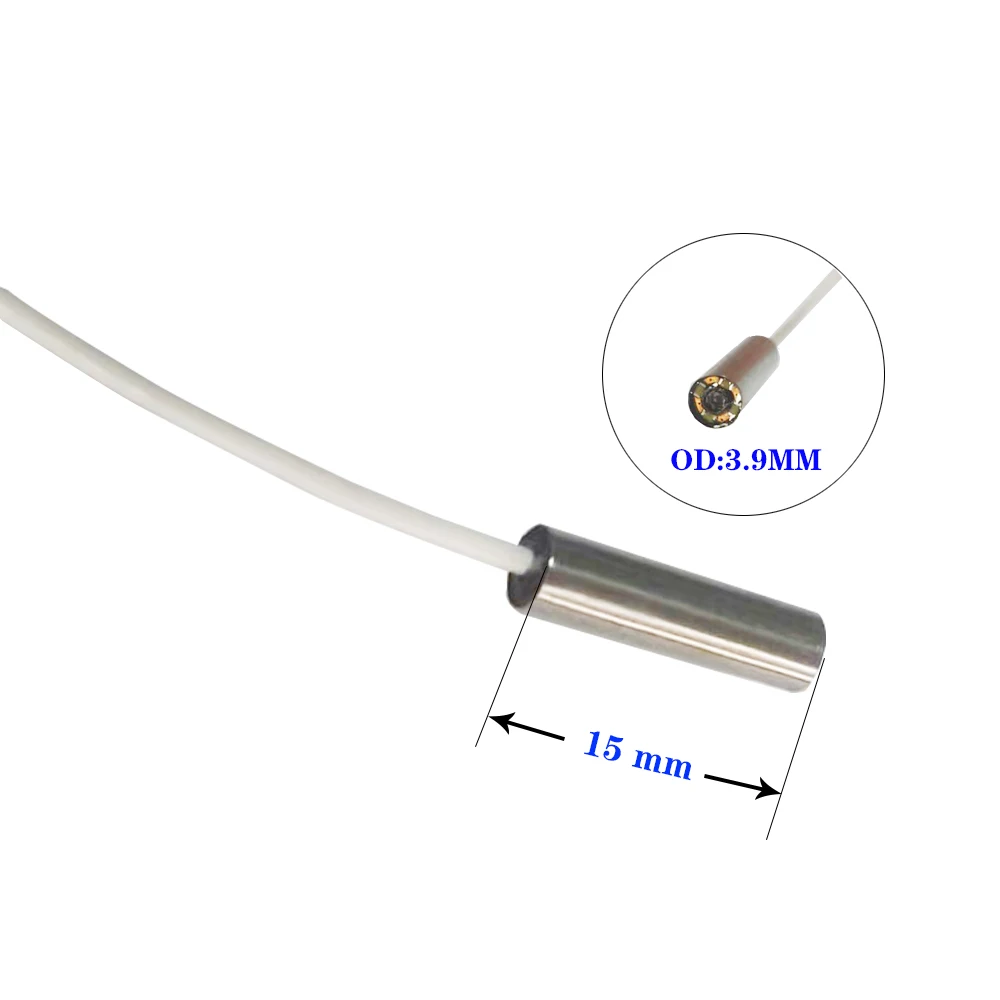

| Min diameter(Encapsulated steel pipe) | 3.2mm |
| Maximum length | 8 M |

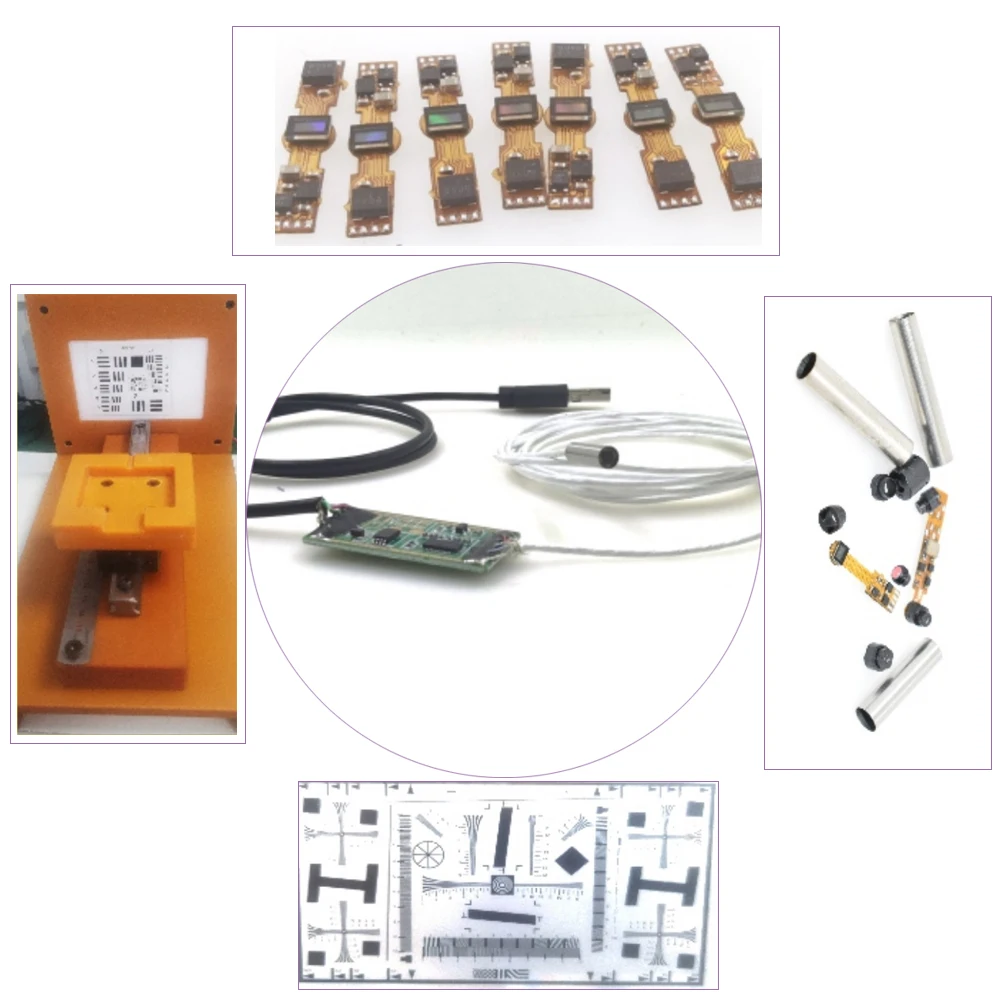

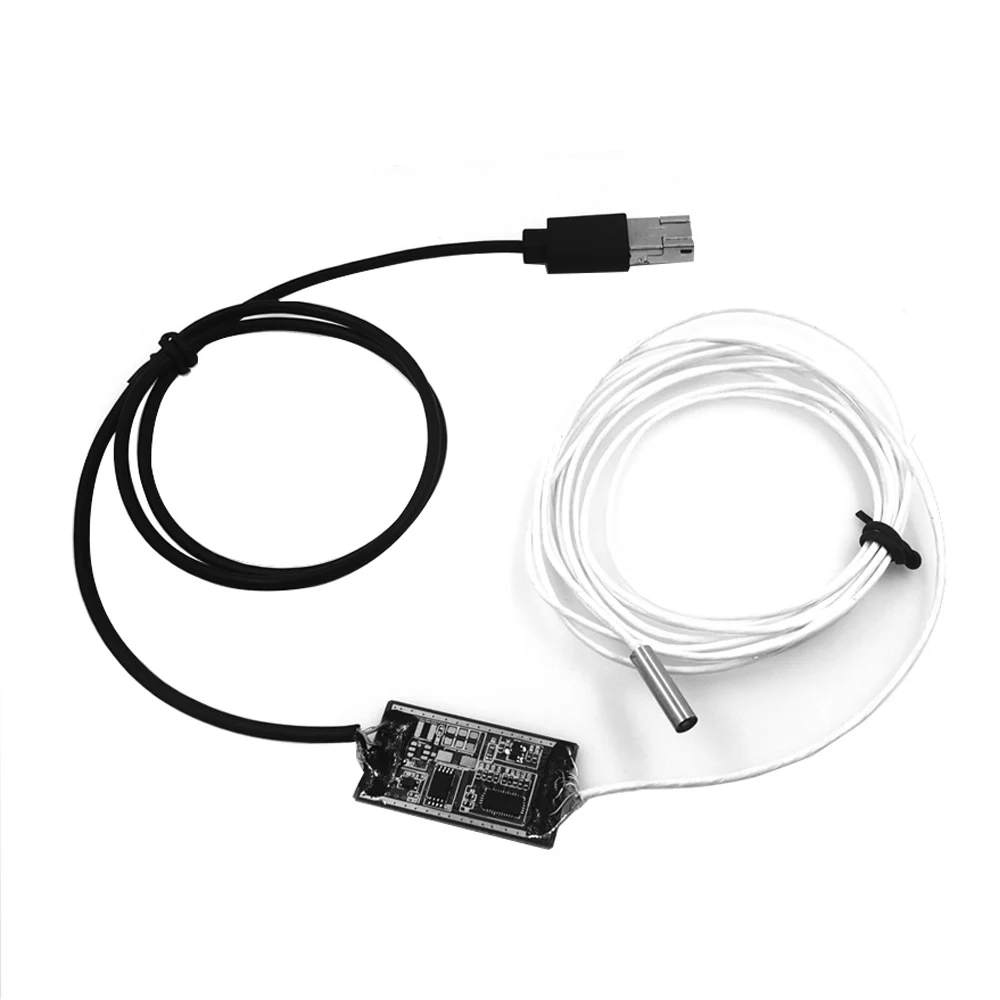

More details for HD micro medical endoscope camera module , endoscope inspection camera cable
