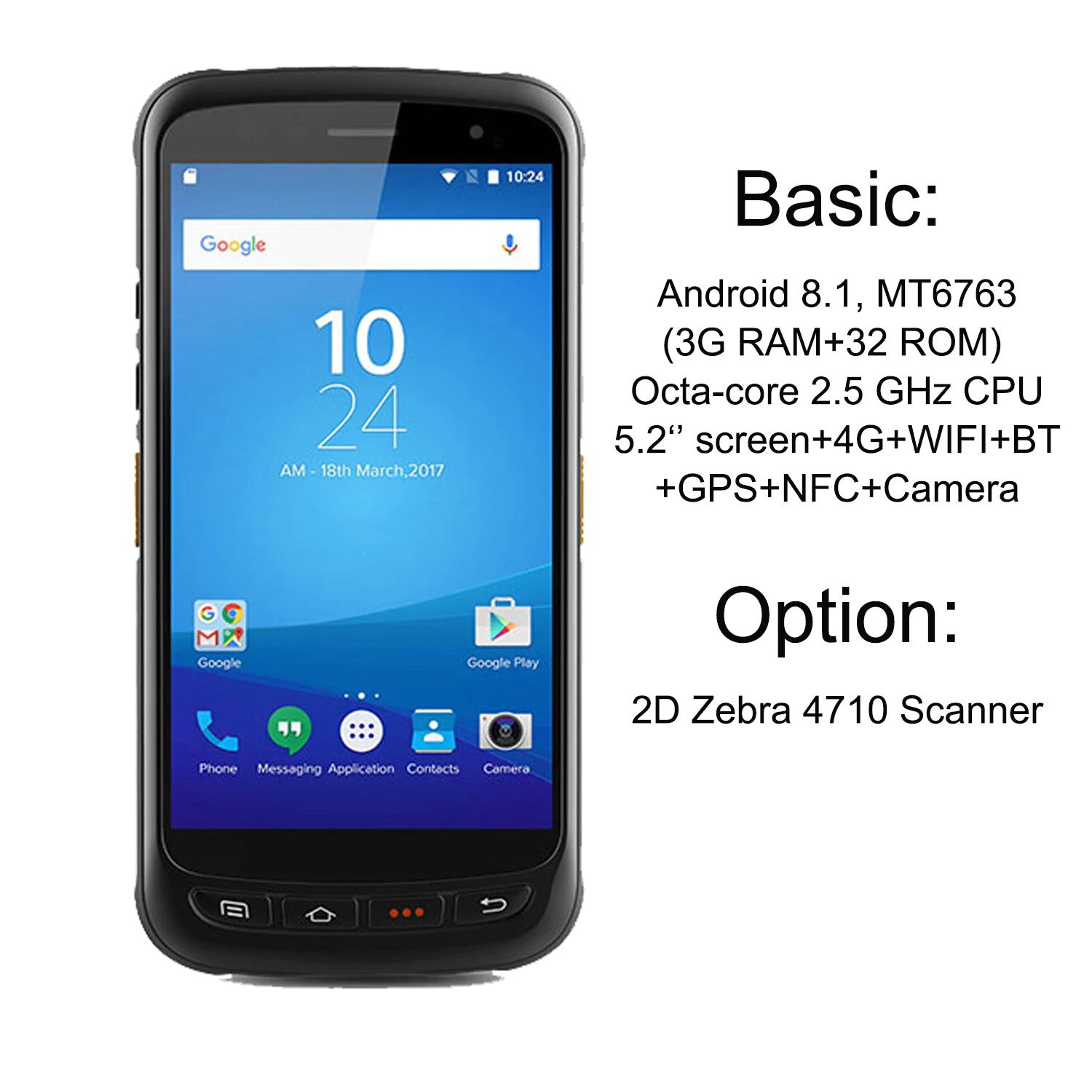

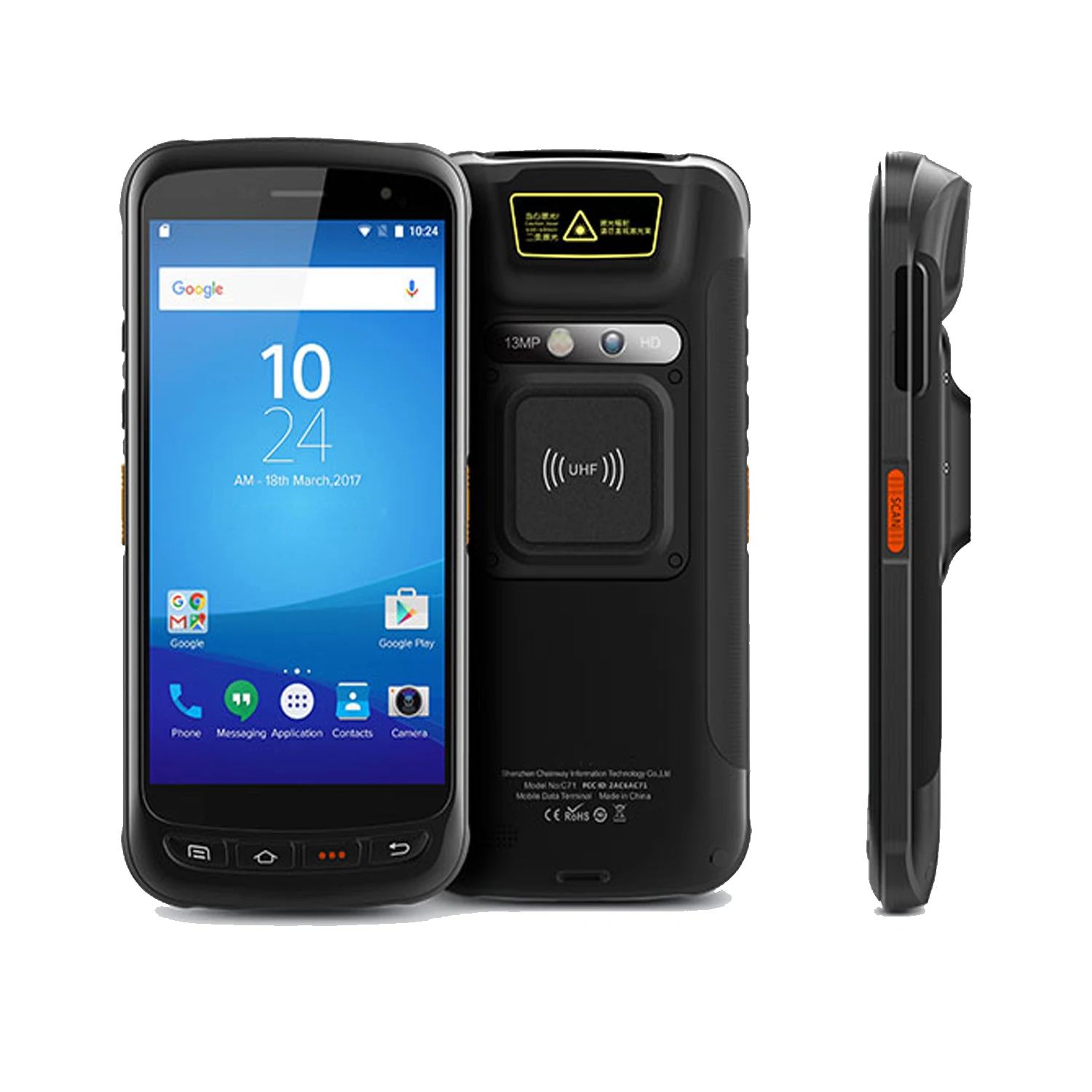

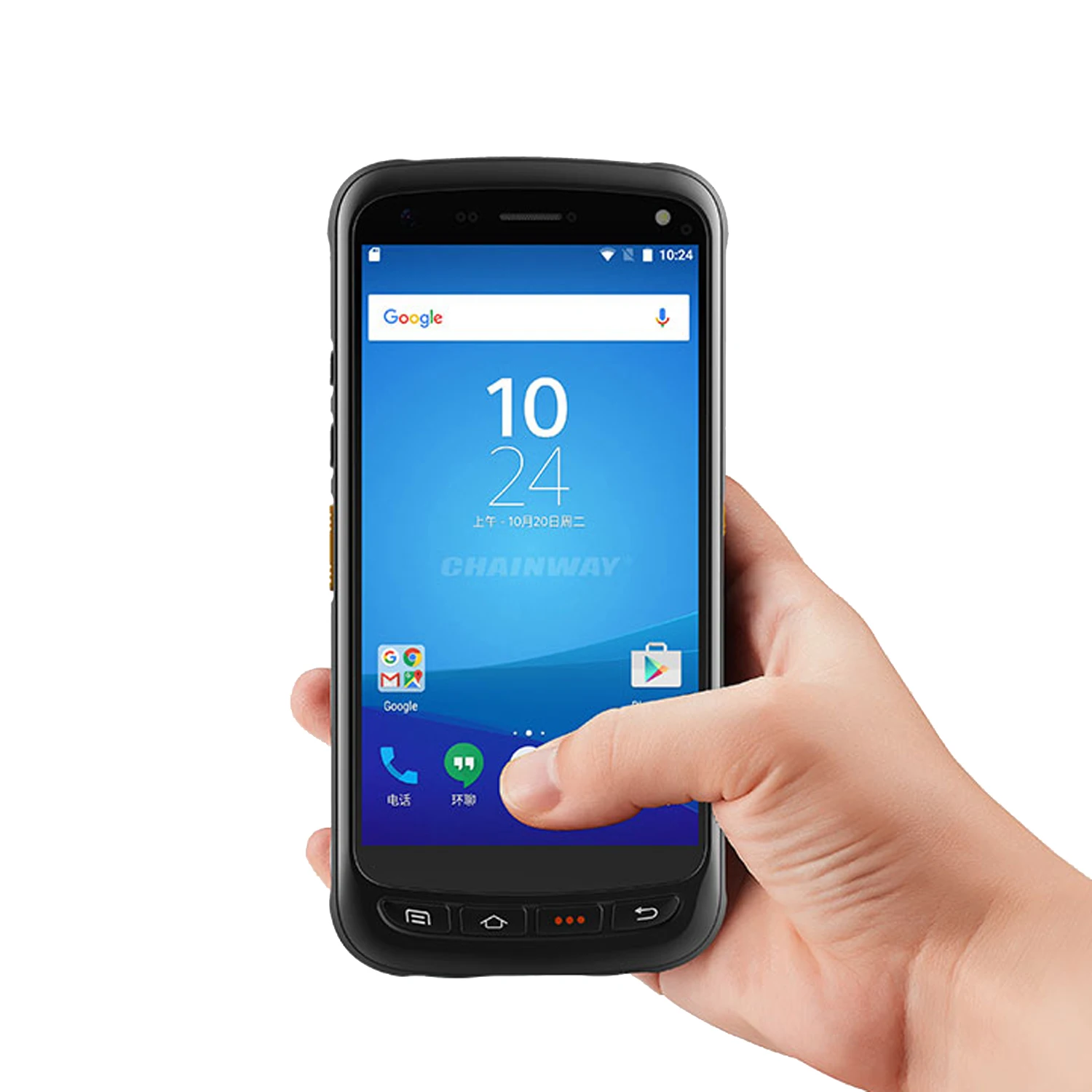

UHFHandheld PD Android With RFID NFC Biometric Fingerprint RFID Barcode Scanner Inventory Restaurant Logistic Data Collector
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600515225445):
Product Overview
Description
Products Description
Product Paramenters
Physical Characteristics | ||
Dimension | 164.2*78.8*17mm/6.46*3.10*0.67in (for standard version) | |
Weight | <288g/10.15oz (for standard version) | |
Display | 5.2'' IPS FHD 1920x1080 | |
Touch Panel | Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported | |
Expansion Slot | 2 PSAM slots at most, 1 slot for SIM card, 1 slot for SIM or TF card | |
Keypad | 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key | |
Power | Main battery: Li-ion, rechargeable, 4000mAh | |
Audio | speaker, 2 microphones | |
Interfaces | USB2.0 Type-C, OTG | |
Sensors | Proximity Sensor, Vibration Motor | |
Performance | ||
CPU | Cortex-A53 Quad-core 1.3GHz | |
RAM+ROM | 2GB+16GB | |
Expansion | Supports up to 32 GB Micro SD card | |
Developing Environment | ||
Operating System | Android 6.0 | |
SDK | Software Development Kit | |
Language | Java | |
Tool | Eclipse / Android Studio | |
User Environment | ||
Operating Temperature | 14°Fto 122°F / -10°C to 50°C | |
Storage Temperature | -40°F to 158°F / -40°C to 70°C | |
Humidity | 5% - 95%RH (Non-condensing) | |
Sealing | IP67 | |
Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range | |
Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature | |
ESD | ±8KV air discharge, ±4KV conductive discharge | |
Communication | ||
WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna | |
WWAN(Europe) | 2G: 850/900/1800/1900MHz; | |
3G: 850/900/1900/2100MHz; | ||
4G: B1, B3, B5, B7, B8, B20, B40 | ||
WWAN(America) | 2G: 850/900/1800/1900MHz; | |
3G: 850/900/1700/1900MHz; | ||
4G: B2, B4, B7, B12, B17 | ||
WWAN (China) | 2G: 900/1800MHz; | |
3G:900/2100MHz ; | ||
4G:TDD-LTE: B38, B39, B40, B41, FDD-LTE: B1, B3, B5 | ||
WWAN (Others) | Depending on the country's ISP | |
BT | BT 4.0 | |
GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna | |
NFC | ||
Frequency | 13.56MHz | |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc | |
Chips | M1 card (S50, S70), CPU card, NFC tags, etc. | |
Range | 2-4cm | |
Camera | 13MP autofocus camera with flash | |
Optional | ||
Barcode Scanners (optional) | 1D Honeywell N4313 2D CCD Zebra (SE4750) 2D CCD Zebra (SE4750) 2D CCD SE4759MR(long distance) | |
UHF (optional) | Frequency 865MHz-868MHz/ 920-925MHz / 902-928MHz * For detailed specification, please check UHF data sheet | |
InfraRed (optional) | Frequency 38kHz * For detailed specification, please check InfraRed data sheet | |
Fingerprint (optional) | Sensor Capacitive TCS1/TCS2; Optical Morpho CBM-E3 * For detailed specification, please check Fingerprint data sheet | |
