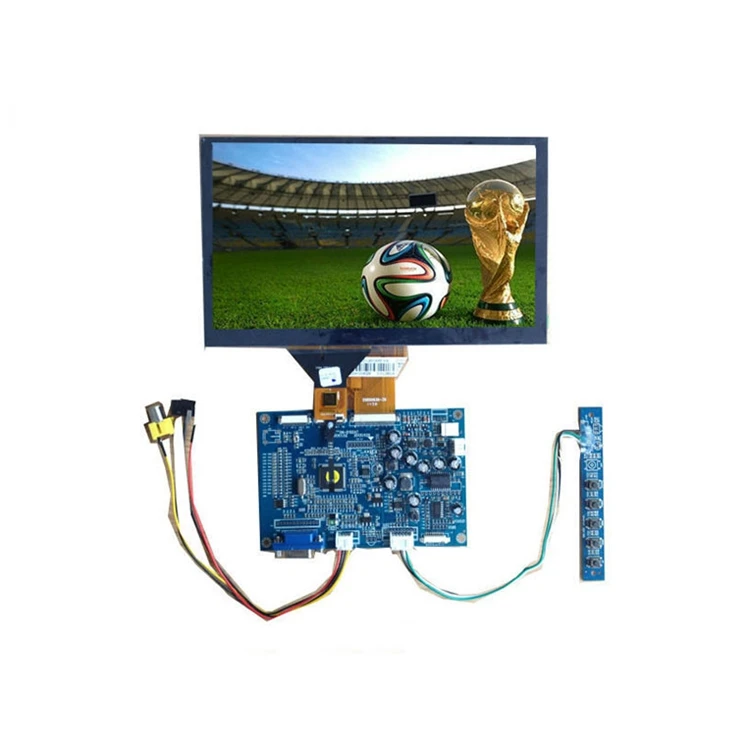

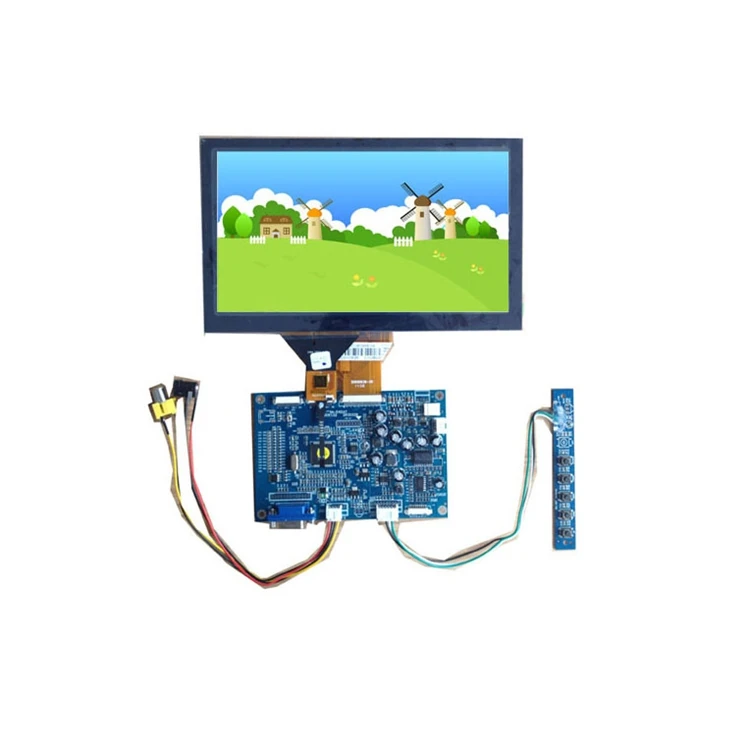

OEM Cheap Price New 9 Inch 800x480 TFT LCD Screen Module Display Lcd Monitor Panel With Driver Board
- Category: >>>
- Supplier: Shenzhen Danuowei Electronic Co. Ltd.
Share on (1600515236935):
Product Overview
Description
Products Description

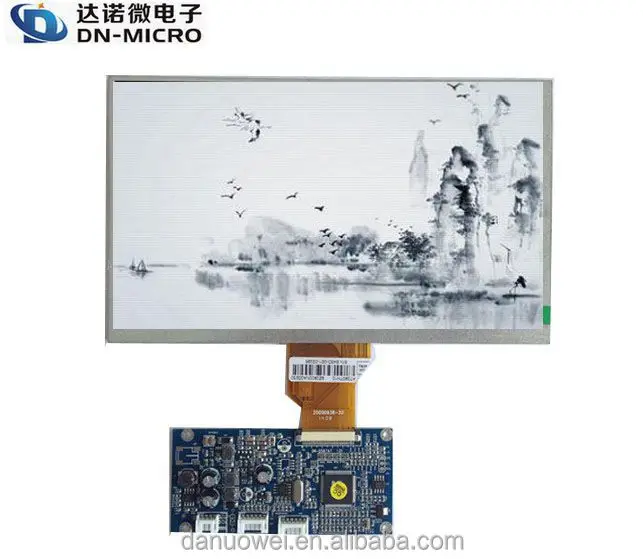

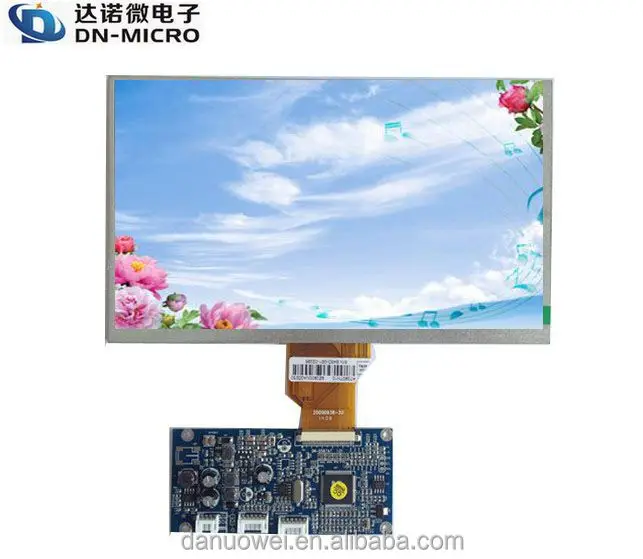

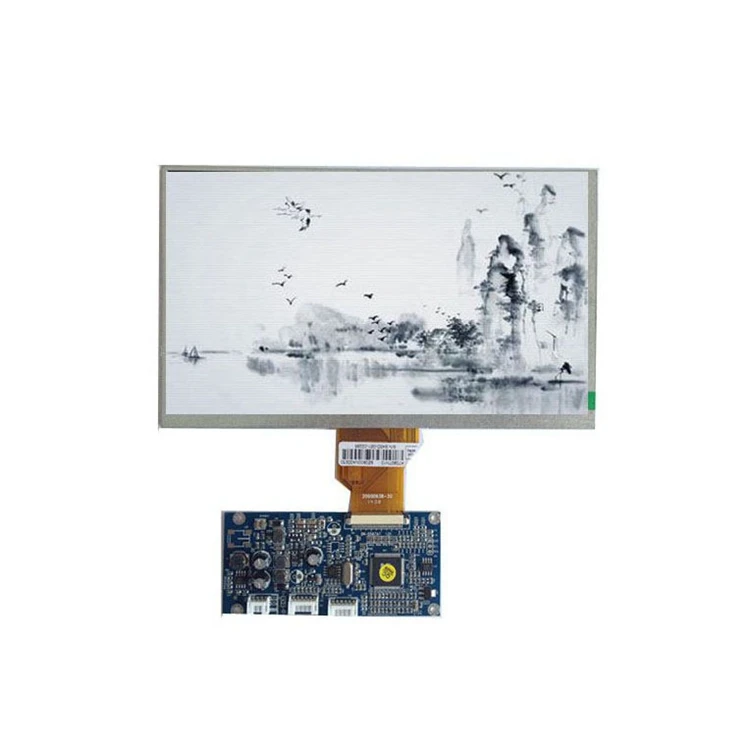

DN-D102AT VER:1.01 AT090TN12 color lcd module is made up of DN-D102AT VER:1.00 driver board and AT090TN12 screen. Support CVBS and PC-RGB and S-VIDEO signal input . It is mainly used for video telephony, instrumentation, medical equipment, security monitoring,car, POS, etc., can also be used in other display electronics.
No. | Item | Description | ||
1 | Panel Size | 9" | ||
2 | Panel Ratio | 16:9 | ||
3 | Panel Blacklight | LED | ||
4 | Brightness | 250±50cd/m2 | ||
5 | Resolution | 800×(3RGB)×480 | ||
6 | Active Area | 198.0( H)*111.6(V) | ||
7 | AD Board Size | 128.8 (W)×85.4 (H)×16.0(D)mm | ||
8 | Work voltage(power supply ripple<0.3VP-P | Min:DC9V S:DC12V Max:DC15V | ||
9 | Current(DC 12V power supply) | DC280mA±30mA | ||
10 | Power consumption | 3.36W(TYP) | ||
11 | Start-up time | 2.5 seconds | ||
12 | Woking Temp | 0℃~60℃ | ||
13 | Storage Temp | -20℃~70℃ | ||
14 | Relative Humidity | 5~95%RH | ||
15 | Panel power consumption | 0.383W(Typ.) | ||
16 | Weight | 120G | ||
17 | Operating temperature | -20°C~70°C | ||
18 | Storage temperature | -30°C~80°C | ||
19 | Environmental relative humidity | 5~95%RH | ||
If you have any questions, please feel free to contact us. Quick reponse to your inquiries within 24 hours. Ann is always here for you！ | ||||
More Product
Our Advantages
About US
Exhibition

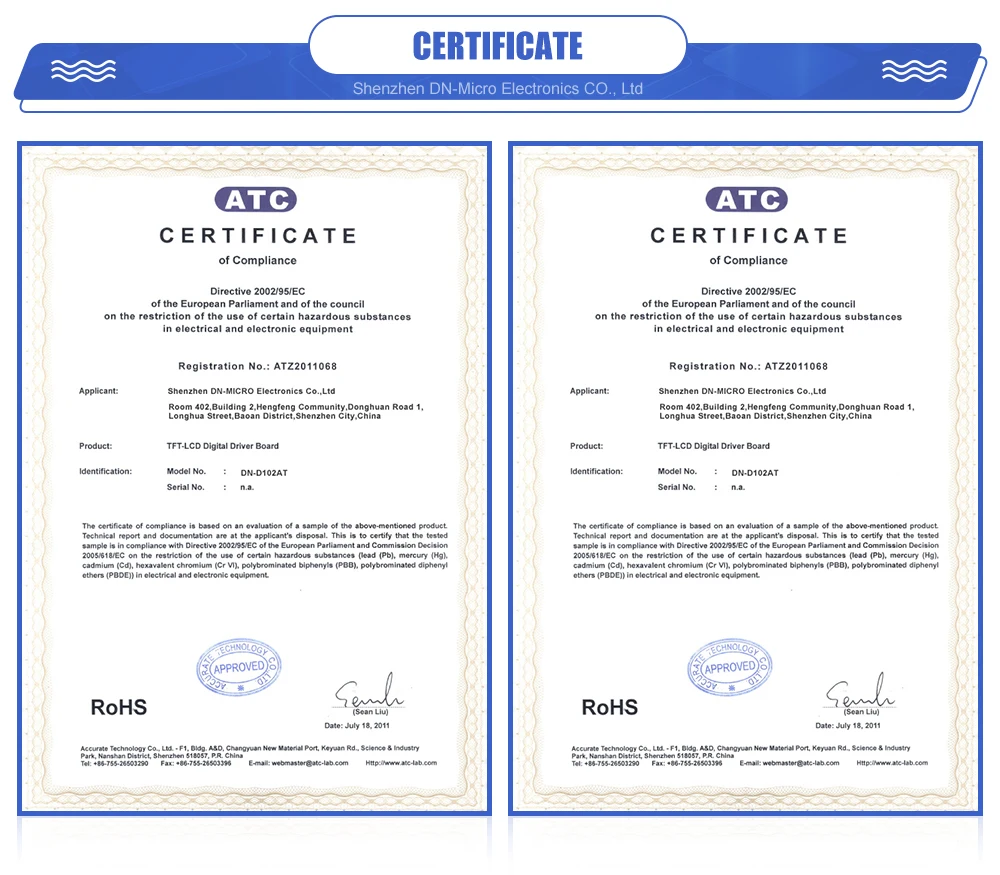

Certifications

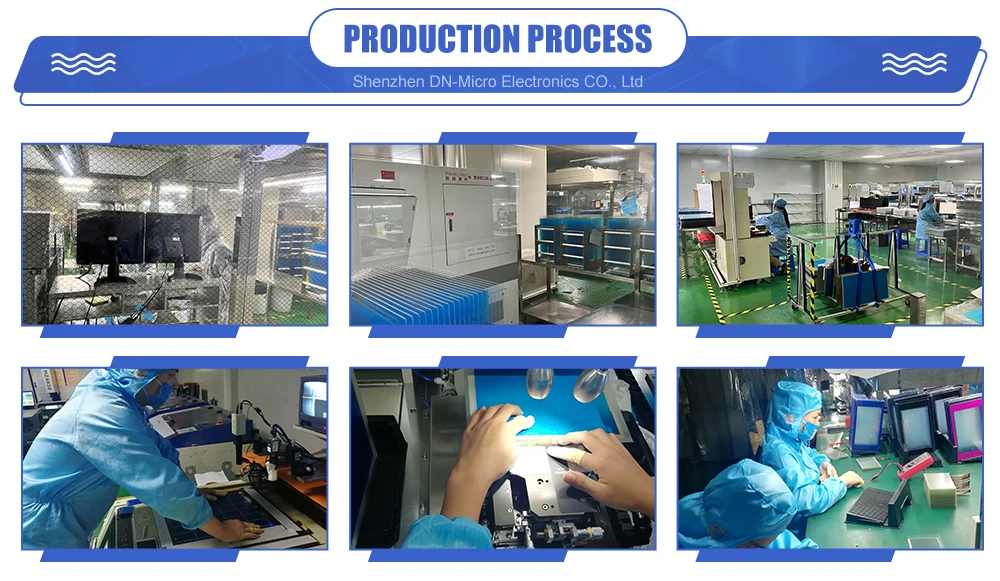

Production Process
FAQ
Q1:Where to get the datasheet before orafter purchase?
Please send amail to"dn-micro@Hotmail",we will reply you in 24hours
Q2:How do you add the extra function,does it need for charge?
just confirm the funsion with seller before your place an order,simple function is free
Q3:Payment terms of customized service and mass order?
Customized Service:
According tp product requirement of charge,100% T/T in advance,we will provide 2~3pcs free sample.
Mass Order: 30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
Please send amail to"dn-micro@Hotmail",we will reply you in 24hours
Q2:How do you add the extra function,does it need for charge?
just confirm the funsion with seller before your place an order,simple function is free
Q3:Payment terms of customized service and mass order?
Customized Service:
According tp product requirement of charge,100% T/T in advance,we will provide 2~3pcs free sample.
Mass Order: 30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
