Multi process 3 in 1 soldadores tig cut mma welding machine CT520 220V 110V dc mma tig plasma cutter welder
- Category: Welding Equipment >>>
- Supplier: Andeli Group Co. Ltd.
Share on (1600515244778):
Product Overview
Description
Multi process 3 in 1 soldadores tig cut mma welding machine CT520 220V 110V dc mma tig plasma cutter welder

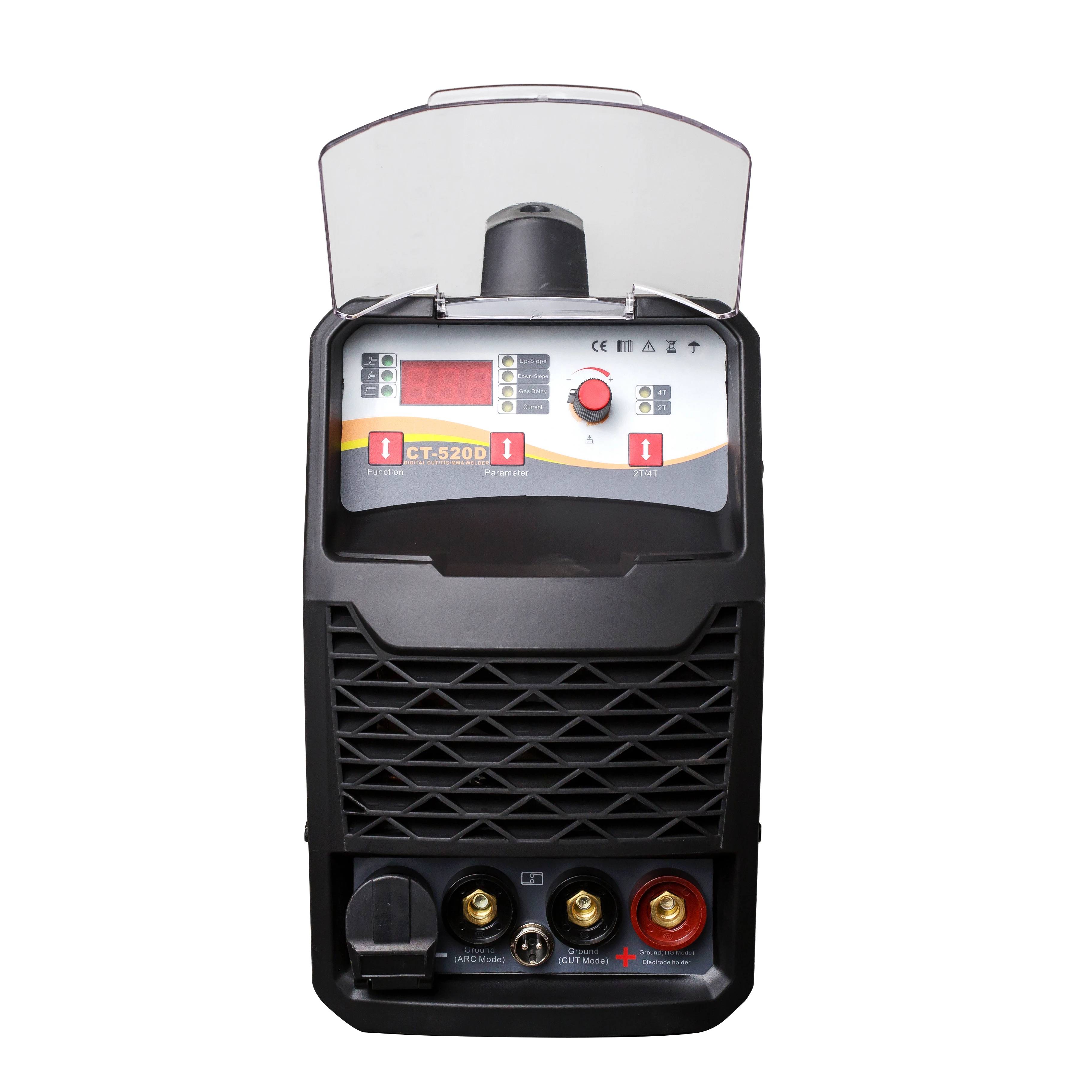

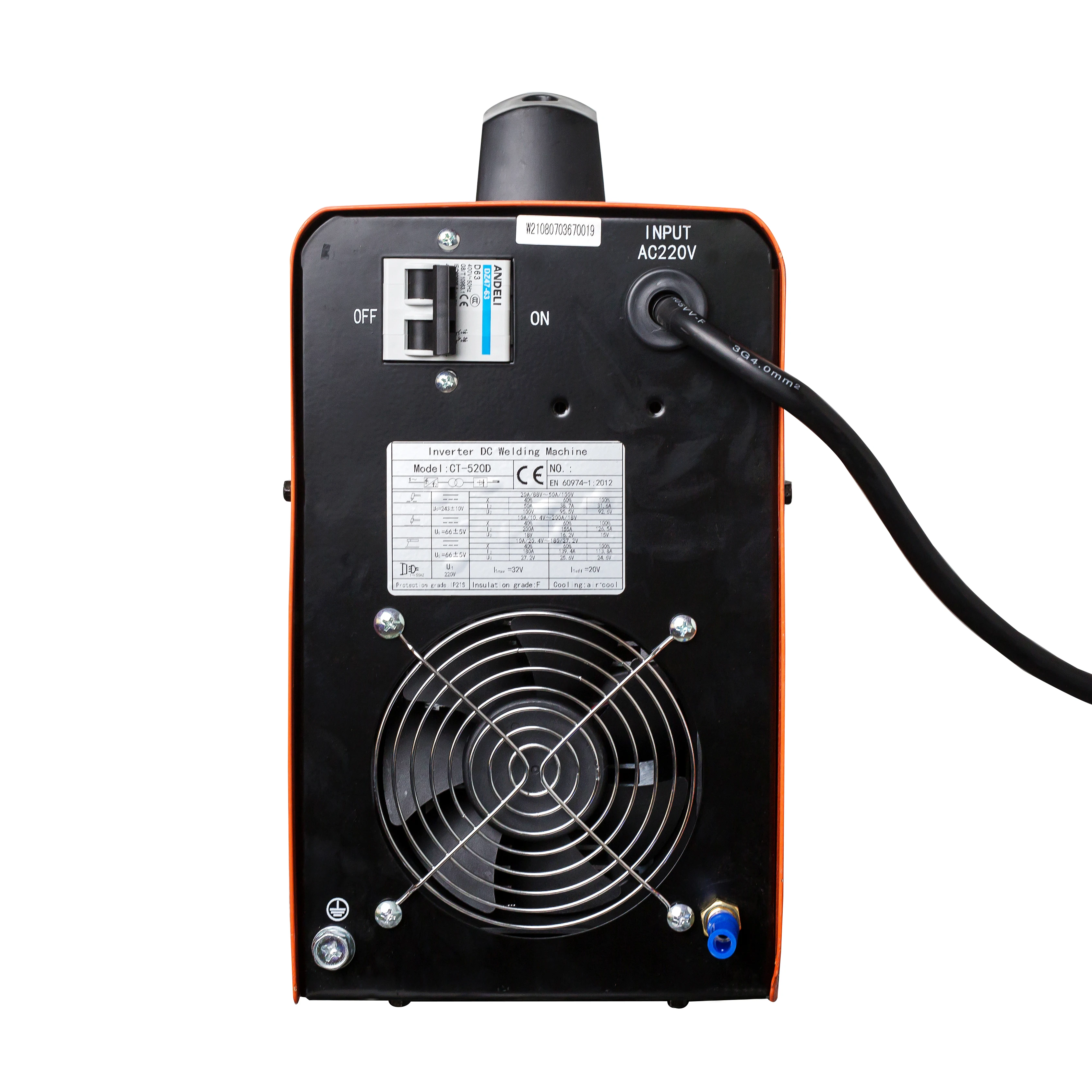

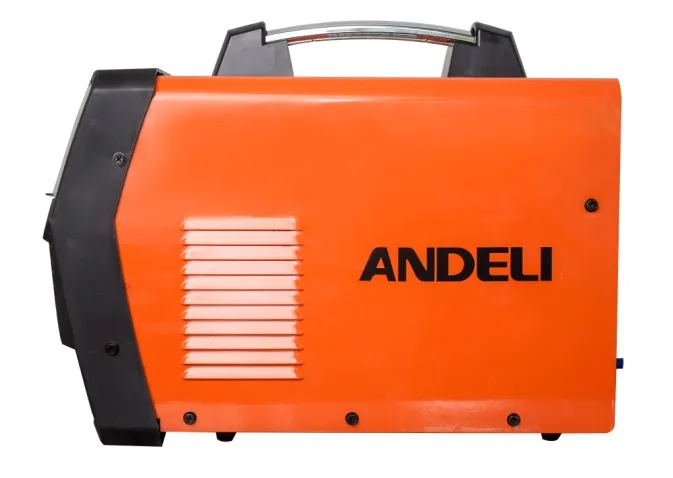

1.Products Show:
2.Technical Details:
Model | CUT-520D |
Rated input voltage(V) | 1PH AC220V±15% |
Rated input power(KVA) | TIG: 5.1KVA |
MMA: 7KVA | |
CUT: 7KVA | |
Rated input current (A) | TIG: 23A |
MMA: 32A | |
CUT: 32A | |
Rated output | TIG: 18V/200A |
MMA: 27.2V/180A | |
CUT: 100V/50A | |
Output current(A) | TIG: 10-200A |
MMA: 10-180A | |
CUT: 20-50A | |
No-load voltage (V) | TIG: 66±5V |
MMA: 66±5V | |
CUT: 243±10V | |
Duty Cycle% (40℃ 10min) | TIG: 200A 30% 110A 100% |
MMA: 180A 30% 99A 100% | |
CUT: 50A 30% 27A 100% | |
Efficiency (%) | 70 |
Protection grade | IP21 |
Insulation grade | F |
Net weight (KG) | 13.9 |
Gross weight (KG) | 18.5 |
Dimension of machine (mm) | 486*185*352 |
Dimension of package (mm) | 564*255*383 |
3.Application and Projects:
