Laboratory pilot model sun flower garlic oil extraction machine
- Category: >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (1600515246860):
Product Overview
Description
Product Introduction

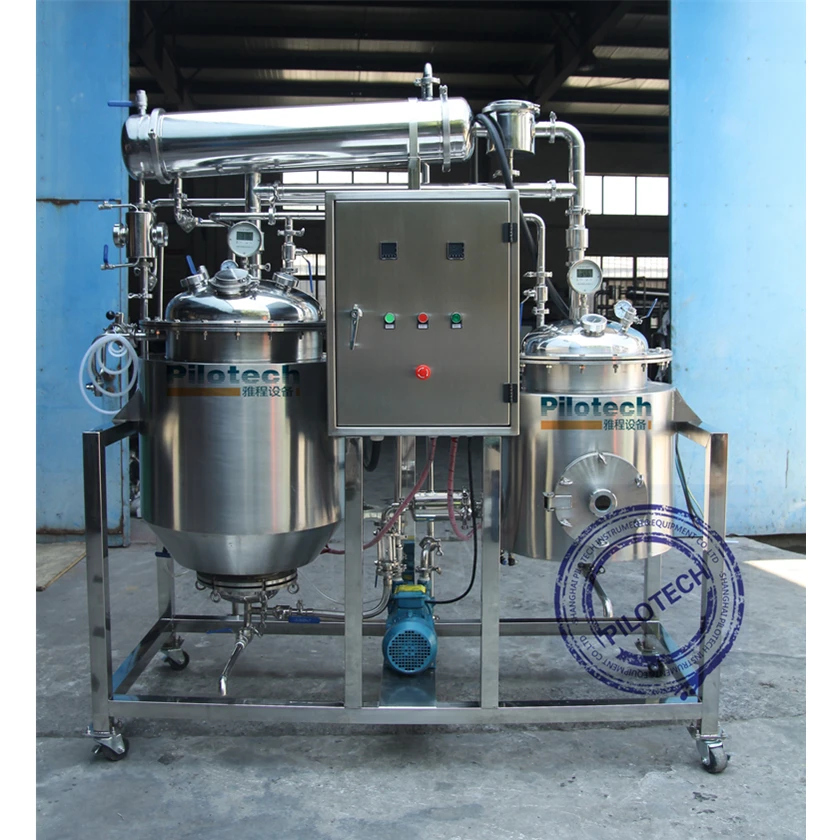

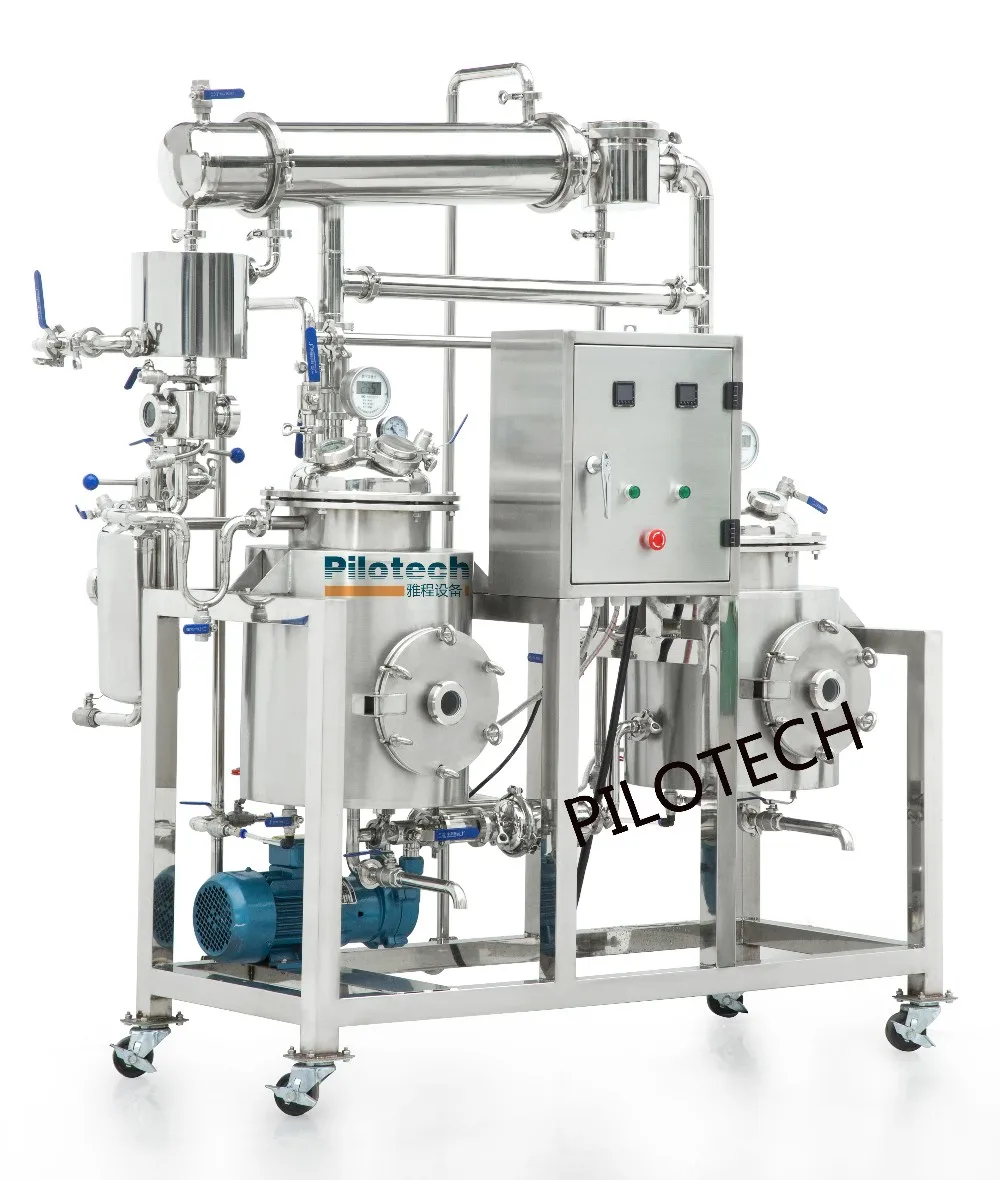

YC-100 Multifunctional Extracting And Concentration Tank
Pilotech YC-100 Extraction Machine is suitable for the preparation of a small number of materials in university & research institutes, food, and pharmaceutical enterprises, new product development, etc.
The machine is small in size, low noise, jacketed heating method, safe and reliable, with built-in stainless steel water ring vacuum pump to achieve vacuum pressure-reduction and low-temperature extraction.
Function
Water extraction or alcohol extraction from herbs and natural products, normal pressure hot reflux water extraction or alcohol extracting, normal pressure outer circulation concentration, atmospheric concentration, vacuum concentration, organic solvent recovery (online ultrasonic extraction function is optional)
Technical Parameters
Extraction tank volume | 100L | Effective volume of extraction tank | 0.10 m³ |
Effective volume of concentration tank | 0.08 m³ | Effective volume of recovery tank | 0.05 m³ |
Cooling water consumption | 1.8t/h | Evaporation capacity (clear water) | 8-12Kg/h |
Voltage | 380V | Power | 27KW |
Concentration ratio | 1.1 ~ 1.38 | Cooling water pressure | <0.3 MPa |
Evaporation chamber vacuum degree | ~-0.08MPa | Precision of temperature | ±2℃ |
Main body material | SUS304 (SUS316 optional) | Dimensions | 1650X800X2000 mm |
MAIN FEATURES
1) The floorarea is small, only 2.0 square meters, and it can be used when it is connected to water and electricity. The minimum feeding amount is 2KG, and the maximum feeding amount is 10KG.
2) The extraction system is equipped with a reflux condenser and an oil-water separator, which can effectively recover the volatile aromatic oil in the material.
3) Jacketed water bath heating (no pressure in the interlayer), uniform heating
4) The set is equipped with a concentration tank, which can be concentrated under vacuum and reduced pressure, and the concentration efficiency is higher, with the concentration specific gravity can reach 1.1-1.3.
5) It can be adapted to water extraction and alcohol extraction. It is a pilot plant for natural plant medicine extraction. It is suitable for scientific research institutions, universities, hospitals, pharmaceutical factories, and food industries which need to extract Chinese herbal medicine, tea juice and fruit juice, also helpful to the concentration and recovery of the organic solvents.
6) It integrates multifunctional extraction, vacuum concentration and ethanol recovery, and can perform heat reflux circulation extraction, concentration, conventional extraction, concentration, water precipitation (alcohol precipitation) and other operations, which simplifies the operating procedures
7) The parts of the unit in contact with the materials are all made of stainless steel, which can work under negative pressure and normal pressure.
8) Concentration at low temperature, ensuring product quality, dynamic circulating evaporation, improving heat exchange efficiency, effectively solving the problem of heat exchange efficiency decreasing as the concentration increases, saving energy consumption, and improving work efficiency
2) The extraction system is equipped with a reflux condenser and an oil-water separator, which can effectively recover the volatile aromatic oil in the material.
3) Jacketed water bath heating (no pressure in the interlayer), uniform heating
4) The set is equipped with a concentration tank, which can be concentrated under vacuum and reduced pressure, and the concentration efficiency is higher, with the concentration specific gravity can reach 1.1-1.3.
5) It can be adapted to water extraction and alcohol extraction. It is a pilot plant for natural plant medicine extraction. It is suitable for scientific research institutions, universities, hospitals, pharmaceutical factories, and food industries which need to extract Chinese herbal medicine, tea juice and fruit juice, also helpful to the concentration and recovery of the organic solvents.
6) It integrates multifunctional extraction, vacuum concentration and ethanol recovery, and can perform heat reflux circulation extraction, concentration, conventional extraction, concentration, water precipitation (alcohol precipitation) and other operations, which simplifies the operating procedures
7) The parts of the unit in contact with the materials are all made of stainless steel, which can work under negative pressure and normal pressure.
8) Concentration at low temperature, ensuring product quality, dynamic circulating evaporation, improving heat exchange efficiency, effectively solving the problem of heat exchange efficiency decreasing as the concentration increases, saving energy consumption, and improving work efficiency
9) On-line ultrasonic extraction function is optional: using energy-concentrated ultrasonic generator, due to the unique physical effect and cavitation effect of ultrasonic, it can promote the breakage or deformation of plant cell tissue, vibration, acceleration impact, and sound pressure between solute particles The shear equivalent stress is strengthened, and the extreme high temperature and high pressure at the local point of the material makes the large-volume Chinese medicinal materials fully contact the ultrasonic probe, accelerates the uniform precipitation of the active ingredients in the raw material medicine, and the extraction rate is significantly higher than that of the traditional process. Ultrasonic extraction is extraction at room temperature, which effectively reduces the loss of heat-sensitive components. Optional frequency range: 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60KHZ.
Product Details

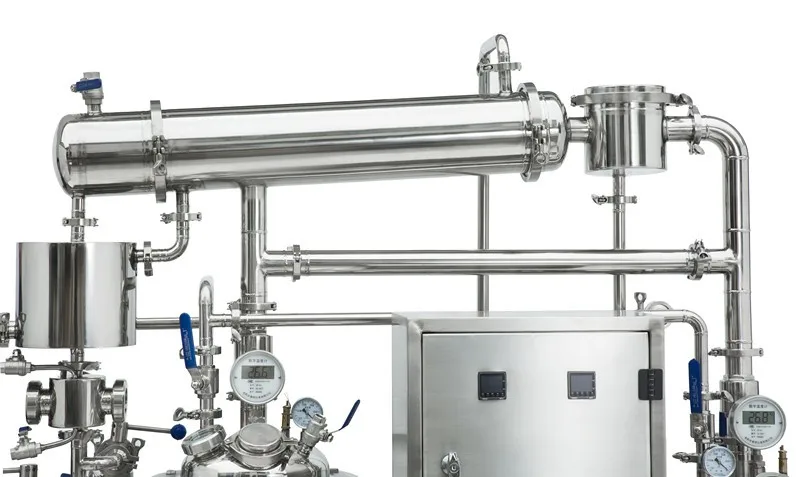

YC-100 Lab multi-functional extracting and concentration tank can be used for extracting and concentration of Chinese medicinal herbs and natural products (water and organic solvents) and recovery of volatile aromatic oil with a concentration ratio of 1.1-1.38. The unit consists of extracting tank, reflux condenser, reflux cooler, volatile aromatic oil collector, filters, tubular heater, evaporator, recovery condenser, recovery cooler, collecting tank, stainless steel rack and connecting pipe valves, and meters, etc.
Extract Tank
Add the material and solvent into this tank to start the extracting . Integrated and compact design allows less installation area . Works directly with water and power.

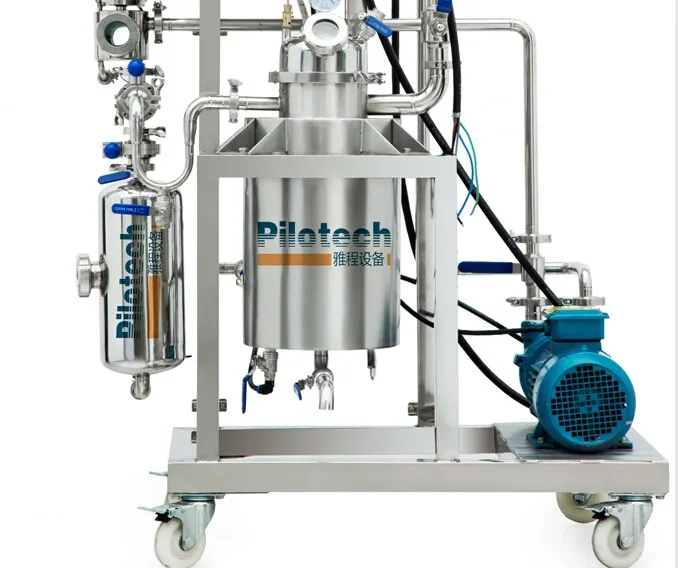

Concentrate Tank
The system are equipped with outer circular evaporating concentrator with high concentrating efficiency, concentration ratio 1.1 ~ 1.38. Low temperature concentration ensures the material property stability.
Solvent Recovery Tank
When doing concentration , this tank can recovery the solvent

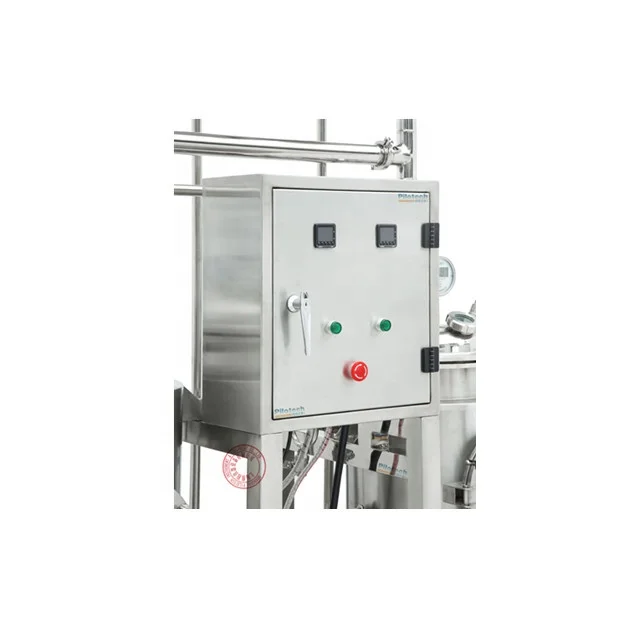

Omron Temperature Controller
This part is to operate the temperature when extracting and concentrating .

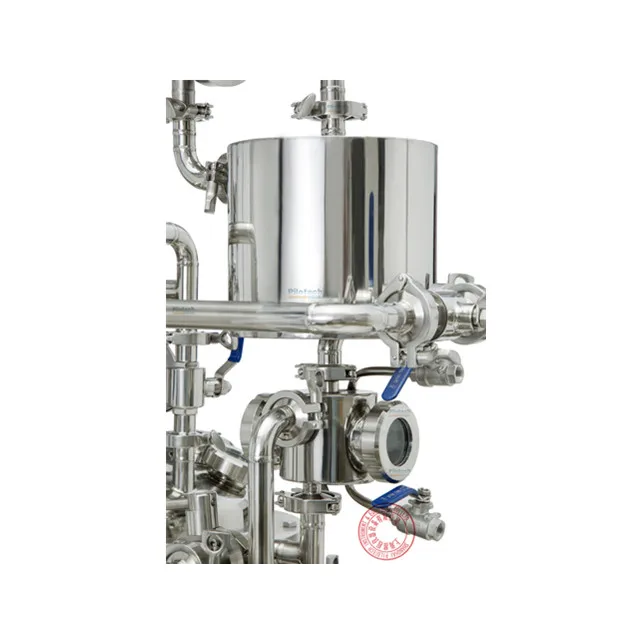

Sight Glass
Viewing the process through the sight glass.The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
APPLICATIONS
100L lab extract machine
Our extraction tank is multifunctional . Mainly used for the extraction and of plants , concentrate the extracing liquid , recovery of volatile essential oils . Such as tea , hemp , seeds , roses , Chinese herbal medicine , etc .
Its functions include hot reflux extacting , percolating extracting , vacuum low-temperature extracting and vacuum low temperature concentrating , volatile essential oil recovery.
Weclome to consult us !
Contact person: Vicky Xiang
Email : vicky@shpilotech.com
Whatsapp : +86 13311639216
Its functions include hot reflux extacting , percolating extracting , vacuum low-temperature extracting and vacuum low temperature concentrating , volatile essential oil recovery.
Weclome to consult us !
Contact person: Vicky Xiang
Email : vicky@shpilotech.com
Whatsapp : +86 13311639216
Our Company
We have been focused on the research, development and production of extraction tank used in the laboratory since 2005 . The extraction tank low noise and little impact on the environment , are suitable for laboratory.In China, the extraction tank is quite popular among pharmaceutical companies , the universities related to the medicine , food science and engineering . Exported to 50 countries , 2000+ users around the world .
Pilotech extraction equipment is suitable for small-scale , medium-scale and pilot tests in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
Factory Warehouse
Our Customer
FIC in July 2021.
Product Packing
The package is standard export Tri-ply wood. We will use pe film for packing or pack it according to customers special request.The tri-plywood packing are very firm, suitable for sea, air and land transport ,express(UPS, Fedxex, DHL).
