BCuP 2 BCuP 3 BCuP 5 BCuP 6 welding wires silver phos copper brazing welding rod flat rod
- Category: >>>
- Supplier: Shijiazhuang Shiqiao Electric Welding Material Co. Ltd.
Share on (1600515247055):
Product Overview
Description
Product Overview
0% SILVER BRAZING ALLOY WELDING WIRE COPPER WIRE BCUP-2
most copper-to-copper or brass joints where good fit-up exists,
and the assemblies are not subject to vibration or movement.
Developed primarily for use on copper, this alloy may also be used on other nonferrous copper base alloys.
By virtue of its phosphorus content, this product is self-fluxing on copper only applications.
A flux should be used when brazing brass or bronze with this product.
FEATURES AT A GLANCE
Standard
AWS Class: BCuP-2
Alloy: BCuP-2
ASME SFA A5.8
Certification: AWS A5.8/A5.8M:2011
AWS Class: BCuP-2
Alloy: BCuP-2
ASME SFA A5.8
Certification: AWS A5.8/A5.8M:2011

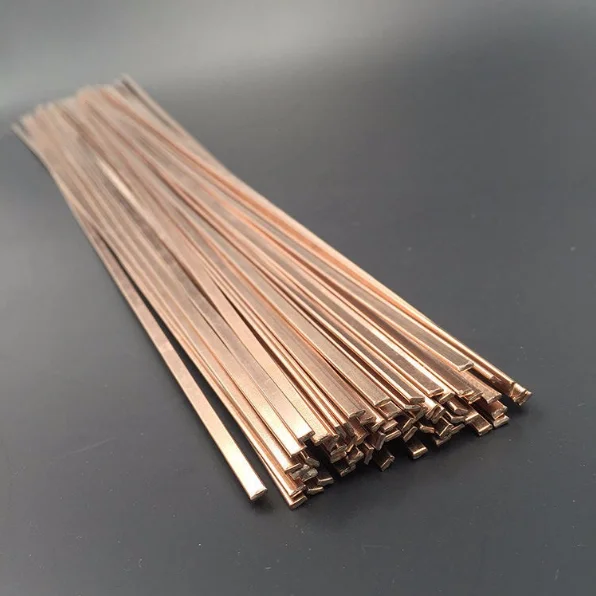

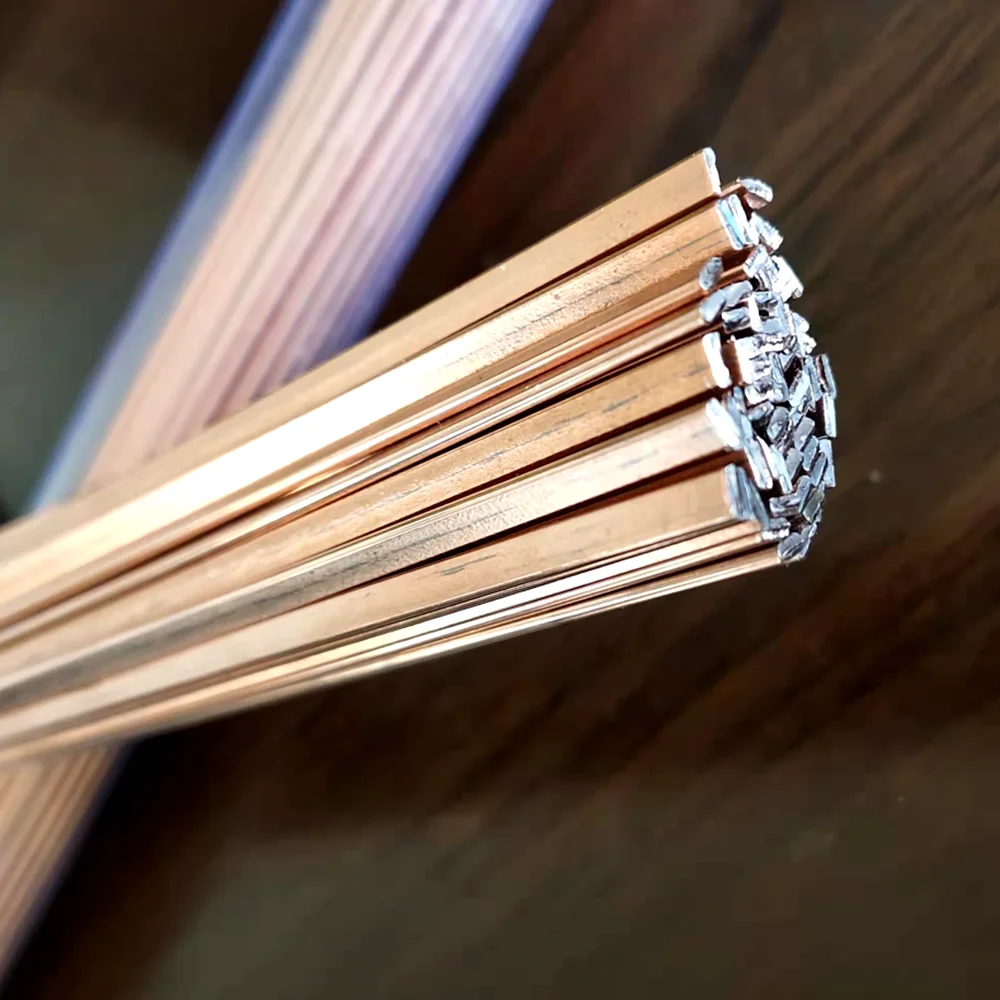

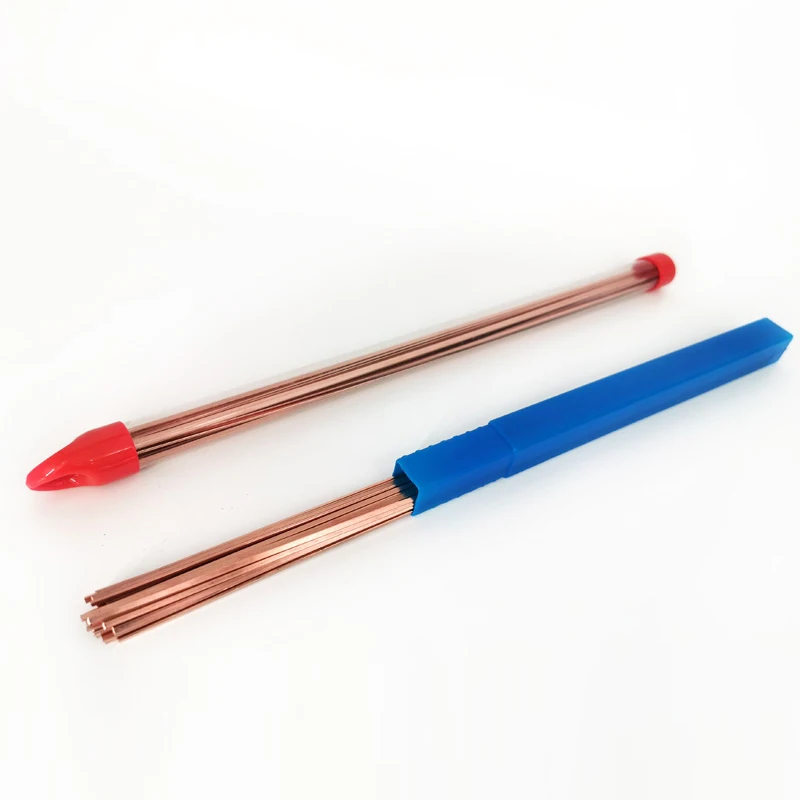

phos-copper brazing alloy flat rod BCuP-2
phos-copper brazing alloy round rod BCuP-2
copper and brass brazing welding rodd
Phos Copper Brazing flat rod size details:
Flat rods: 0.05"x1/8"x18" / 1.3x3.2x500mm
Square rods: 1/8"x1/8"x18" / 3.2x3.2x500mm
Round rods:2.0mm 2.4mm 3.0mm 3.2mm 4.0mm
1/8" dia x 20" (3.18 mm x 508 mm)
1/8" sq x 36" (3.18 mm sq x 914.40 mm)
3/32" sq x 36" (2.38 mm x 914.40 mm)
Features:
1.Brand: Stone bridge welding
2.Certificate: ISO9001-2008, CE,SGS
3.OEM: Acceptable
4.packaging can be changed according to your needs.
5.Sample: free
1.Brand: Stone bridge welding
2.Certificate: ISO9001-2008, CE,SGS
3.OEM: Acceptable
4.packaging can be changed according to your needs.
5.Sample: free
PRODUCT CONFIGURATION

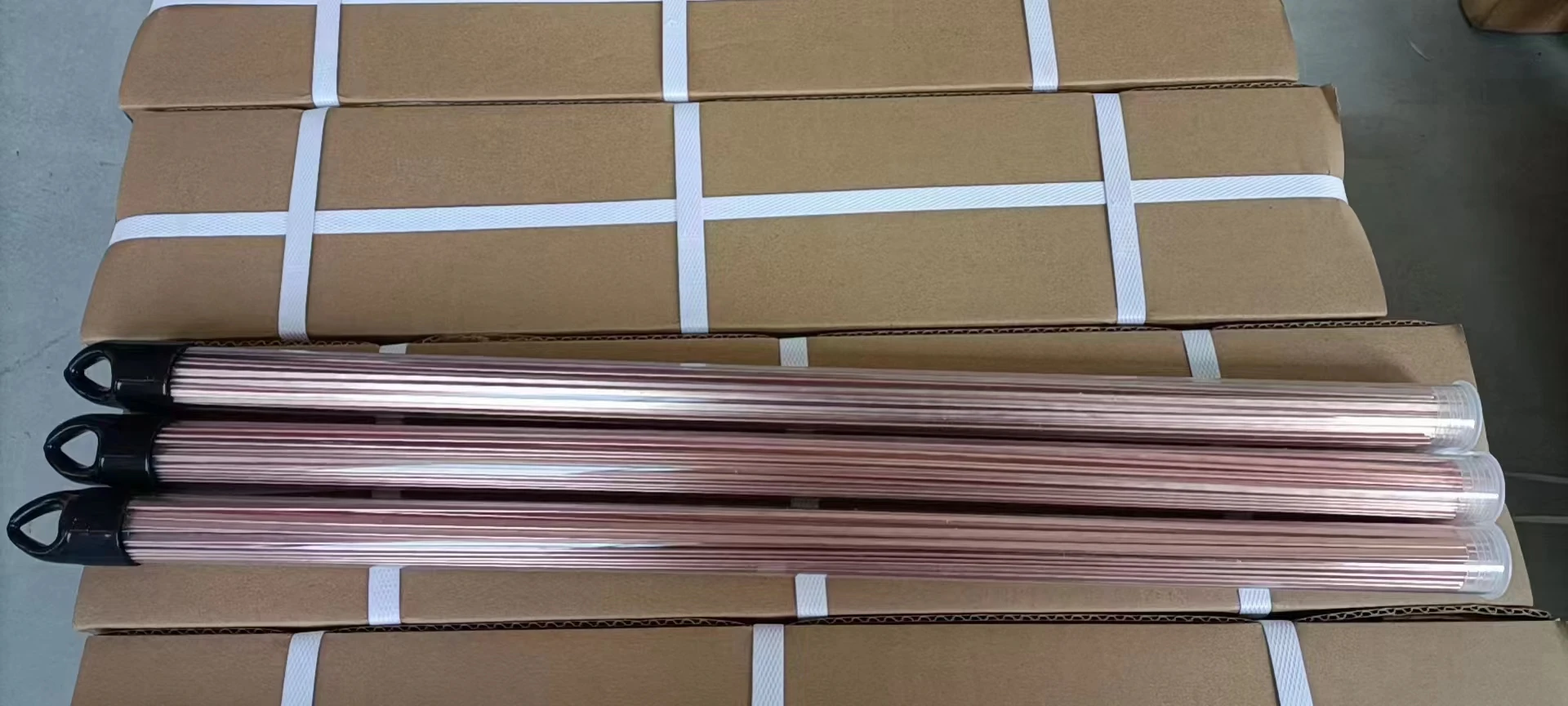

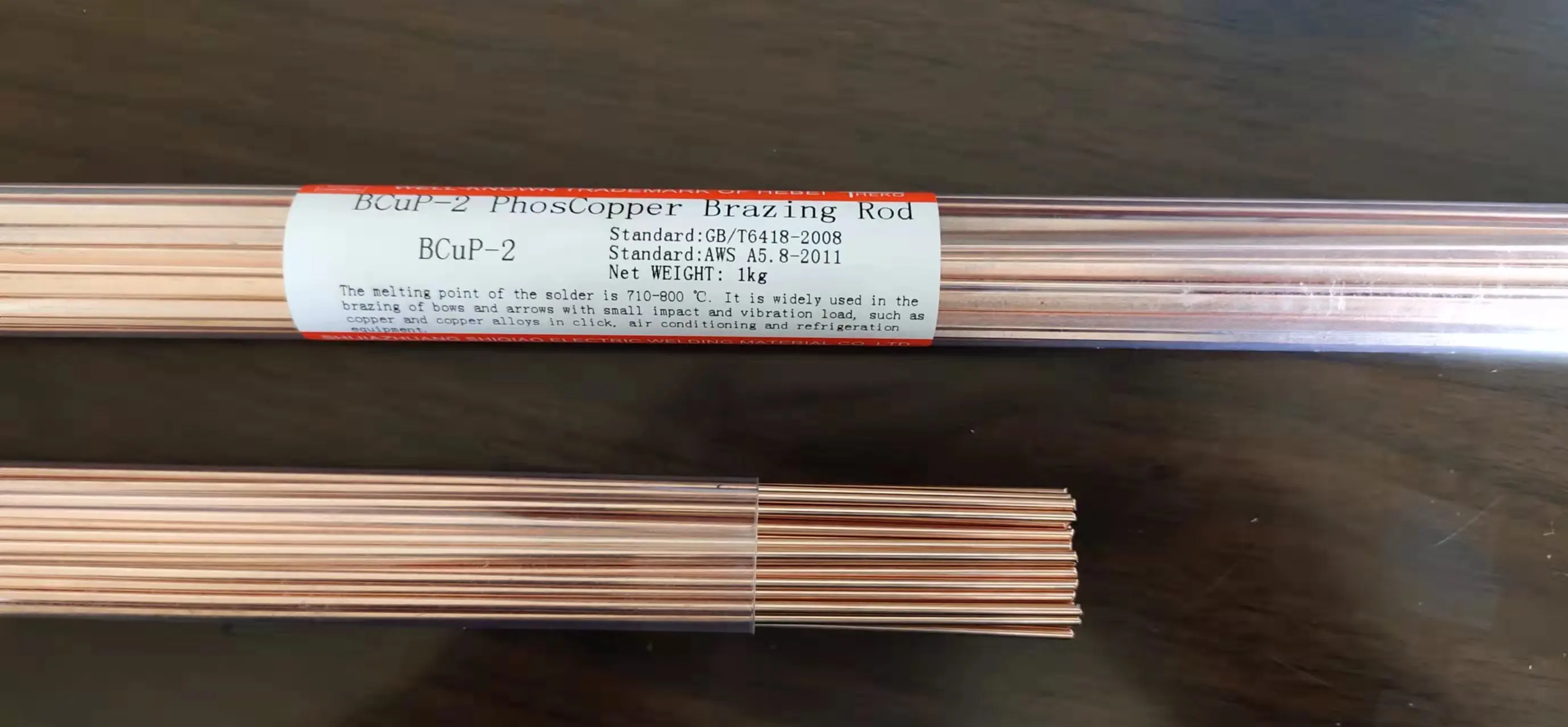

Phos-Copper (BCuP-2) 1KG Packing
Phos-Copper (BCuP-2) 1KG Packing
Phos-Copper (BCuP-2) 1KG Packing
Package and delivery:

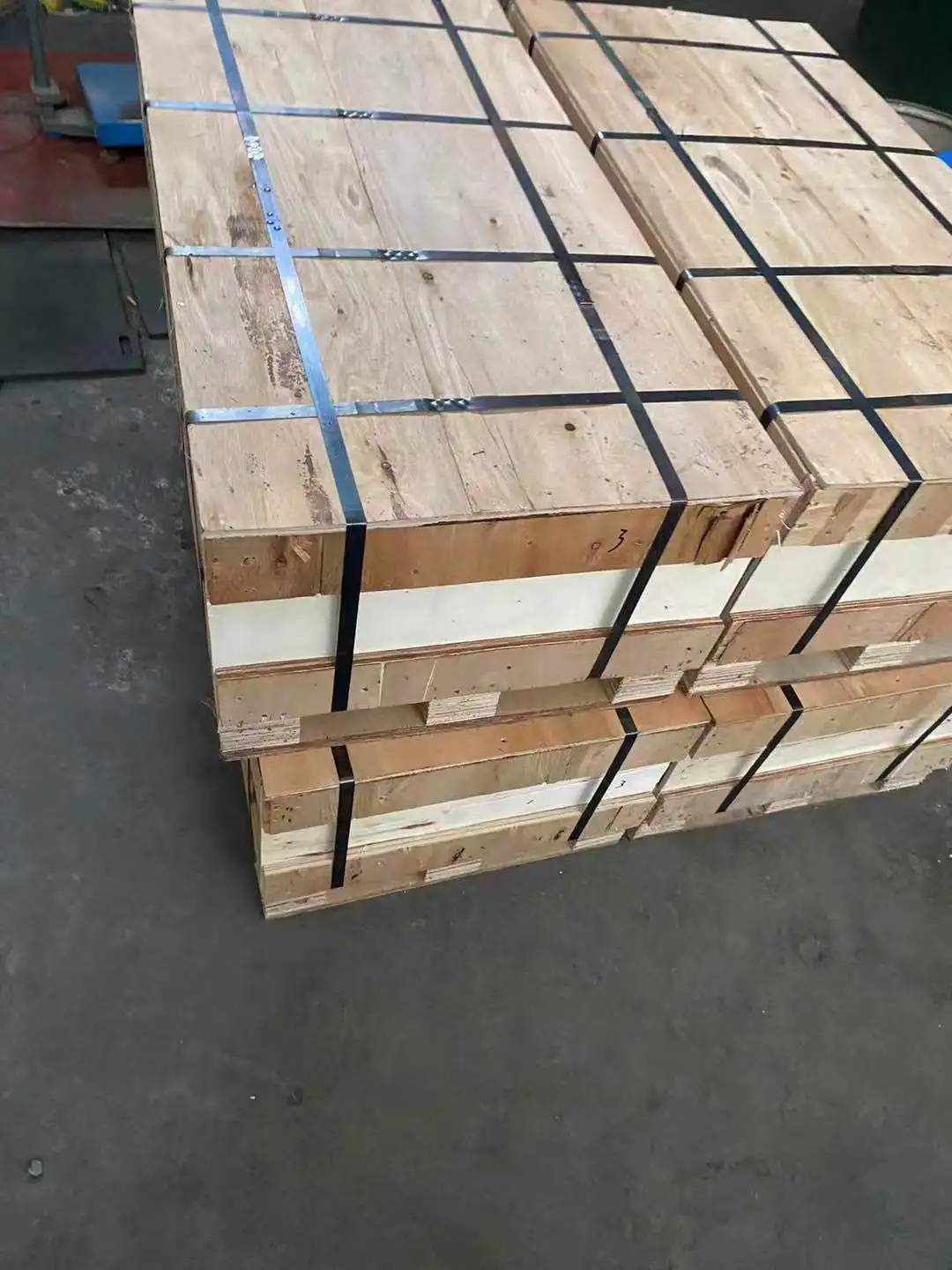

1.Packaging detail:1-5kgs/bag,500kgs/wooden box
2.Within 20days after receiving your order.
1.Packaging detail:1-5kgs/bag,500kgs/wooden box
2.Within 20days after receiving your order.
Advantages:
1.Good mobility and processing property
2.Low price and excellent performance in brazing
3.It has self-brazability and doesn’t need flux ,and saves time and energy
4.Pho-copper-silver brazing rings have good wettability.
5.High joints strength lower melting point and good toughness of brazing seam
1.Good mobility and processing property
2.Low price and excellent performance in brazing
3.It has self-brazability and doesn’t need flux ,and saves time and energy
4.Pho-copper-silver brazing rings have good wettability.
5.High joints strength lower melting point and good toughness of brazing seam
PRODUCT SPECIFICATIONS
Chemical composition and Application | ||||||||||||
AWS standard | Chemical compositions | Melting Range | Application | |||||||||
(%) | (℃) | |||||||||||
P | Ag | Cu | Sodify | Liquefy | ||||||||
BCuP-2 | 6.8-7.5 | / | Rem | 710 | 795 | Good flow property , economical , widely used in the brazing of presenting in air-conditioners and the no-vibratim load areas. | ||||||
BCuP-3 | 5.8-6.7 | 4.7-6.3 | Rem | 645 | 815 | Have certain plasticity ,suitable for brazing copper alloy and some copper ,which can't conjugate tightly. | ||||||
BCuP-5 | 4.5-5.0 | 13-15 | Rem | 640 | 815 | Brazing of copper, copper alloy, silver and molybdenem. | ||||||
BCuP-6 | 6.5-7.2 | 1.8-2.2 | Rem | 645 | 788 | Mechanical-electrical good flow property and filling capability | ||||||
