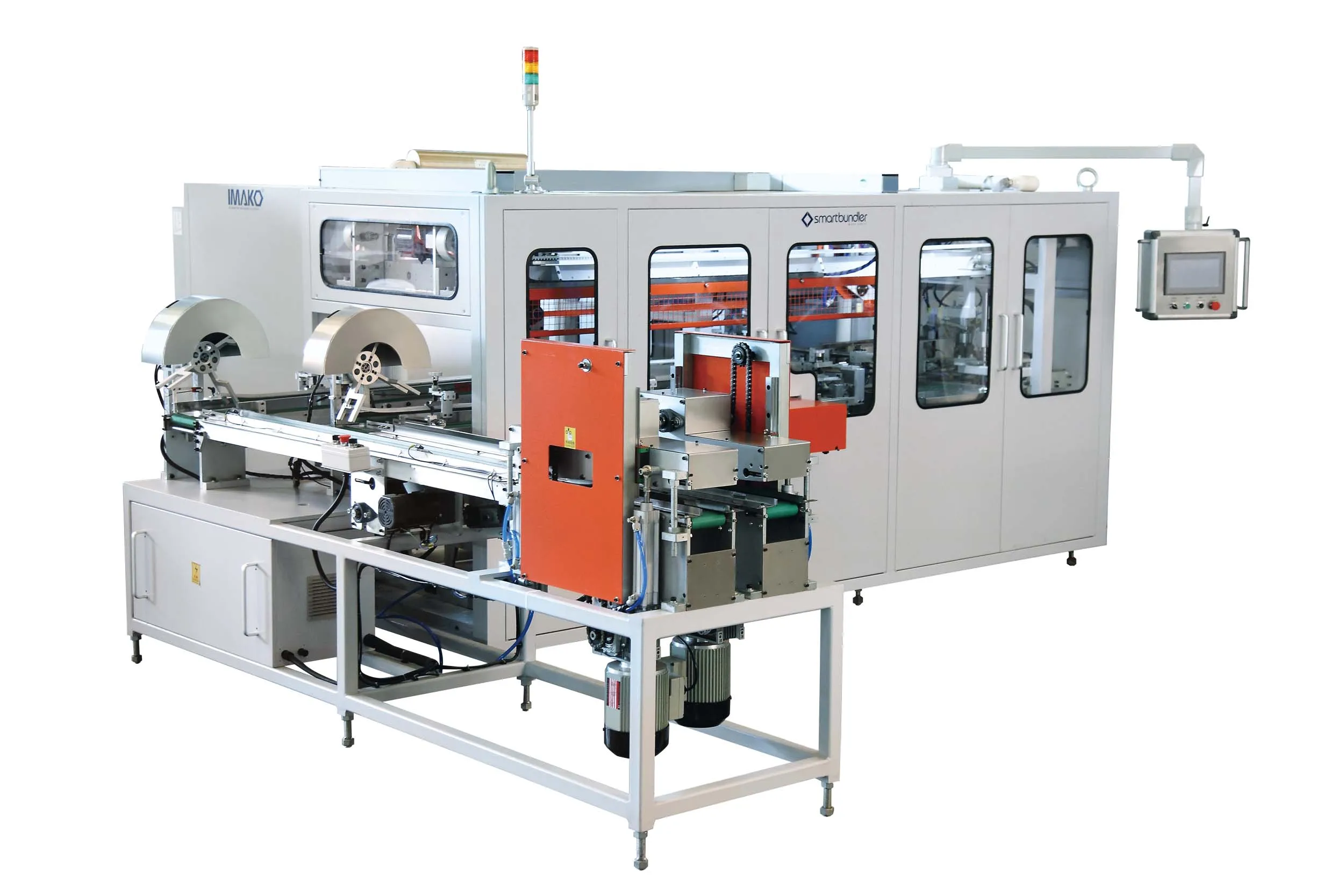

Roll Paper Machine High Speed Cutting Paper Roll Bundling Packing Single Packed/Unpack Core/Coreless Roll Paper
- Category: >>>
- Supplier: Shantou Imako Automatic Equipment Co. Ltd.
Share on (1600515256242):
Product Overview
Description
Product Description
Max. Work Speed: | 22Pack/min |
Total Power: | 20.2KW |
Pack Range(mm): | Length (L): 170-660 Width (W): 180-260 Height (H): 85-170 |

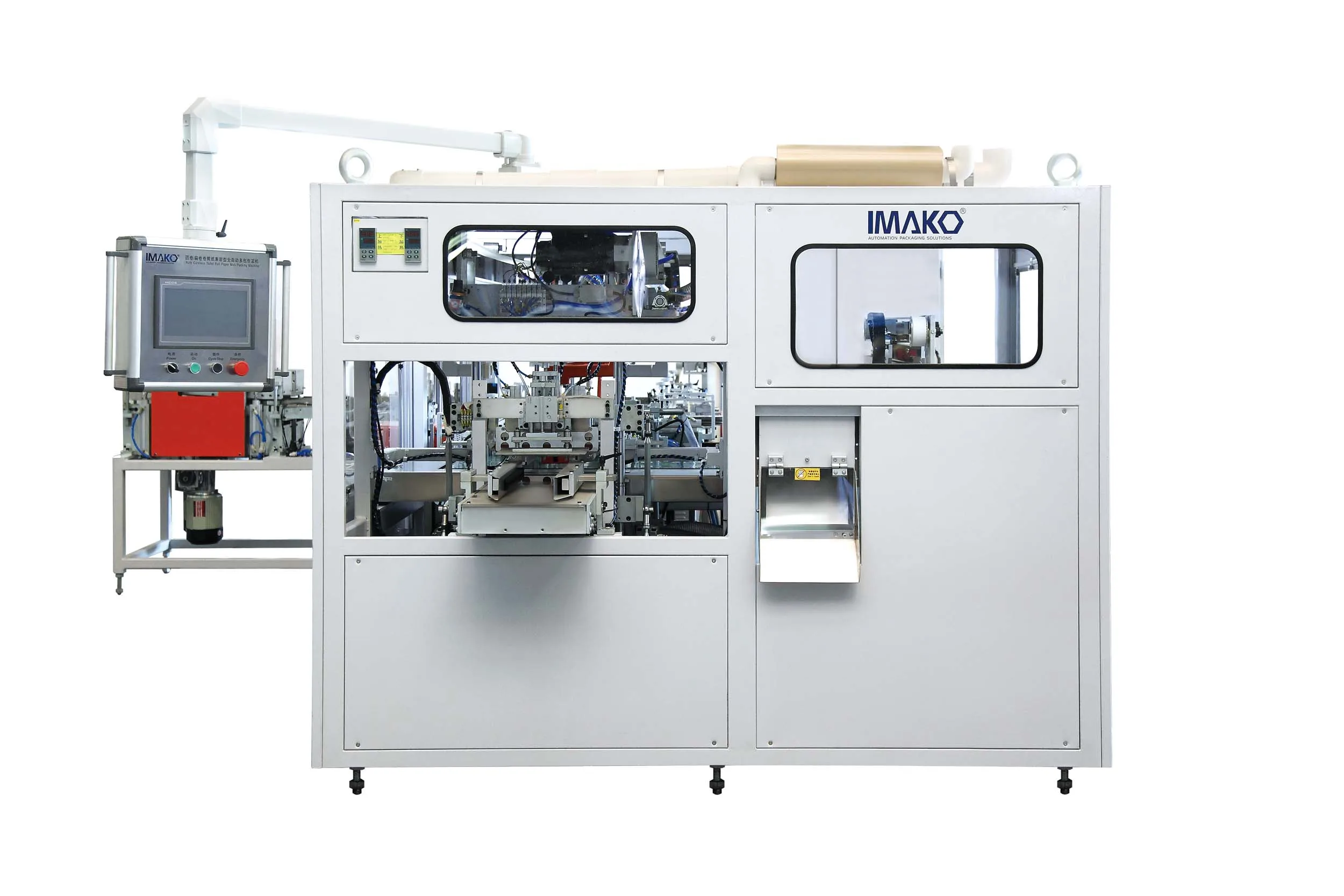

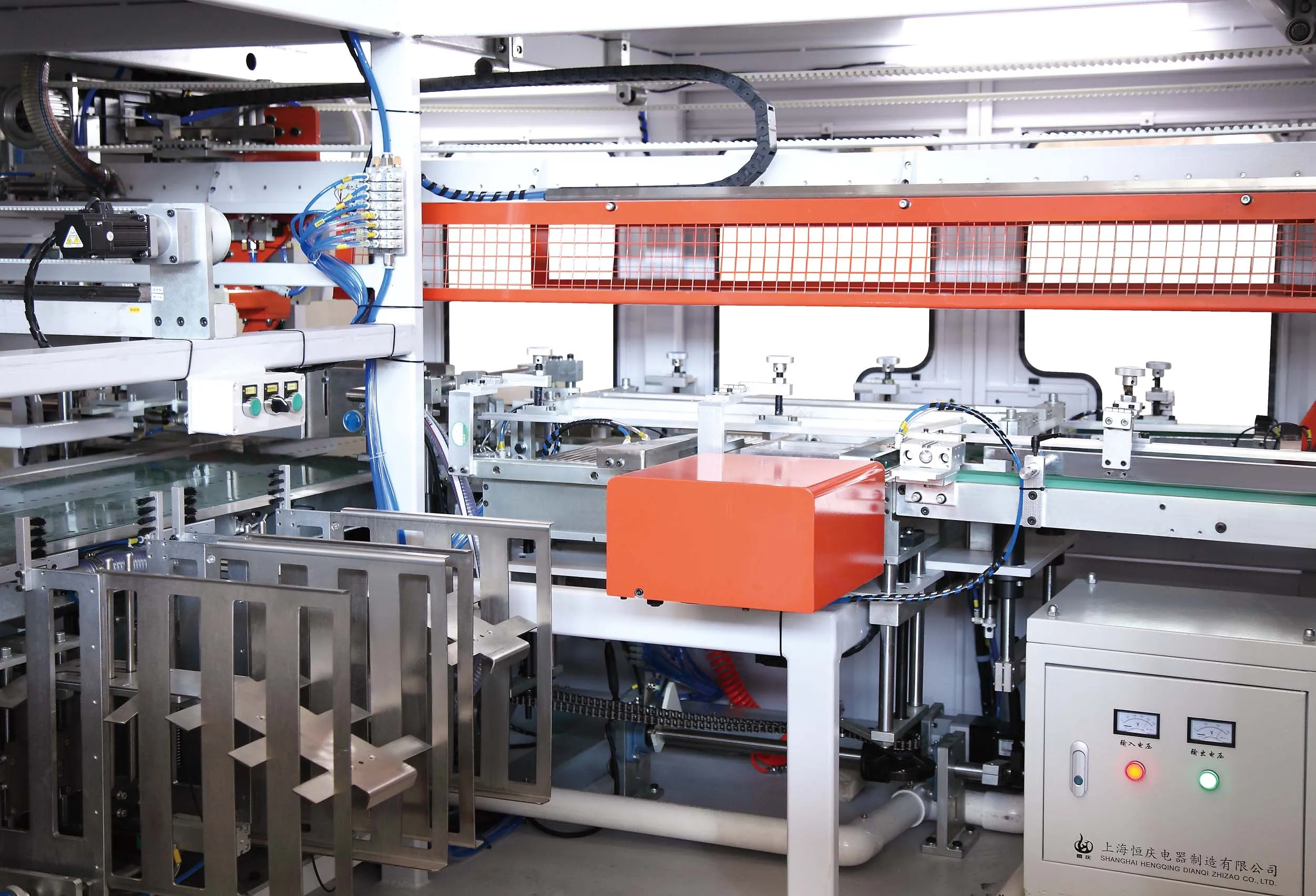

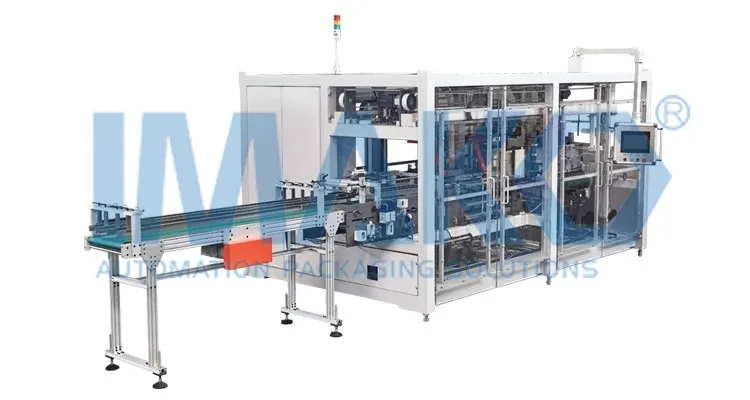

TP-B30R series automatic single roll paper bundle packing machine
★TP-B30R series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.
★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.★Adopts central vacuum management mode, can efficiency lower power consumption.
★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.
★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

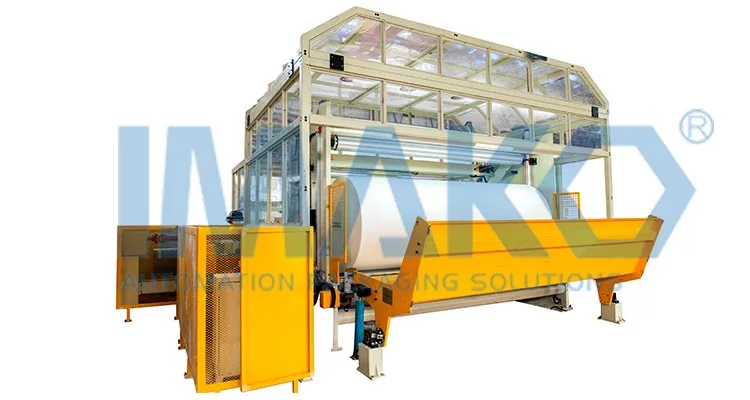

Roll Paper Rewinding Machine
Machine model:TP-R32800/TP-R32900/TP-R33600/TP-R34000/TP-R34300
Original roll diameter：1500mm,2000mm,2500mm,3000mm
Width of original jumbo roll：
2750mm,2850mm,3550mm,3950mm,4250mm
Production speed：300m/min
Count mode of paper roll：By diameter or by sheets.
Power consumption：72KW(depends on the configuration)
Optional device：Embossing unit,lamination unit,Glueless seal unit
Negotiation to pay an extra price to have this device
Original roll diameter：1500mm,2000mm,2500mm,3000mm
Width of original jumbo roll：
2750mm,2850mm,3550mm,3950mm,4250mm
Production speed：300m/min
Count mode of paper roll：By diameter or by sheets.
Power consumption：72KW(depends on the configuration)
Optional device：Embossing unit,lamination unit,Glueless seal unit
Negotiation to pay an extra price to have this device
Paper Cutting Machine
Model Number:JRS1-3000/JRS1-3600/JRS1-4000/JRS1-4300 Production speed:800m/min,1000m/min or 1200m/min
Diameter of original roll: 2000/2500/3000mm
JUMBO ROLL WIDTH: 2950-3550-3950-4250mm
Unwinder: 1-4sets
Slitting system:Import slitting knives
Embossing device:steel to steel
Negotiation to pay an extra price to have this device
JUMBO ROLL WIDTH: 2950-3550-3950-4250mm
Unwinder: 1-4sets
Slitting system:Import slitting knives
Embossing device:steel to steel
Negotiation to pay an extra price to have this device

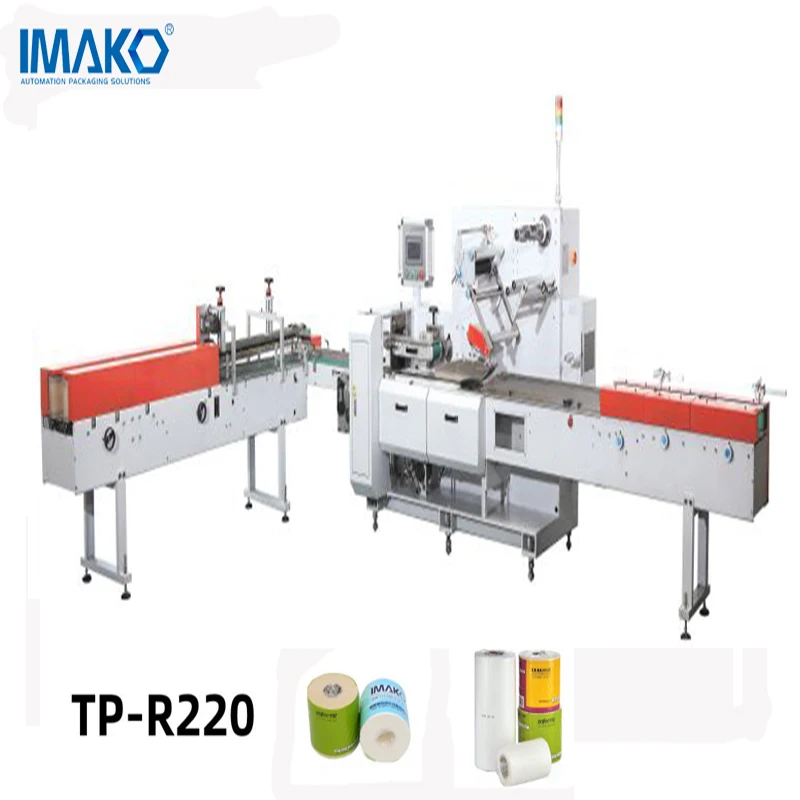

automatic single roll paper wrapping machine
Design packing speed：220packs/min
Pack Range(mm):
Length (L): 80-220
Diameter (D): 80-130
Stable packing speed：≤200 pack/min（relate to product size）
Length (L): 80-220
Diameter (D): 80-130
Stable packing speed：≤200 pack/min（relate to product size）
Maximum flm width(mm)：430
Cutter configuration：Double cutters
Film install structure：Air shaft
Machine weight(KG)：1800
Machine noise(db)：≤78dB
Percentage of pass：≥97%
Efficiency：≥85%
Power supply：380V/60Hz
Cutter configuration：Double cutters
Film install structure：Air shaft
Machine weight(KG)：1800
Machine noise(db)：≤78dB
Percentage of pass：≥97%
Efficiency：≥85%
Power supply：380V/60Hz
Negotiation to pay an extra price to have this device
SPECIFICATIONS OF TOILET/KITCHEN PAPER BUNDLING PACKING MACHINE | ||||||
TP-B30R main parameter configuration | ||||||
Specification/Model/ ltem | TP-B30RV、TP-B30RM | ≤22 packs/min | ||||
Scope of application | Single corelcoreless roll paper | 160-360 mm | ||||
Feeding type | ASF automatic double lanes intelligent feeding system | Exclude standing device | 3sets | |||
Design speed | 25 packs/min | relate to product size | PE pre-made bag or PE roll with gusset | |||
Stable speed | 15-22 packs/min | relate to product size | ||||
Packaging film install structure | Dual bag racks | 380V,50HZ(can be customized) | ||||
Gusset type | Vacuum mould | Mitsubishi | ||||
Scrap cut off mode | Insert & cut teeth share | Ink printer | ||||
Bag storage QTY | 600 pre-bag | Can customize if size exceed | ||||
Machine weight(KG) | 3400 | |||||
Bag material | PE film | Thickness 0.05mm | ||||

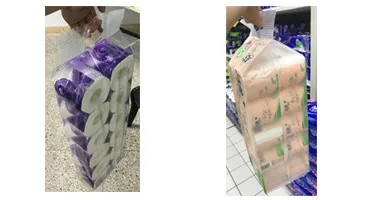

Packing style(mm) | ①L90-170 90-105 | Suitable for corel coreless roll paper | ||||
2x31 2x41 2x5/2x6 | ||||||
②L85-170 90-130 | ||||||
2x312x412x5 | ||||||
Air compression(MPA) | Pressure 0.6 Flow 300Lmin | Buyer provide | ||||
Bag type | Pre-bag | Air hole≥2.5mm | ||||
Detailed Images

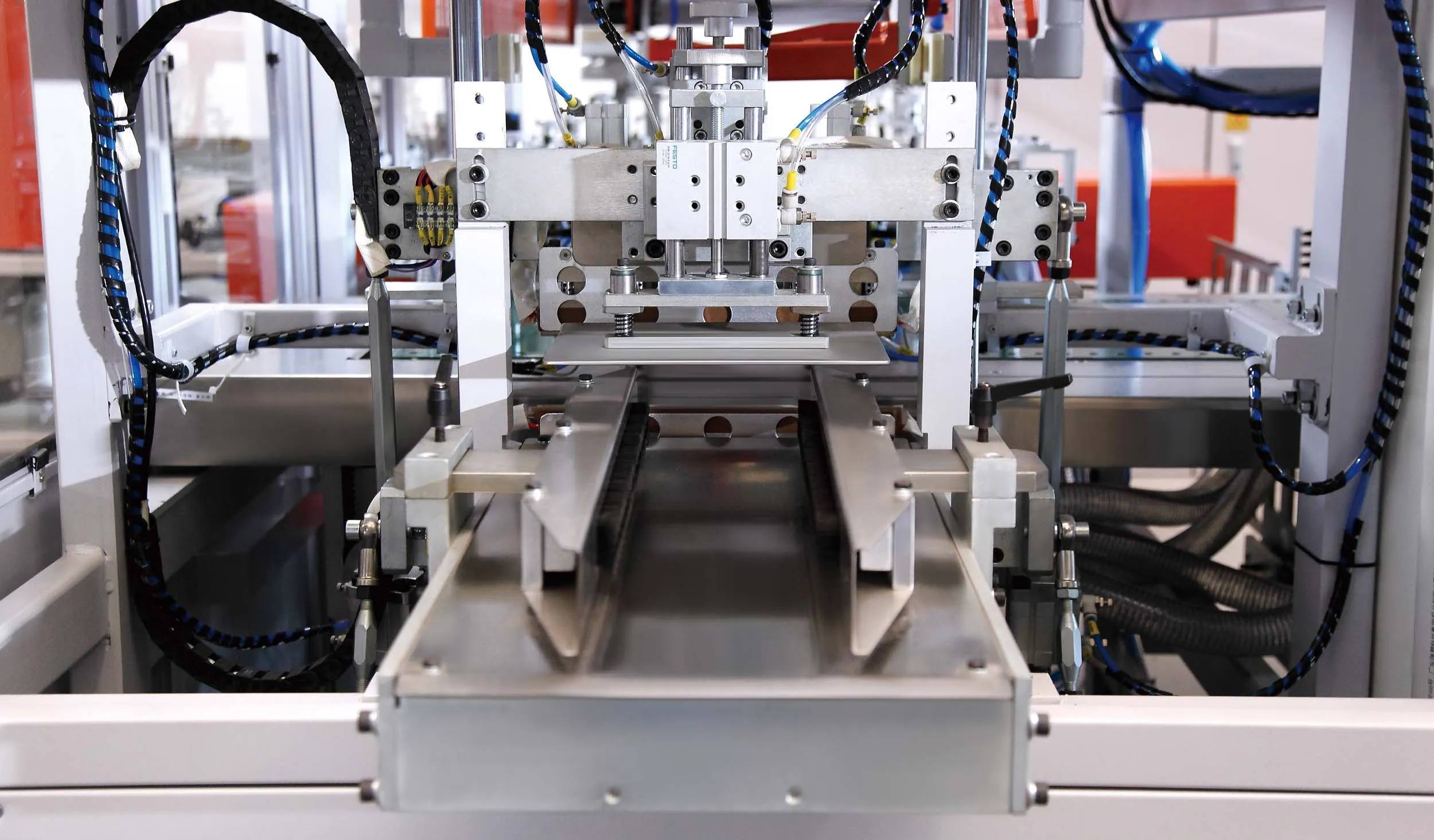

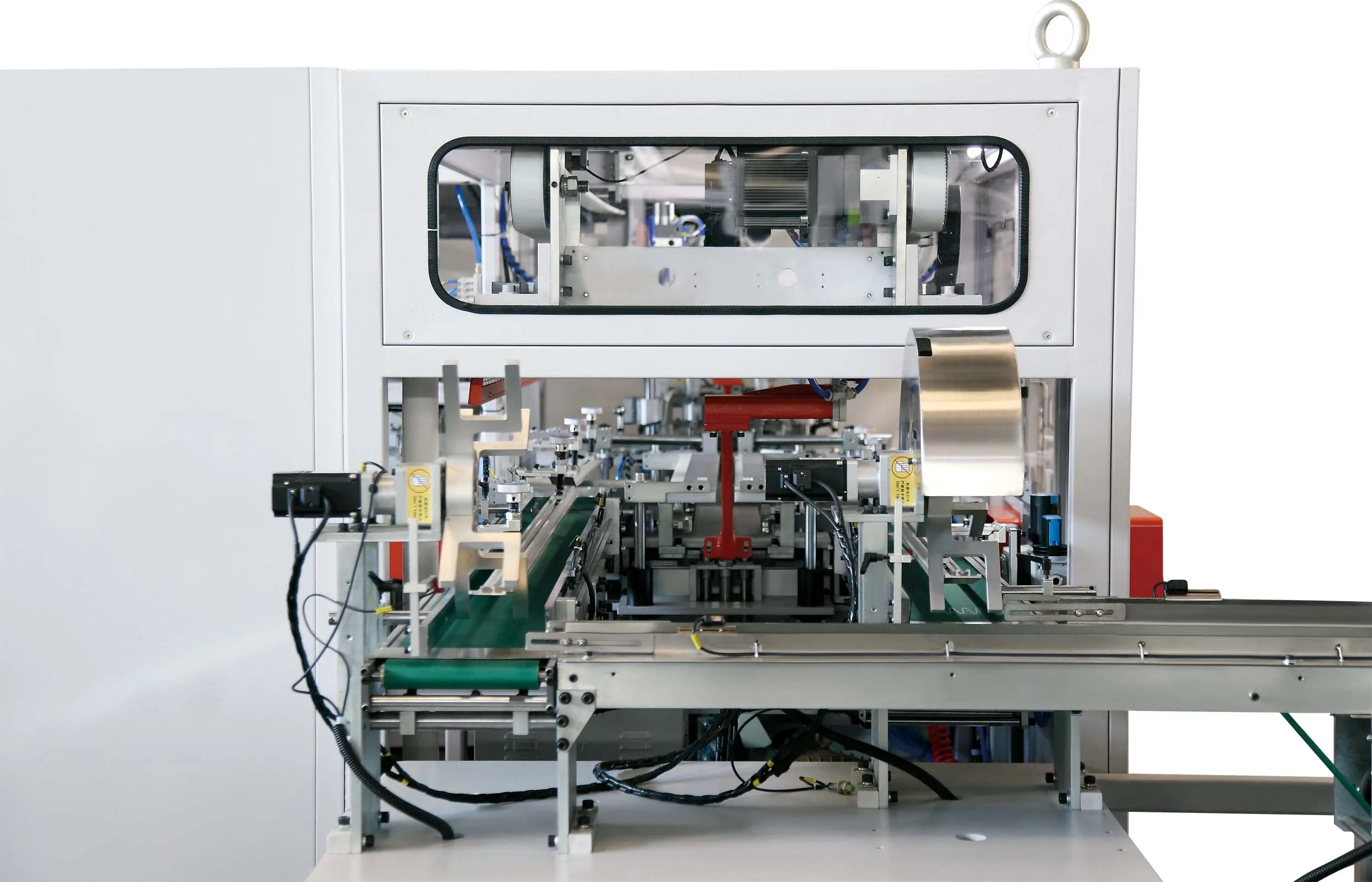

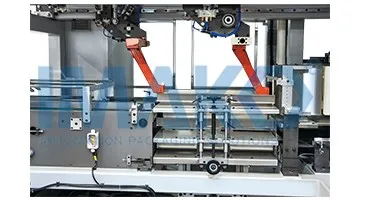

Machine Parts
Machine Parts
Machine Parts
Packing & Delivery
Wooden case package cater for ocean transportation |
Wooden case package cater for ocean transportation | ||
Our Company
Shantou IMAKO Automatic Equipment Co.,Ltd.
Our company is found in year 2011 by a group of experienced tissue machinery sales and engineers.On the fist year,our annual sales volume is around 1.38 million USD.After seven years' development,with strong R & D team and excellent quality of machines,our annual sales volume has broken trhough 18 million USD.All the big companies of China are cooperated with us in our packing line and our machines has been sold to all over the world even in Southc Africa such as Brazil and Argentina.
IMAKO is capable to provice you top quality machines and excellent after sales service.Welcome to send us inquiry and come to our facotry to discuss more details.
Our partners:
FAQ
1.Are you manufacturer or trading company?
We are manufacture for automatic tissue packing machine,welcome you to visit our factory at anytime.
2.Where is your factory located?
Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.
3.What is the warranty of your machines.
All of our machines have one year's warranty.
4.How long is the delivery time?
It depends on the machine models and your requirement on packing sizes.Usually is 30-60 days.
