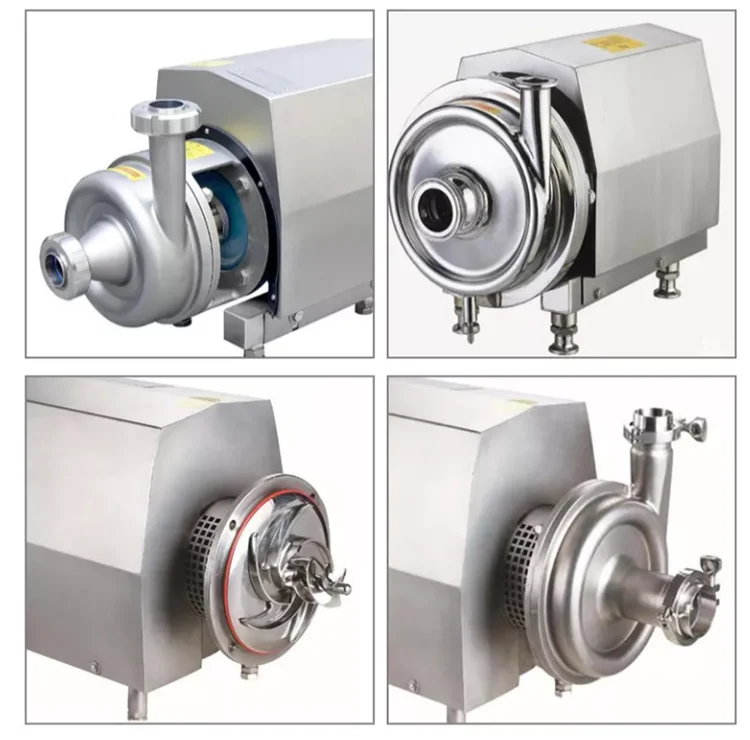

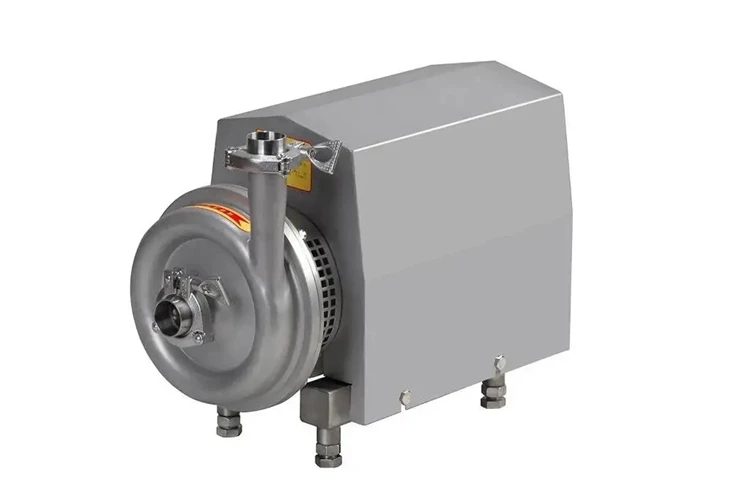

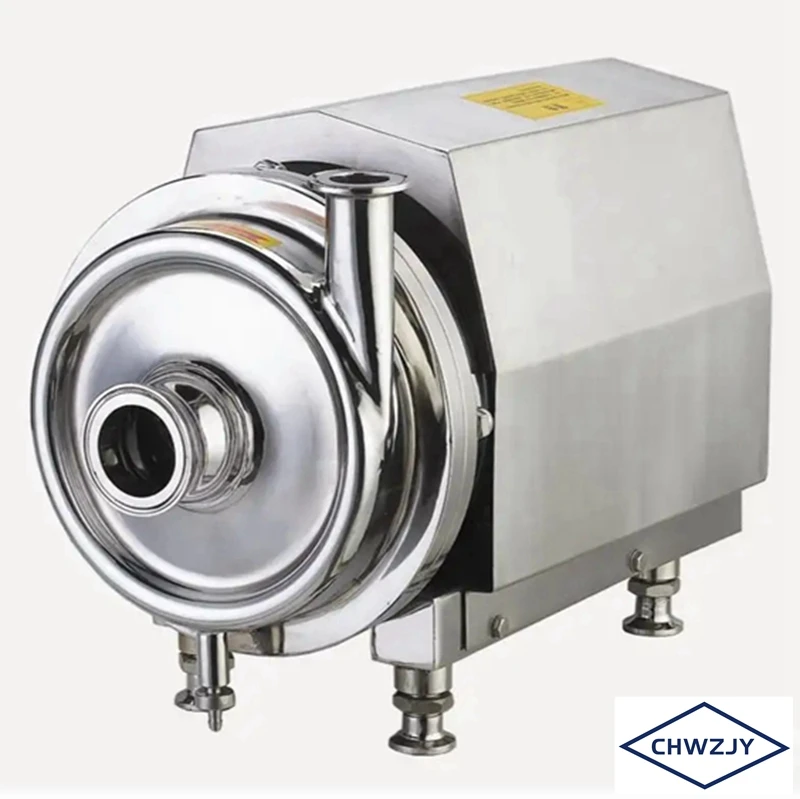

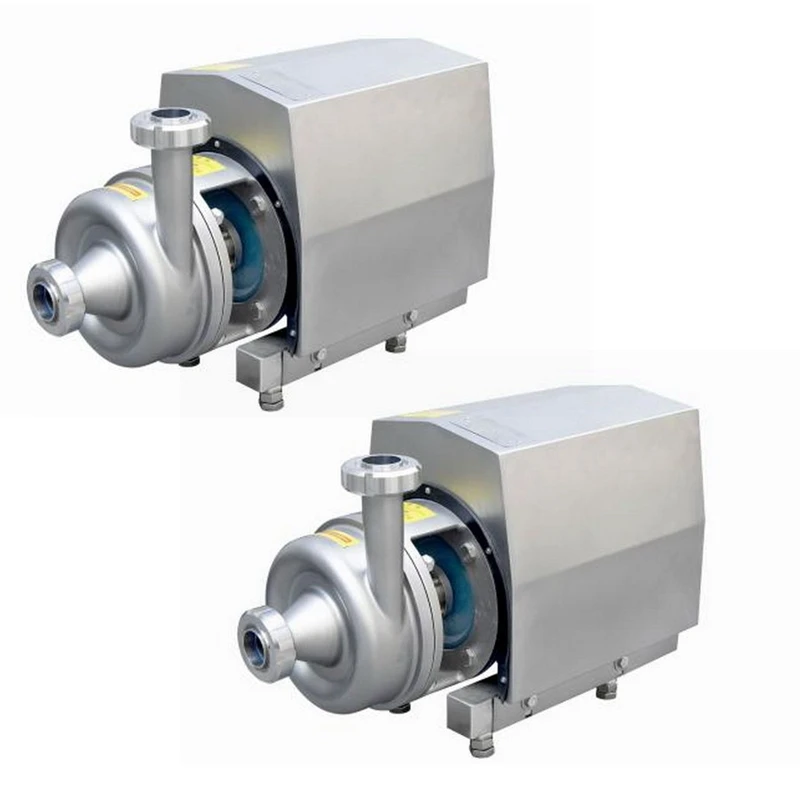

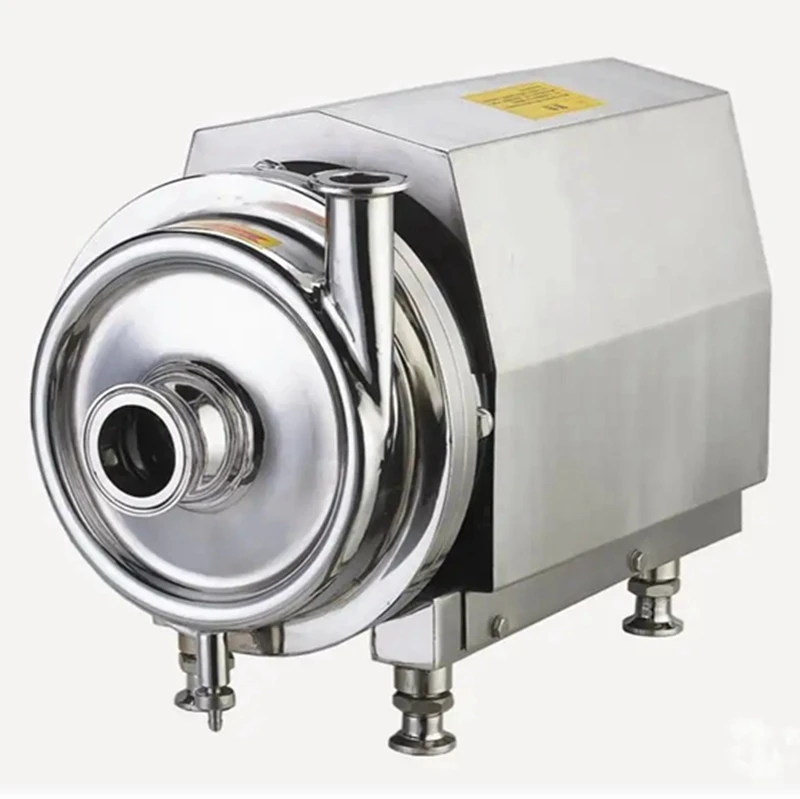

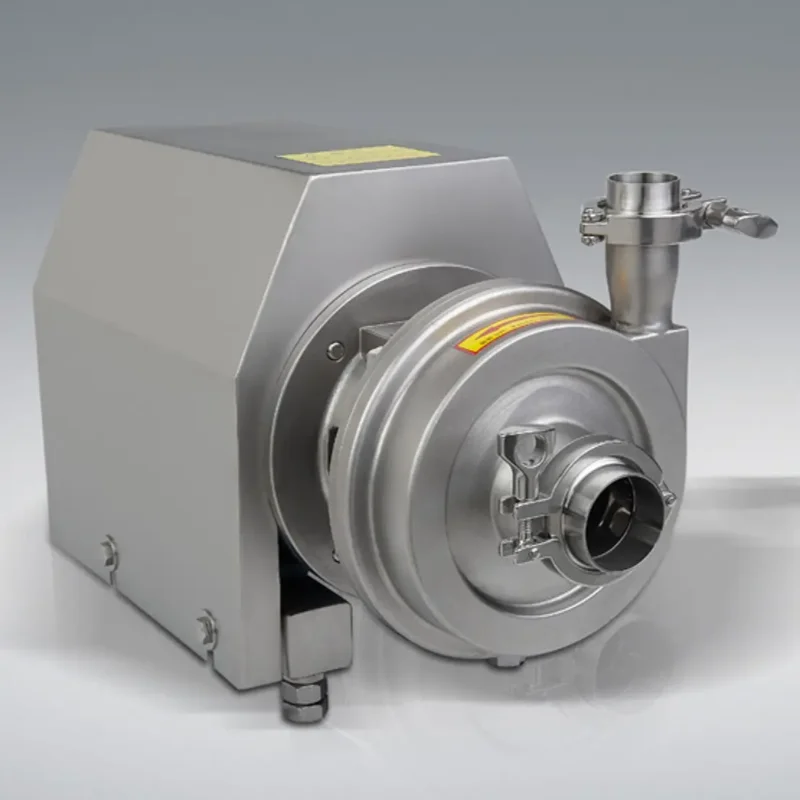

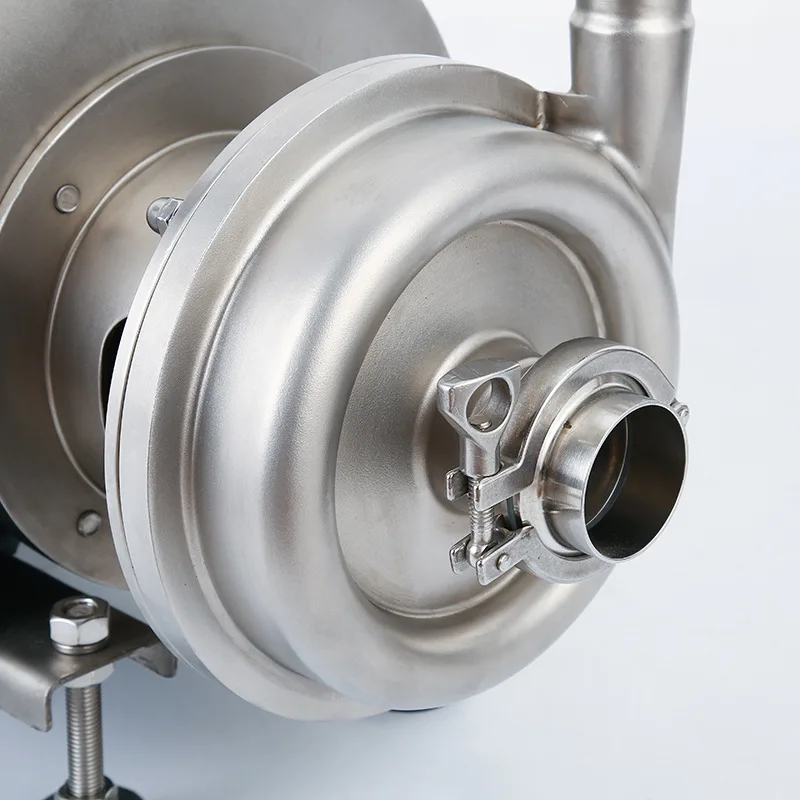

Factory Price Stainless Steel sanitary Horizontal vertical Centrifugal Pump Water Pump Milk Beer Juice transfer Centrifugal Pump
- Category: >>>
- Supplier: Wenzhou Jingyu Technology Co. Ltd.
Share on (1600515272573):
Product Overview
Description
Profile type | Sanitary centrifugal pumps | ||||
material | SS304 or SS316L | ||||
Pressure | 0-8bar | ||||
Flow Viscosity | 1-50pas | ||||
Impeller type | Closed impeller/Open impeller | ||||
temperature | 0-140 celsius degree | ||||
mechnical seal type | Sinlge mechanical seal | Double flushed mechanical seal | |||
connection type | Clamp | Union | Flange | ||
motor type | Normal | Ex-Proof | inverter | ||
motor cover | Round/Square | ||||
Speed | 2900RPM/3400RPM | ||||
Sanitary Centrifugal pump Model Sheet | ||||||||
Model | FLOW(T/H) | Lift(M) | Speed(RPM) | Motor(KW) | ||||
ACE-1-14 | 1T | 14 | 2900/3400 | 0.55 | ||||
ACE-3-16 | 3T | 16 | 2900/3400 | 0.75 | ||||
ACE-3-20 | 3T | 20 | 2900/3400 | 1.1 | ||||
ACE-5-24 | 5T | 24 | 2900/3400 | 1.5 | ||||
ACE-3-30 | 3T | 30 | 2900/3400 | 2.2 | ||||
ACE-5-36 | 5T | 36 | 2900/3400 | 2.2 | ||||
ACE-10-24 | 10T | 24 | 2900/3400 | 2.2 | ||||
ACE-15-24 | 15T | 24 | 2900/3400 | 3 | ||||
ACE-10-36 | 10T | 36 | 2900/3400 | 3 | ||||
ACE-20-24 | 20T | 24 | 2900/3400 | 4 | ||||
ACE-15-36 | 15T | 36 | 2900/3400 | 4 | ||||
ACE-20-36 | 20T | 36 | 2900/3400 | 5.5 | ||||
ACE-30-36 | 30T | 36 | 2900/3400 | 7.5 | ||||
ACE-40-36 | 40T | 36 | 2900/3400 | 11 | ||||
We can customize the equipment according to customer requirements. | ||||||||
Title goes here.
Product Features：
1) Material:SUS304/ SUS 316L
2) Flow rate: 1 - 40T/h
3) Pump head: 12 - 40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized

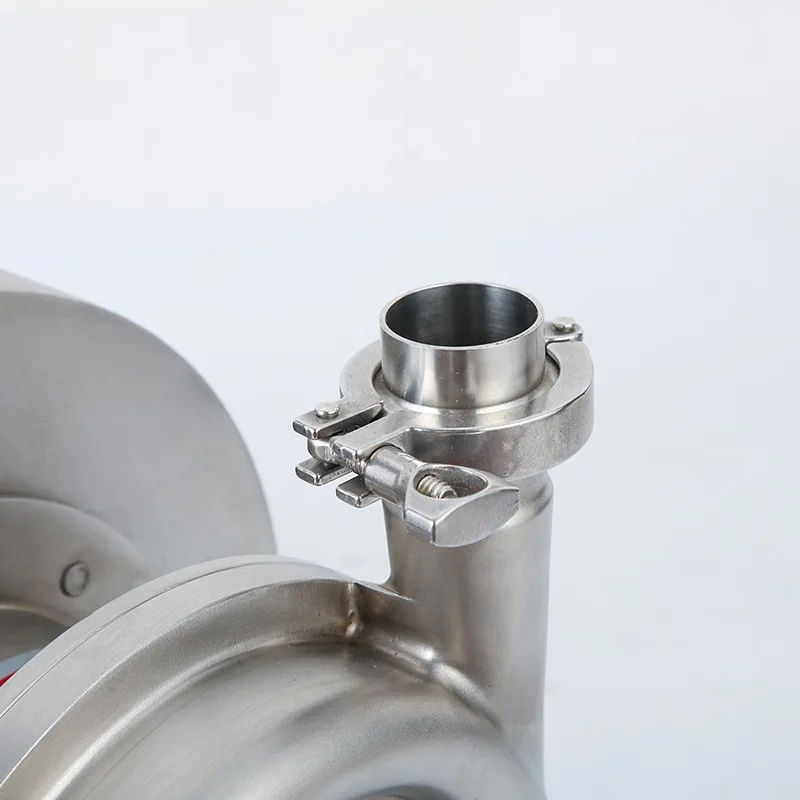

7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
1) Material:SUS304/ SUS 316L
2) Flow rate: 1 - 40T/h
3) Pump head: 12 - 40 meter
4) Motor: Domestic/ABB/Siemens
5) Power: 0.55-18.5kw
6) Voltage: 220V/380V/415V/440V, can be customized
7) Connection type: Clamp, Union, Flange
8) Inlet size: 32-102mm, can be customized
9) Outlet size: 25-89mm, can be customized
10) Max. Inlet pressure: 0.3Mpa
11) Temperature range: -10 °C to +140 °C (EPDM)
Products Description | Electric motor drives the impeller to rotate, so that the liquid centrifugal force, due to centrifugal force, the liquid is thrown into the side of the pump, or into the next level impeller, so that the impeller inlet pressure is reduced, and the role of pressure in the suction liquid pressure difference, pressure difference between the liquid suction pump, the centrifugal pump does not stop the rotation, the liquid flowing into the suction or discharge. |
Applicable to industry | Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry. 1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. 2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. 3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo,Shoe Polish etc. 4. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc. |
Model | Flow(m3/h) | Lift(m) | Power(Kw) | Inlet/outlet specification |
RMP | 3 | 16 | 0.75 | 38/32 |
RMP | 3 | 24 | 1.5 | 38/32 |
RMP | 3 | 30 | 2.2 | 38/38 |
RMP | 4 | 18 | 1.1 | 51/38 |
RMP | 5 | 24 | 1.5 | 38/38 |
RMP | 5 | 36 | 3.0 | 38/38 |
RMP | 10 | 24 | 2.2 | 51/38 |
RMP | 10 | 36 | 3.0 | 51/38 |
RMP | 10 | 50 | 5.5 | 51/51 |
RMP | 10 | 60 | 7.5 | 51/51 |
RMP | 15 | 24 | 3.0 | 51/51 |
RMP | 20 | 24 | 4.0 | 51/51 |

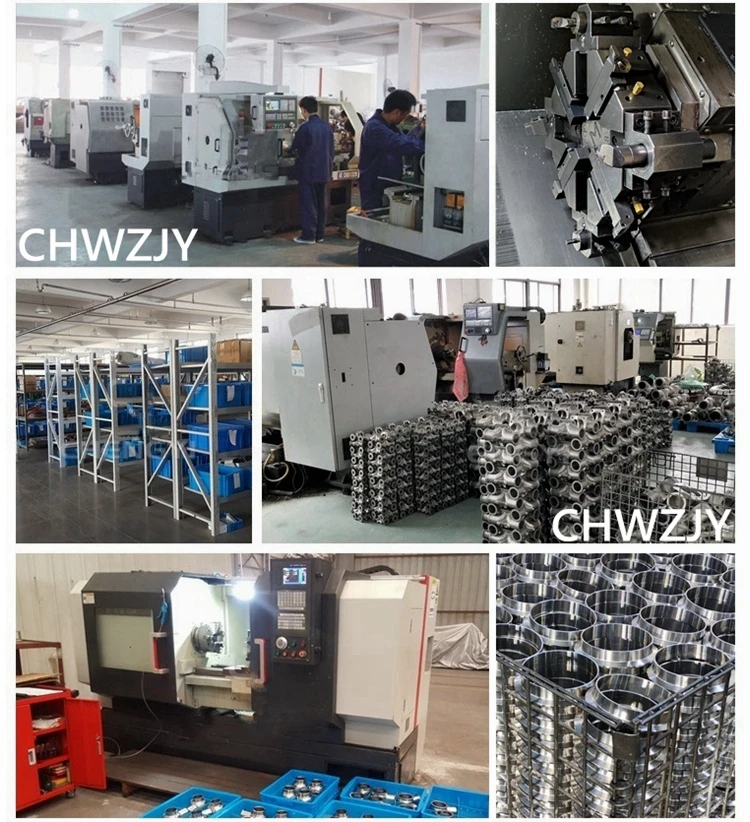

1. We Are Original Factory.
2. Low MOQ: Most of the products has in stock.
3. OEM Accepted: We can customize the product if you could provide the sketch.
4. Fast Response, Excellent Quality, Competitive Price
5. All products inspected before shipping.
