  • Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine
Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine
Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine
Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine
Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine
Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine

Customized Salt Spray Chamber Environmental Testing Chamber Industrial Salt Spray Testing Machine

Share on (1600515298774):


Price:

Quantity:


Product Overview

Description





Products Description




Product Name
Salt spray test chamber
Brand
ATMARS
colour
Blue , white , red , customized
MOQ
1Pieces




Specifications of ASS Series Salt Spray Environmental Test Chambers -
*Performance is based on ambient temperature +20℃ or circulating water temperature +25℃, empty load no specimen.


Model
ASS-60R
ASS-90R
ASS-120R
ASS-160R
ASS-200R
Workspace volume
108L
270L
480L
800L
1200L
Workspace dimensions
(WxDxH)mm
600
900
1200
1600
2000
450
500
800
1000
1000
400
600
500
500
600
Exterior dimensions
(WxDxH)mm
1100
1410
2000
2400
2800
670
910
1150
1350
1350
1180
1220
1450
1450
1550
Power supply
AC 220V 50Hz
AC 220V 50Hz
AC 220V 50Hz
AC 380V 50Hz
AC 380V 50Hz
Material
PP or PVC
Performance
Worksapce temp. range: RT+5℃ to +50℃ (Set according to test standard);
Saturated barrel temp. range: +47℃ to +63℃;
Temp. fluctuation: ≤±0.5℃;
Temp. uniformity: ≤±2.0℃;
Salt spray settlement: 1.0～2.0ml/80cm²/h;
pH level: 6.5～7.2 (NSS), 3.1～3.3 (AASS/ACSS).
Salt spray

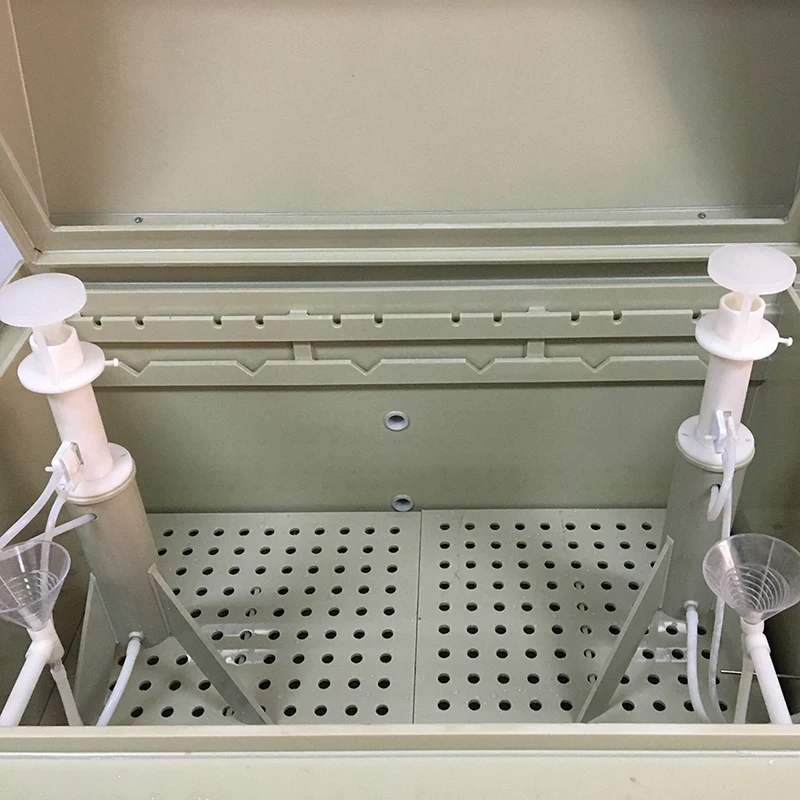

Spray tower
Made of acrylic, cone-shape
Atomizing nozzle
Made of PYREX glass
Spray mode
Continuous spray or programmable interval spray
Defogging
The mist is exhausted by air extrusion, and the cover (canopy) is tapered to form a top angle of 120 ° C, which is beneficial to
the droplets generated by the salt spray not directly dropping on the sample, thereby ensuring the accuracy of the test.

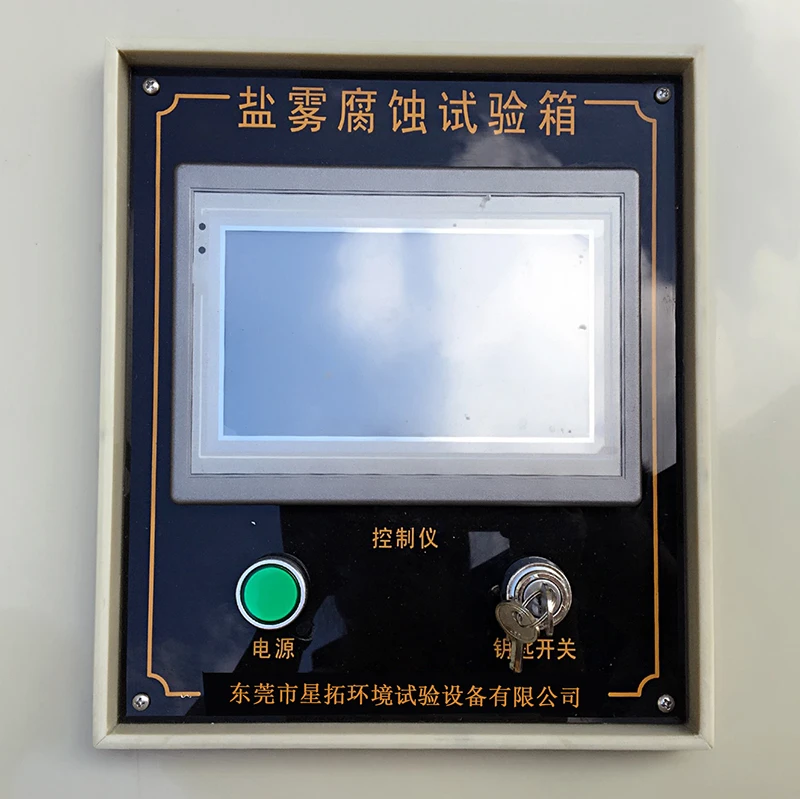

Control
workspace temperature control: 0 °C ~ 99.9 °C, accuracy 0.1 °C (double display), PID automatic calculation
Heating mat liquid expansion over-temperature protection controller: 0℃～110℃
Saturated barrel temperature control: 0 ° C ~ 99.9 ° C, accuracy 0.1 ° C (double display), PID automatic calculation
Total time: 0~9999.9h, interval time 0~99.9h
Pressure adjustment structure: primary pressure regulating valve, secondary pressure regulating valve, pressure gauge 2Kg/cm²
*Optional touch-screen controller
Allowable ambient conditions
Temperature: +15℃ to 35℃;
Relative humidity: ≤85%;
Air pressure: 80kPa～106kPa.
Safety
1. Low water level protection, the power supply will automatically cut off and meanwhile the safety warning light device will
display automatically;
2. Over-temperature protection, the heater power supply will automatically cut off , and meanwhile the safety warning light device
will display automatically;
3. Low water level of saline, the safety warning light device will display automatically;
4. Leakage protection function to prevent personal injury and instrument failure caused by line leakage or short circuit.
▲Custom options available


Recommend Products




Company Profile




Production Line




Certifications




Logistics&Transportation




FAQ




1.Are your company a factory or a trading company ?
-- We are a manufacturer, factory + trading company
2.What are the payment methods?
- Payment methods are T/T, Paypal, LC, VISA
3.Do you accept customization service? Can I have my logo on the machine?
--Yes, of course. We can not only offer standard machines, but also customized.
4.How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025.
5.What's the delivery term?
--At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
6.What about the services and product' quality?
-Service: ,Design service ,Buyer service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
7.Can we come to your factory to study and train?
- Welcome to our factory for study and training, we provide this service free of charge.
8.Do you have an agent?
- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
9.How to provide after sales service?
- At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, INT, and FedEx) paid by our company.
- If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
- If Products still can't use after our engineers repair, we will produce 2 new test chamber (same as the old one) to our customers with no charge.
- You can contact our local service center in overseas market to get service and product.
