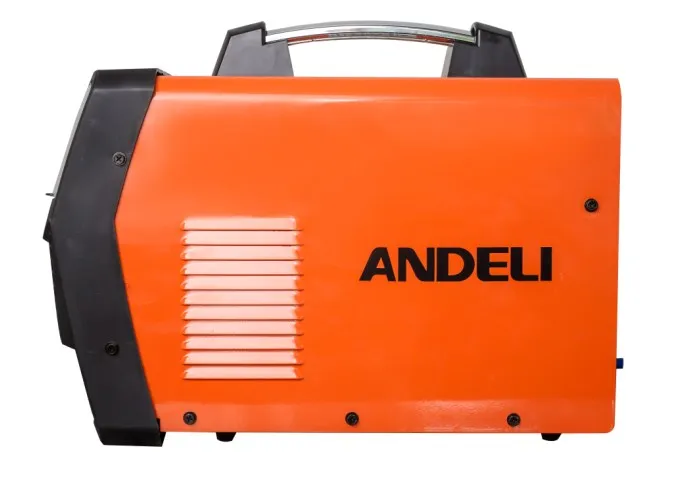

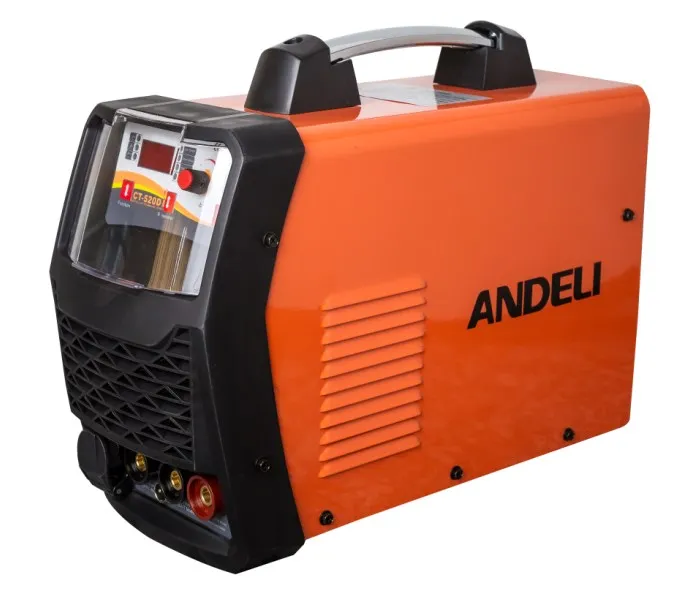

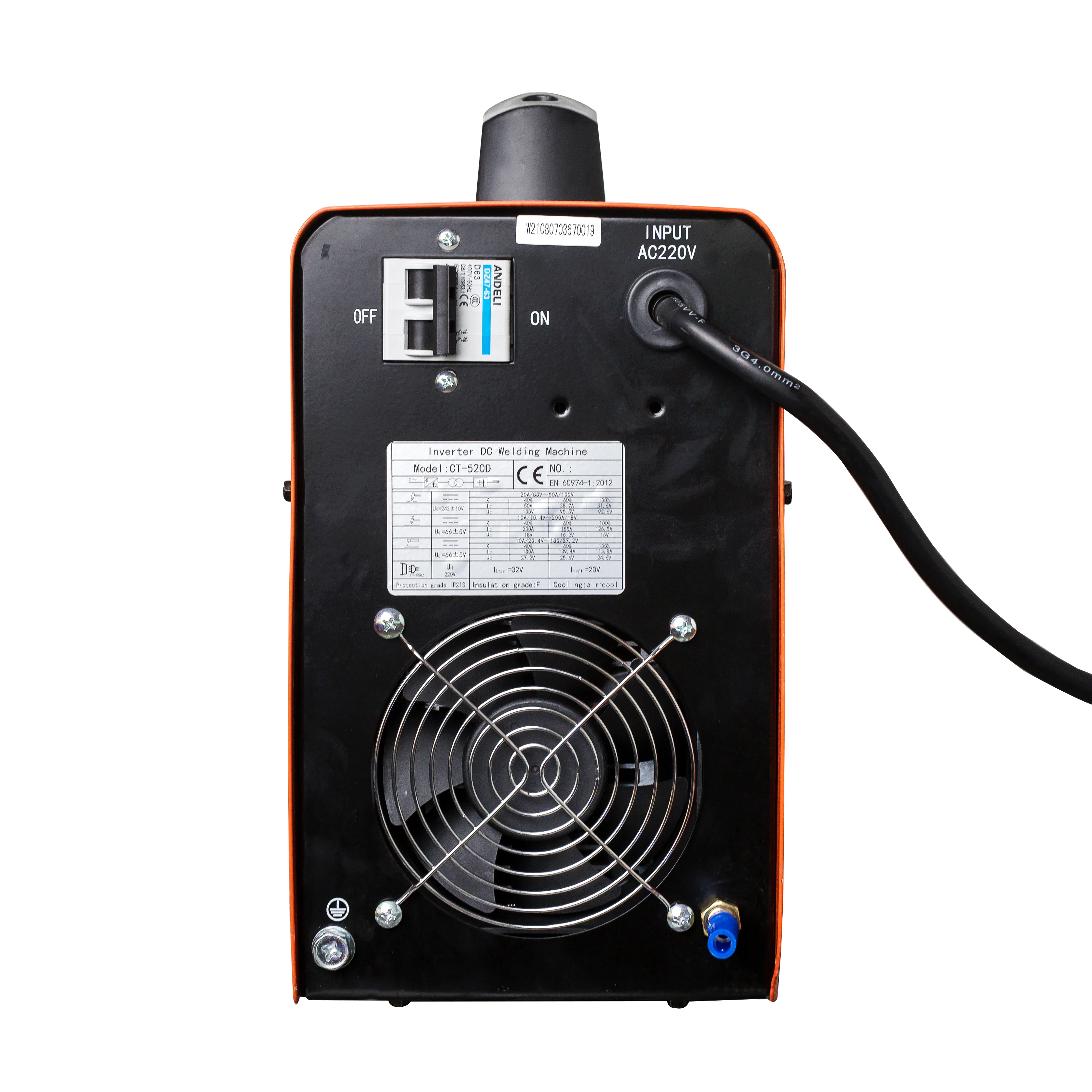

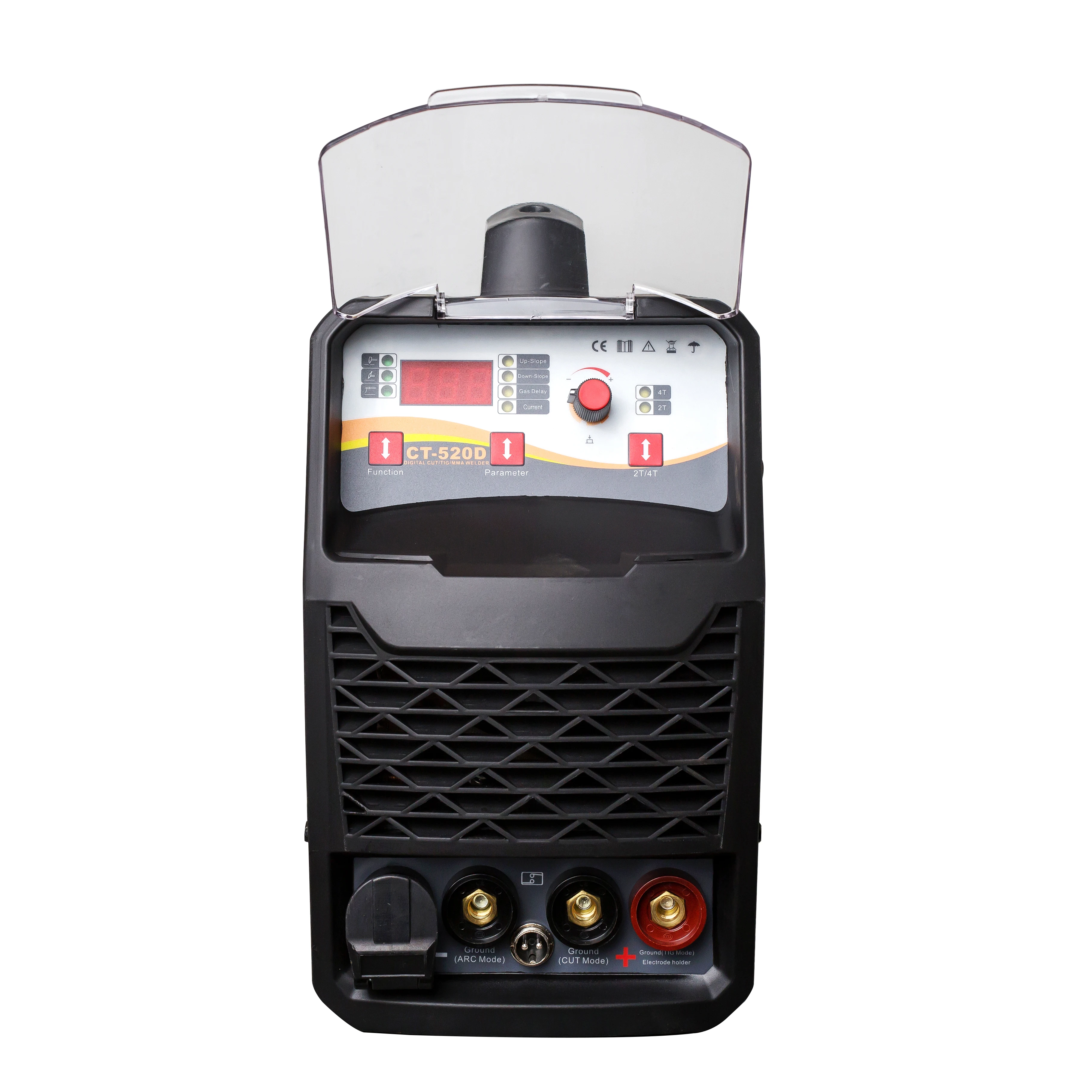

CT520 Mosfet Inverter DC 220V TIG/MMA/CUT Welder

Model

CUT-520D

Rated input voltage(V)

1PH AC220V±15%

Rated input power(KVA)

TIG: 5.1KVA

MMA: 7KVA

CUT: 7KVA

Rated input current (A)

TIG: 23A

MMA: 32A

CUT: 32A

Rated output

TIG: 18V/200A

MMA: 27.2V/180A

CUT: 100V/50A

Output current(A)

TIG: 10-200A

 MMA: 10-180A

CUT: 20-50A

No-load voltage (V)

TIG: 66±5V

MMA: 66±5V

CUT: 243±10V

Duty Cycle% (40℃ 10min)

TIG: 200A 30% 110A 100%

MMA: 180A 30% 99A 100%

CUT: 50A 30% 27A 100%

Efficiency (%)

70

Protection grade

IP21

Insulation grade

F

Net weight (KG)

13.9

Gross weight (KG)

18.5

Dimension of machine (mm)

486*185*352

Dimension of package (mm)

564*255*383
