Vico Vehicle equipment Auto body repair equipment VF1100
- Category: >>>
- Supplier: Yantai,Vico,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Vico Vehicle equipment Auto body repair equipment VF1100

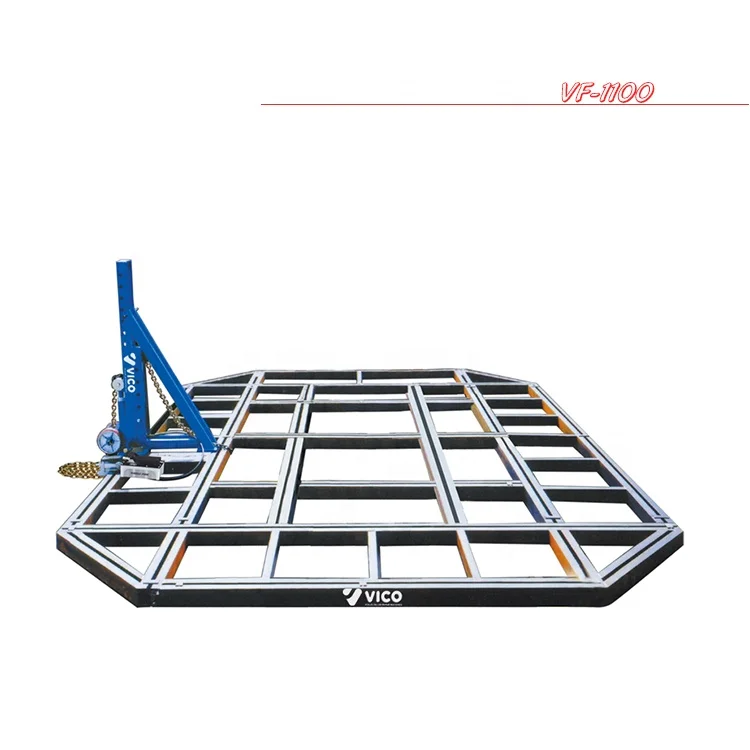

Auto body frame machine floor system
chassis straightening machine

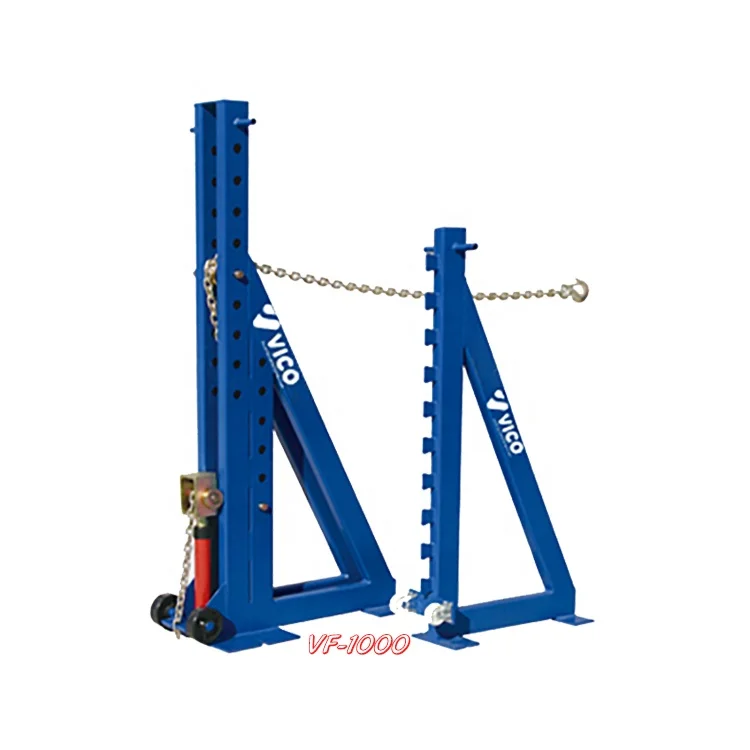

The structure consists of rails installed in the floor, 2 pulling posts, anchors and fasteners.
Advantages:
1. Relatively low cost;
2. Quick installation of all kinds of vehicle;
3. Save space of car workshop.

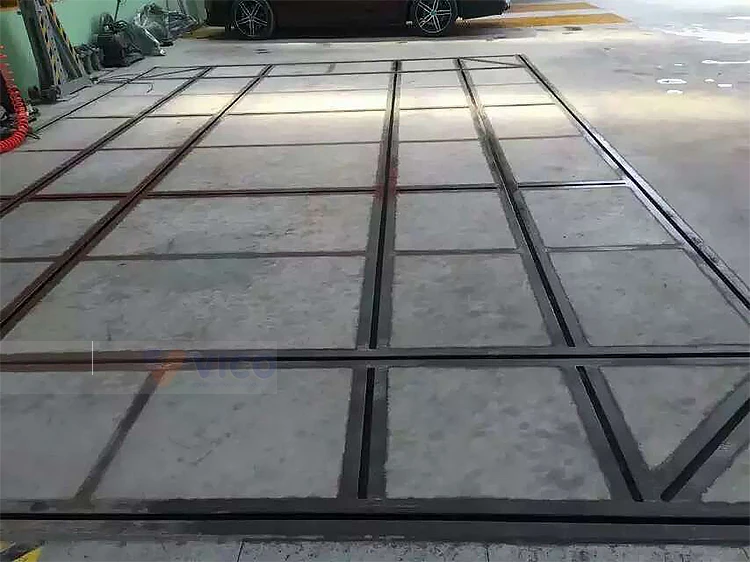

4. If the equipment is idle, the area where the "pull" vehicle is usually located can be used for other purposes, since the rails are mounted flush with the floor.
Advantages:
1. Relatively low cost;
2. Quick installation of all kinds of vehicle;
3. Save space of car workshop.
4. If the equipment is idle, the area where the "pull" vehicle is usually located can be used for other purposes, since the rails are mounted flush with the floor.
Specification
Product name | Vehicle equipment Auto body repair equipment VF1100 |
Inground frame tube size | 6000*4000mm |
In-ground pit depth | 300mm |
Main tower height | 1800mm |
Main tower width | 840mm |
Assistant tower height | 1505mm |
Assistant tower width | 635mm |
Air supply require | 0.8Mpa |
Cylinder capacity | 10T |
Pulling tower range | 360° |
Packing size | 1980*1050*700mm+4350*900*600mm 3.85CBM/2PKGS |
Weight | 1515kgs |
Details Images
Customer Photos

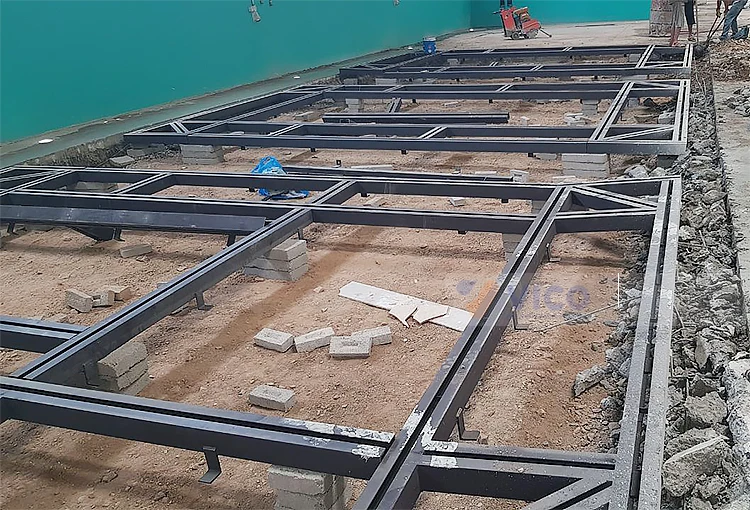

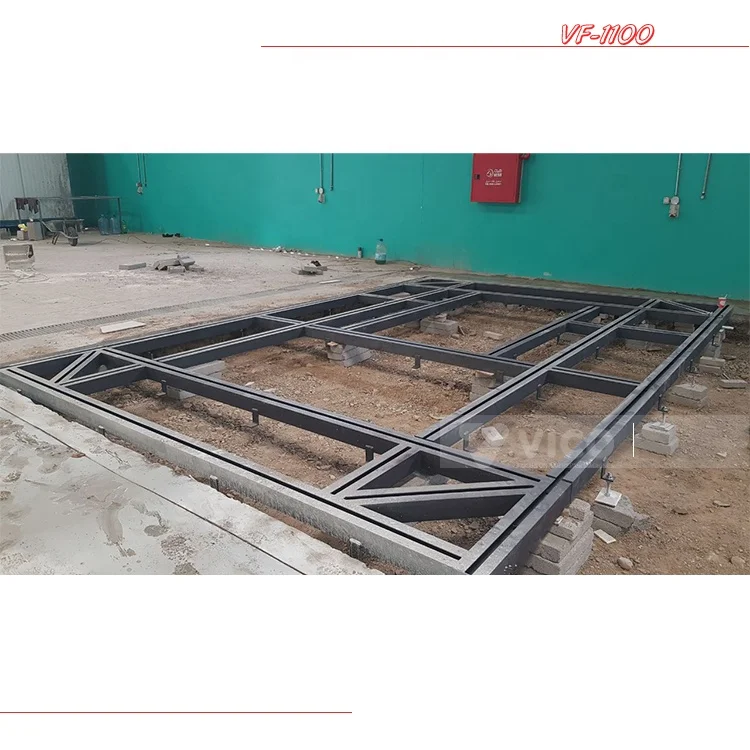

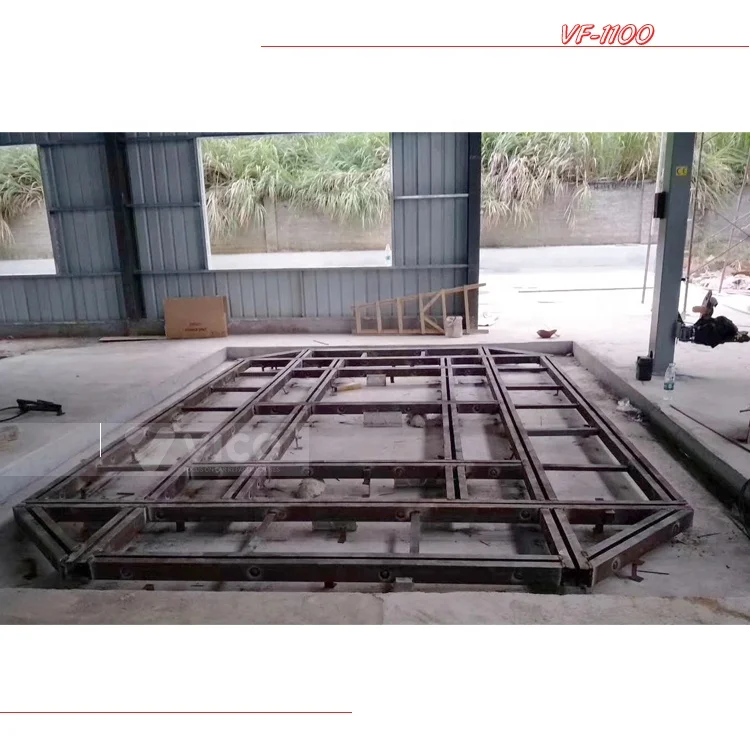

Floor frames are built in ground,and please follow the drawing of the frame to make sure the dimensions.
Packing & Delivery
Package of VF1100 Auto body frame machine:
1.Pulling towers are packed with carton and plastic material;
2.Floor frames are cut in similar sizes,covered with plastic;
3. Accessories are packed in seaworthy wooden box.
