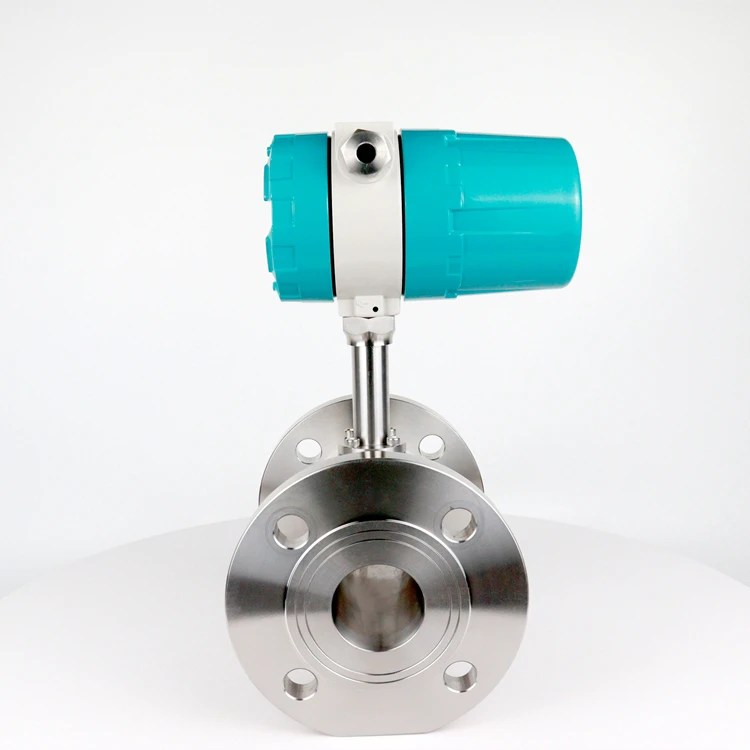

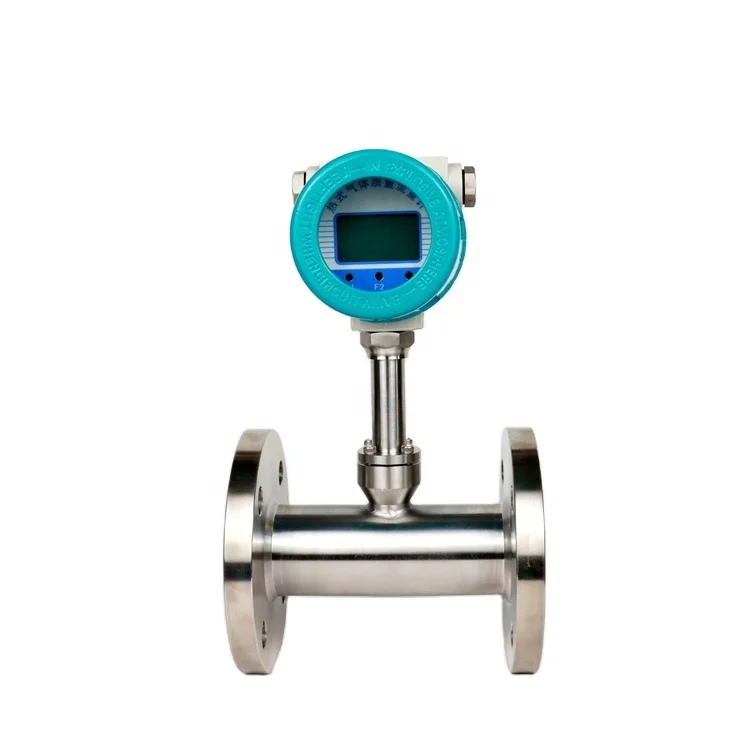

Rs485 digital modbus Co2 treatment natural gas LPG oxygen Flowmeter flange type air compressor thermal mass gas flow meters
- Category: >>>
- Supplier: Kaifeng Kamboda Industrial Instrument Co. Ltd
Share on (1600515363590):
Product Overview
Description
Product Description

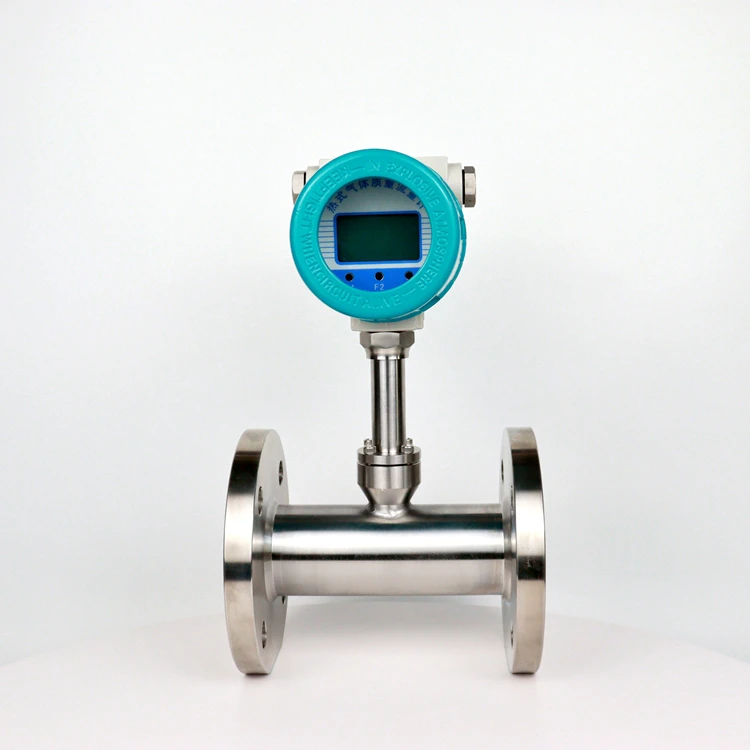

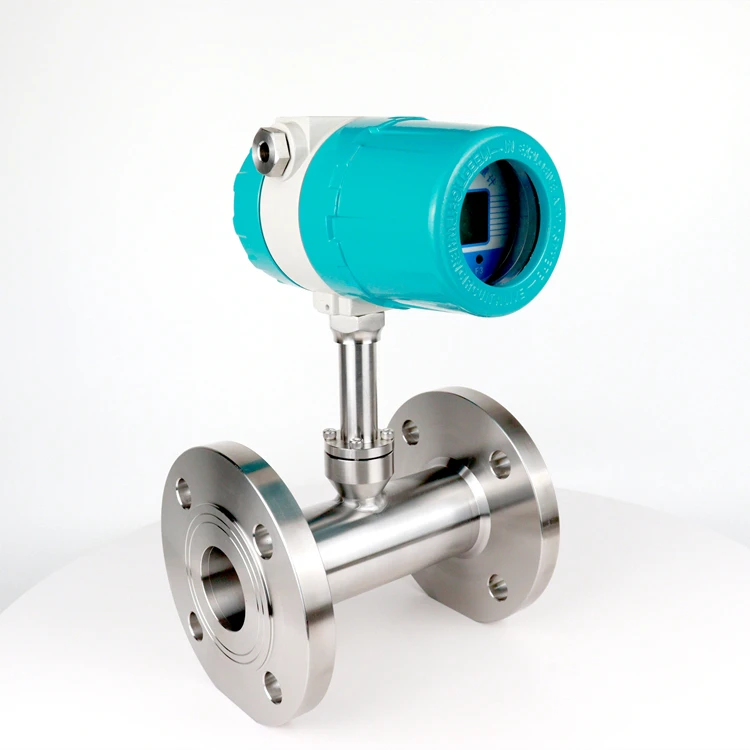

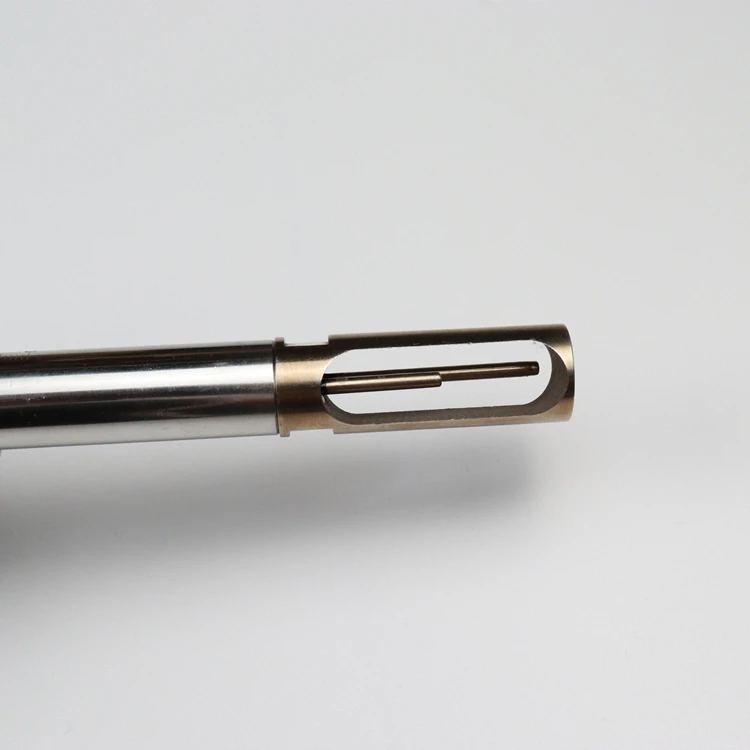

Thermal gas mass flow meter
working principle:HRLS series thermal gas mass flowmeters are constant power thermal gas mass flowmeters. Based on the principle of heat conduction technology, Newton's laws of thermodynamics are used to achieve the measurement of gas mass flow.
Features:
(1)easy installation and maintenance.
(2)with Modbus communication, remote monitoring.
(3)large range ratio, wide measurement flow rate range.
(4)no Moving parts,no pressure loss.
(5)measuring gas mass flow without temperature and pressure compensation.

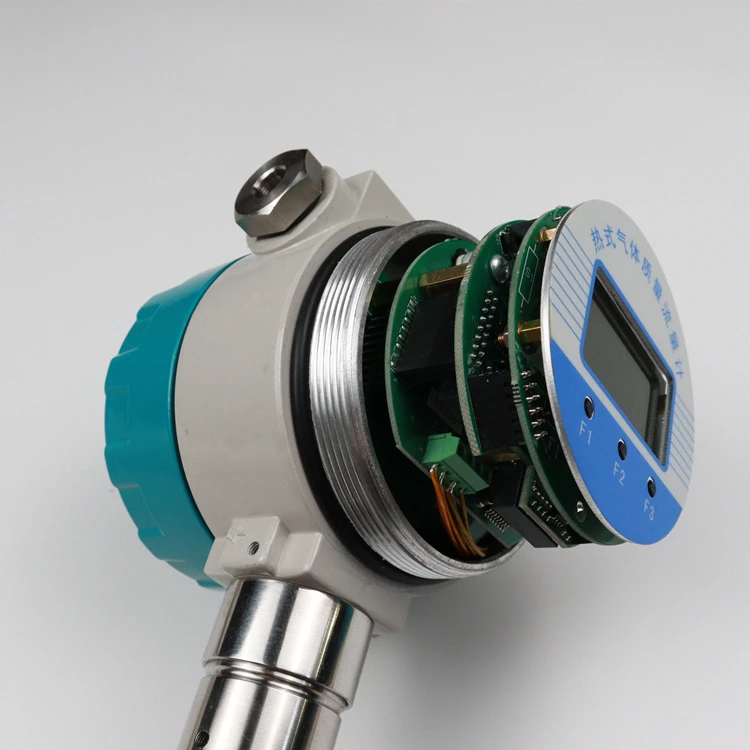

(6)fully isolated electrical structure thoroughly filters out external interference.
Pruduct details
Technical index | ||
Accuracy class | ±(1.5%RD+0.5%FS) | |
Repeatability | ±0.5% | |
responding speed | 1S | |

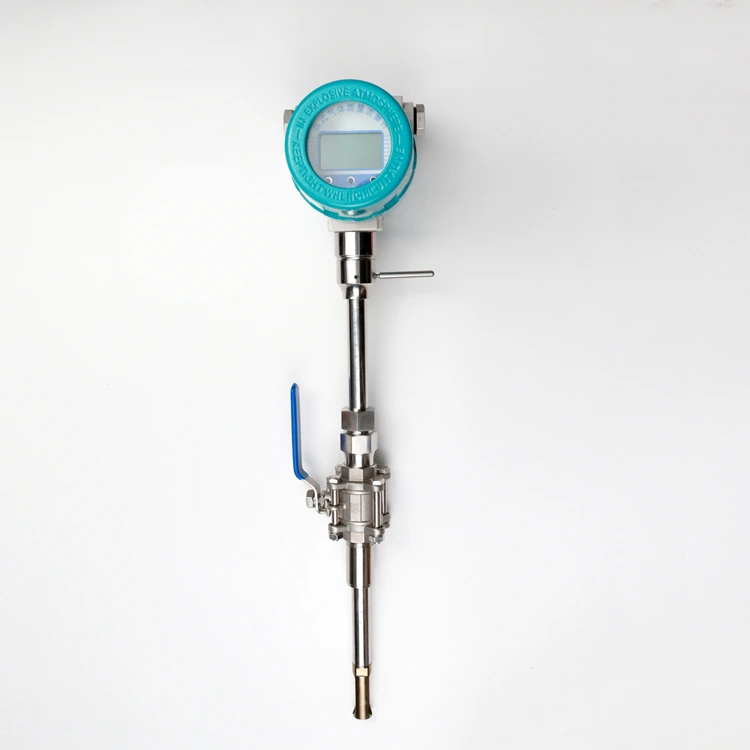

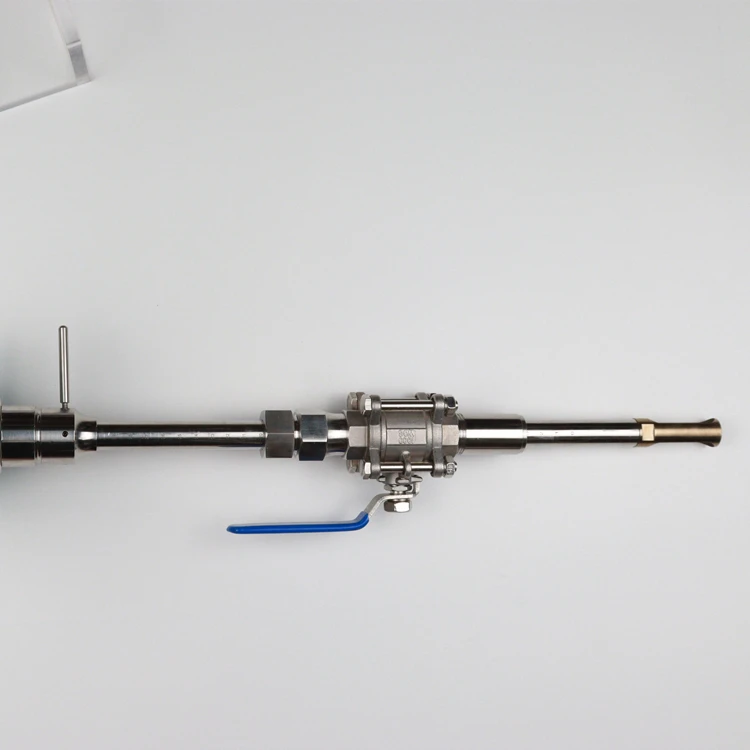

Diameter | Plug-in type:DN65～DN1600 | |
Velocity range | 0.3-30Nm/s 0.6-60Nm/s 0.9-90Nm/s 1.2-120Nm/s | |

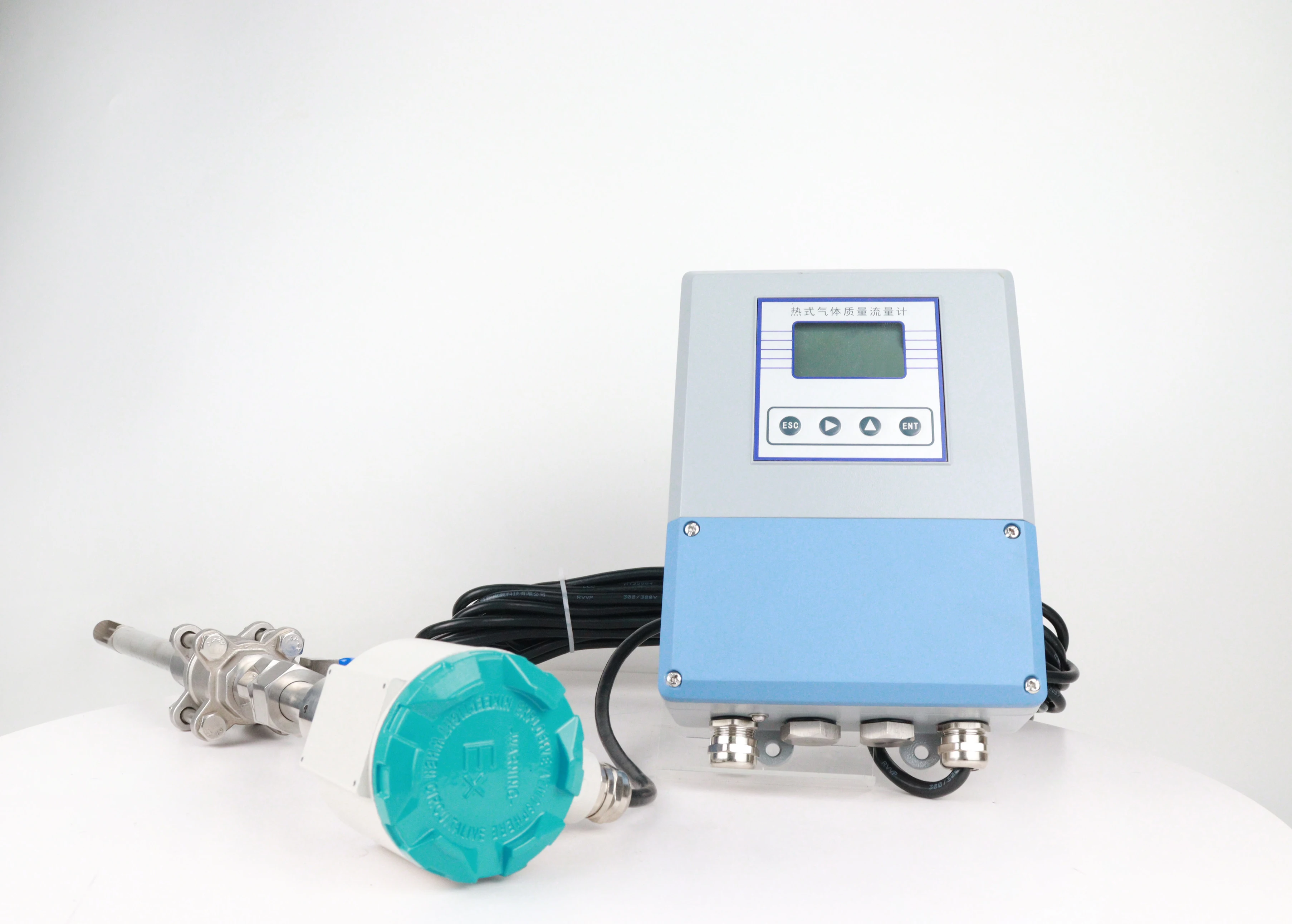

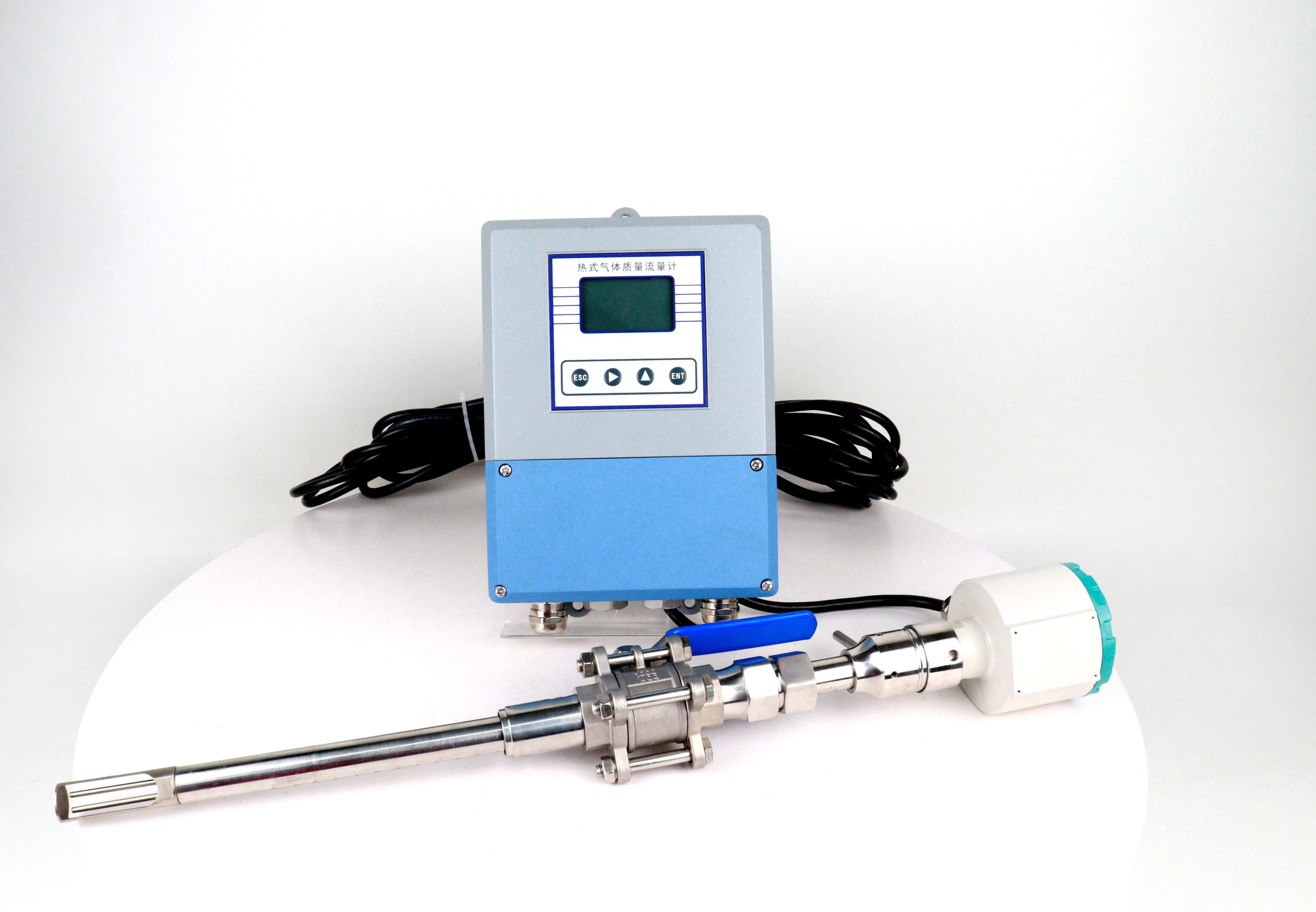

Installation method | integrated or split | |
Connection method | Card sleeve connection | |
Measuring medium | Compressed air, oxygen, nitrogen, etc. | |
Ambient temperature | -40～60℃ | |
Operating temperature | -40～150℃(medium temperature, plug-in type) | |
Operating pressure | 1.6Mpa | |
Signal interface | ModBus@RS485/Bluetooth function ModBus@RS485&4～20mA/Bluetooth function | |
Power supply | 13.5～42VDC | |
Protection class | IP65 | |
Sensor material | 316 | |
Body material | 304 | |
Company Introduction
After Sales Service.
We promise to deliver the following after-sales service:
1.Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to
manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at
our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not
arising from manufacturing quality issues or meter damages not within the scope of warranty.
1.Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to
manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at
our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not
arising from manufacturing quality issues or meter damages not within the scope of warranty.

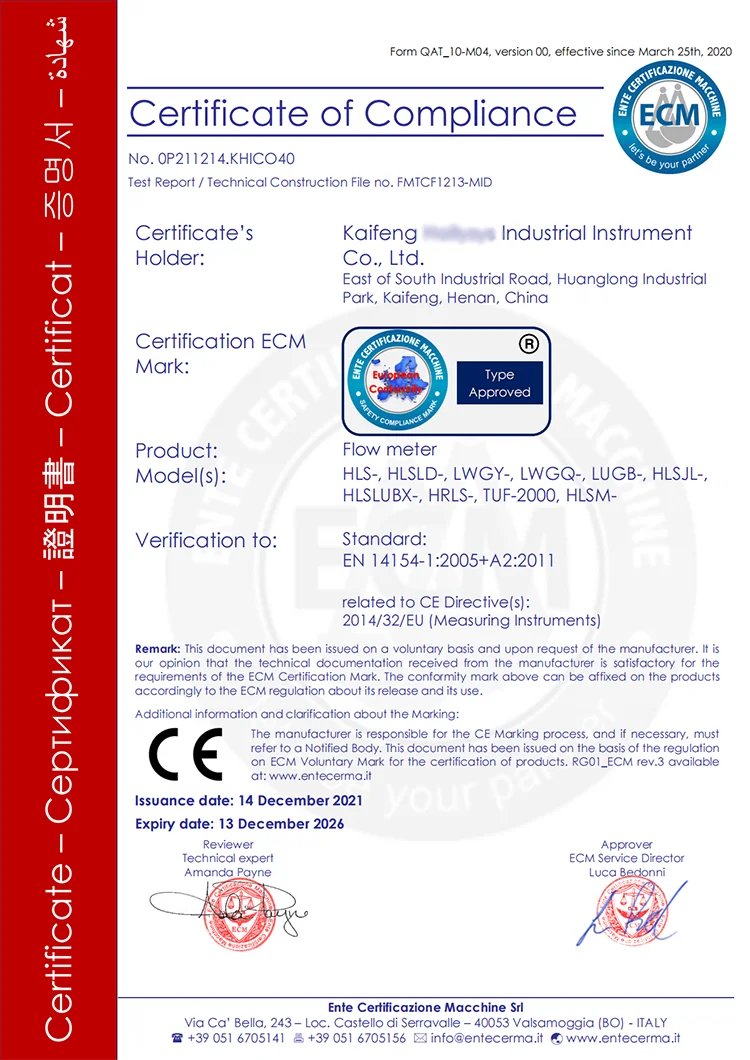

Certifications
