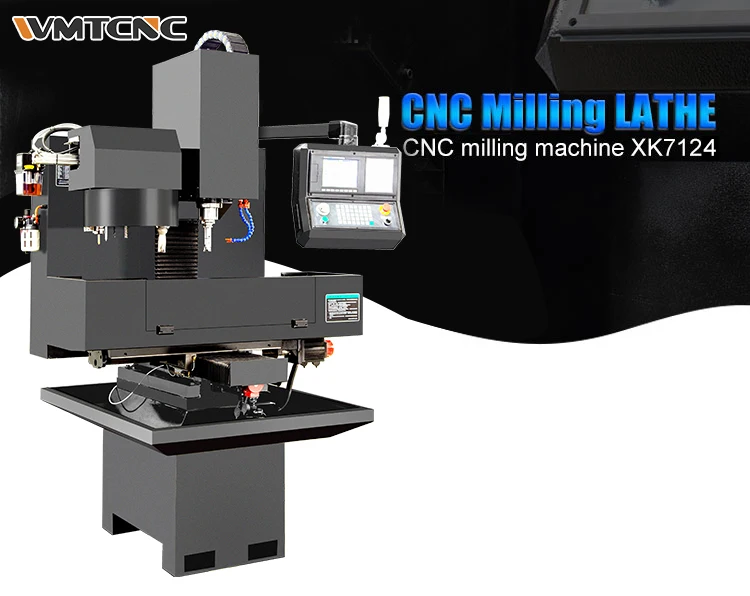

mini cnc milling machine XK7124 small aluminum profile cnc milling machine for school training and factory manufacture
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600515390355):
Product Overview
Description
Product Description
XK7124 auto tool change cnc milling machine 3 axis in sale main application:
The machine can be used in factory and workshop to make molds.
Main Features:
1. XK7124 Small size vertical CNC milling machine with CE certificate:
2. BT30 spindle.
3. Function: drilling, tapping, chamfering, bearing, milling face thread, handle and tower
4. Aesthetic and elegant modeling.

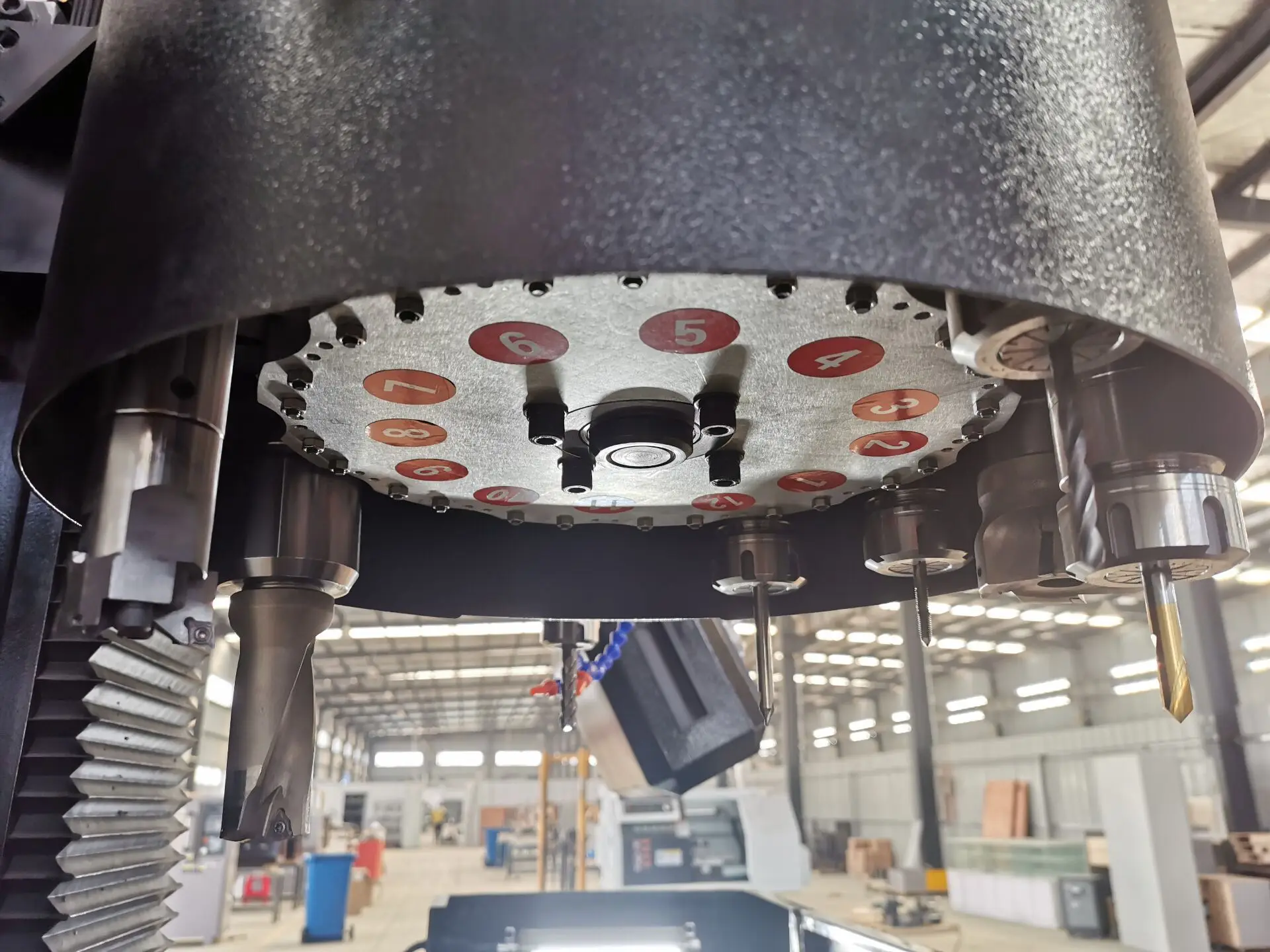

5. High efficiency for automatic knife changing.
6. The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
Specification | XK7124 |
Worktable size(LxW) | 800x240mm |
X axis travel | 425mm |
Y axis travel | 245mm |
Z axis travel | 530mm |
Distance from spindle nose to worktable surface | 105-635mm |
Rapid feed speed(X/Y/Z) | 10/10/10 m/min |
Spindle taper | BT30 |
Max.spindle speed | 6000rpm |
Main motor power | 3.7kw |
Machine size(LxWxH) | 1540x1300x1960mm/1730x1330x2060mm |
Machine weight | 600kgs/750kgs |

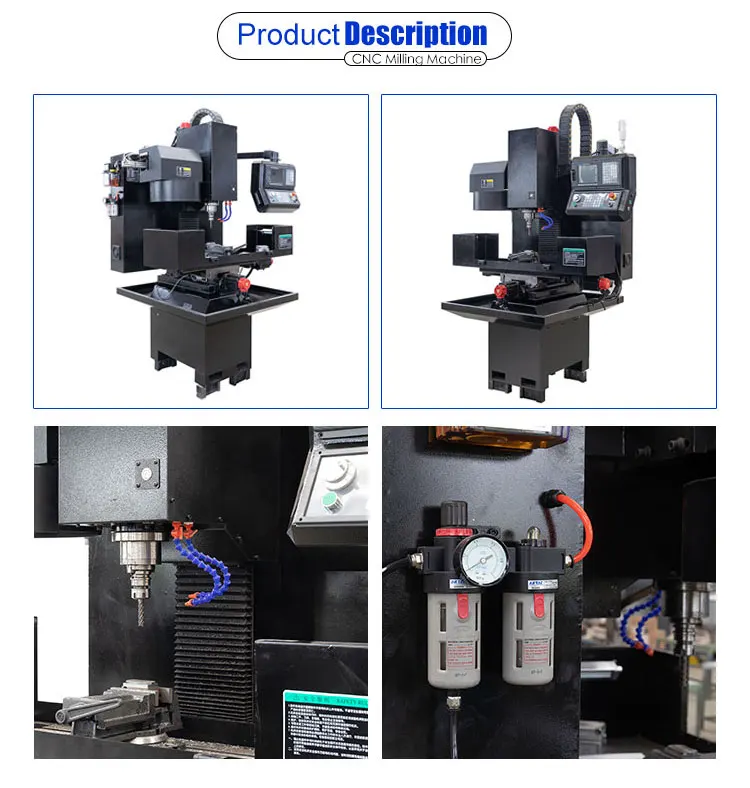

Detailed Images

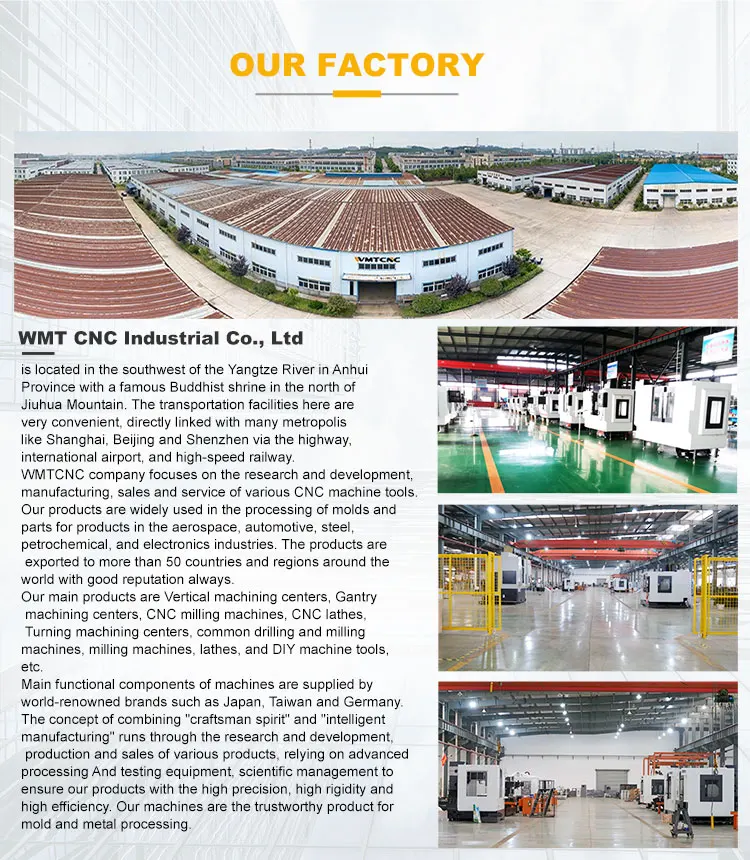

Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
