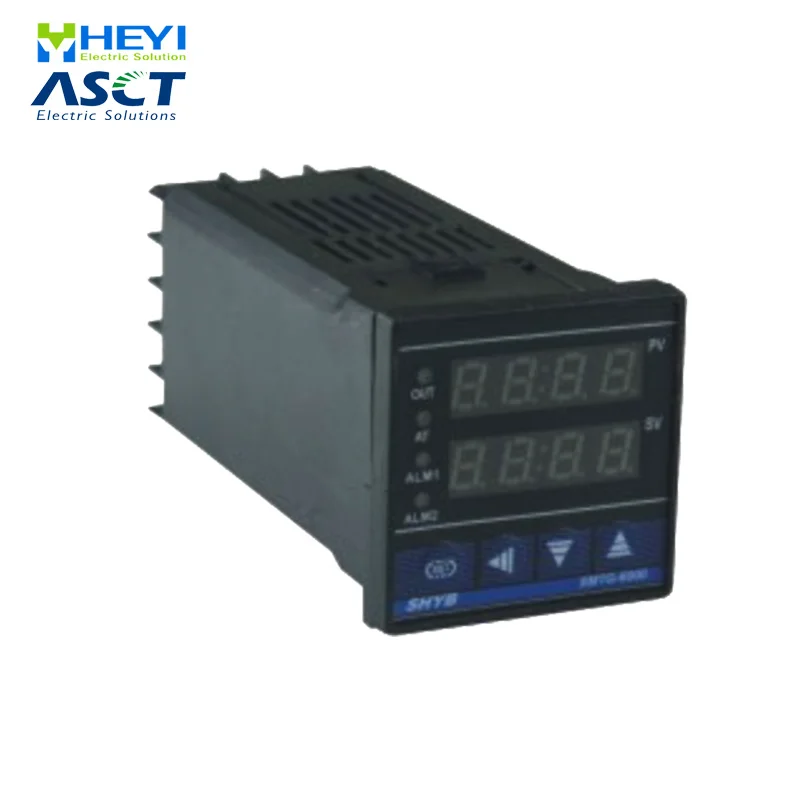

XMTG 8031 0 1400degrees Digital Temperature Controller 48*48MM relay control output,Two way alarm signal,thermocouple input

Product Overview

Description



XMTG-8031 0-1400degrees Digital Temperature Controller 48*48MM relay control output,Two-way alarm signal,thermocouple input

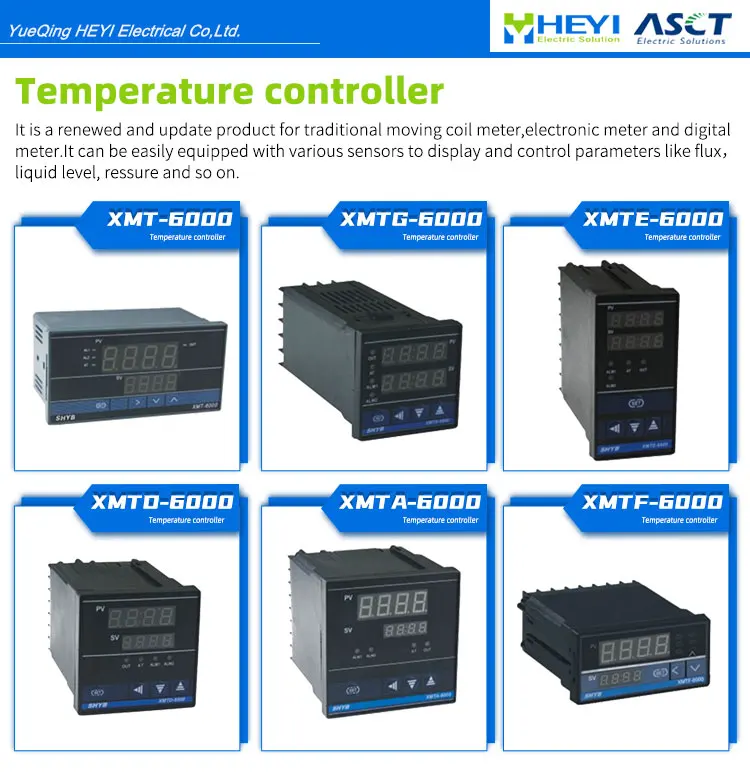

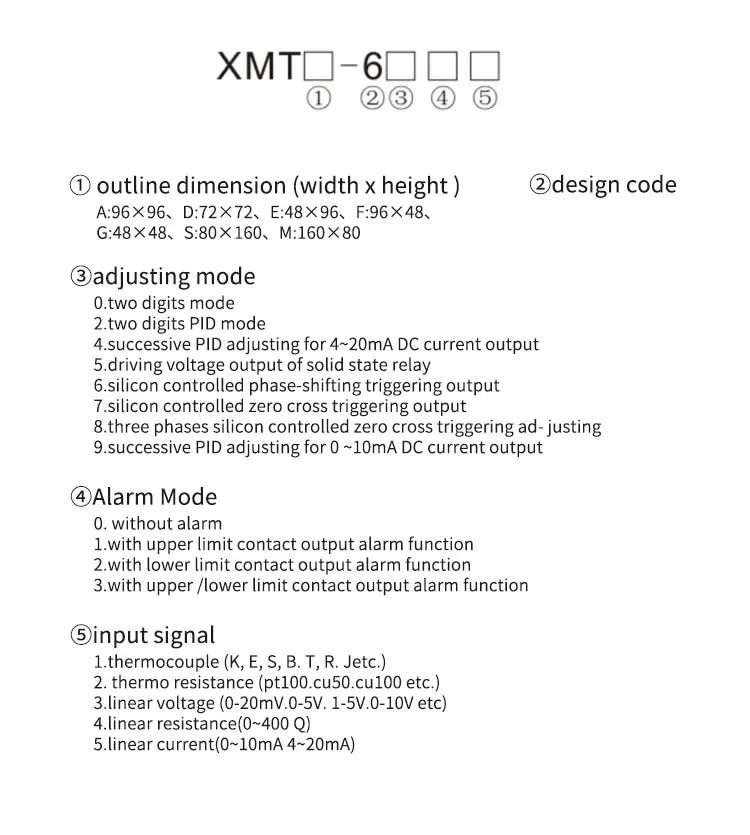

XMTD-8000 Series Intelligent Digital  Temperature Controller

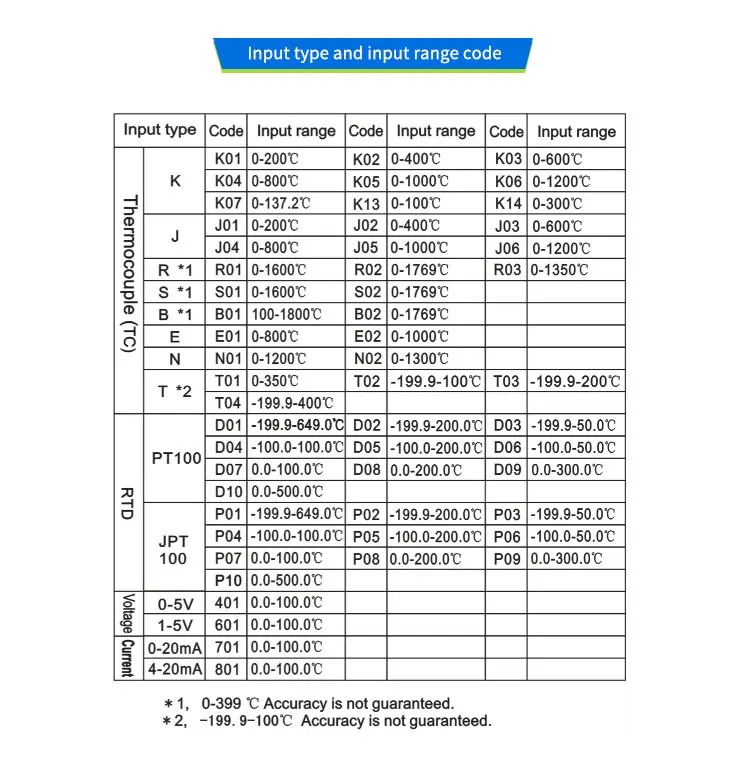

Input signal:

Thermocouple:K,G,S,B,J,T,R,N

 Thermal resistance:Pt100 Cu100 Cu50 BA2 BA1 G Pt100 mini measure

Romote sending manometer:0-400Ω

Line signal :0-20mV 0-75mV 0-200mV 0-5mV 1-5V 0-10mA 4-20mA frequency 0-10KHz

Accuancy:±0.5%F.S ±1 word

Control way: Fuzzy PID control,states control ,manual control

Control output :Relay contact point :AC250V 3A(resisitance)

Volatge pules output

Logiacl voltage DC 0-5 V

Start pulse over zero: optical couple control silicon output 1A 600V

Start pulse on transport:optical couple control silicon 1A 600A

Current output:0-10mA,0-20mA,4-20mA(below load resisitance 600Ω)

Alarm type:high limit alarm ,lower limit alarm,

Work power:AC85-264V 50/60Hz
