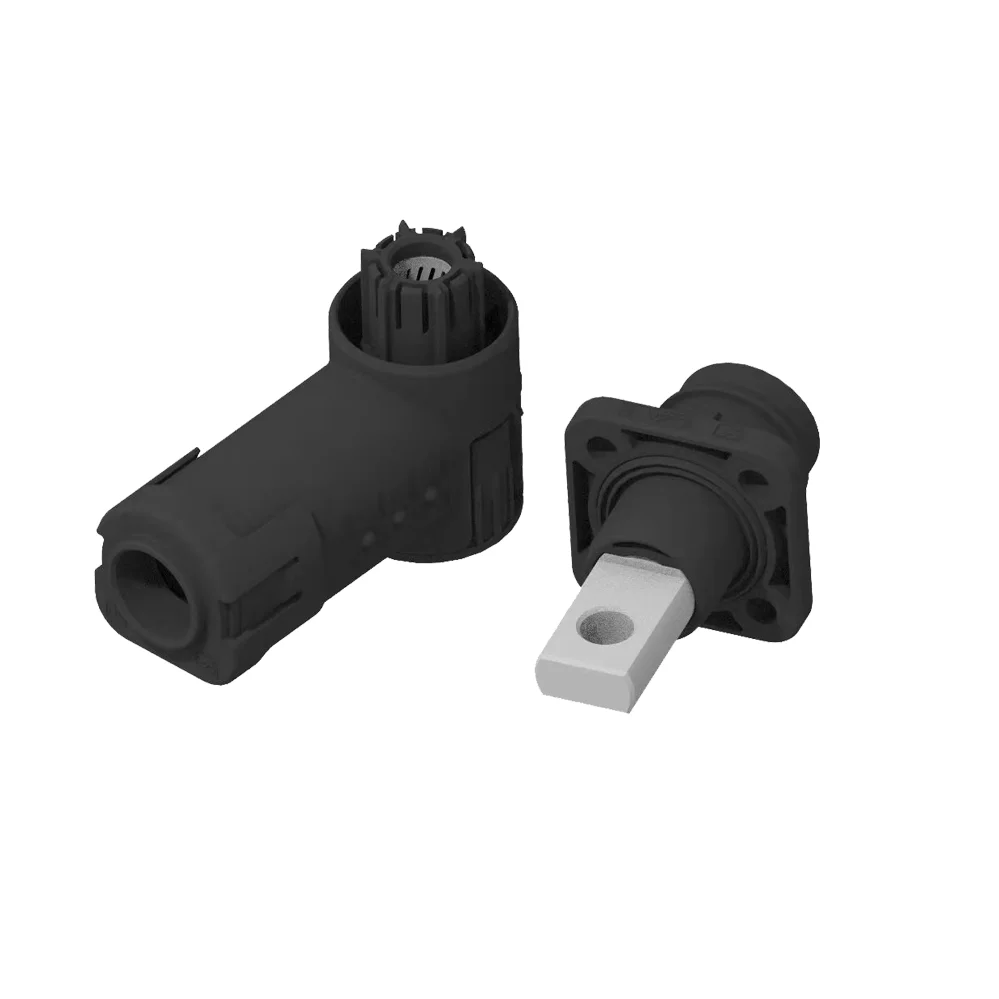

HV Connector 200A bms Voltronic Seplos 150A with TUV UL Energy Battery Storage Connector
- Category: >>>
- Supplier: Zhengzhou Saichuan Electronic Technology Co. Ltd.
Share on (1600515425769):
Product Overview
Description
Product Introduction

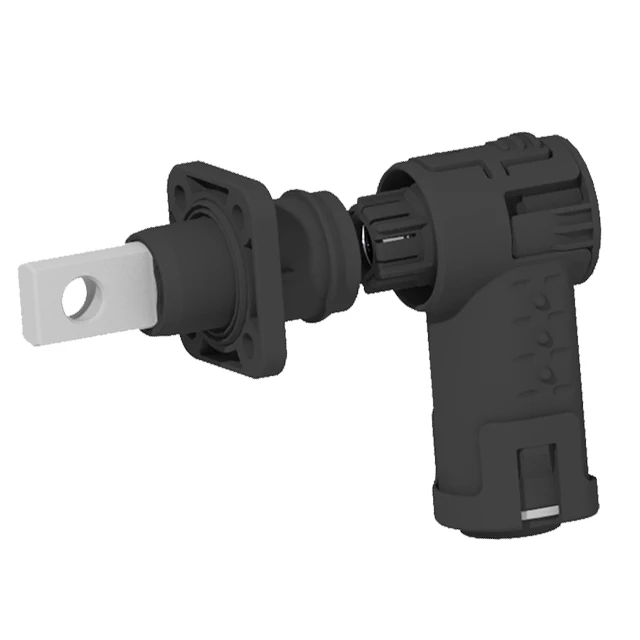

hv connector 200a bms voltronic seplos 150a with TUV UL

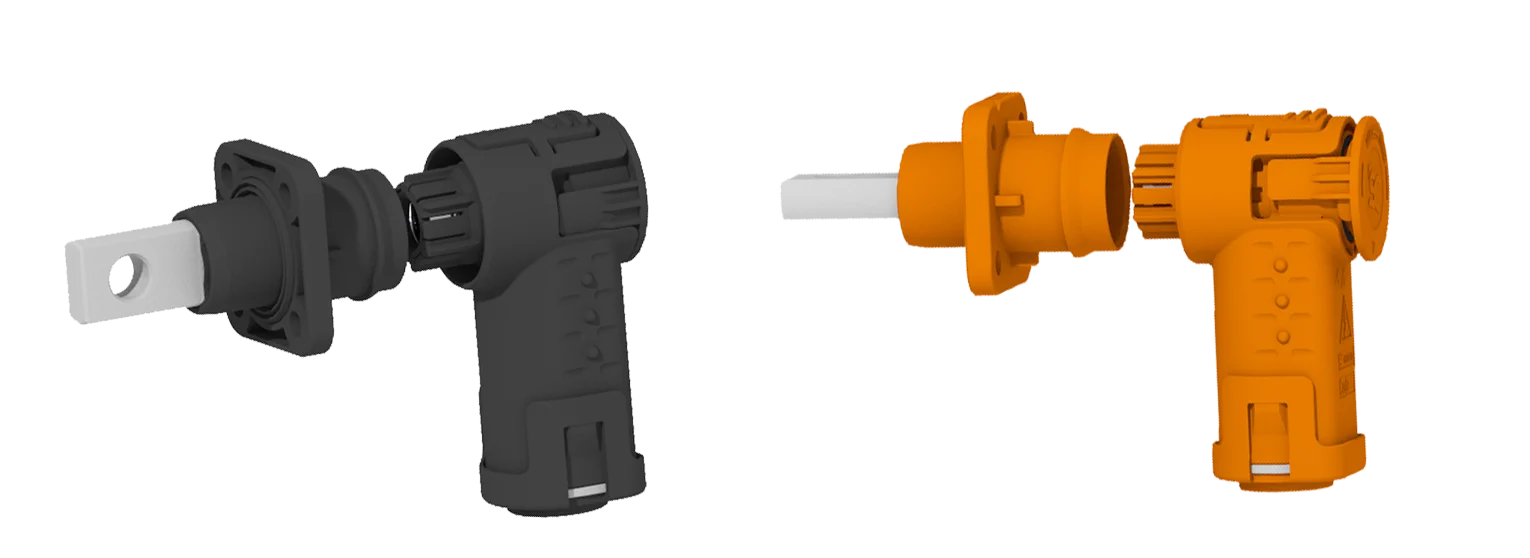

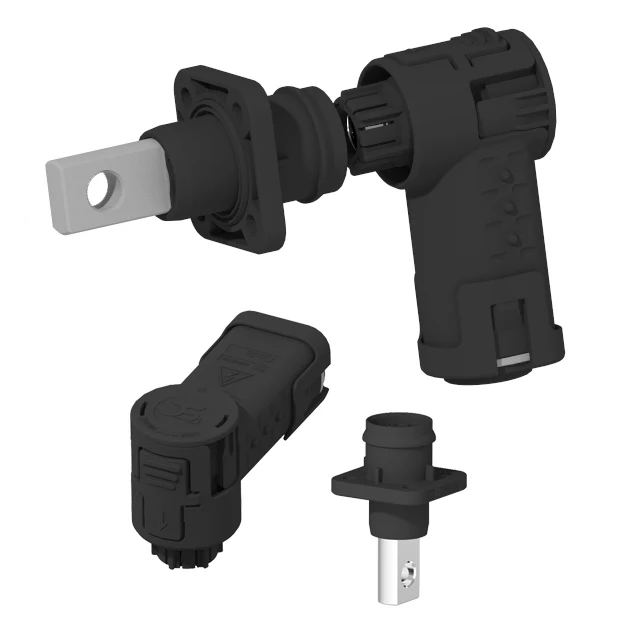

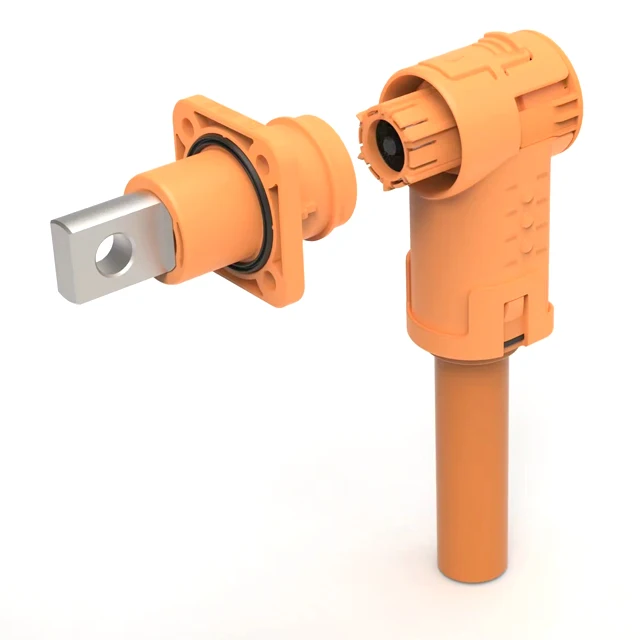

SS1 series products are connector for energy storage system, with functions such as different key positions error-prevention, positive and negative color error-prevention, and 360°rotation.
Product Features:
1. The product supports crimping first and then threading, and the wiring harness production efficiency is high.
2. The product socket is individually sealed IP67 (optional), and the header can meet IP67 (optional) after being inserted.
3. The separation state of the headstock meets IPXXB.
4. With key position error prevention, color error prevention function.

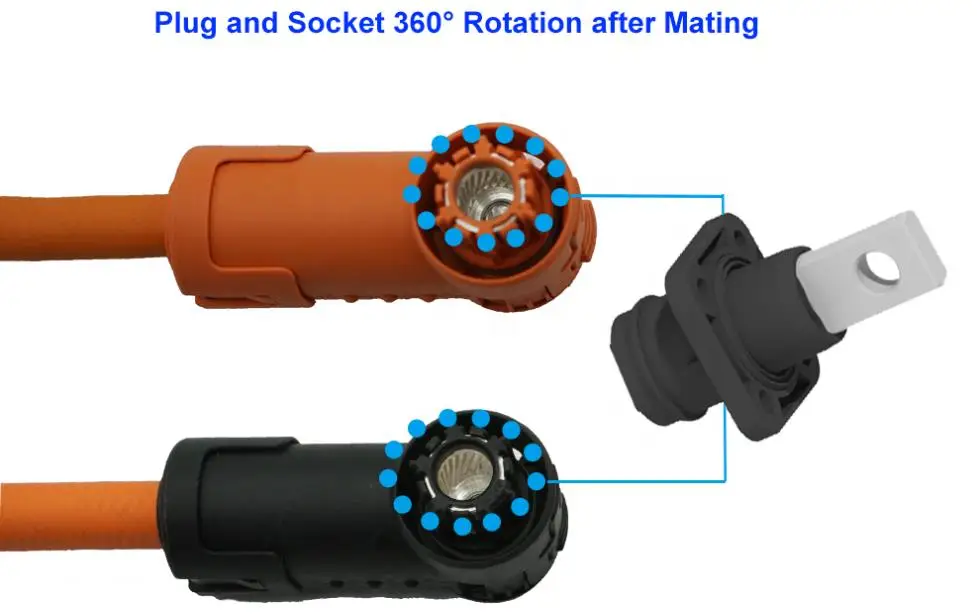

5. It can be inserted at any angle of 360°, and 360° rotation can be realized after insertion.

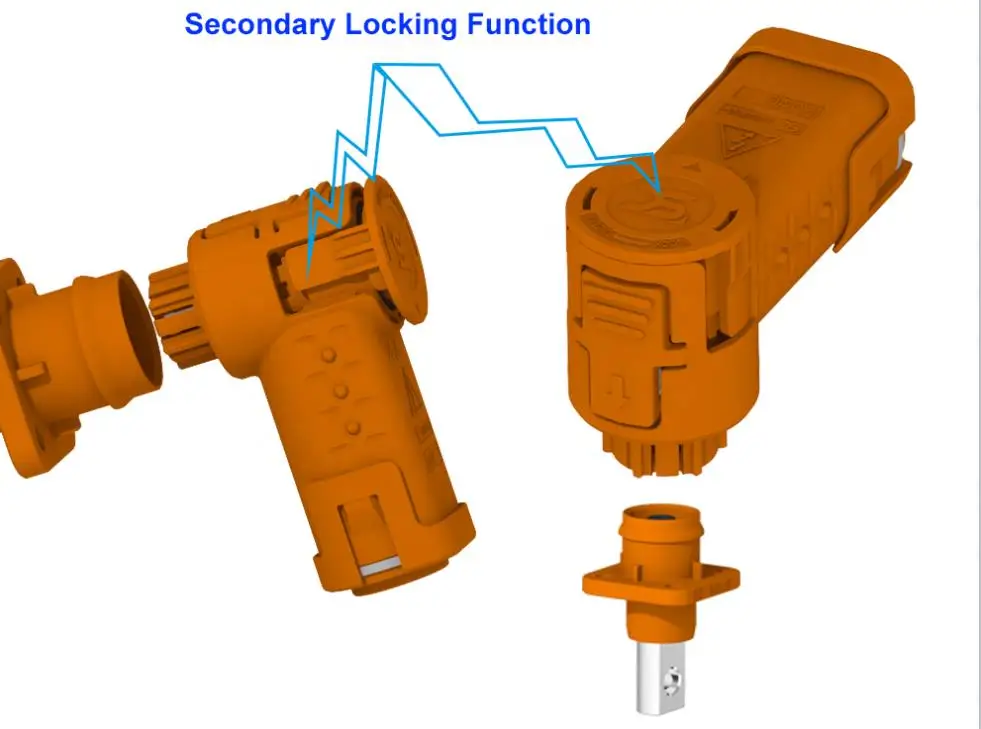

6. With secondary locking function.

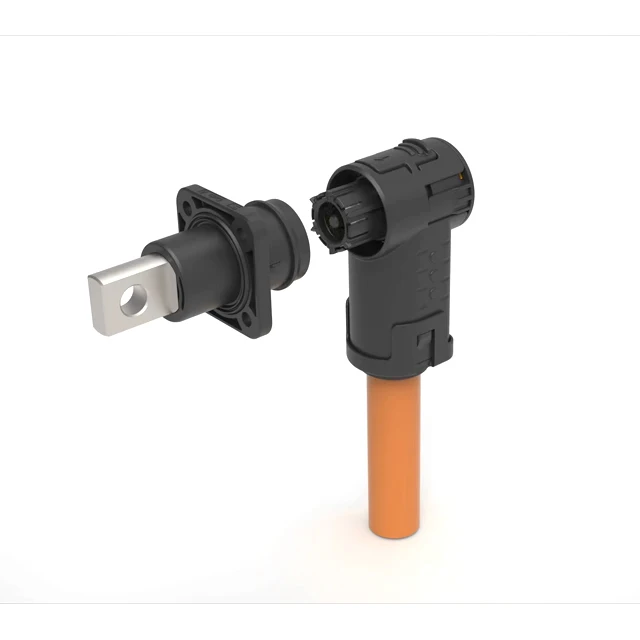

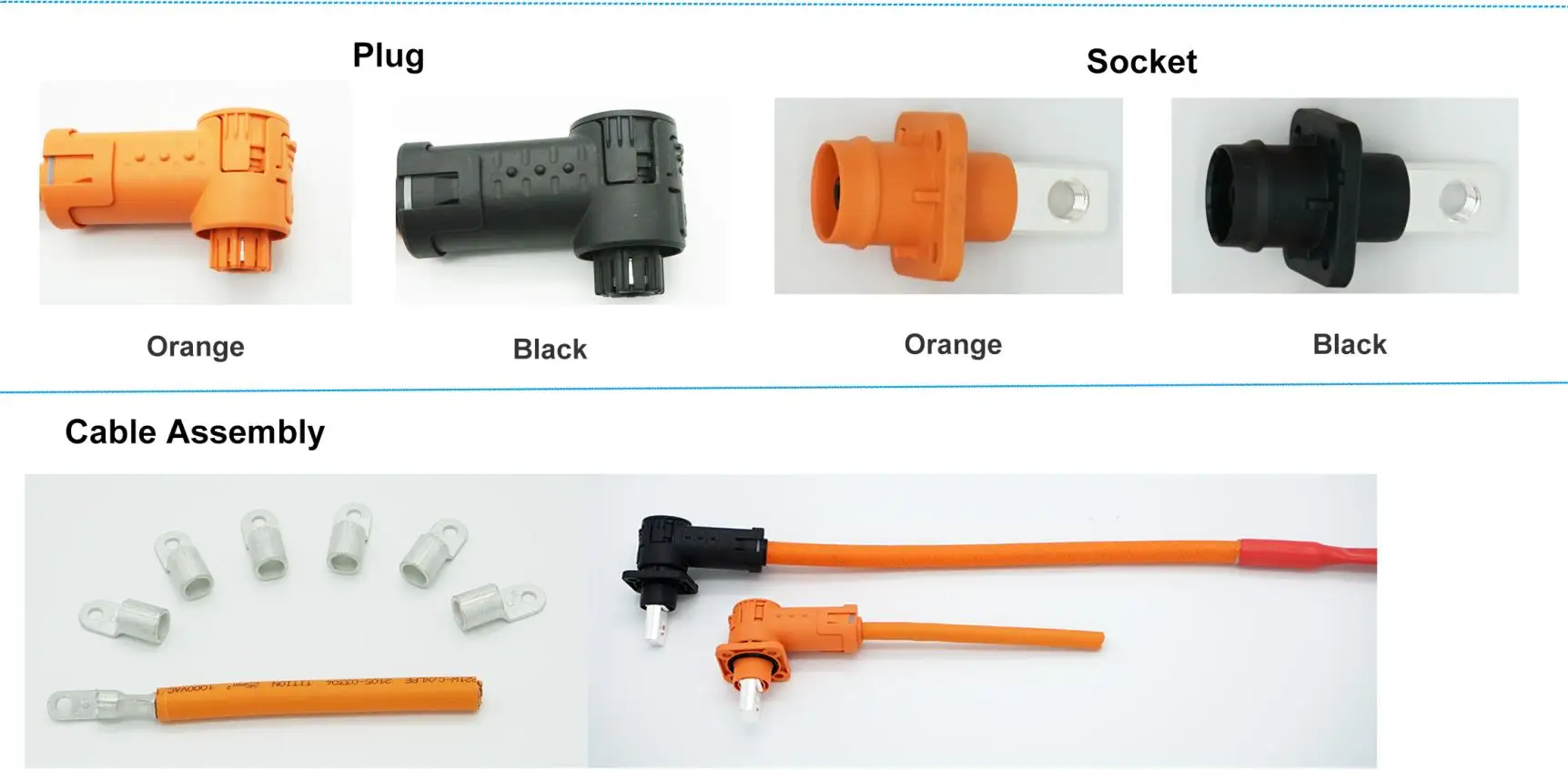

Details Images

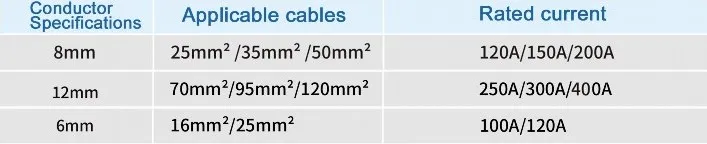

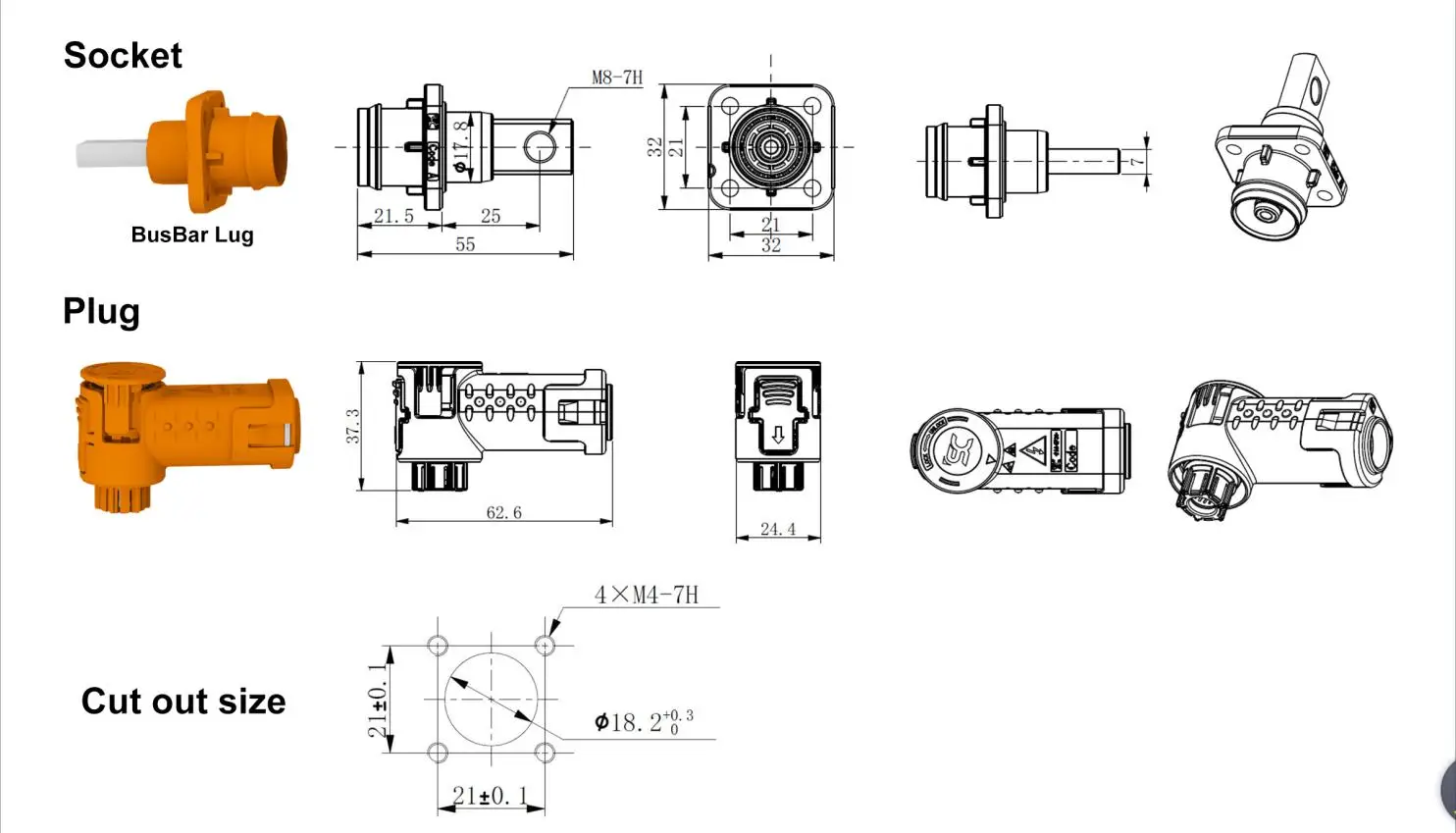

Specifications | ||
Vibration | QC/T 1067.1-2017 V1 vibration level | |
Rated current | 400A max | |
Rated voltage | 600V 1500V | |
Withstand voltage | 3000V 4000V | |
Insulation resistance | 5000MΩ | |
Protection grade | IP67 (optional), IP69K, socket separately sealed (optional) | |
Working temperature | -40℃~125℃ | |
Shell | Nylon | |
Seals | Silicone Rubber | |
Conductor | Silver plated copper | |
To ensure that the product is fully adapted, please confirm the connector voltage, current, contacts positions , and the related technical parameters before placing the order !!!

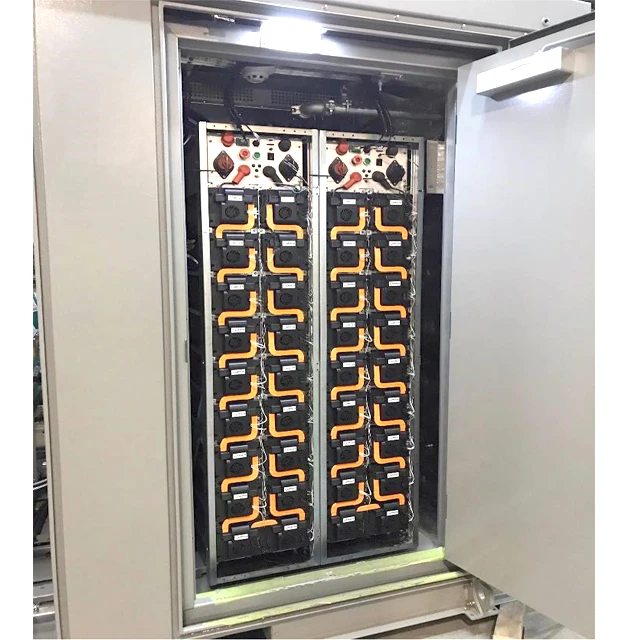

Application

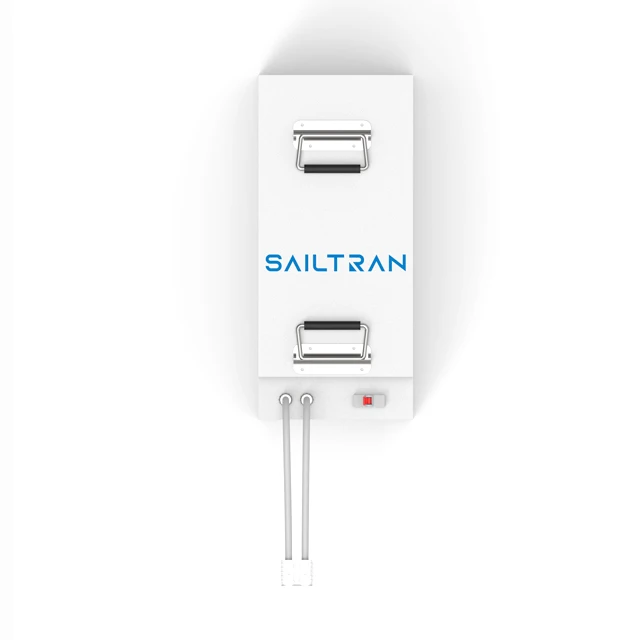

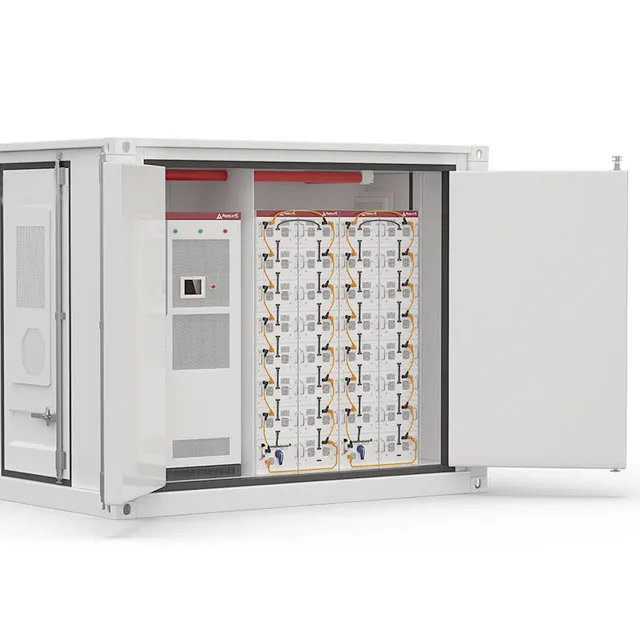

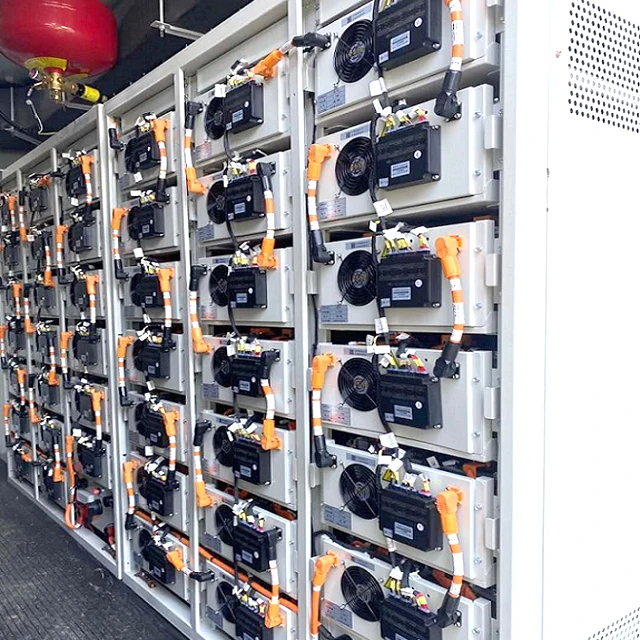

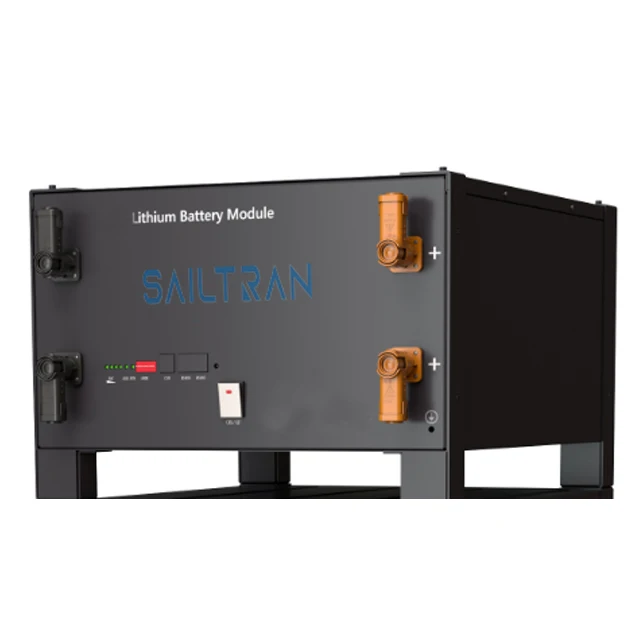

SS1 series products are connectors for energy storage systems(ESS).

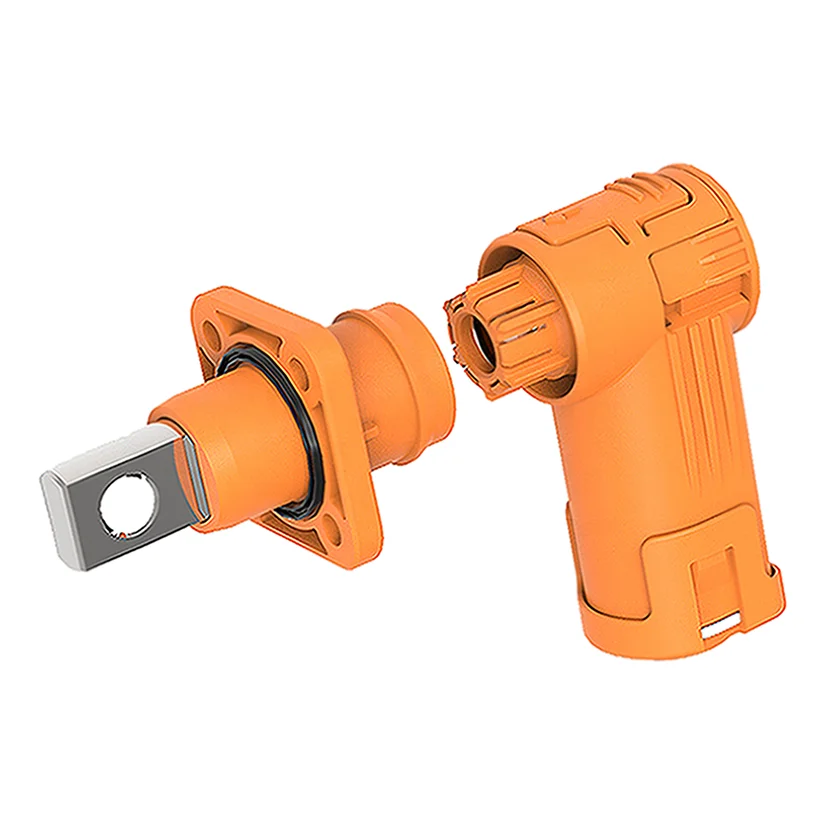

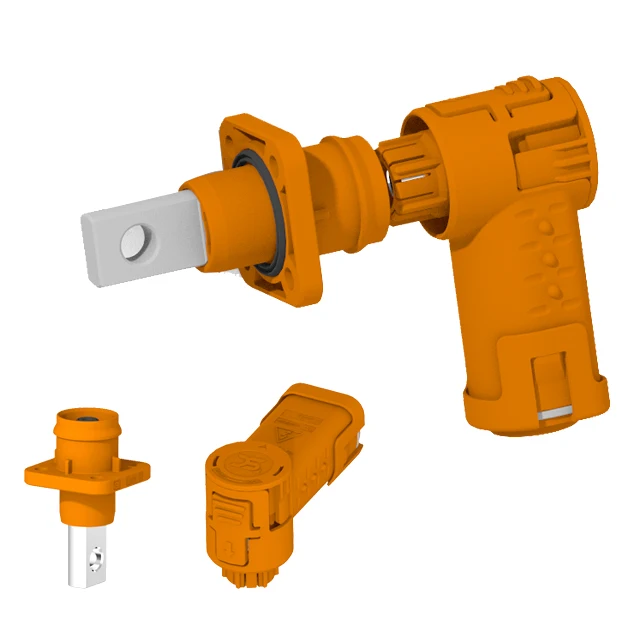

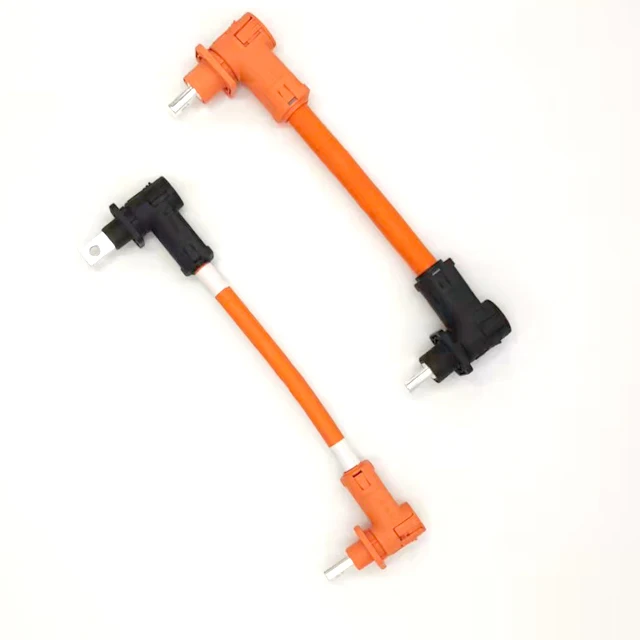

Products Categories
Certifications

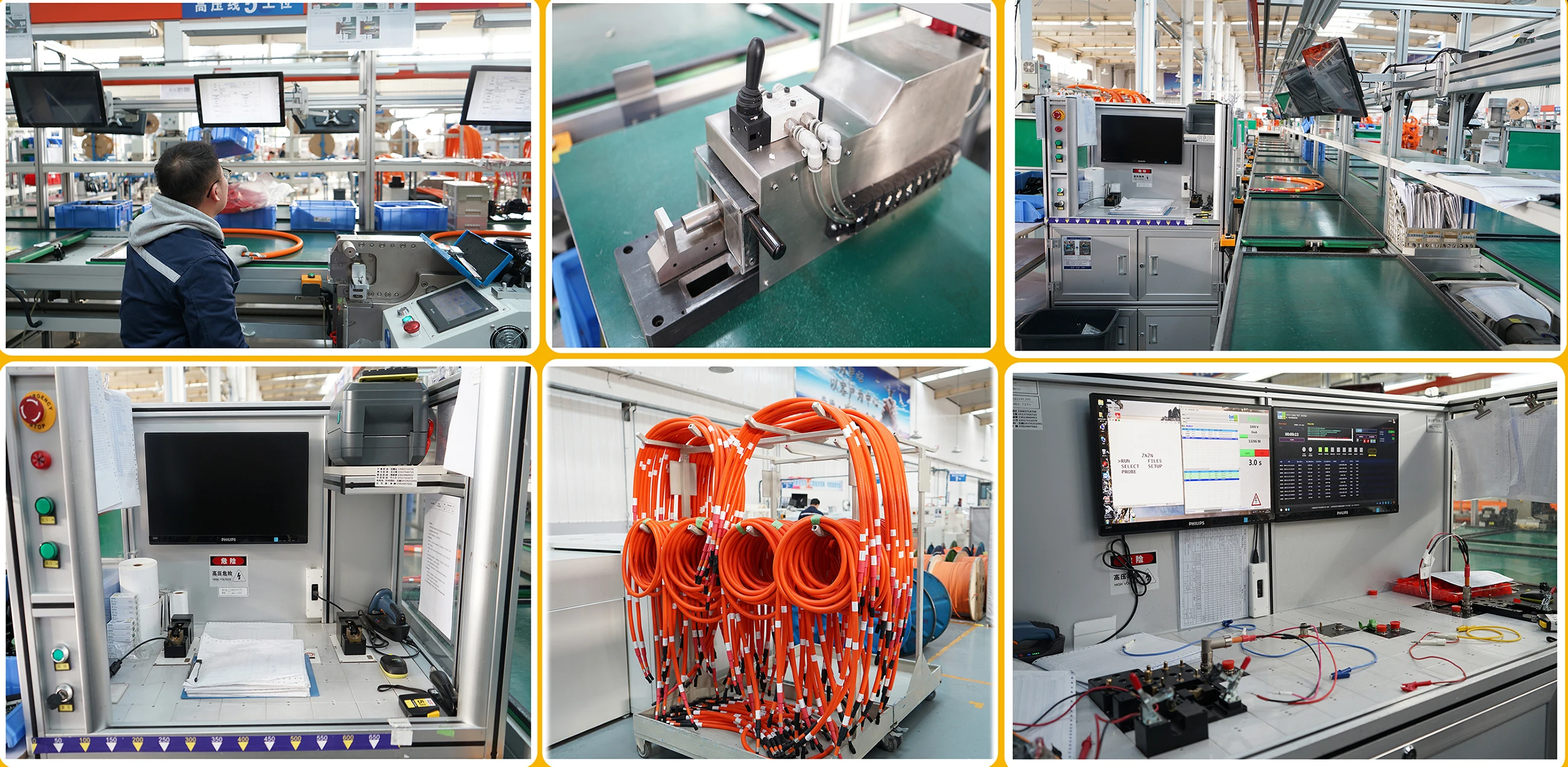

Company Profile
Product packaging
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. Carton size: 43*34*30(CM)
3. OEM package available
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in HV cables/harness, electrical connection system, Various electrical connectors, Saichuan Technology is the main supplier of Yutong Bus Group, Located in the High-tech Zone of Zhengzhou City, Henan Province.
Q2.How could I know if this product is suitable for me?
A: Before ordering, we will provide every details of the product for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable product for you.
Q3.Is it possible to provide after-sales service?
A: We have a team of professional after-sales engineers, can provide full after-sales service online or on-site.
Q4.Can I visit your factory?
A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about Saichuan technology according that.
Q5.I haven't done business with you guys before,how can i trust your company?
A: We would trade on Alibaba online to make sure your money is safely; we has rich experience of EV electrical connection solutions. Saichuan had established business relationship with so many famous brands, Quality is reliable.
Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.
