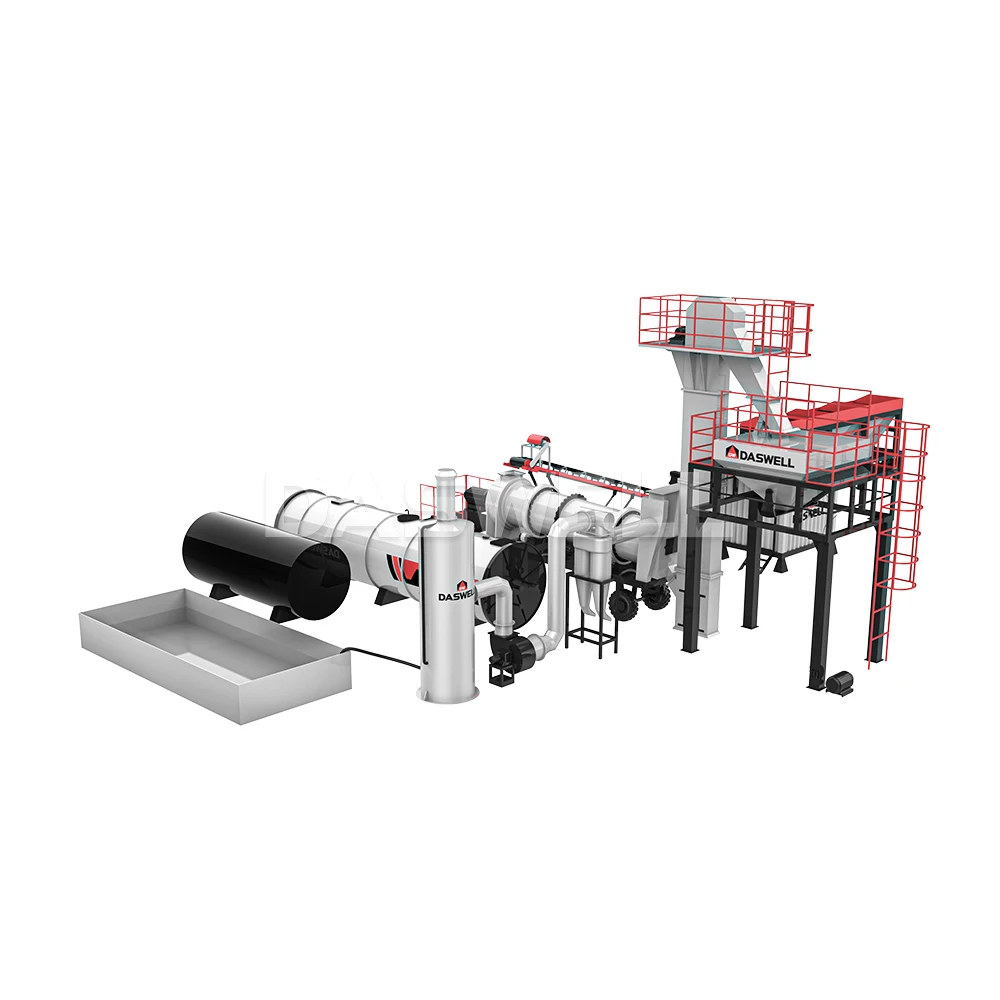

Capacity 60 160tph hot mix asphalt plant mobile asphalt plant forsale
- Category: >>>
- Supplier: HENAN DASWELL MACHINERY CO. LTD
Share on (1600515437980):
Product Overview
Description

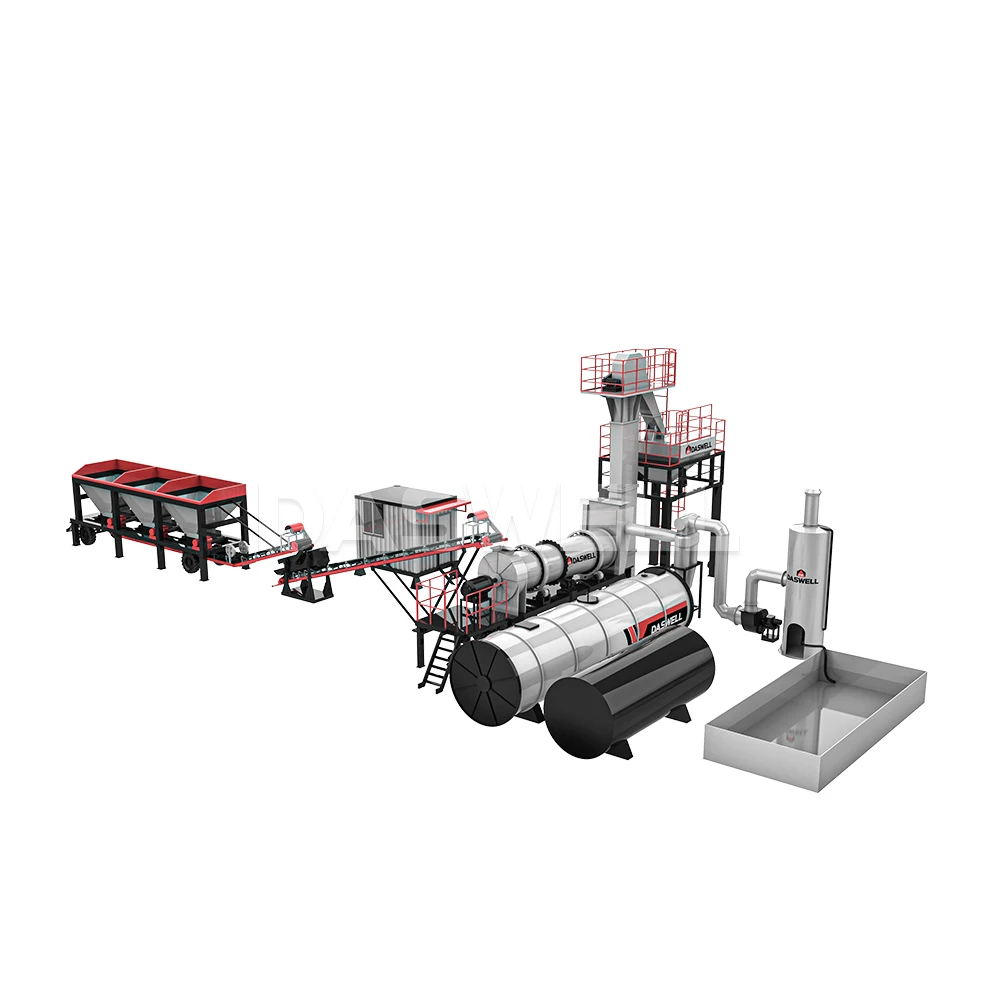

Introduction of mobile asphalt mixing plant:
The mobile drum mix plant is a kind of heating mixing equipment for black mixture, which is mainly used for the construction of black pavement, freight yard, square and other projects in highways, ports, urban construction and other departments. This machine adopts the drum-type mixer process and the forced-type mixer process. The distinguishing feature of the drum-type mixing process in this machine is that it has a good dust removal effect, and the dust in the mineral material is almost not escaped.

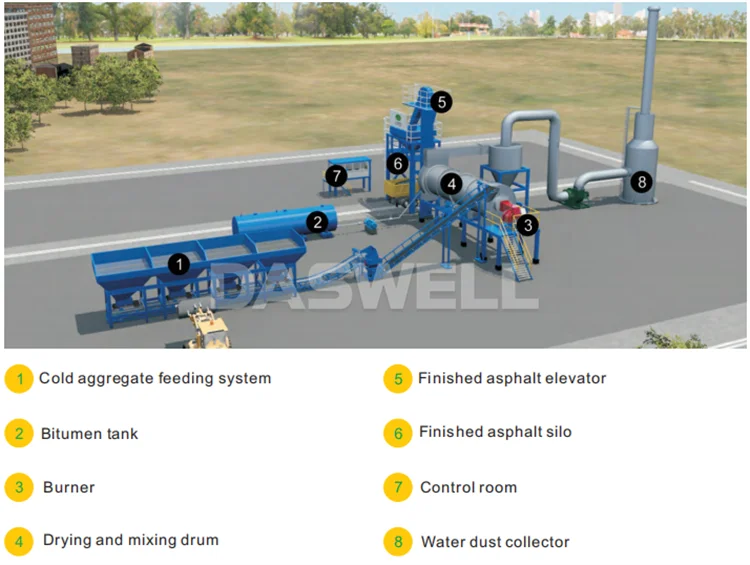

Detailed Images
Features:
1. Modular design, main modules are equipped with trailers and chassis; fast and convenient for relocation;
2. Precise screening, accurate measurement, forced mixing, producing good quality of finished asphalt;
3. Compact design, less land occupation, optional feed for filler and additives such as dye pigment, fibres and foam;
4. Optimized drying drum and mixer, better performance; key parts made of sturdy material, longer service life.
5. PLC system, intelligent control, easy to operate.
Parameters:
Model | MAPY-700 | MAPY-1000 | MAPY-1500 | MAPY-2000 | |||||
Capacity | 60 | 80 | 120 | 160 | |||||
Mixer capacity kg/batch | 700 | 1000 | 1500 | 2000 | |||||
Fuel Consumption kg/t | ≤6.5(oil fuel) | ||||||||
Weighing Accuracy (%) | Hot aggregate: ±0.5, asphalt: ±0.3, filler: ±0.2 | ||||||||
Finished Asphalt Temperature ℃ | 130~160(adjustable) | ||||||||
Dust Emission mg/Nm3 | ≤20 | ||||||||
Working Noise db(A) | ≤70 | ||||||||
Operation Mode | Full automatic/Half automatic/Manual | ||||||||
Installed Power kw | 157 | 241 | 330 | 412 | |||||
Voltage | 220V/380V, 50HZ(as desired) | ||||||||
Plant Covering Area (m) | Length | 35 | 40 | 40 | 42 | ||||
Width | 26 | 28 | 32 | 32 | |||||
Height | 15 | 15 | 16 | 16 | |||||

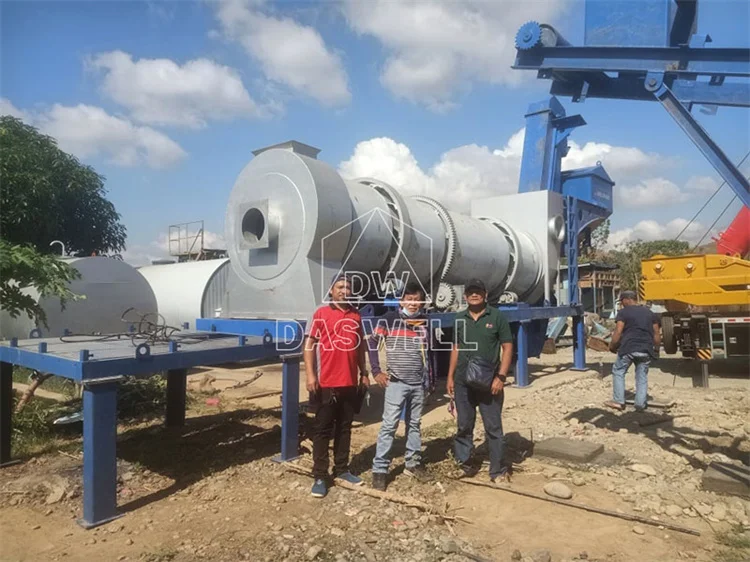

Buyer Feedback

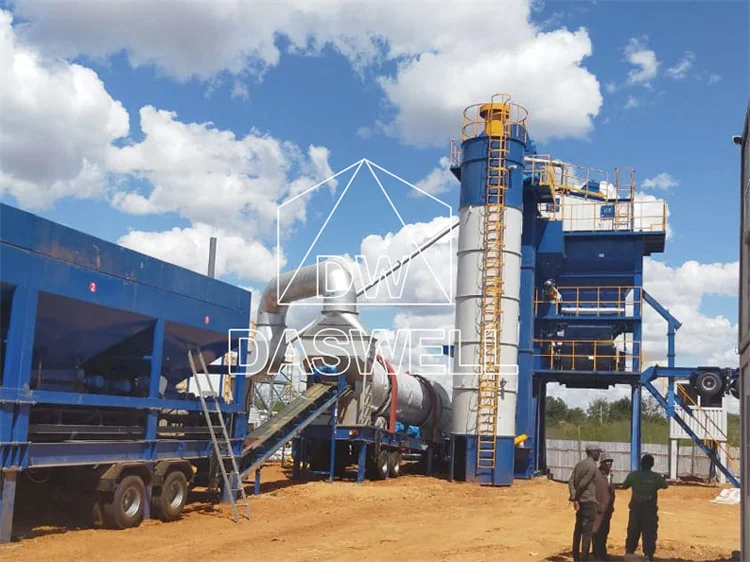

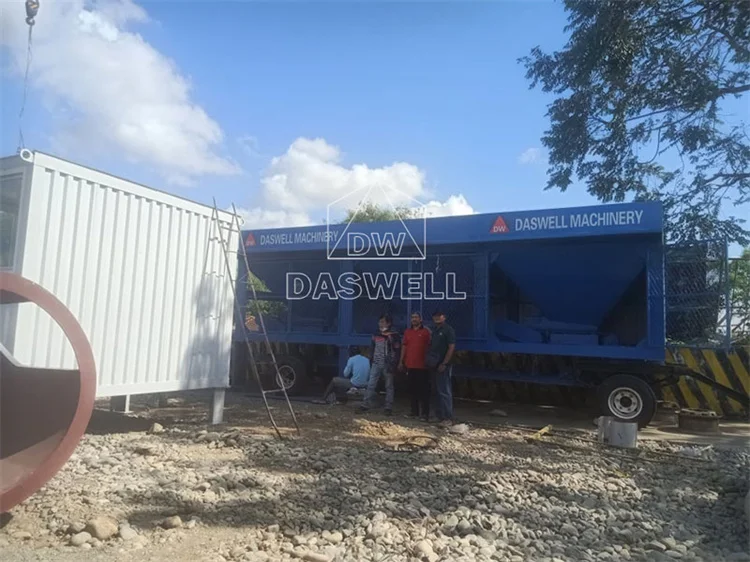

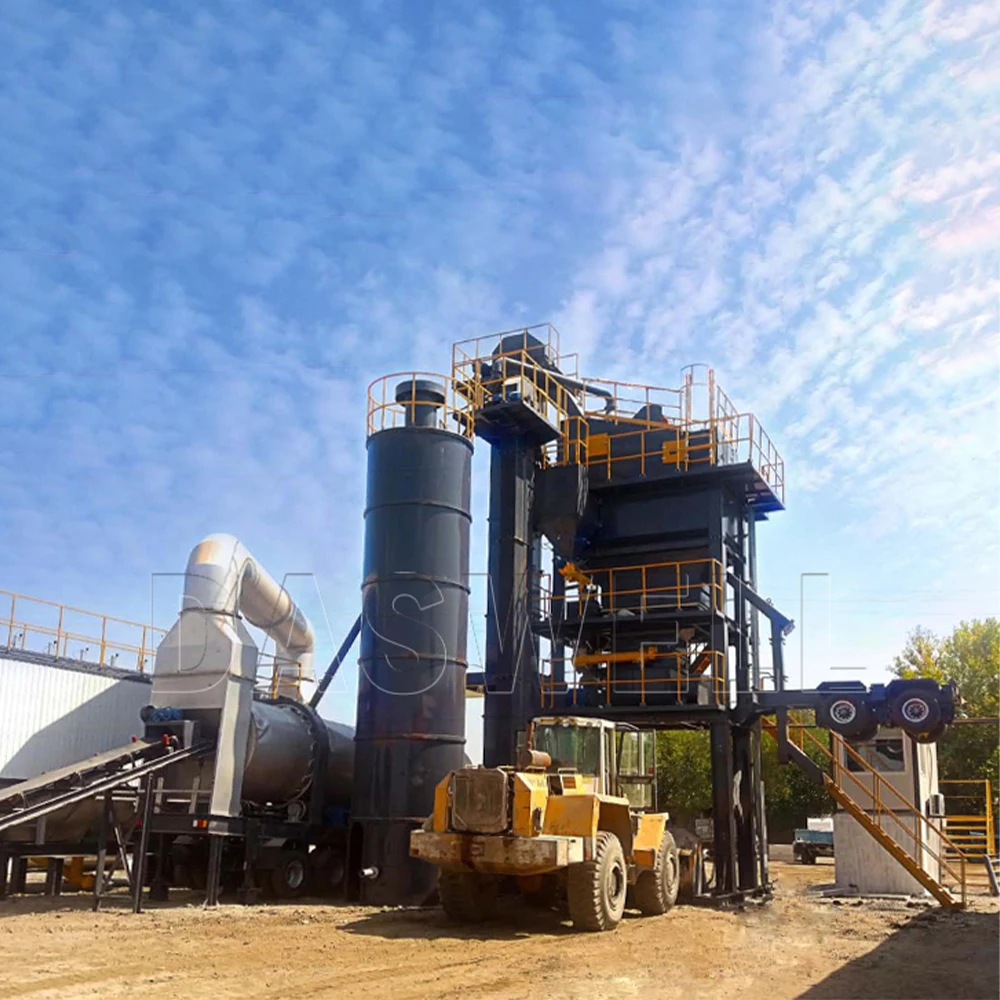

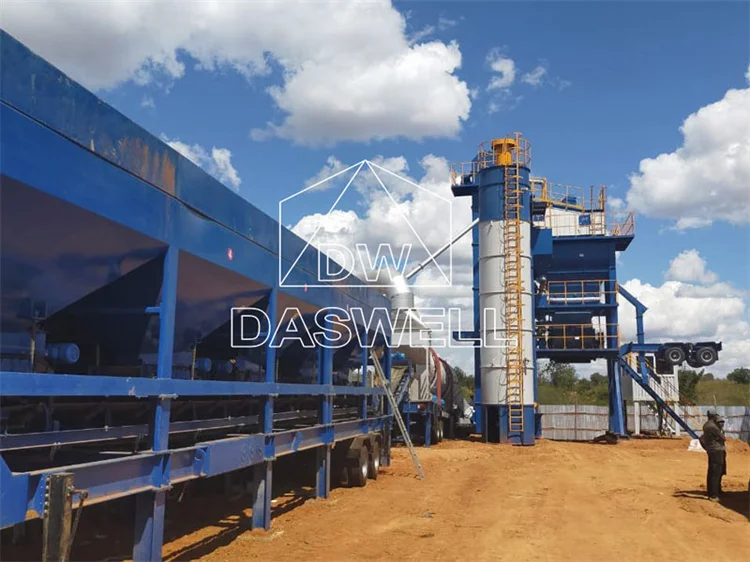

Applications

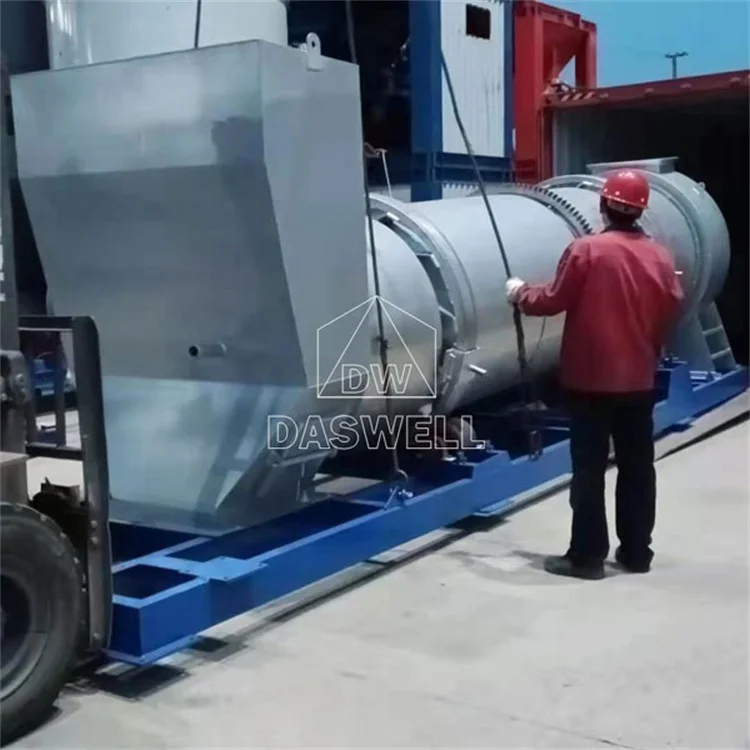

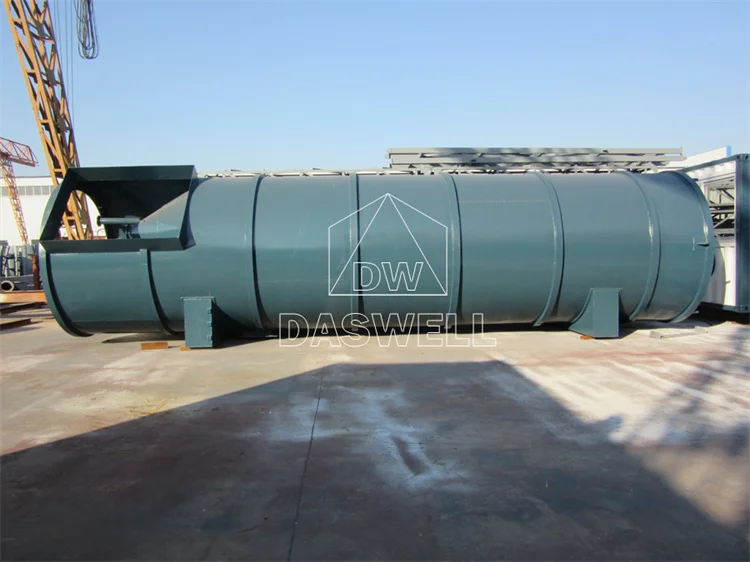

Factory show

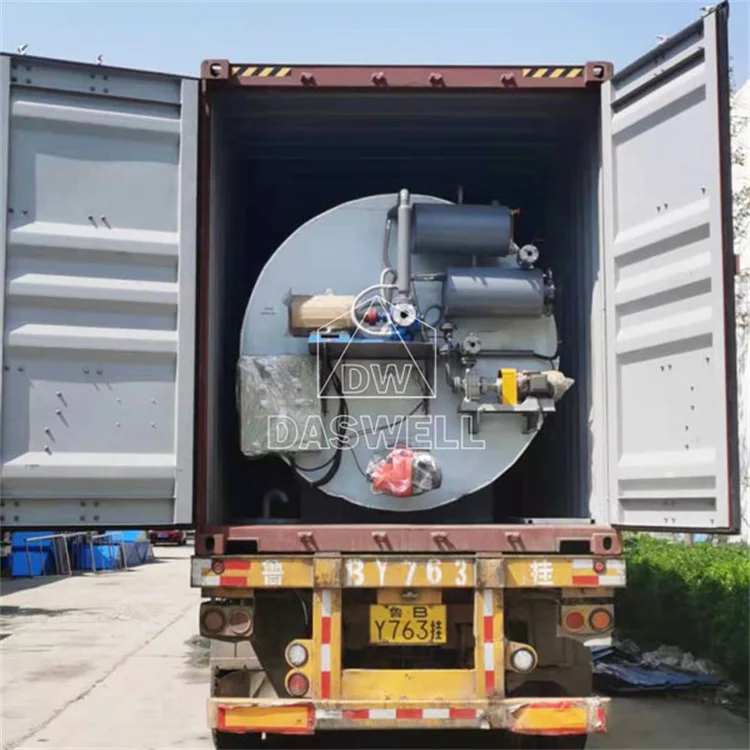

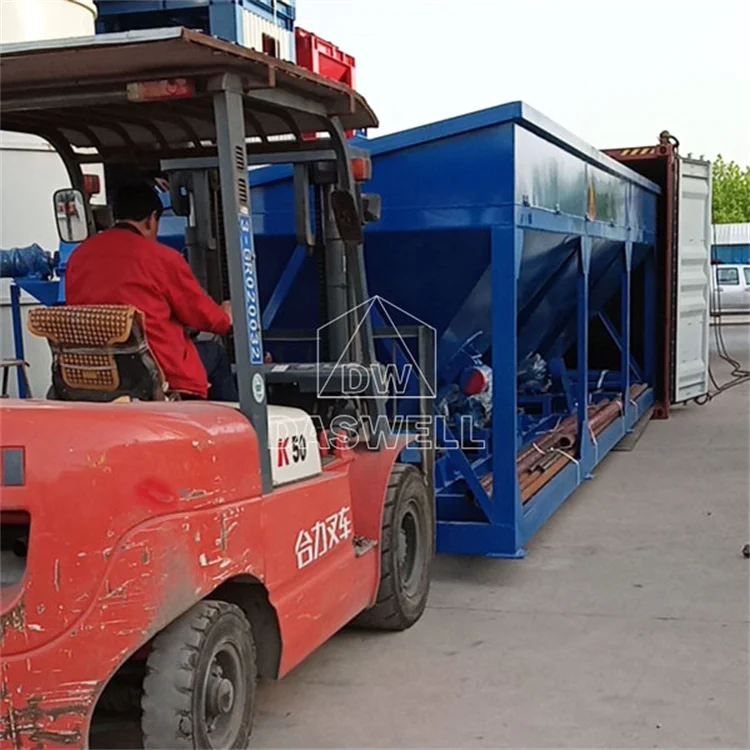

Packaging & Shipping
Overseas exhibition
FAQ
1.How many square meters does the asphalt plant cover?
After the output is determined, we will provide the scheme map. If the customer's site is limited, we can also adjust the asphalt station according to the customer's site size.
2.What dust collector is equipped with the MADP40 mobile station?
The MADP40 mobile station is equipped with water dust removal. If the customer needs, it can be equipped with a bag for dust removal.
3.What is the fuel consumption of an asphalt station?
The fuel consumption of the asphalt station is 5.5-7.0 kg/ton.
4.What brand is the burner for the MADP40 Mobile Asphalt Station?
Our MADP40 mobile asphalt station burner is from Opel.
5.What is the difference between a mobile drum asphalt plant and a mobile forced asphalt plant?
Stirring: Only the drying drum is agitated in the drum, and it is mandatory to include two links: the drying drum stirring and the mixer stirring.
Weighing: The mandatory type is weight weighing, and the drum type is flow weighing. Therefore, the finished material assigned by the drum type is not forced to be uniform and fine.
