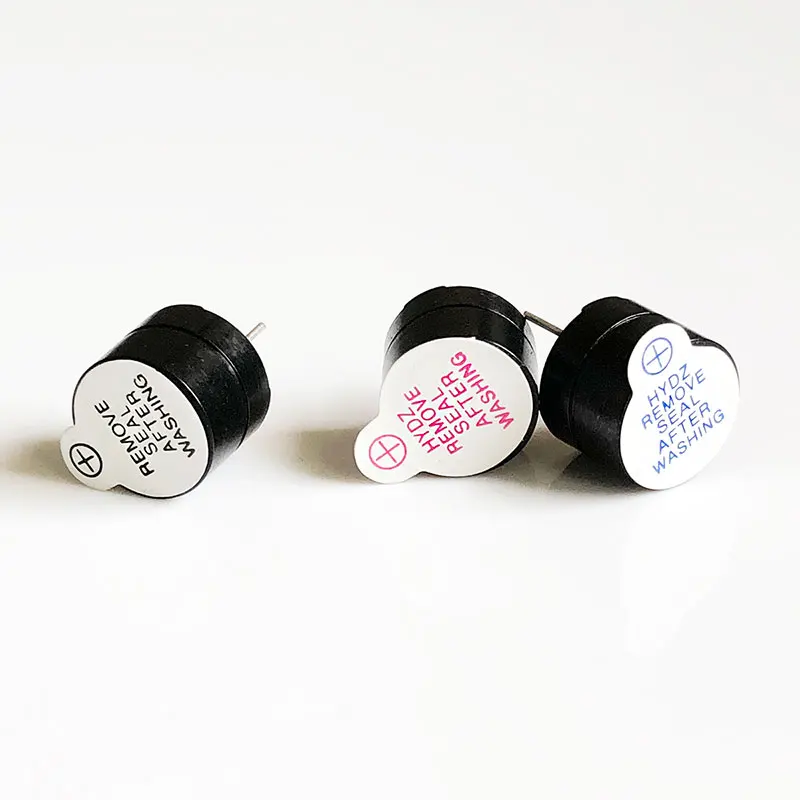

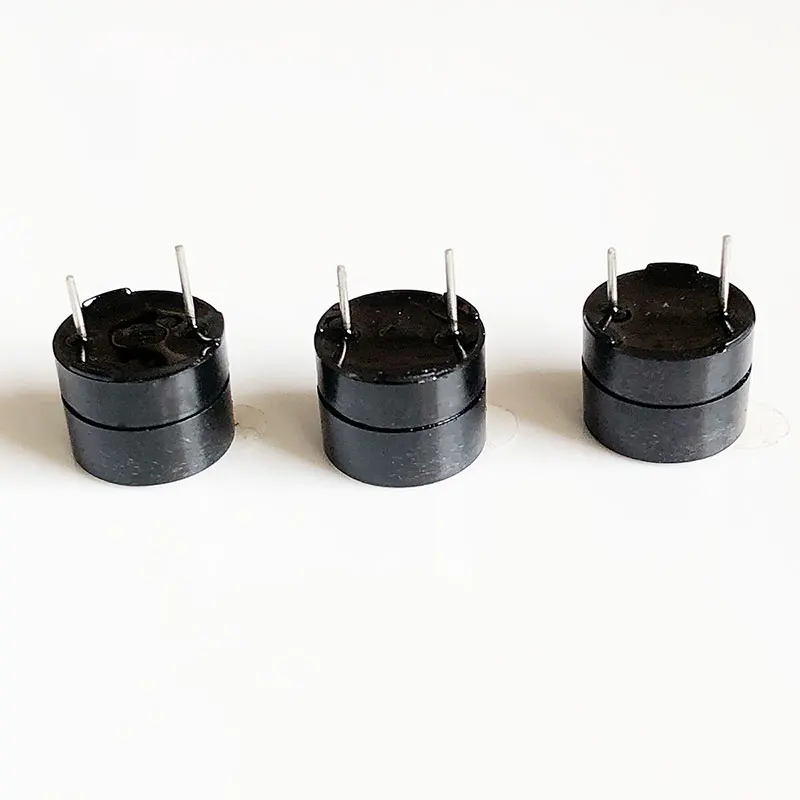

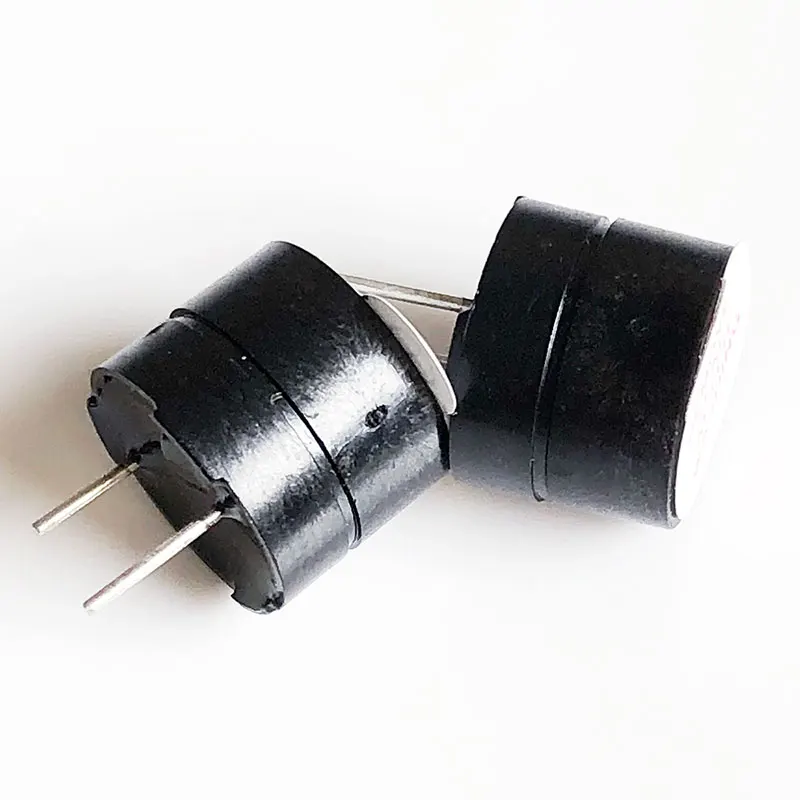

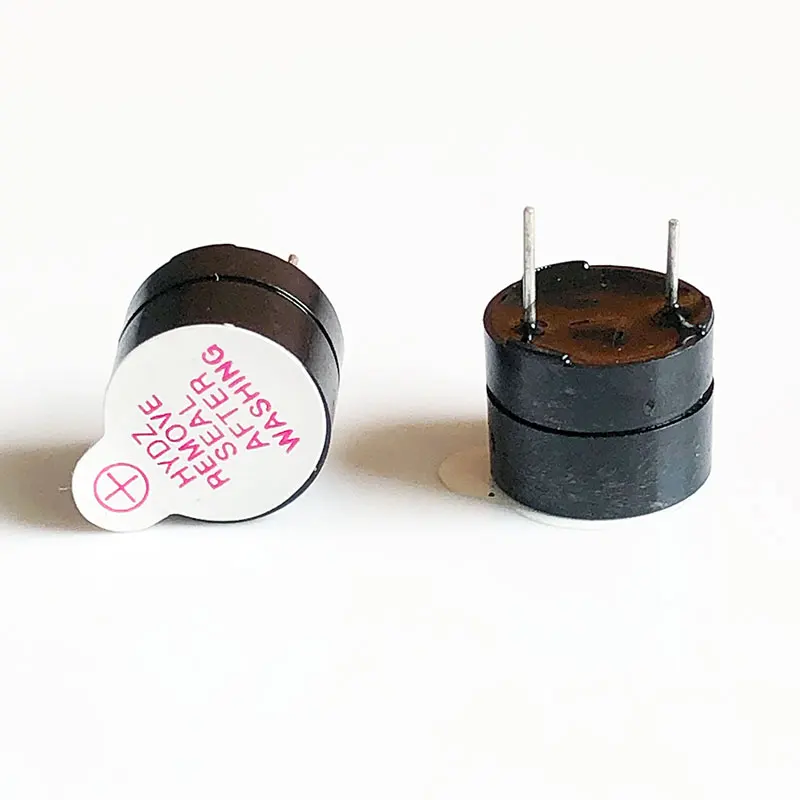

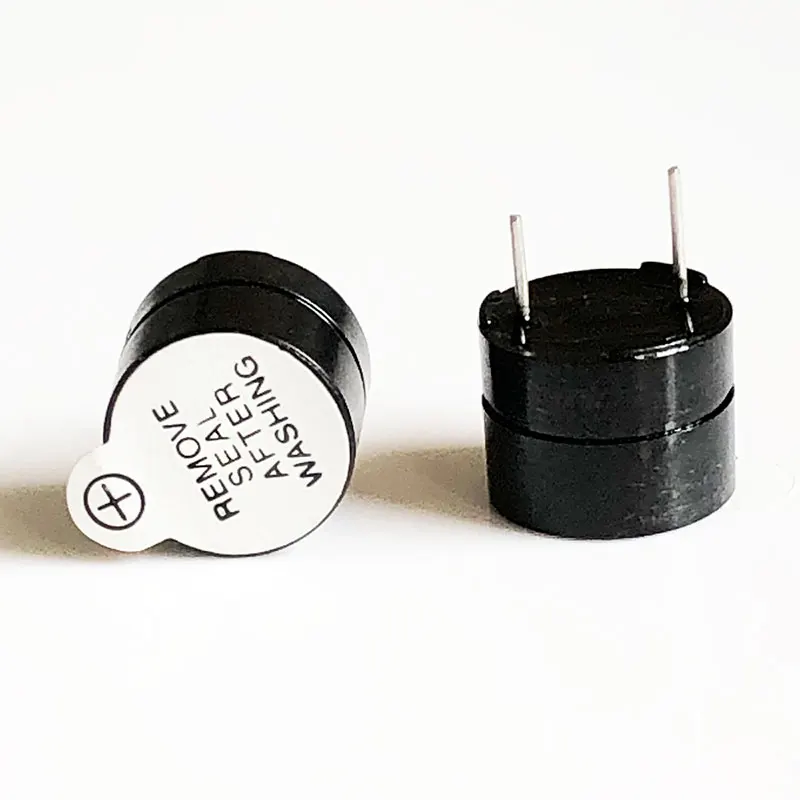

12095 manufacturers circuit 12mm universal 2300Hz Sound alarm DC 3V 5V 12V Magnetic Active electronic Buzzer
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600515442048):
Product Overview
Description
12mm universal 2300Hz Sound alarm DC 3V 5V 12V Magnetic electric Active electronic Buzzer
Product Name | 12mm universal 2300Hz Sound alarm DC 3V 5V 12V Magnetic electric Active electronic Buzzer |
Type | Buzzer |
Rated Voltage | 3Vo-p; 5Vo-p; 12Vo-p |
Operating Voltage | 2～4Vo-p; 4～6Vo-p; 9～13Vo-p |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -30℃～+70℃ |
Rated Current | Max.30mA ,at 2700Hz 50% duty Square Wave 3Vo-p |
Sound Output at 10cm | Min. 85dB,at 2700Hz 50% duty Square Wave 3Vo-p |
Tone Nature | Constant |
Resonant Frequency | 2.3kHz±0.3 |
Input Type | DC |
Technolgy | Magnetic |

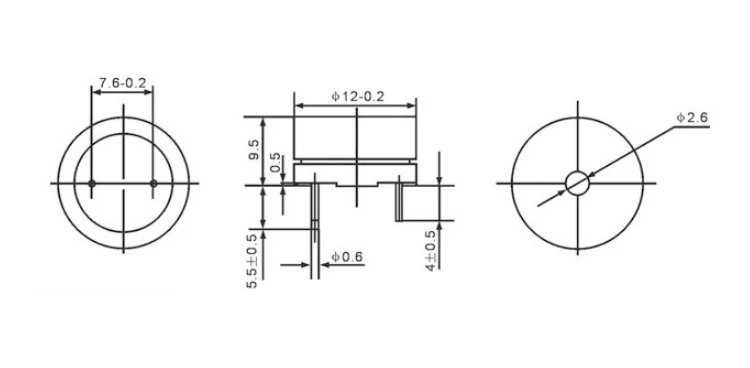

1. Magnetic Buzzer Dimensions

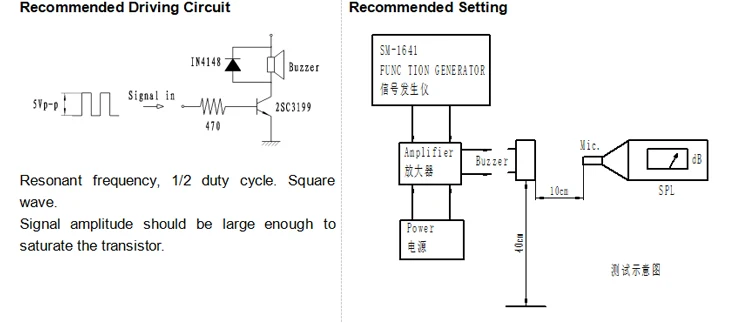

2. Magnetic Buzzer Test Circuit

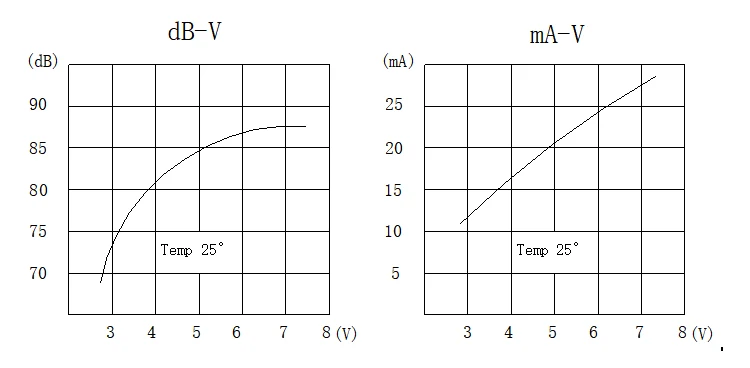

3. Magnetic Buzzer Frequency Response

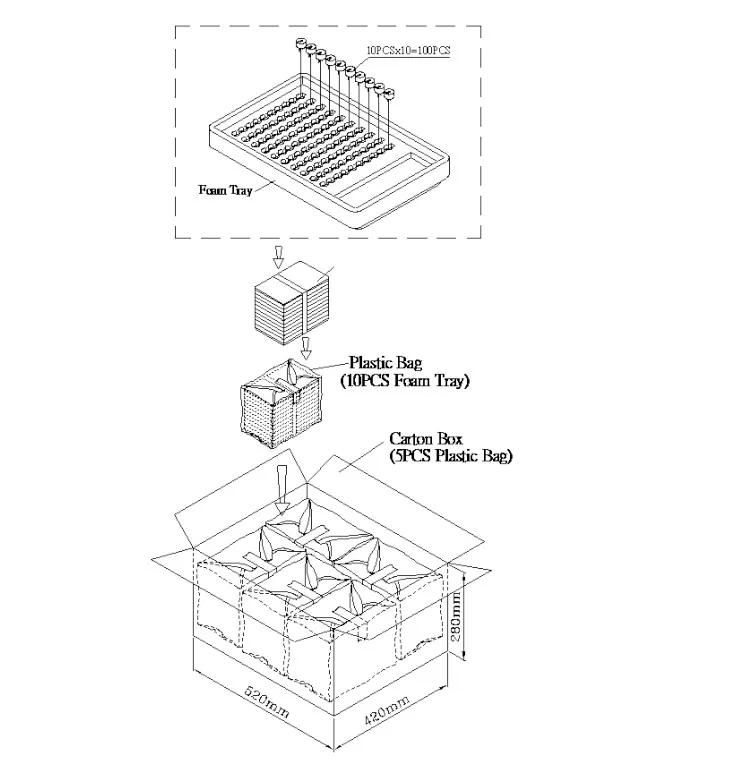

4. Magnetic Buzzer Packing
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.
Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .
Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.
Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.
Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.
Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
