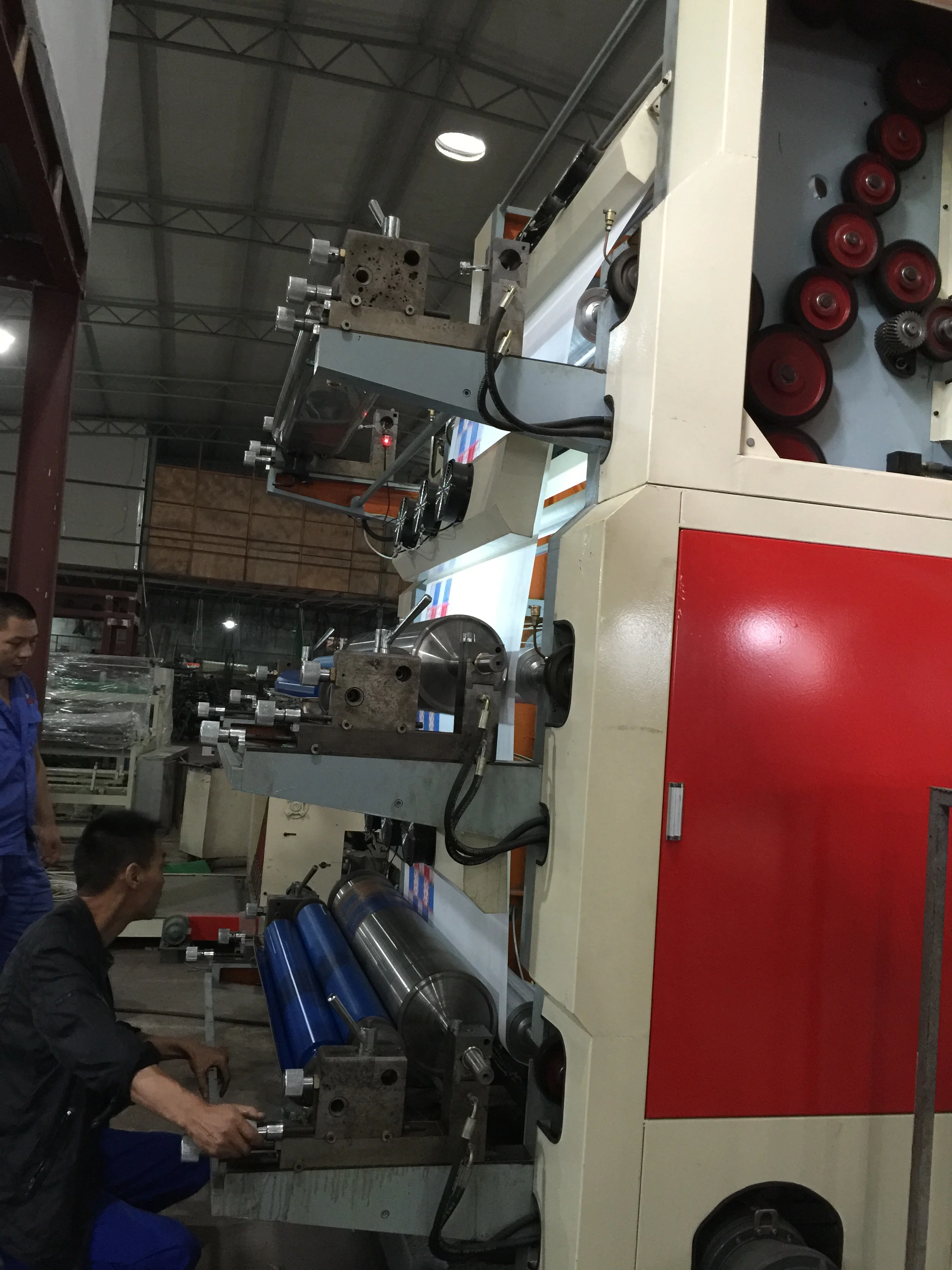

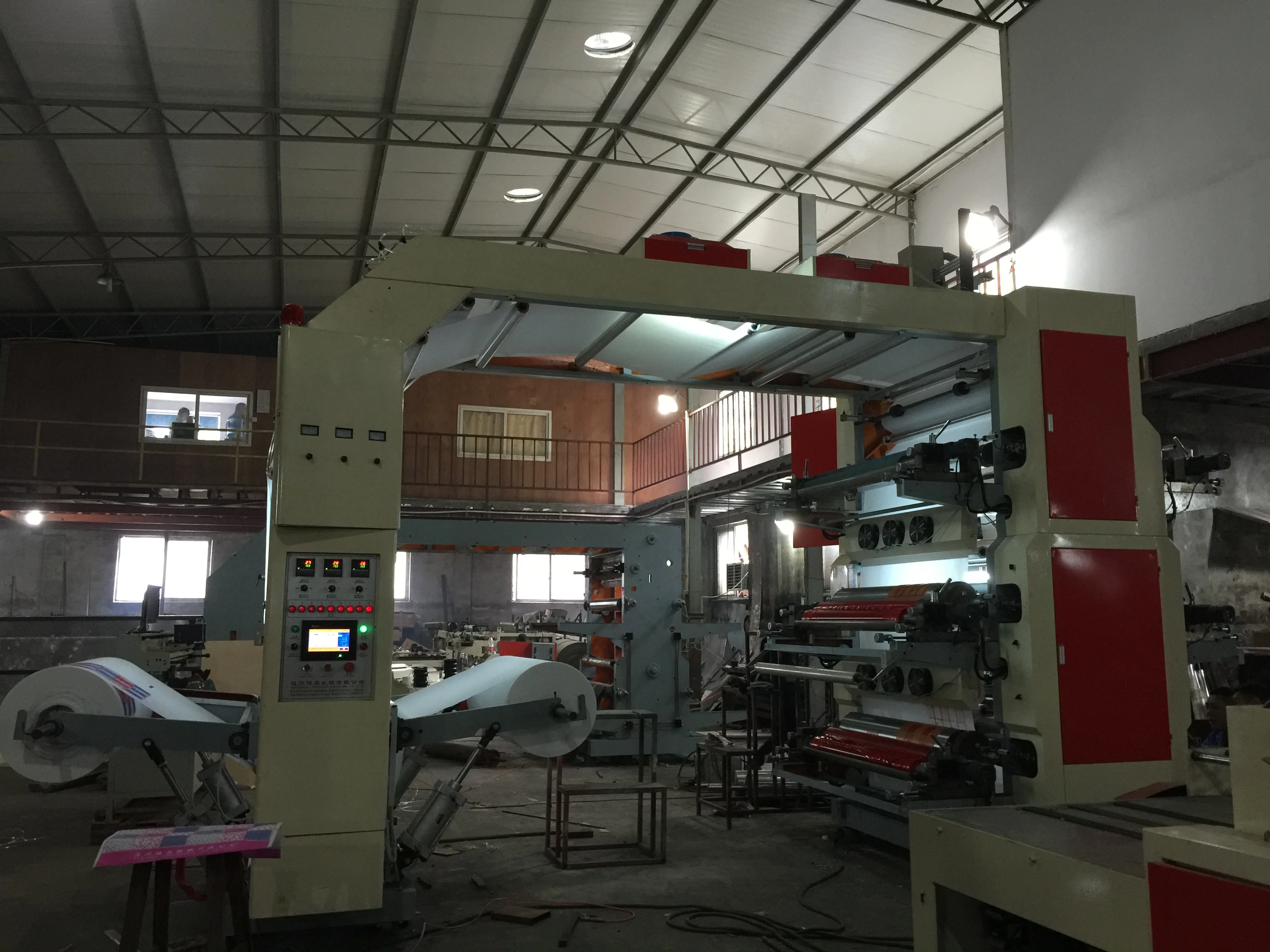

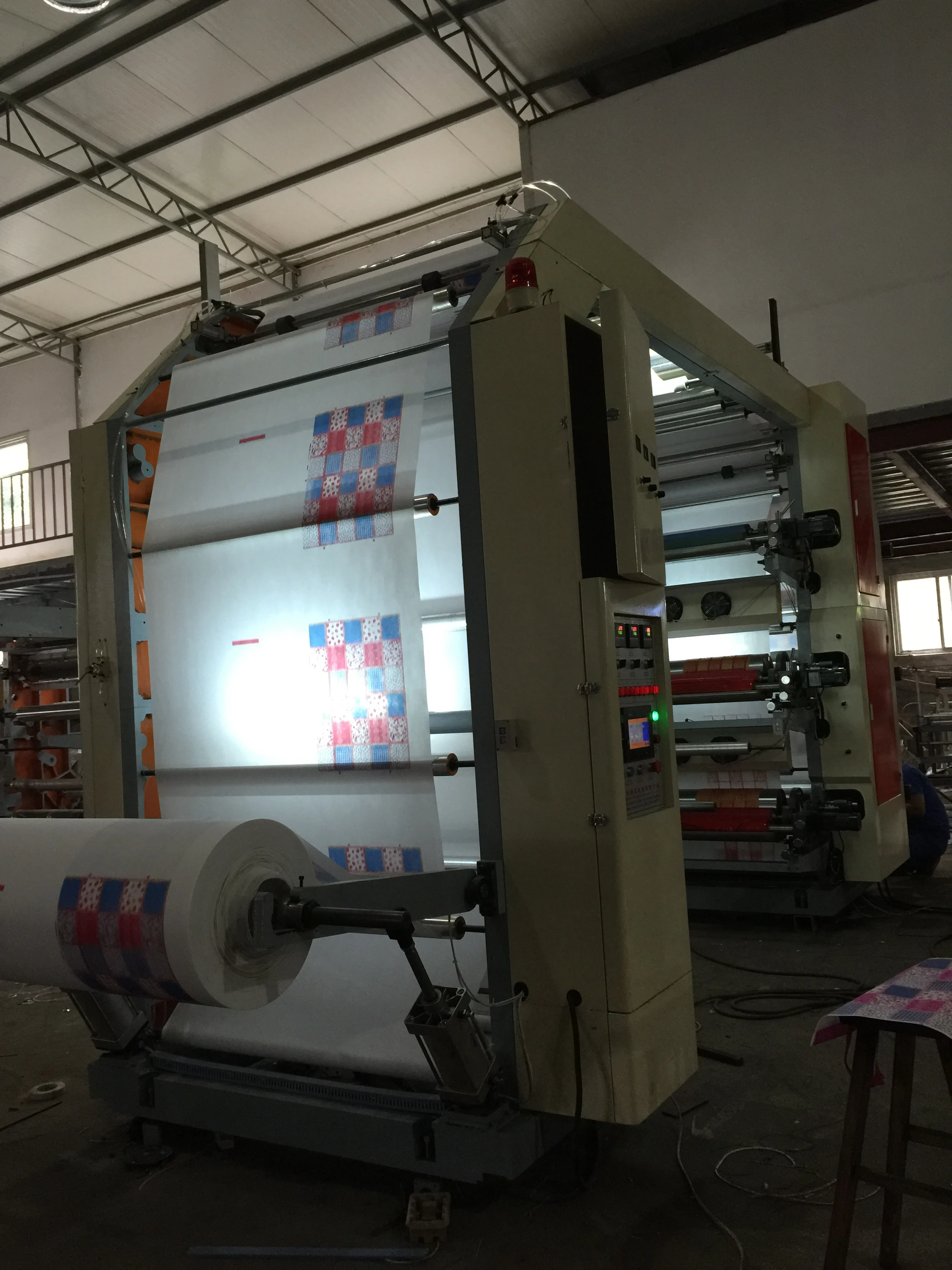

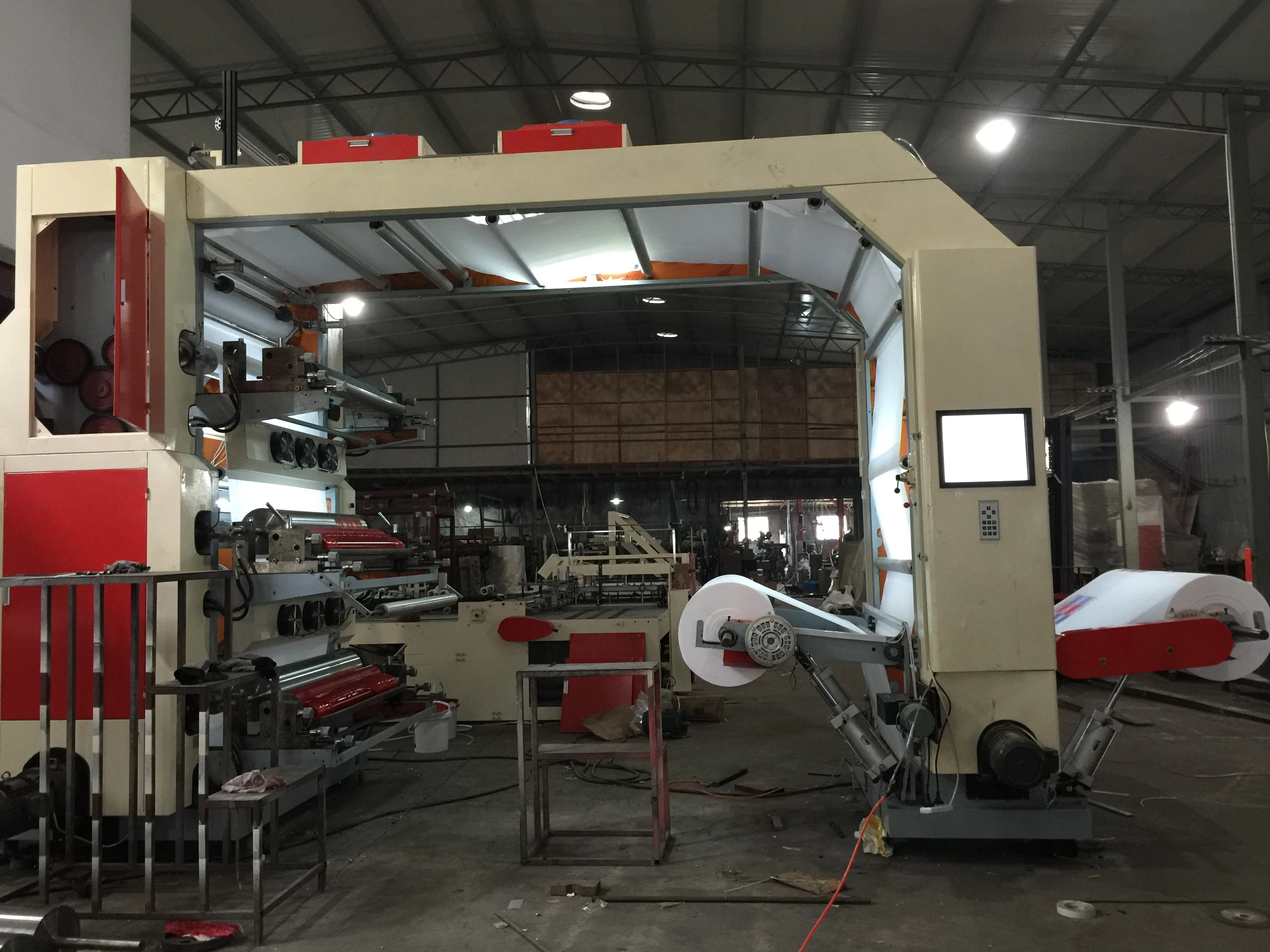

Non woven bag 2 4 6 colour printers flexo printing machine

Share on (1600515477616):


Price:$12,000.00 - $15,000.00

Quantity:


Product Overview

Description







Performance and characteristics:

(1)Automatic feeding
(2)Automatic correction system
(3)Autonmatic correction system
(4)One-time printing on two sides, accurate color registration
(5)Every color transfered by high precision gears made of SG iron
(6)Change bag length without changing plate rollers and gears, it is controlled inte ligent

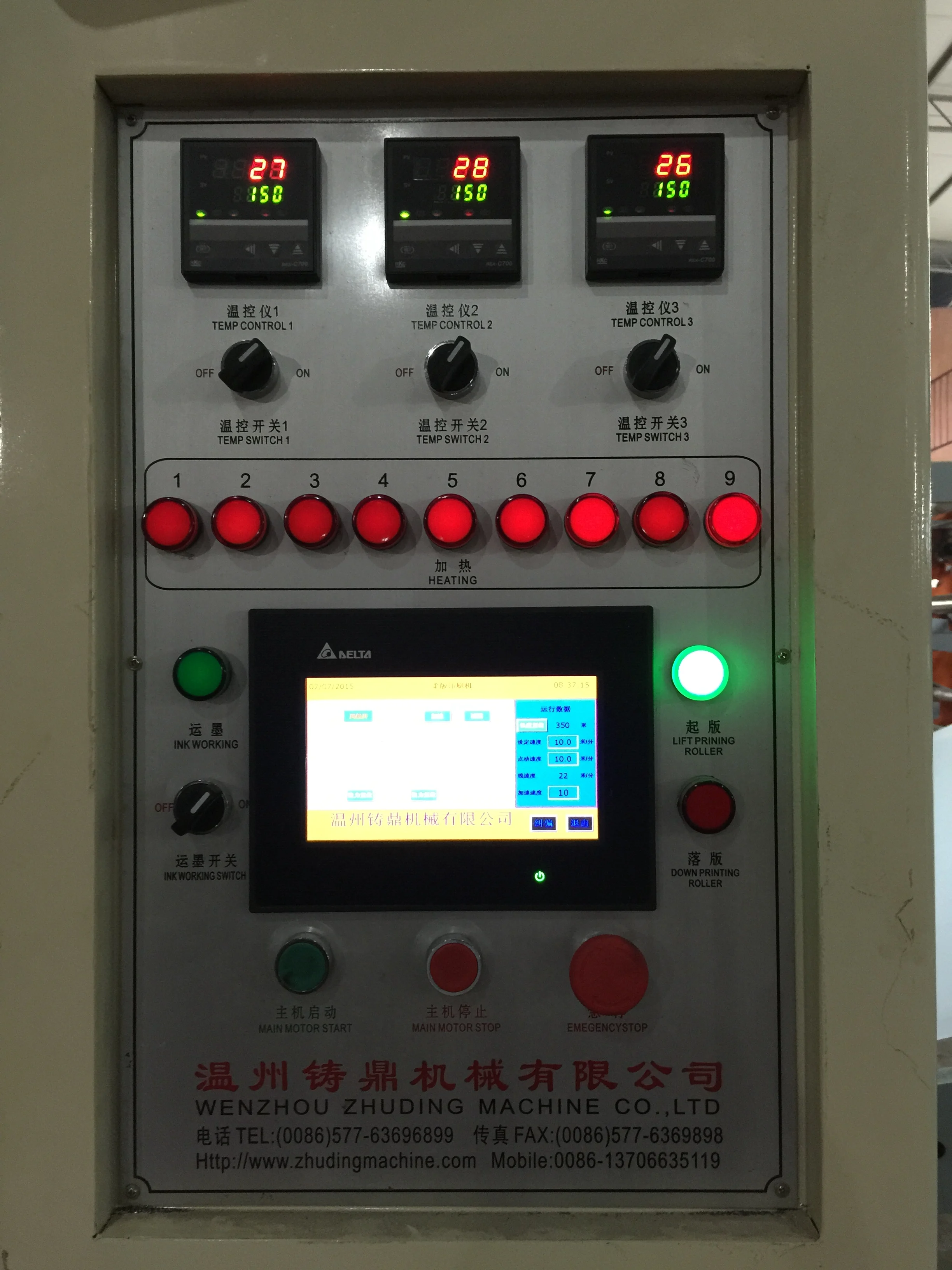

(7)PLC centralized control touch screen to set bag length and alignmen
(9)Longitudinal 360-degree electric alignment
(8)Color mark tracking is suitable fou reverse printing printed woven bags
(10)Startup with smooth ink automatically
(12)Double- sided dried by automatic constant temperature oven
(11)Press printing with automatic clutch, no defective products when machine turn on or shutdown
(13)Frequency conversion control unwinding and unwinding part
(14)Macheine power on and off is controlled by remote-control unit



Type/Item
Max Unwinding Diameter(mm)
Max Input Size(mm)
Max Printing size(mm)
Printing Plate thickness(mm)
Production Capacity(pcs/min)
Installing Dimension(mm)
ZD-RBH-800
1200
800*1300
700*1100
4
70-100
14000*2100*2300

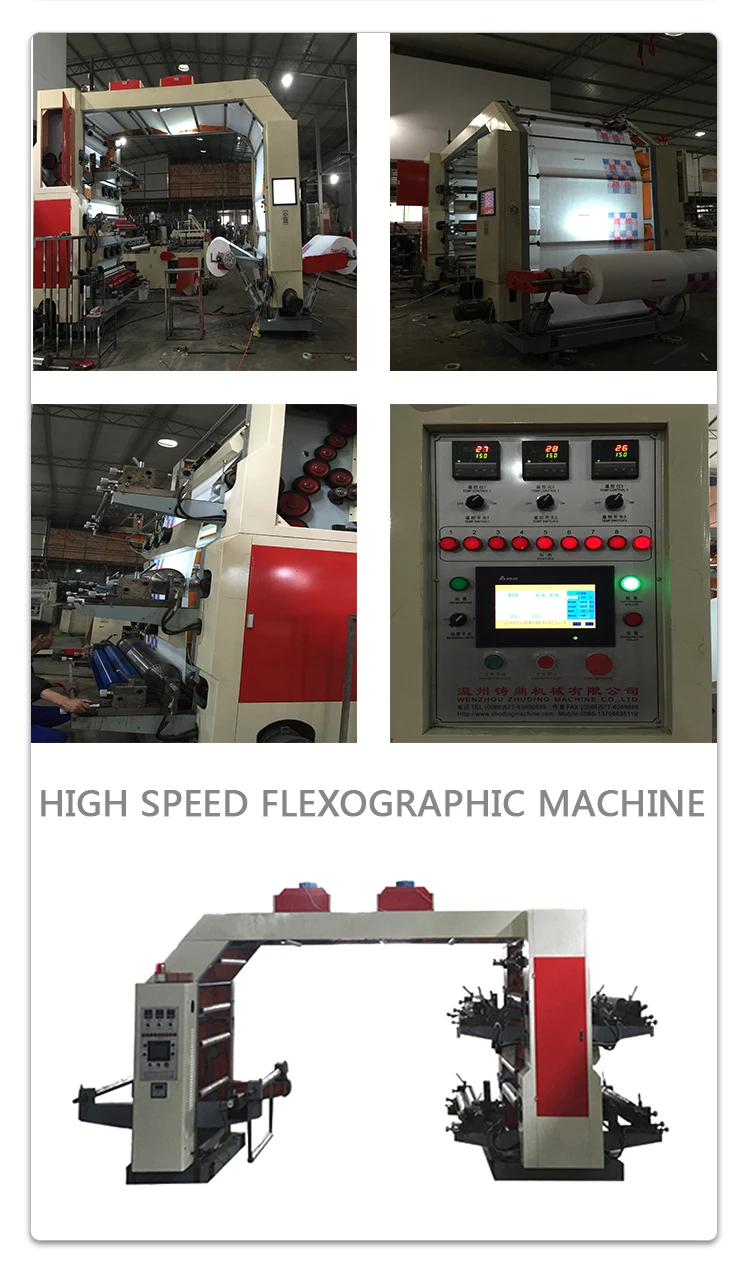

Performance and characteristics:

1 . It is simple and convenient operation , accurate color , long life
2 . Motors use from Taiwan , Japan invertersa veelectricity , running steady
3 . Automatic working in ink motor when falling printing roller , and stop automatic ei ghther when printing roller goes up
4 . Web roller transfer ink
5 . Using a special module helical gear drive , get the exact printing size
6 . It has two sets of device heating and blower , of which the use of central constant heating temperature control system and cold air device for forming shap
7 . The low-ro1ler use of special steel processing in Germany technology , and through special process , and plating thickness of 100MIC protective layer of hard chromum
8 . Aluminum alloy rigid guide to oxidation , dynamic balance,static balanced
9 . Taiwan air shaft for winding and rewinding roller
10 . Hydraulic EPC control system automatic correction Guider



Printing color
4-8
Unwinding roll diameter
600-1000mm
Printing width
600/800/1000/1200mm
Rewinding diameter
800-1000mm
Material width
1250mm
Winding and rewinding paper core
3”-6”
Printing length
1250mm
Drying Power
16-24kw
Landing version of the system
Pneumatic
Big blower
1.5kw*2
The maximum mechanical speed
100m/min
Small blower
1.1kw*2
The maximum printing speed
80-100m/min
Main Motor
3.7kw
Anilox ( ceramic is optional )
Special for Nonwoven fabric
Gross power
30kw
Registration accuracy
L = 0.05-0.15
T = 0.15-0.2
Main Frequency
3.7kw

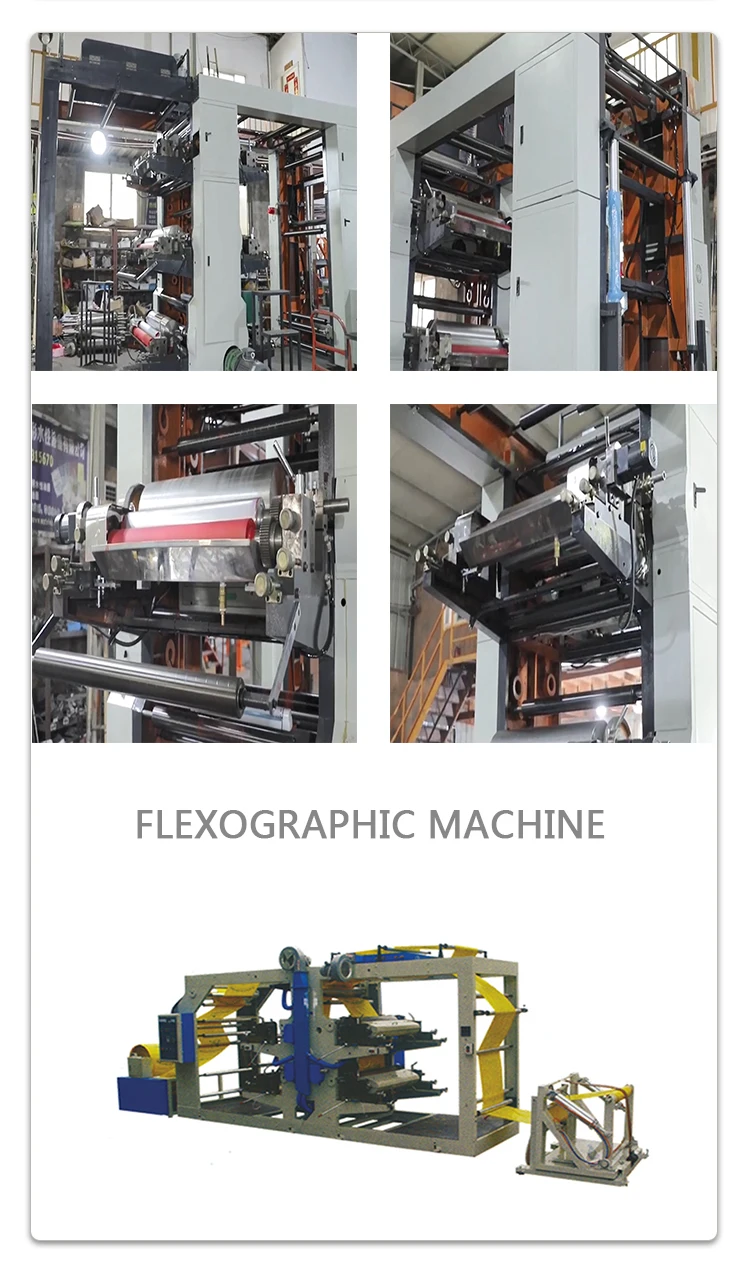

Performance and characteristics:

1. The flexo printing equipment is convenient for operation, and offers soft start and accurate color registration.
2. This flexo printing machine is manufactured with a meter counter. So, it allows users to preset the printing length. When printing length reaches preset value, the printer will automatically stop working. When there is material shortage, the printer will also stop working.
3. Printing cylinder can be either manually or automatically elevated. After the printing cylinder is lifted, the printing machine will automatically stir the printing ink to prevent ink drying.
4. Anilox roller is utilized to ensure uniform and even ink transmission. So the flexo printing machine offers fine printing quality.
5. The flexo printing machine has a reliable drying system and offers high speed operation. It turns off the power supply once it stops working.
6. This printer has a longitudinal register device that is 360 degrees adjustable.
7. With a variable frequency motor for speed control, the flexo printing equipment can meet customers' varied printing speed demands.
8. Touch Control Button and Stop Button are both available on the printing machine's roller base and material rewinding unit, which ensures convenient equipment control while installing the printing plates.




Type
Max. width of printing material (mm)
Max. width of printing roll(mm)
Max.printing width (mm)
Printing length (mm)
Max. printing colors
Printing speed (m/min)
Gross power(kw)
ZD-RY2800B
1200
800
700
230-1200
2
5-50
10
ZD-RY4800B
1200
800
700
230-1200
4
5-50
12
ZD-RY6800B
1200
800
700
230-1200
6
5-50
15












Company profile


Wenzhou Zhuding Machine Co , LTD is a professional manufacturer for plastic non woven bag complete set. Since company established , for over years continual effort , we have come into being a whole scientific management system which ranges in devicing production , controlling quality , delivering product and customer service , also we have a professional group which have been trained strictly , they are able to offer multi-faceted technical service which including program design , product manufacture and the technique of the product.


Our company specialized in manufacturing Firstly Automatic Extrusion lamination machine for Non woven fabric , PP woven fabric ,Paper , EPE foam , Car mat and seat etc , Machine with advantage like Lamination Coating thickness controlled automatically , PLC control system , automatic change winder and un-winder , automatic trimming system . AC motor . converter control speed ; Secondly Automatic Non woven bag cutting and sewing machine for PET Non woven bag , Flour Non woven bag , Loop handle sewing kind Non woven bag , Chinese herbamedicine boiled bag ; Thirdly other assistant equipment like lace machine.

Welcome customer who are from domestic and oversea come to buy on an ex-gratia basis!

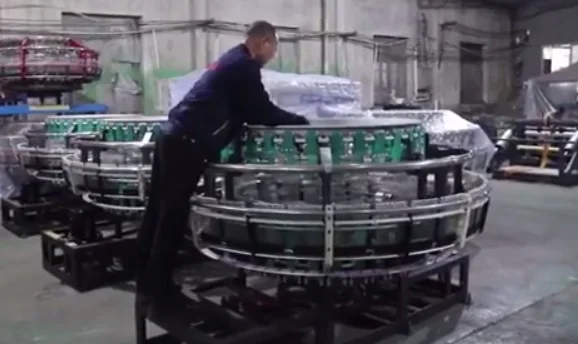

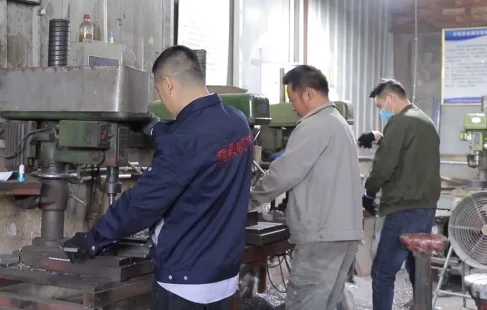

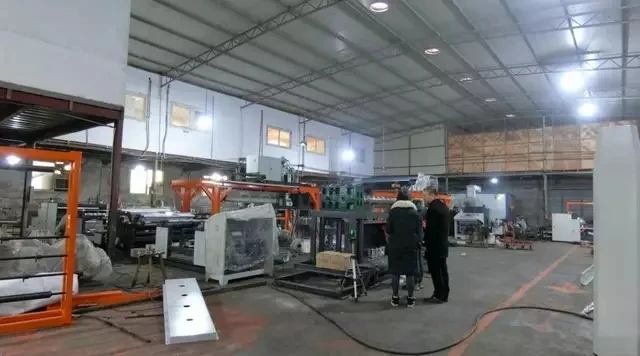

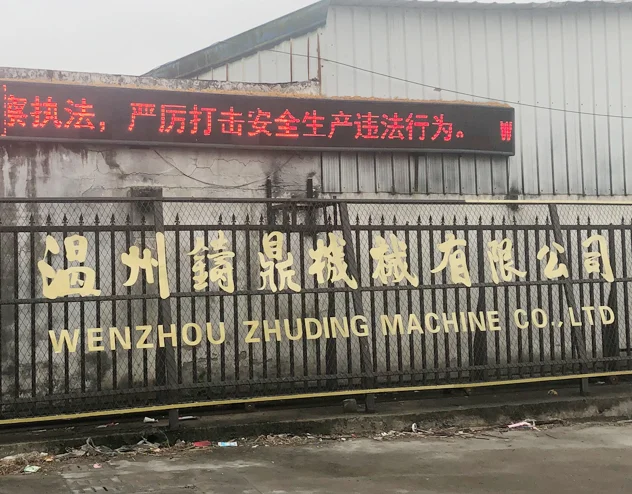

FACTORY SHOW

We will, as always adhere to the purpose of 'Credit creates benefits, quality produces life’

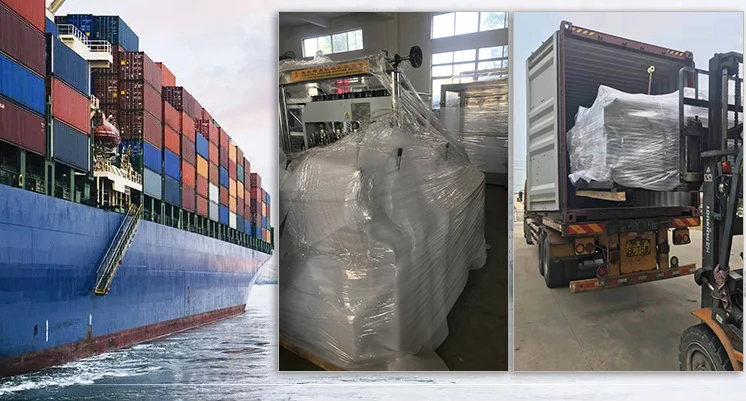

Packaging Details

Wrap the machine with film,then container or wooden box
It can also be customized accordingto customer requirements








1. Q:How long will your engineer reach our factory?
A:Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc.Prepared)

2. Q:How many days will you finish installing ?
A:We will finish installation and training within 15 days.

3. Q:What should we charge for your engineer?
A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.

4. Q:How long is your machine's warranty period?
A: All our machine have half a years guarantee for electricity parts and one years
guarantee for mechanism, starting from finished installation.

5. Q:How could you do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

6. Q:How could you do after one year warranty period?
A:We also can do service for you, but you need pay
salary for our technicians 80USD/day for each person.

7. Q:Does your engineer understand English?
A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.

8. Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.

9. Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
